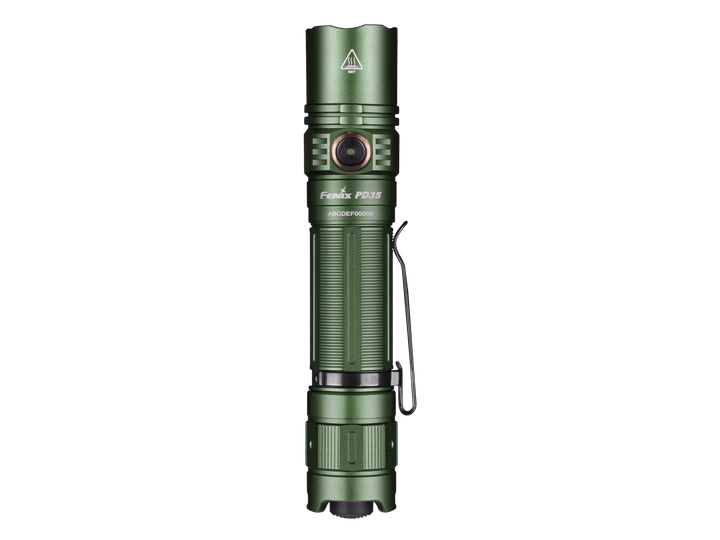

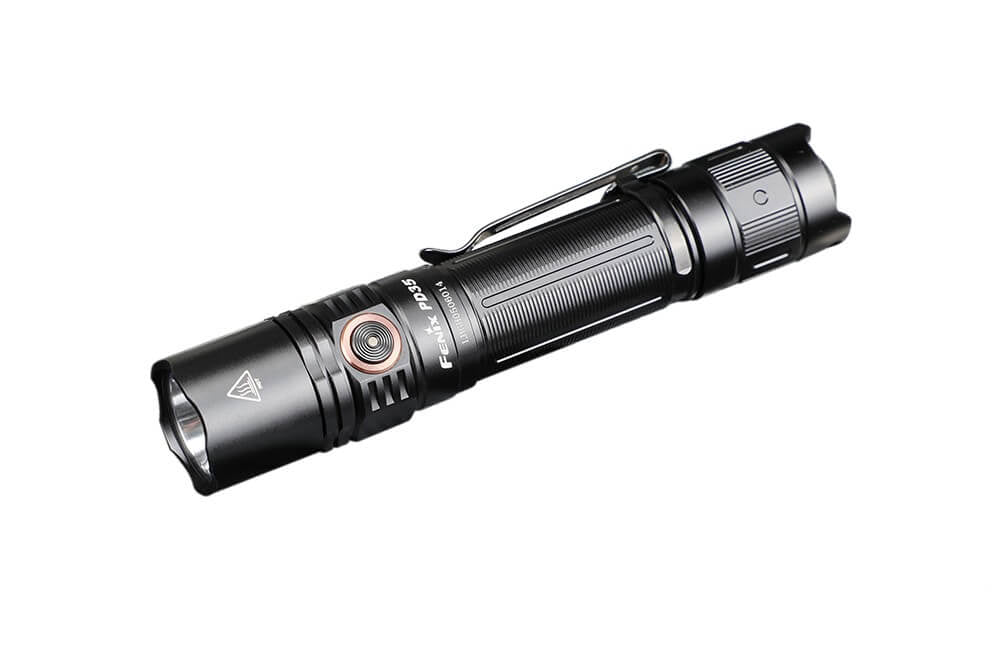

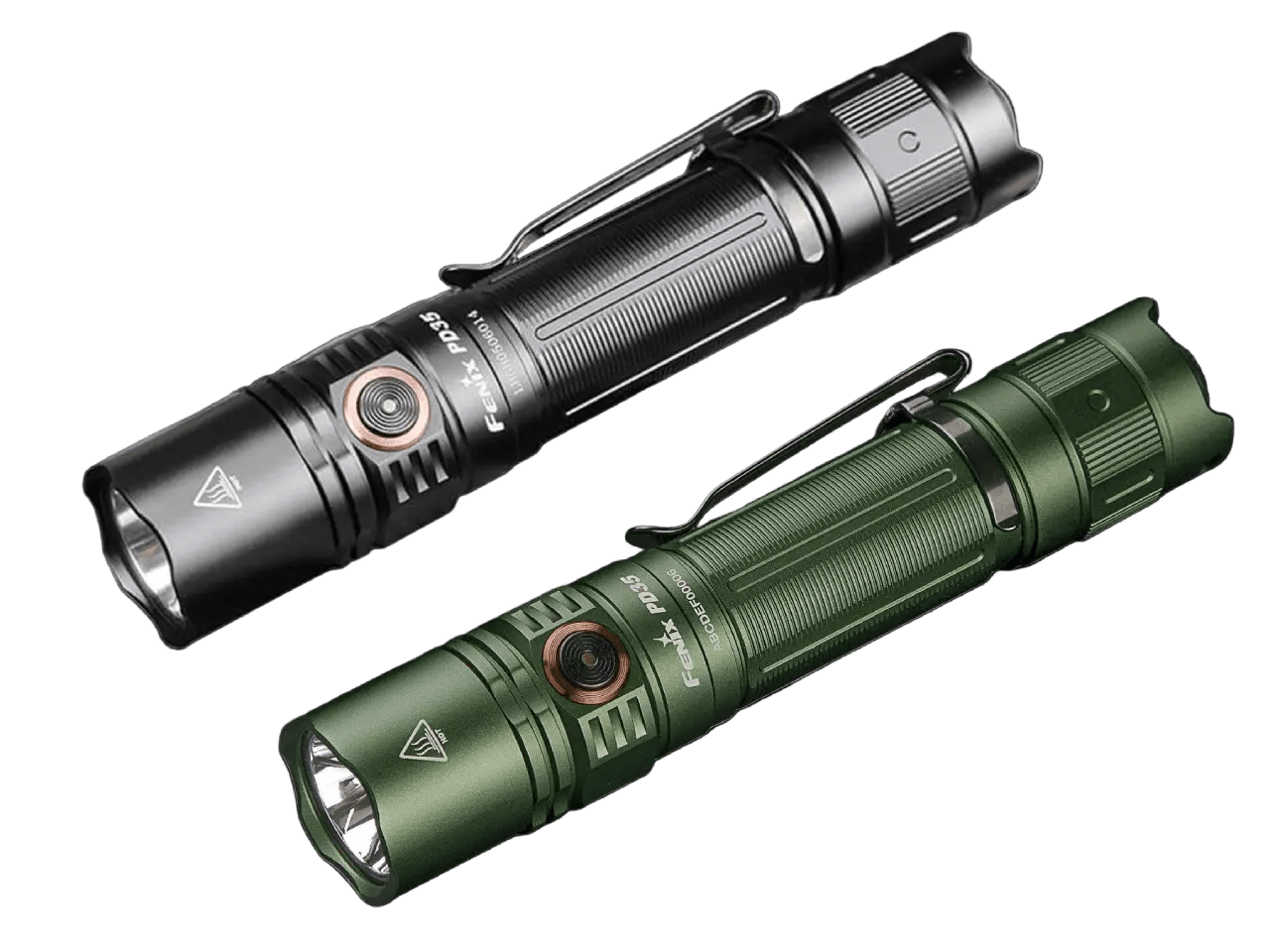

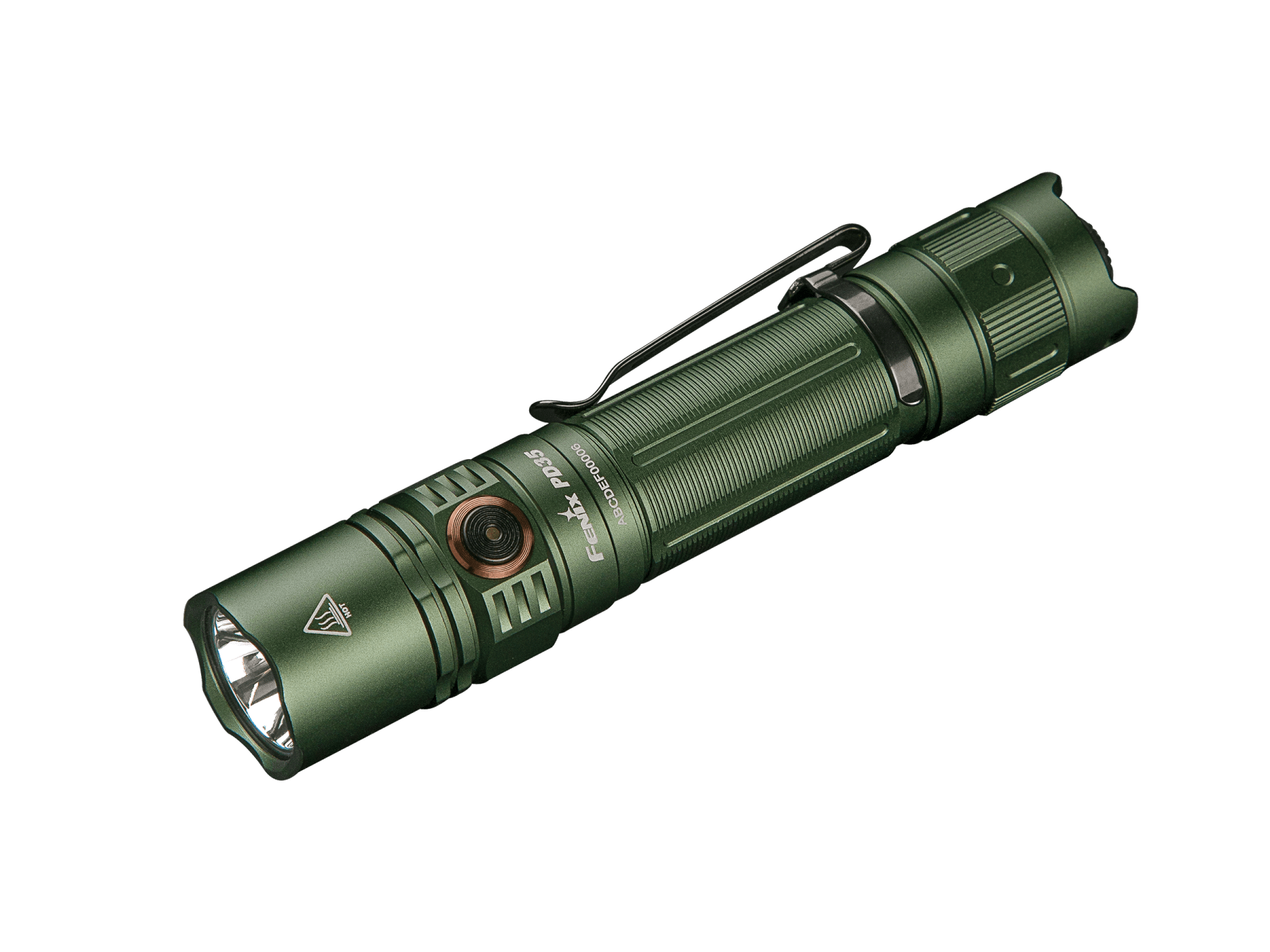

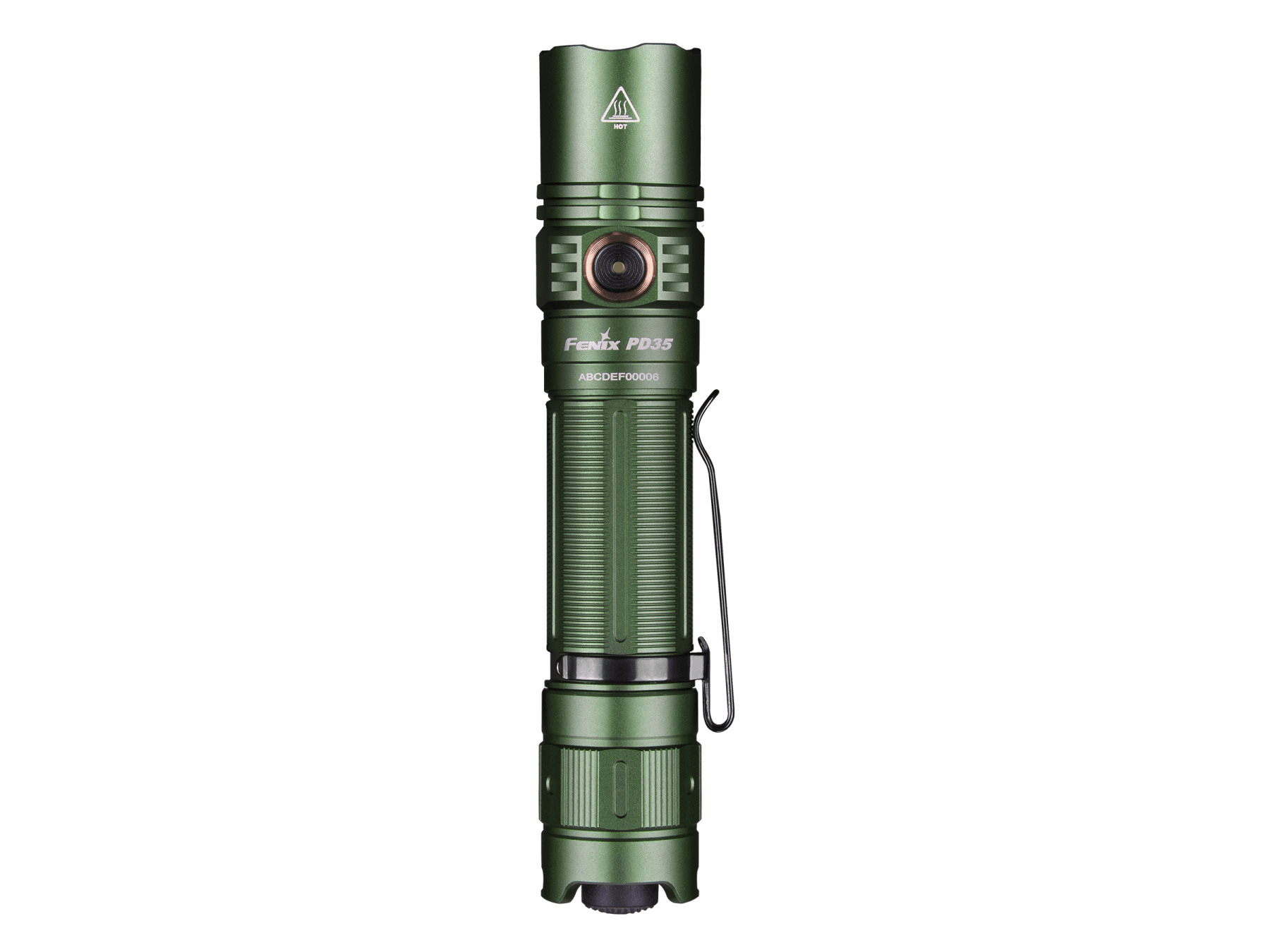

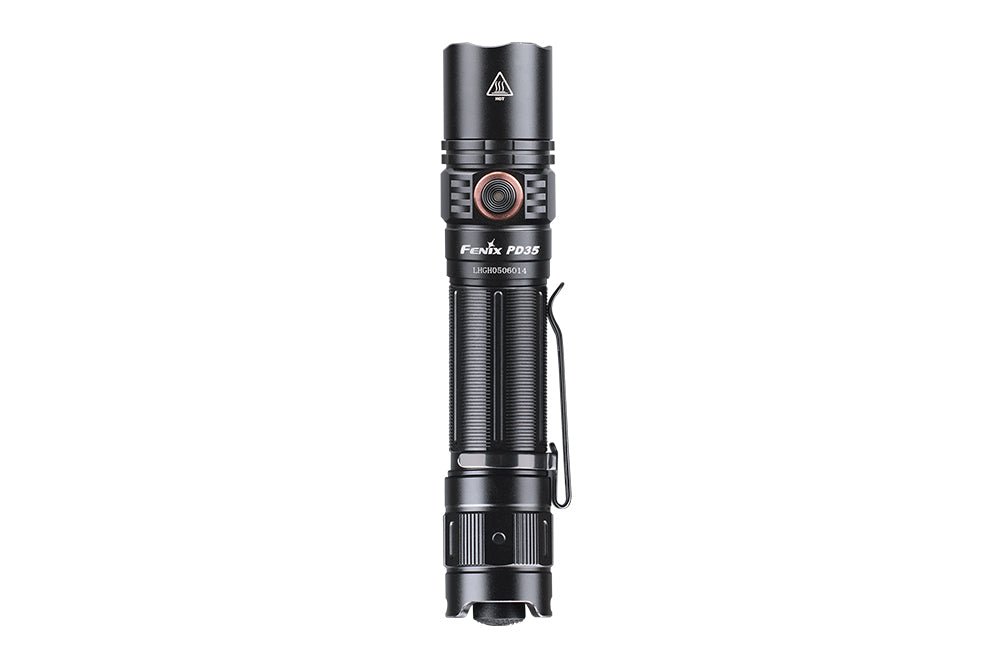

Fenix PD35 V3.0 Everyday Carry Flashlight - 1700 Lumens

Outputs

• Turbo: 1700 Lumens, 31,900 cd, 1.75 hours, 1171 ft
• High: 600 Lumens, 3.4 hours, 708 ft
• Med: 150 Lumens, 11 hours, 357 ft
• Low: 50 Lumens, 34 hours, 206 ft
• Eco: 5 Lumens, 300 hours, 65 ft
• Strobe: 1700 Lumens

Details

• 1700 lumens maximum output
• Luminus SFT40 LED with a lifespan of 50,000 hours
• Rechargeable battery included
• De-convex lens

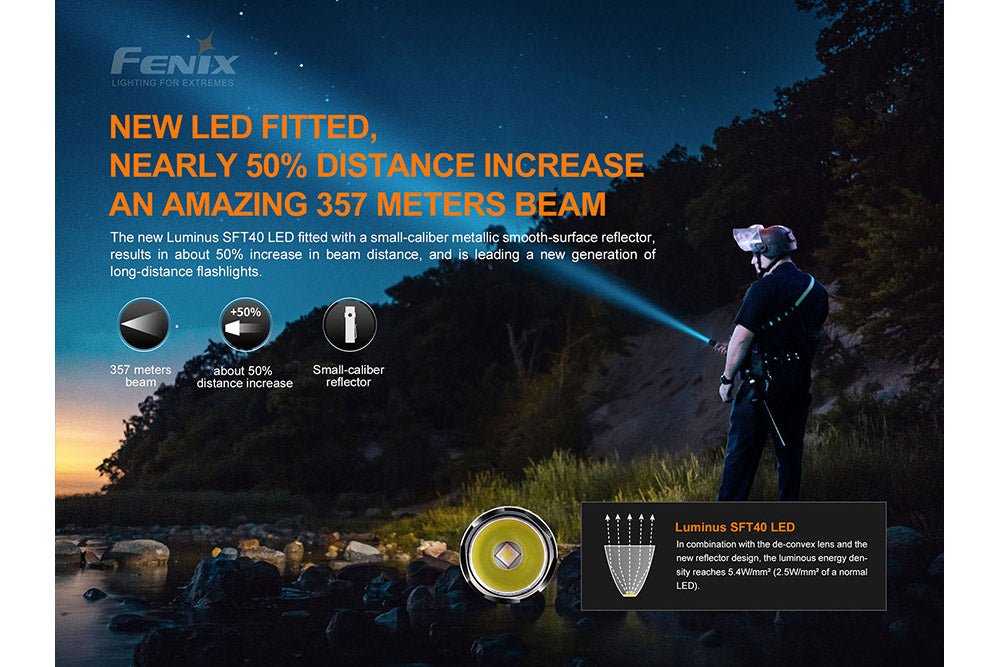

• 50% more beam throw than previous PD35 model
• Small caliber reflector
• Battery level indicator
• IP68 Waterproof Rating
• A6061-T6 Aluminum body
• IP68-rated waterproofing: Fully submersible to 6.5 feet for up to 30 minutes

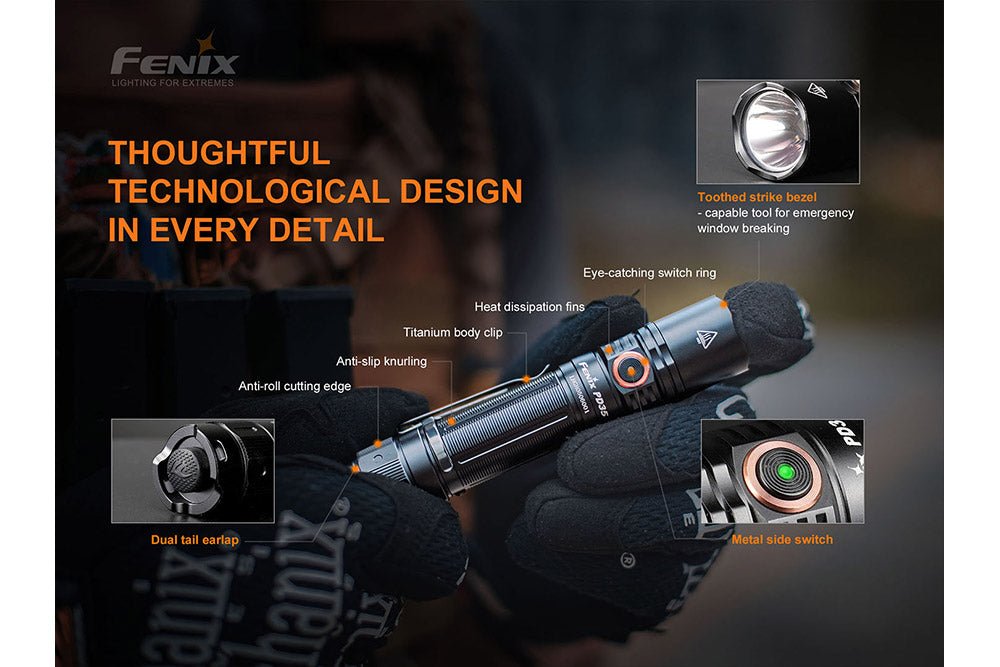

• Toothed strike bezel
• 1-meter impact resistance

Batteries

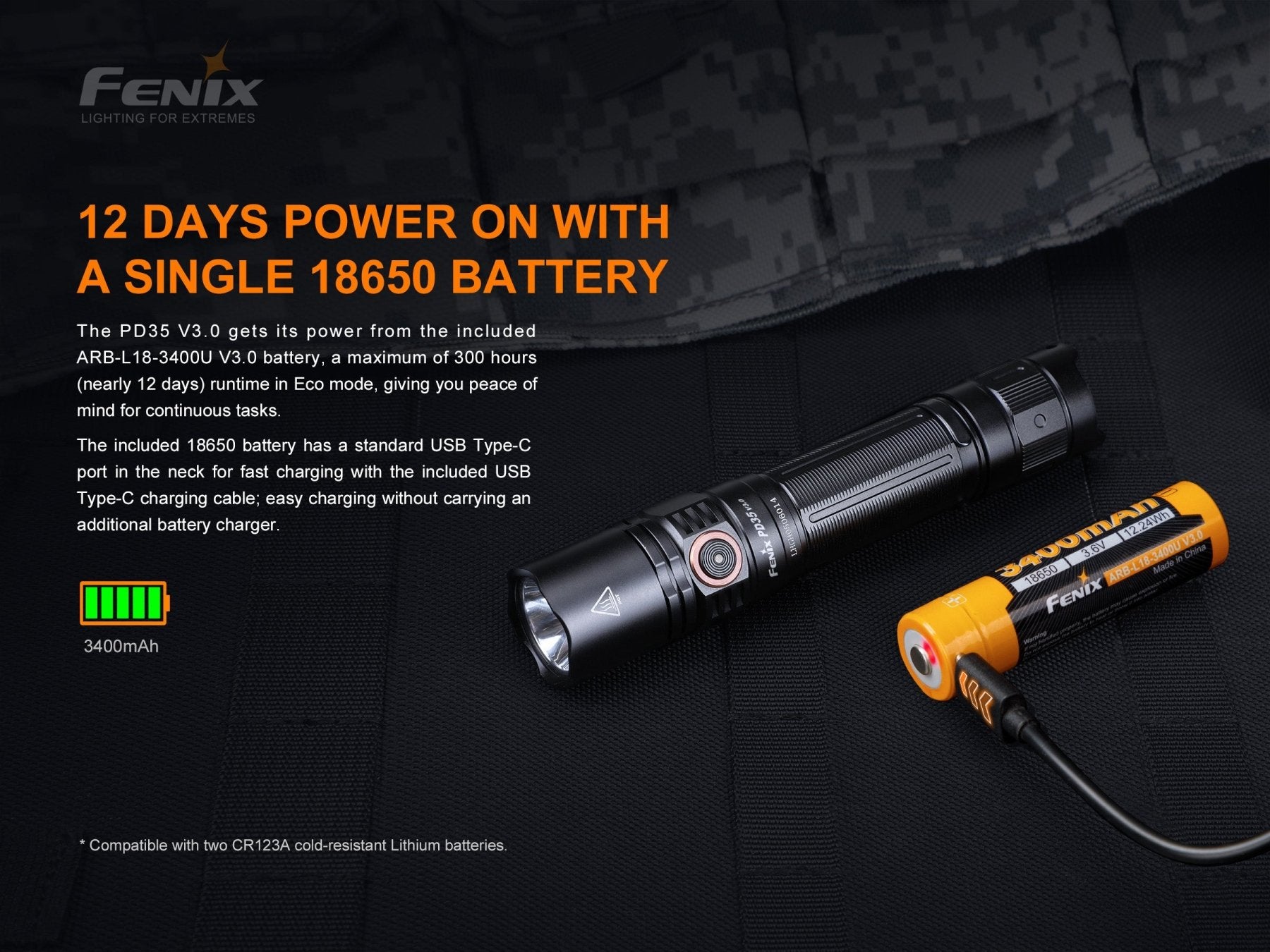

• Included: Fenix ARB-L18-3400U USB-C Rechargeable 3400mAh 18650 battery
• Compatible: One rechargeable 18650 battery or two non-rechargeable CR123A batteries

Size

• Length: 5.28 inches
• Head Diameter: 1 inch
• Body Diameter: 0.90 inches
• Weight: 4.69 oz (including battery)

Does the PD35 V3 flashlight feature a lockout function?

No, there is no lockout feature on the PD35 V3. To prevent accidental activation of the flashlight we recommend that you unscrew the tail cap of the flashlight while it is not in use.

Is the PD35 V3 rechargeable?

While the PD35 V3 is not directly rechargeable, it does include the ARB-L18-3400U rechargeable 18650 battery with built-in USB charging port. You do not need a designated charger for the flashlight but you will need to remove the battery to plug it in.

How long does it take to charge the Fenix PD35 V3?

 The PD35 V3 is not directly rechargeable but the included ARB-L18-3400U battery will take about 3.5 hours to charge to full.

What is the color temperature and working voltage of the PD35 V3?

The Luminus SFT40 LED features a color temperature around 6000K.

The working voltage is between 3 - 6.8 volts.

What batteries can be used in the PD35 V3?

The ARB-L18-2600U and ARB-L18-3400U are recommended.

You may also use any quality brand of 18650 with a button-top (flat-top batteries are not compatible) or two non-rechargeable CR123A batteries.

Condensed from the manufacturer's official manual for the Fenix PD35 V3.0 everyday carry flashlight. See the full downloadable PDF reference manual on this page for complete details.

Safe Use Warnings

• Keep this light out of the reach of children.
• Do NOT shine the light directly into the eyes of anyone.
• Do NOT shine the light at flammable objects at close range, to avoid burning objects or causing danger due to high temperature.
• Do NOT use the light in inappropriate ways, such as biting it in the mouth, to avoid personal injury or life-threatening risk if the light or internal battery fails.
• This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the light, or remove the battery, to prevent accidental activation when the light is placed in a closed, flammable environment such as a pocket or backpack.
• The LED of this flashlight is not replaceable; the whole light should be replaced when the LED reaches the end of its life.

Overview

• 1700 lumens maximum output and 357 meters maximum beam distance
• One Luminus SFT40 LED with a lifespan of 50,000 hours
• Includes an ARB-L18-3400U V3.0 rechargeable Li-ion battery, compatible with 2x CR123A lithium batteries
• Boot-up battery level indication and low-voltage warning
• Instant activation with the tactical tail switch; output selection with the side switch
• Digitally regulated circuit for a stable output
• Toughened ultra-clear glass lens with anti-reflective coating
• Made of durable A6061-T6 aluminum with a premium type HAIII hard-anodized anti-abrasive finish
• Size: 5.28'' x 1.00'' x 0.90'' / 134 x 25.4 x 22.8mm
• Weight: 4.69 oz / 133 g (including battery)

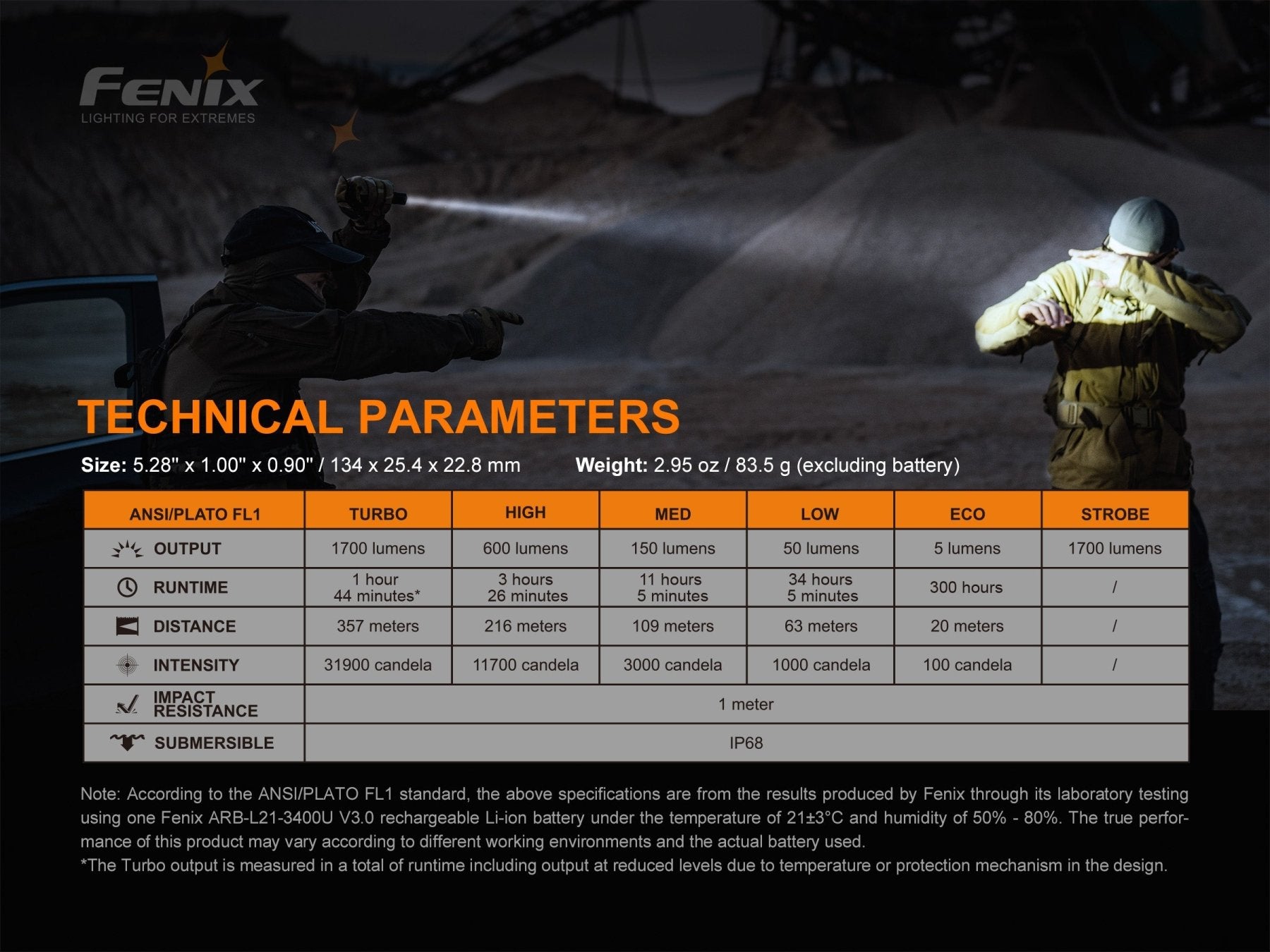

Technical Parameters (ANSI/PLATO FL1)

• Turbo: Output 1700 lumens, Runtime 1 h 44 min*, Distance 357 m, Intensity 31,900 cd
• High: Output 600 lumens, Runtime 3 h 26 min, Distance 216 m, Intensity 11,700 cd
• Med: Output 150 lumens, Runtime 11 h 5 min, Distance 109 m, Intensity 3,000 cd
• Low: Output 50 lumens, Runtime 34 h 5 min, Distance 63 m, Intensity 1,000 cd
• Eco: Output 5 lumens, Runtime 300 hours, Distance 20 m, Intensity 100 cd
• Strobe: Output 1700 lumens

Impact Resistance: 1 meter | Waterproof Rating: IP68

*Turbo runtime includes reduced-output time from thermal/protection step-down. Specs measured by Fenix using one ARB-L18-3400U V3.0 battery at 21±3°C / 50–80% humidity; real-world performance varies.

Operating Instructions

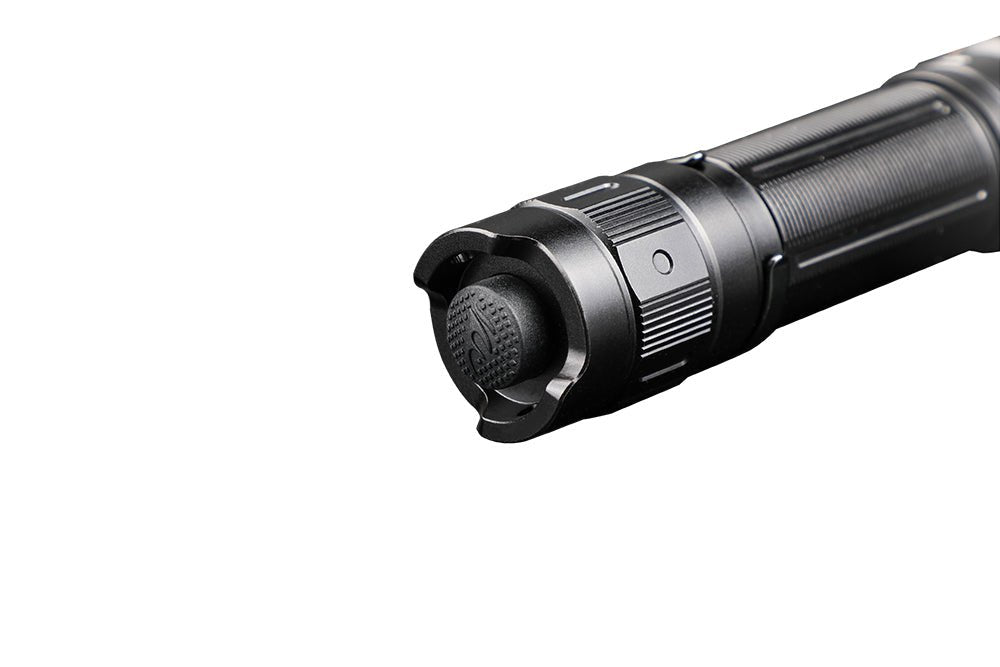

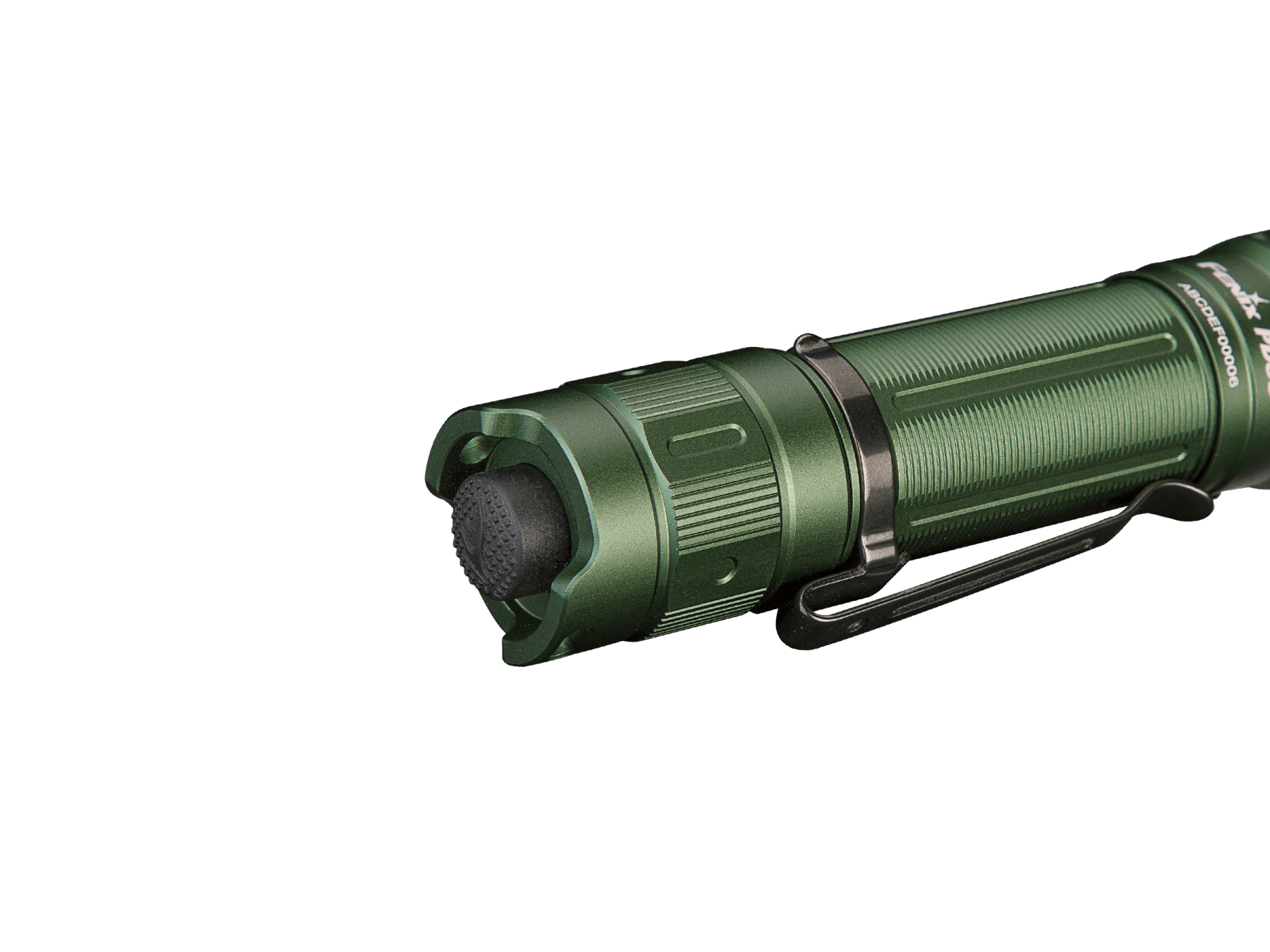

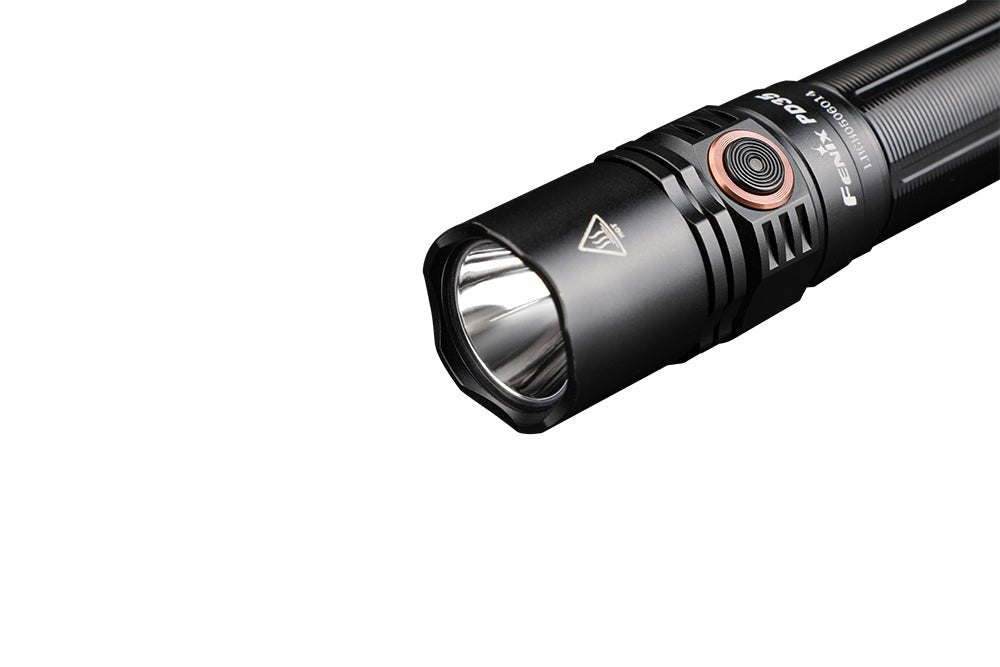

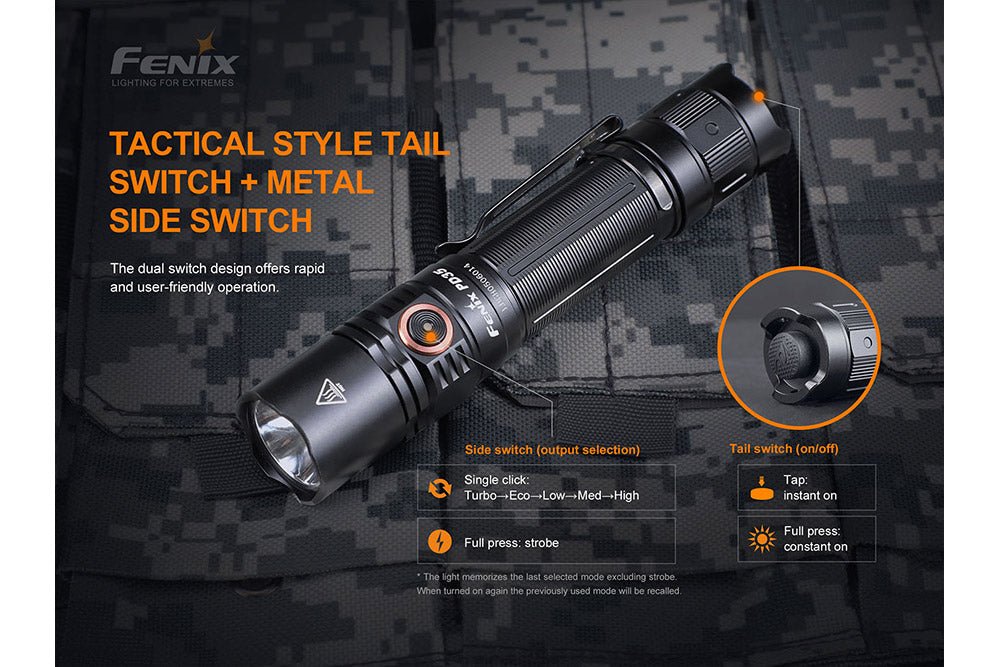

Switch: the tail switch is the tactical switch and the side switch is the functional switch.

On/Off: tap the tactical switch to momentarily turn on the light (release and it goes out), or fully press to turn it on constantly (press again to turn off).

Output Selection: with the light on, single-click the functional switch to cycle Turbo → Eco → Low → Med → High.

Strobe: with the light on, press and hold the functional switch for 0.5 seconds to enter Strobe; single-click again to return to the previously used general-mode output.

Intelligent Memory Circuit: the light remembers the last-used output level (excluding Strobe) and recalls it the next time it's turned on.

Battery & Replacement

Uses a Fenix ARB-L18 series 18650 battery (3.6V/3.7V, recommended), and is also compatible with CR123A lithium (usable) and 16340 LiFePO4 (usable). Other 18650 Li-ion batteries should be used with caution; 16340 Li-ion and 18650 LiFePO4 batteries are banned for this light. Don't mix batteries of different brands, sizes, capacities, or types. To replace: unscrew the light tail, insert the battery anode side (+) toward the light head, and screw the tail back on.

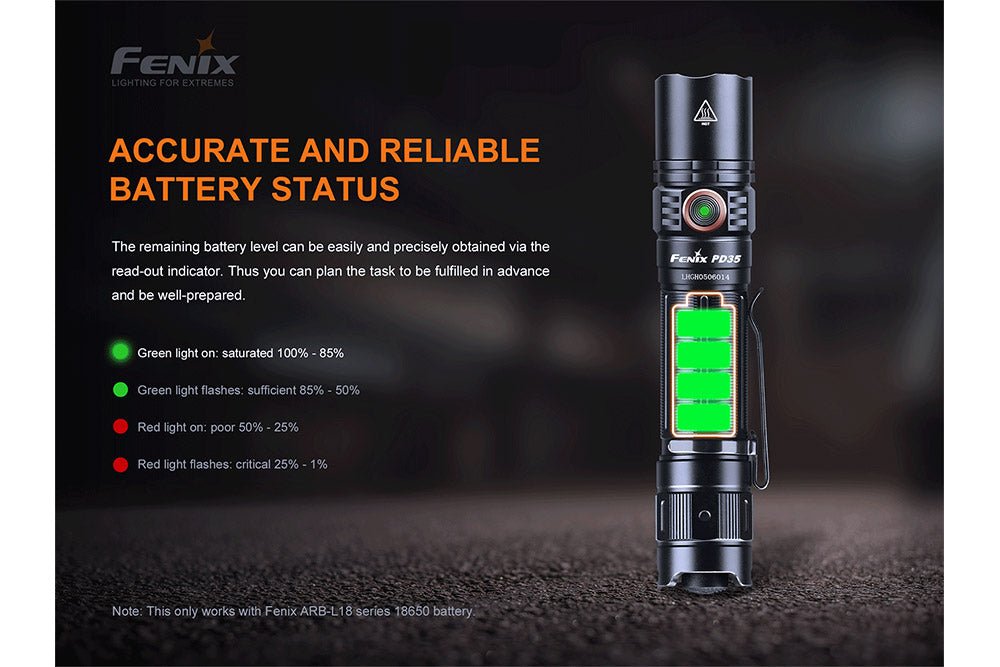

Battery Level Indication

Each time the light is turned on, the indicator in the functional side switch shows battery level for 3 seconds.

• Green, on: saturated, 100–85%
• Green, flashing: sufficient, 85–50%
• Red, on: poor, 50–25%
• Red, flashing: critical, 25–1%

Note: This only works with a Fenix ARB-L18 series 18650 battery.

Protection Features

Intelligent Overheat Protection: at 60°C or above, the light automatically steps down a few lumens to cool down, and allows reselecting modes once temperature drops below 60°C.

Low-Voltage Warning: as the battery depletes, the light automatically downshifts toward Eco; in Eco, the indicator blinks red as a reminder to recharge or replace the battery. Works only with a Fenix ARB-L18 series 18650 battery.

Care & Maintenance

• Do not disassemble the sealed head — this voids the warranty.
• Use only a high-quality protected battery.
• Remove the battery for proper storage if the light won't be used for an extended period.
• Unscrew the tail cap or remove the battery during storage/transport to prevent accidental activation.
• Replace the O-ring with an approved spare if it shows wear, to maintain the waterproof seal.
• Clean battery contacts periodically with a rubbing-alcohol-soaked cotton swab if the light flickers or won't turn on.

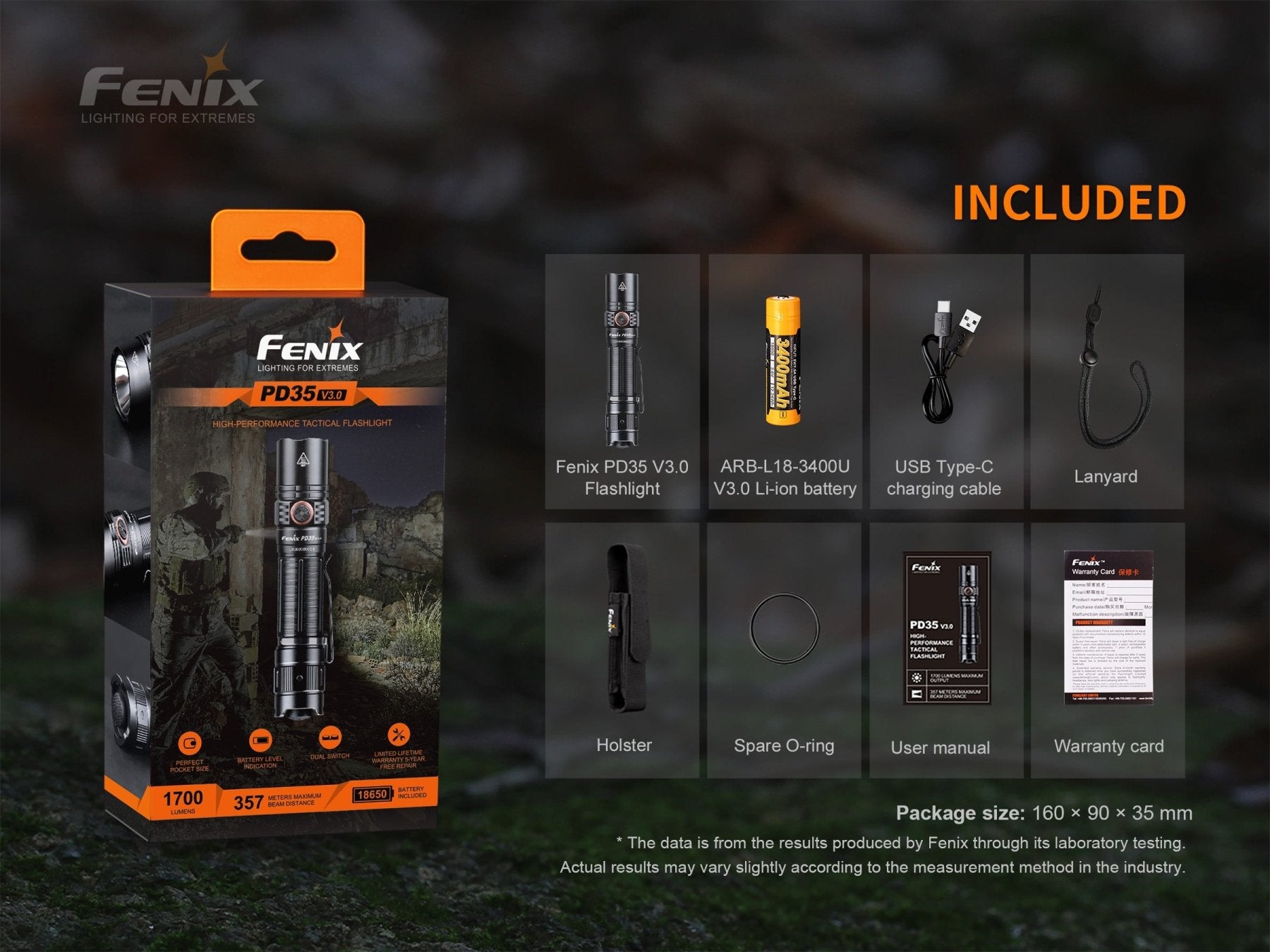

What's Included

Fenix PD35 V3.0 flashlight, ARB-L18-3400U V3.0 Li-ion battery, USB Type-C charging cable, holster, lanyard, spare O-ring, user manual, and warranty card.
