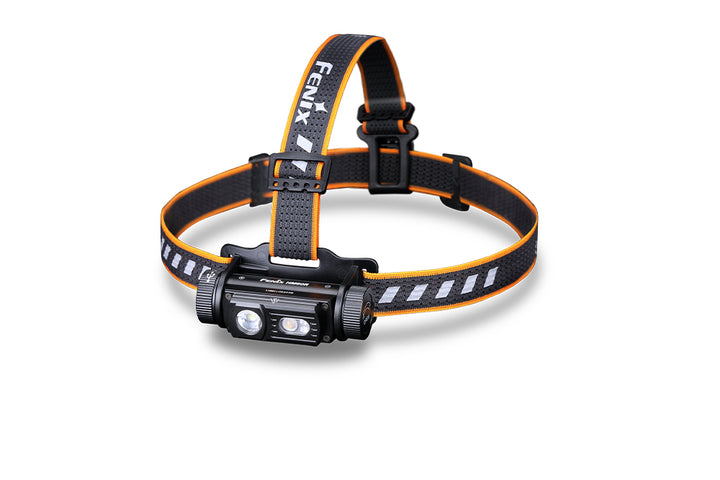

Fenix HM60R LED headlamp on white background
A user operating the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp on the ground in a campsite with a camper setting up a tent in the background
Fenix HM60R LED headlamp dropped onto a stone path
Fenix HM60R LED headlamp used by runners
Fenix HM60R LED headlamp technical parameters chart
Several photos showing the different uses of the red light output of the Fenix HM60R LED headlamp

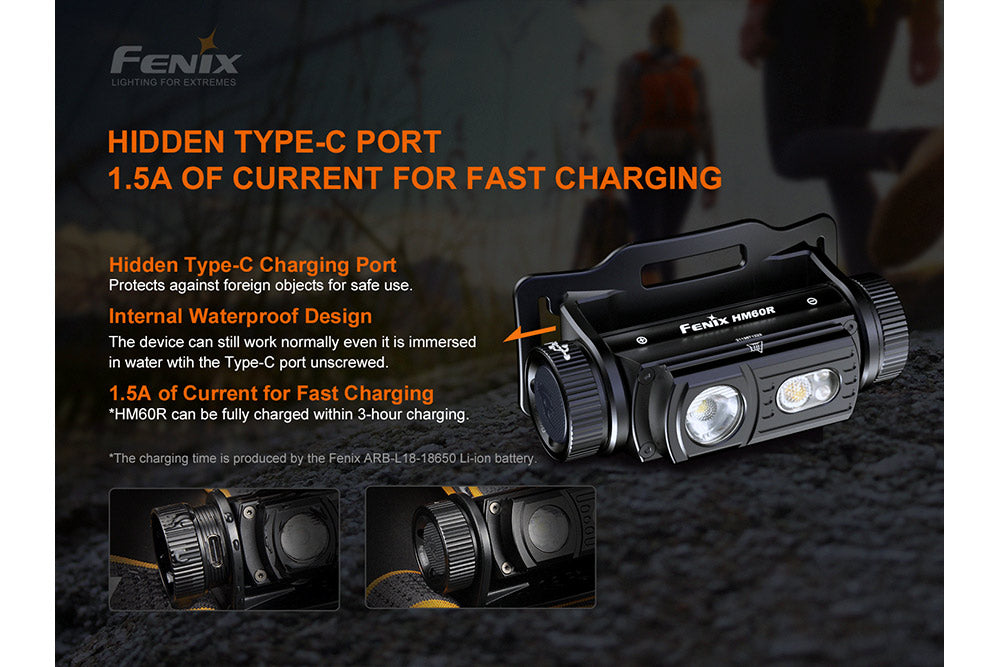

Fenix HM60R LED headlamp with text explaining the details of its USB-C charging port
A worker using the tilt feature of the Fenix HM60R LED headlamp to light up a workstation
Two photos showing the dual distance beams of the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp underwater
Several photos showing the different outputs of the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp used to light up a desert environment
Fenix HM60R LED headlamp used on a trail run
Fenix HM60R LED headlamp floodlight used to cook on a campt stove
Two photos showing the Fenix HM60R LED headlamp in extreme conditions

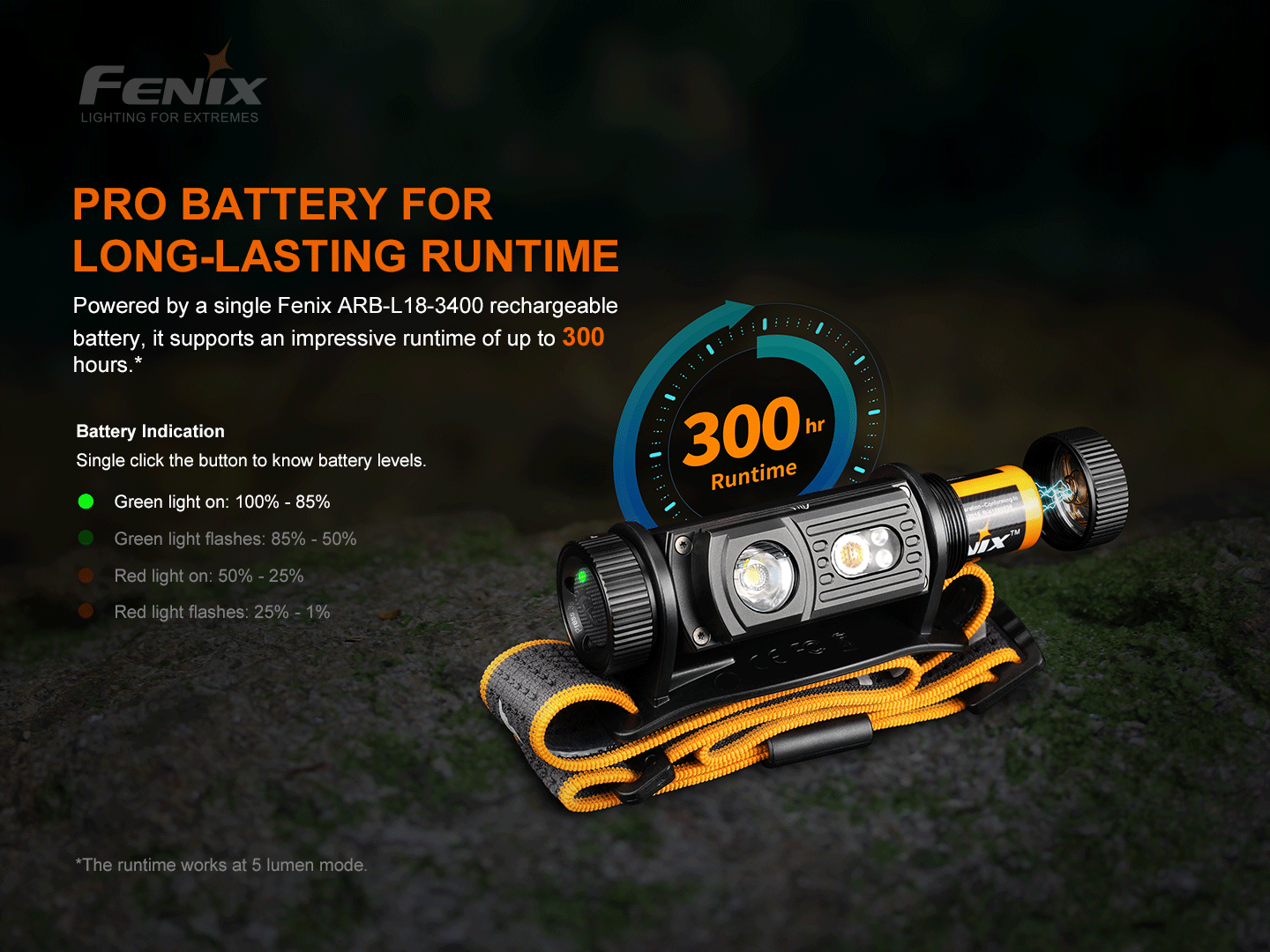

A GIF showing the battery level indicator of the Fenix HM60R LED headlamp whith graphics discussing its long runtime
Fenix HM60R LED headlamp in packaging with included accessories

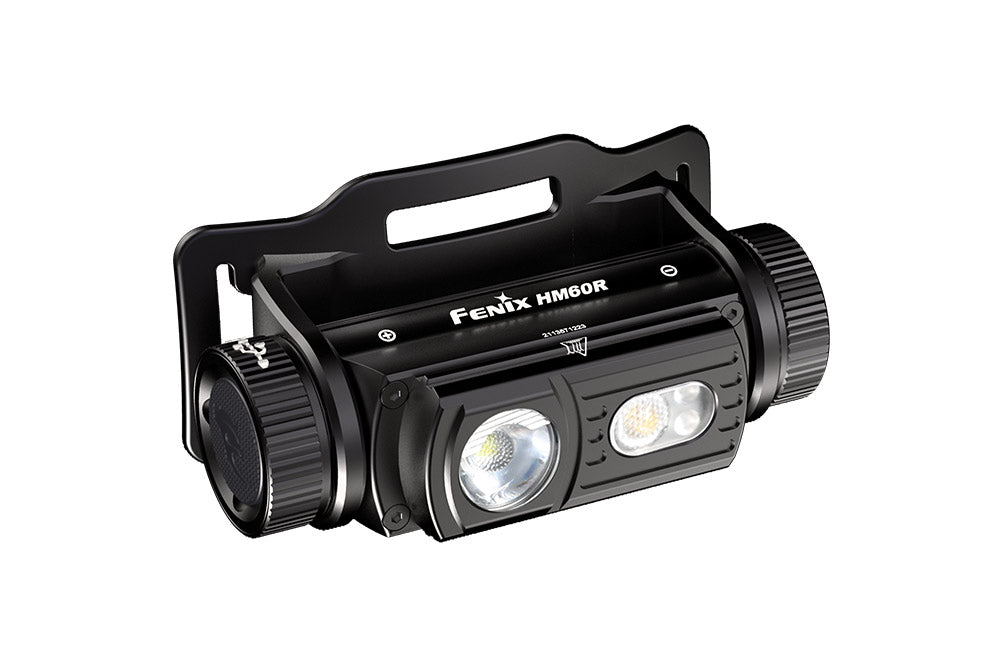

Fenix HM60R LED headlamp as viewed from a front left angle

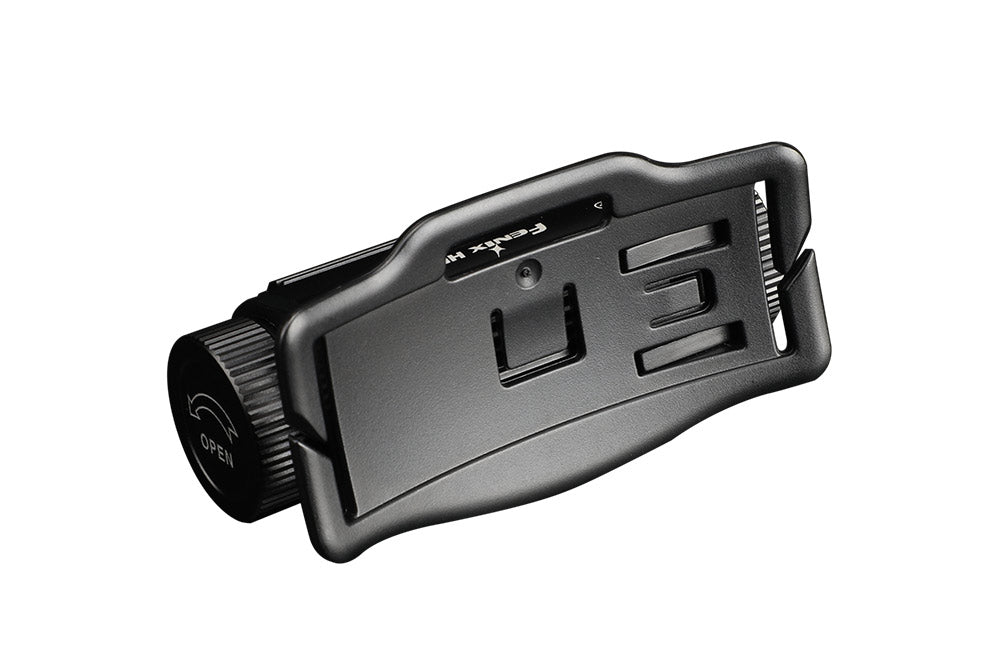

Fenix HM60R LED headlamp as viewed from a back left angle
Fenix HM60R LED headlamp plugged in to charge

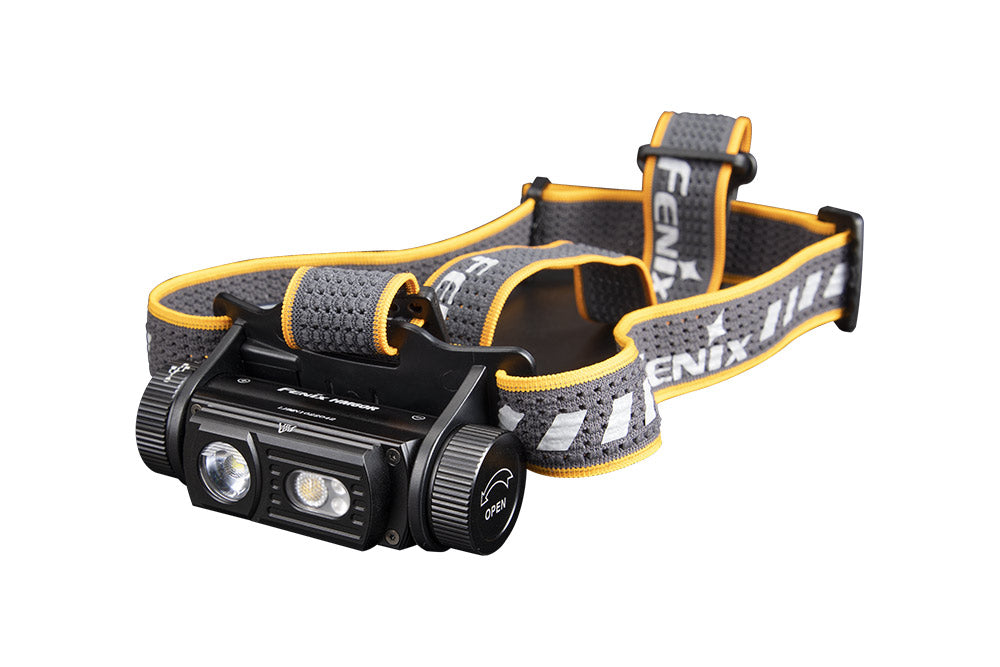

Fenix HM60R LED headlamp with headband attached
Fenix HM60R LED headlamp on white background
A user operating the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp on the ground in a campsite with a camper setting up a tent in the background
Fenix HM60R LED headlamp dropped onto a stone path
Fenix HM60R LED headlamp used by runners
Fenix HM60R LED headlamp technical parameters chart
Several photos showing the different uses of the red light output of the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp with text explaining the details of its USB-C charging port
A worker using the tilt feature of the Fenix HM60R LED headlamp to light up a workstation
Two photos showing the dual distance beams of the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp underwater
Several photos showing the different outputs of the Fenix HM60R LED headlamp
Fenix HM60R LED headlamp used to light up a desert environment
Fenix HM60R LED headlamp used on a trail run
Fenix HM60R LED headlamp floodlight used to cook on a campt stove
Two photos showing the Fenix HM60R LED headlamp in extreme conditions
A GIF showing the battery level indicator of the Fenix HM60R LED headlamp whith graphics discussing its long runtime
Fenix HM60R LED headlamp in packaging with included accessories
Fenix HM60R LED headlamp as viewed from a front left angle
Fenix HM60R LED headlamp as viewed from a back left angle
Fenix HM60R LED headlamp plugged in to charge
Fenix HM60R LED headlamp with headband attached

Fenix HM60R Outdoor LED Headlamp - 1200 Lumens

$79.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Satisfaction guaranteed
  • Free shipping for orders over $25
  • Backed by the Fenix Limited Lifetime Warranty

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

The Fenix HM60R is a feature-packed, ultra-bright headlamp with 1200 lumens of maximum output. It runs on a single 18650 battery and provides 54 hours of runtime in low mode. Smart frequency-sensing technology, red light output, and dual distance beam are integrated into the design, as well as USB Type-C charging and IP68 water resistance rating. Constructed with an A6061-T6 aluminum frame, it is drop-proof up to 6.5 ft, making it an ideal companion for hikers, trail runners, and any outdoor enthusiast.

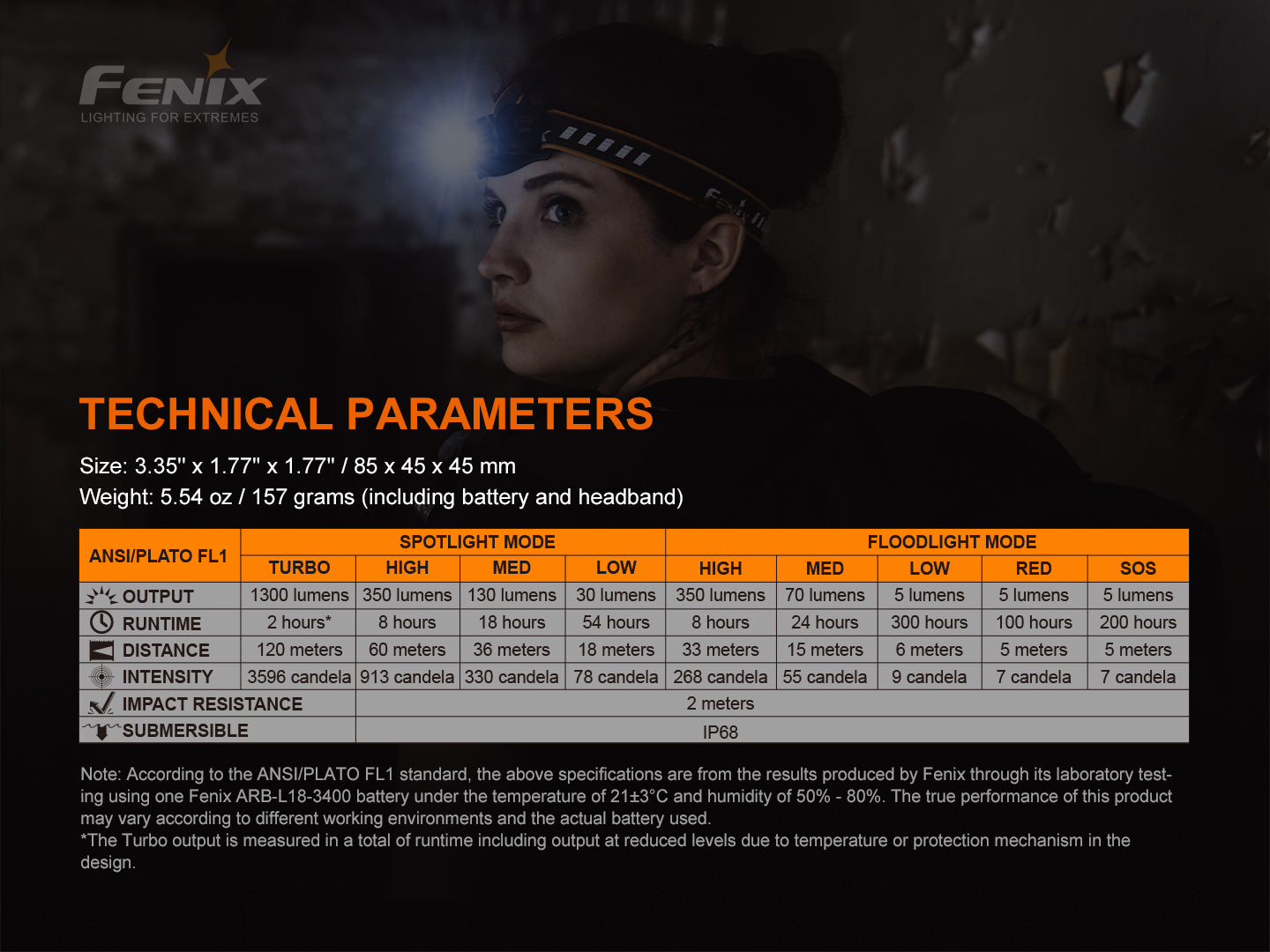

Outputs

  • Spotlight Mode
  • Turbo: 1300 Lumens, 2 hours, 380 feet
  • High: 350 Lumens, 8 hours, 196 feet
  • Med: 130 Lumens, 18 hours, 118 feet
  • Low: 30 Lumens, 54 hours, 59 feet
  • Floodlight Mode
  • High: 350 Lumens, 8 hours, 108 feet
  • Med: 70 Lumens, 24 hours, 49 feet
  • Low: 5 Lumens, 300 hours, 20 feet
  • Red: 5 Lumens, 100 hours, 16 ft
  • SOS: 5 Lumens, 200 hours, 16 ft

Details

  • Luminus SST40 White LED / XP-G2 Neutral White LED
  • Spotlight, Floodlight, and Red light options
  • Frequency Sensing
  • Hidden inner waterproof design

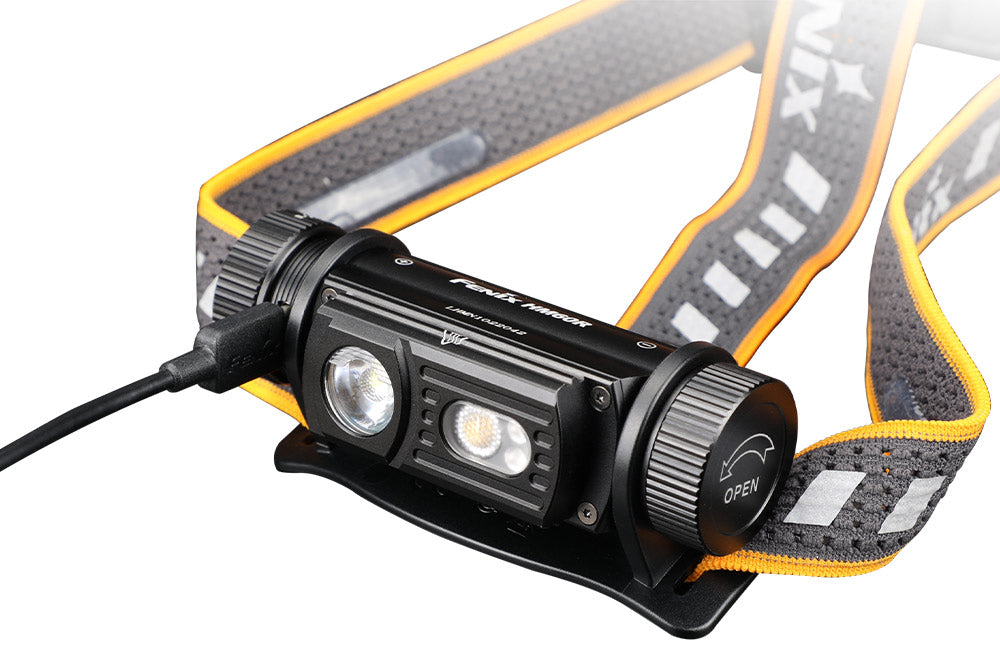

  • USB Type-C Charging
  • Battery Included
  • Single Switch Control
  • Aluminum body
  • IP68 Waterproof Rating

Batteries

  • Included: Fenix ARB-L18-3400mAh 18650 Rechargeable battery
  • Compatible: Fenix ARB-L18 18650 rechargeable Batteries or CR123A Batteries

Size

  • Width: 1.77 inches
  • Length: 3.35 inches
  • Depth: 1.77 inches
  • Weight: 5.54 oz (Including battery and headband)

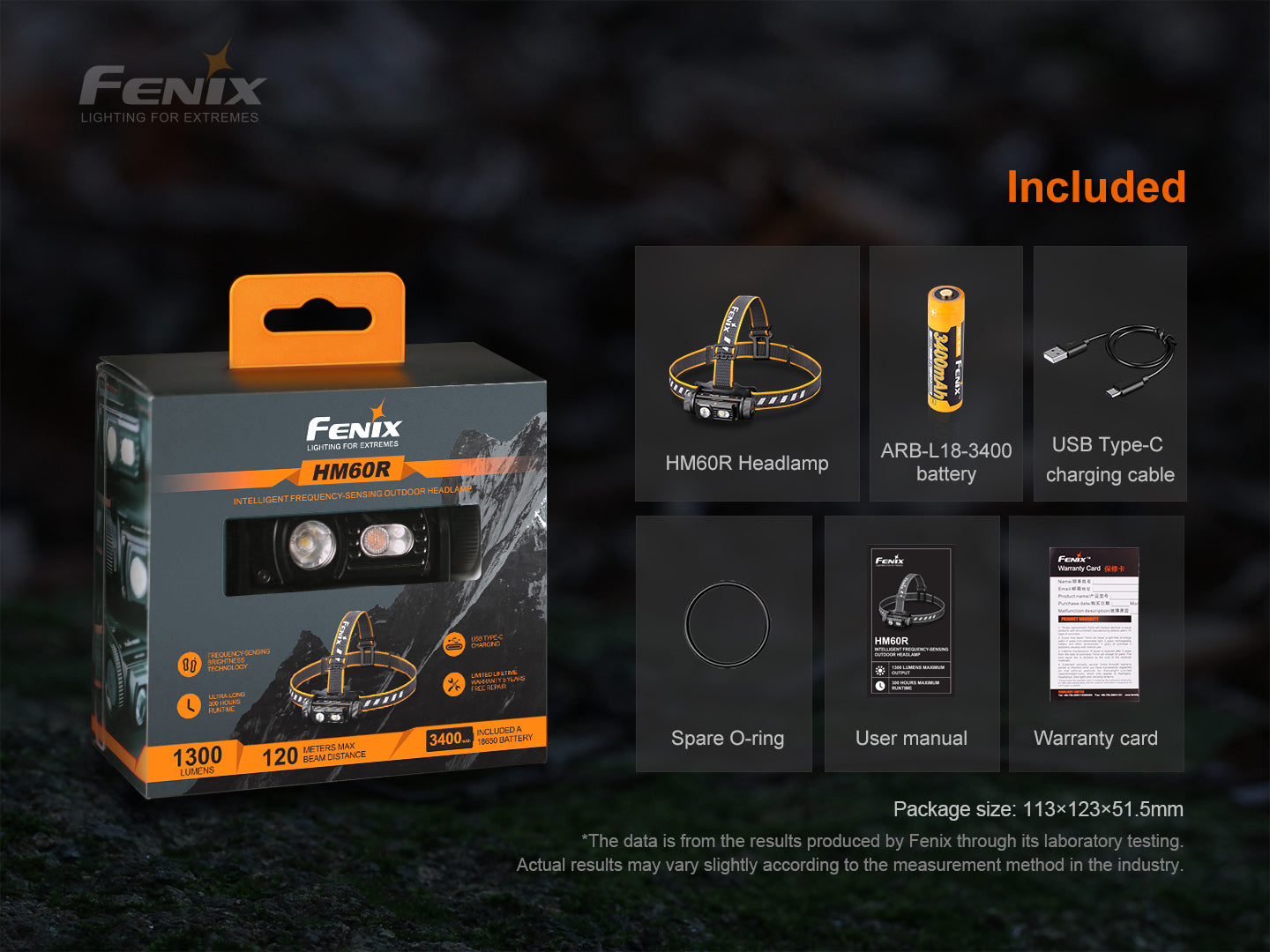

  • Fenix HM60R Headlamp
  • Fenix ARB-L18-3400 Rechargeable 2600mAh 18650 Battery
  • USB Type-C Charging Cable
  • Spare O-Ring
  • HM60R User Manual
  • Warranty Card

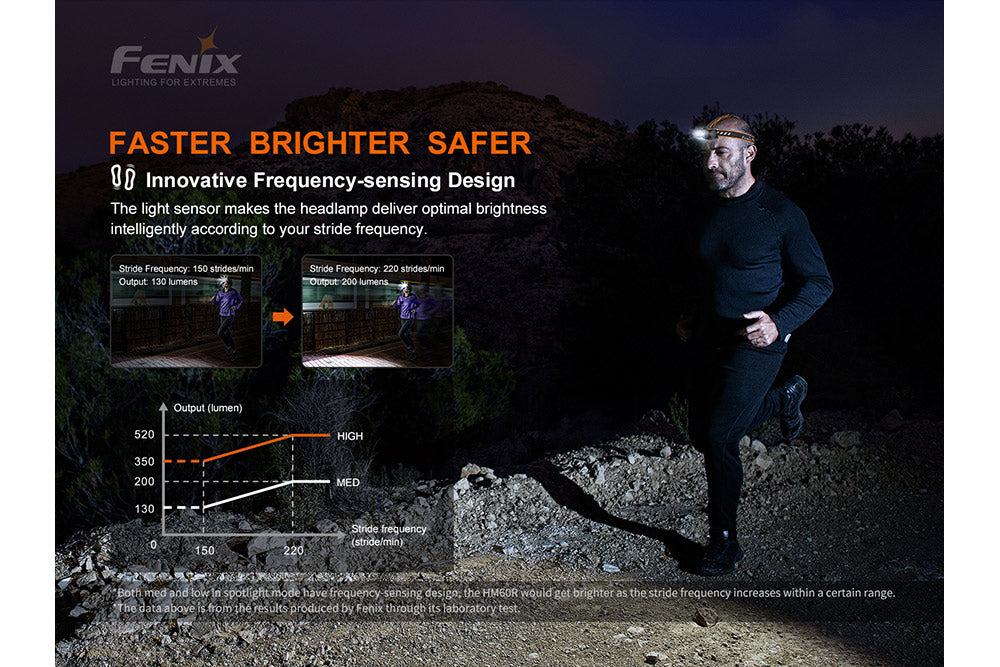

What is the "Frequency Sensing" feature of the HM60R?

The HM60R features a light sensor that allows it to intelligently deliver the optimal brightness setting based on the frequency of your stride. The standard expected frequency is 150 steps per minute (SPM). The brightness will increase proportionally with the frequency of each step above 150 SPM to a maximum of 220 SPM. Similarly, the brightness will decrease if SPM decreases, to a minimum of 80 SPM.

Does the HM60R have a lockout function?

Yes, the HM60R does have a lockout mode. It is activated by holding down the switch for 3 seconds.

What is the color temperature and working voltage of the HM60R?

The spotlight color temperature is around 5700K while the flood light color temperature is around 4500K. The working voltage is 3.7V.

What kind of battery does the HM60R use?

The HM60R headlamp includes an ARB-L18-3400 rechargeable 18650 battery. It is recommended that you use a protected-cell 18650 battery or two non-rechargeable CR123A batteries.

How long does it take to charge the HM60R?

Charging time is about 1.5 hours using the included ARB-L18 battery and the included USB cable. Please note that this is just an estimate since various other factors can affect the charging time.

What kind of LED is in the HM60R headlamp?

The HM60R uses the Luminus SST40 white light LED and the Cree XP-G2 neutral white light LED.

Both LEDs have an expected lifespan of 50,000 hours.
