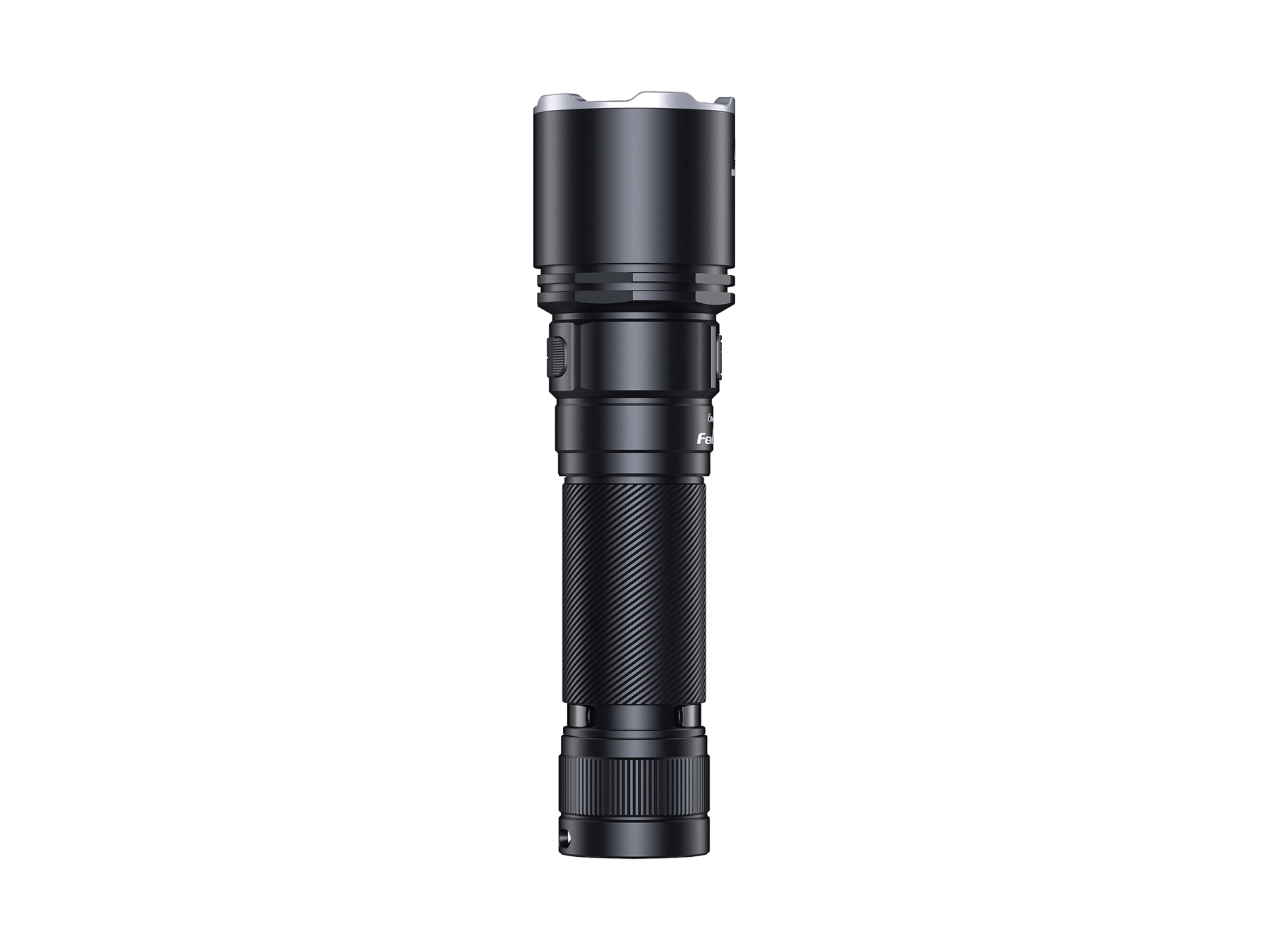

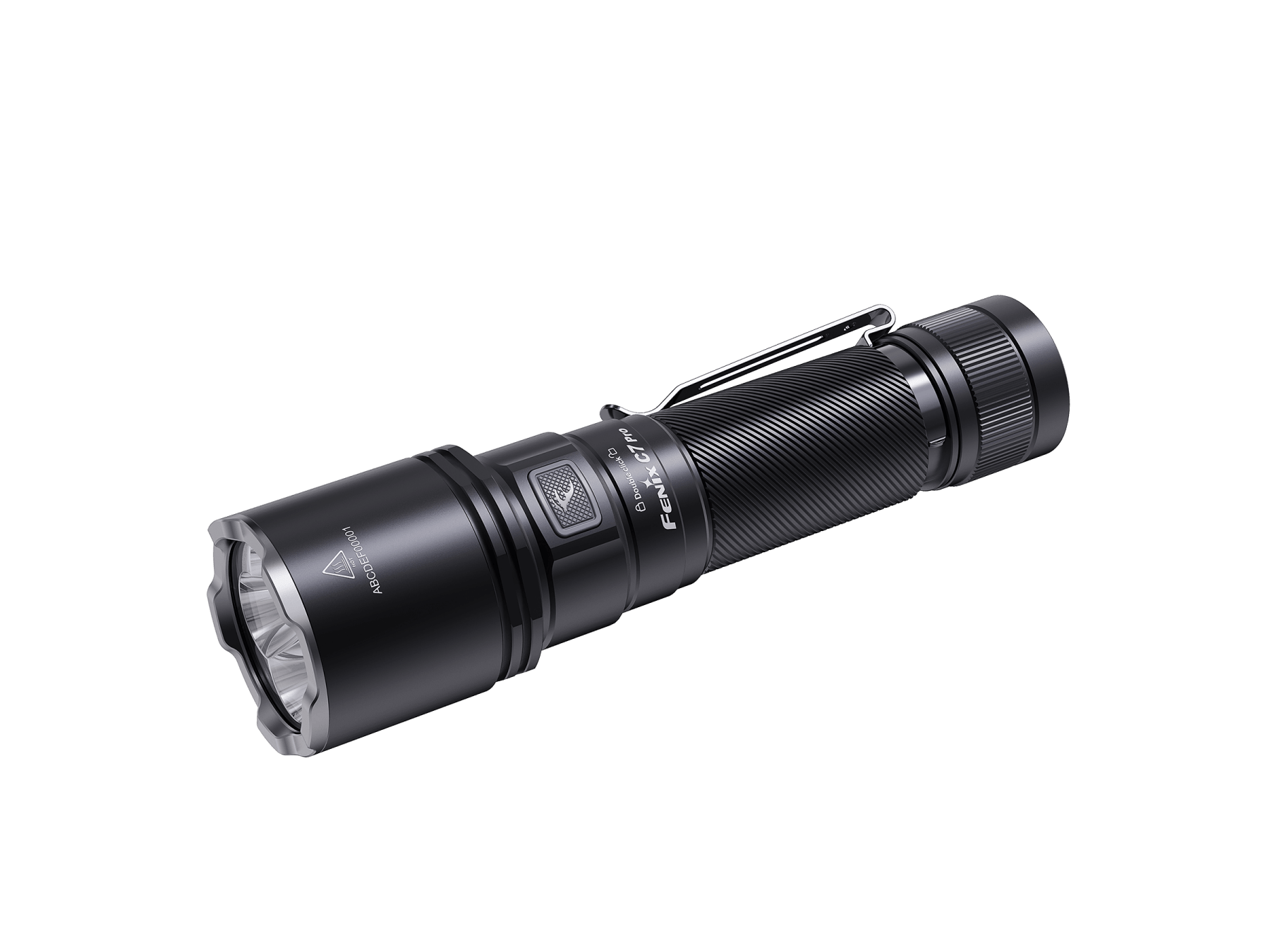

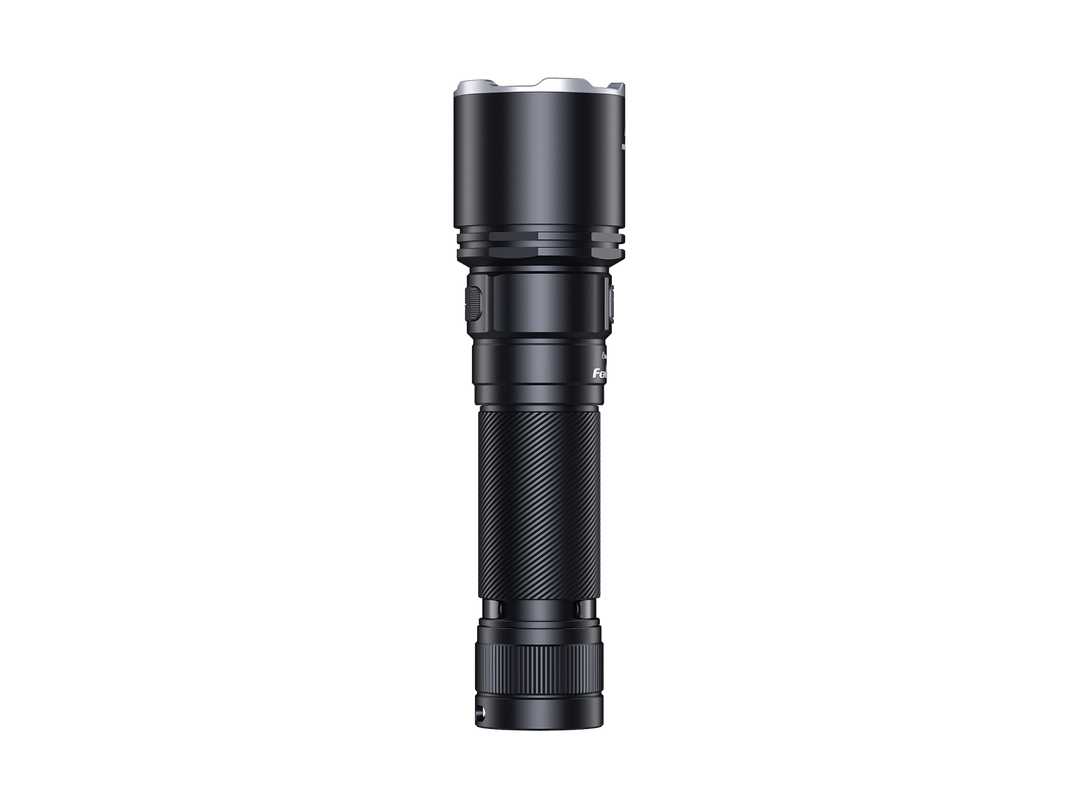

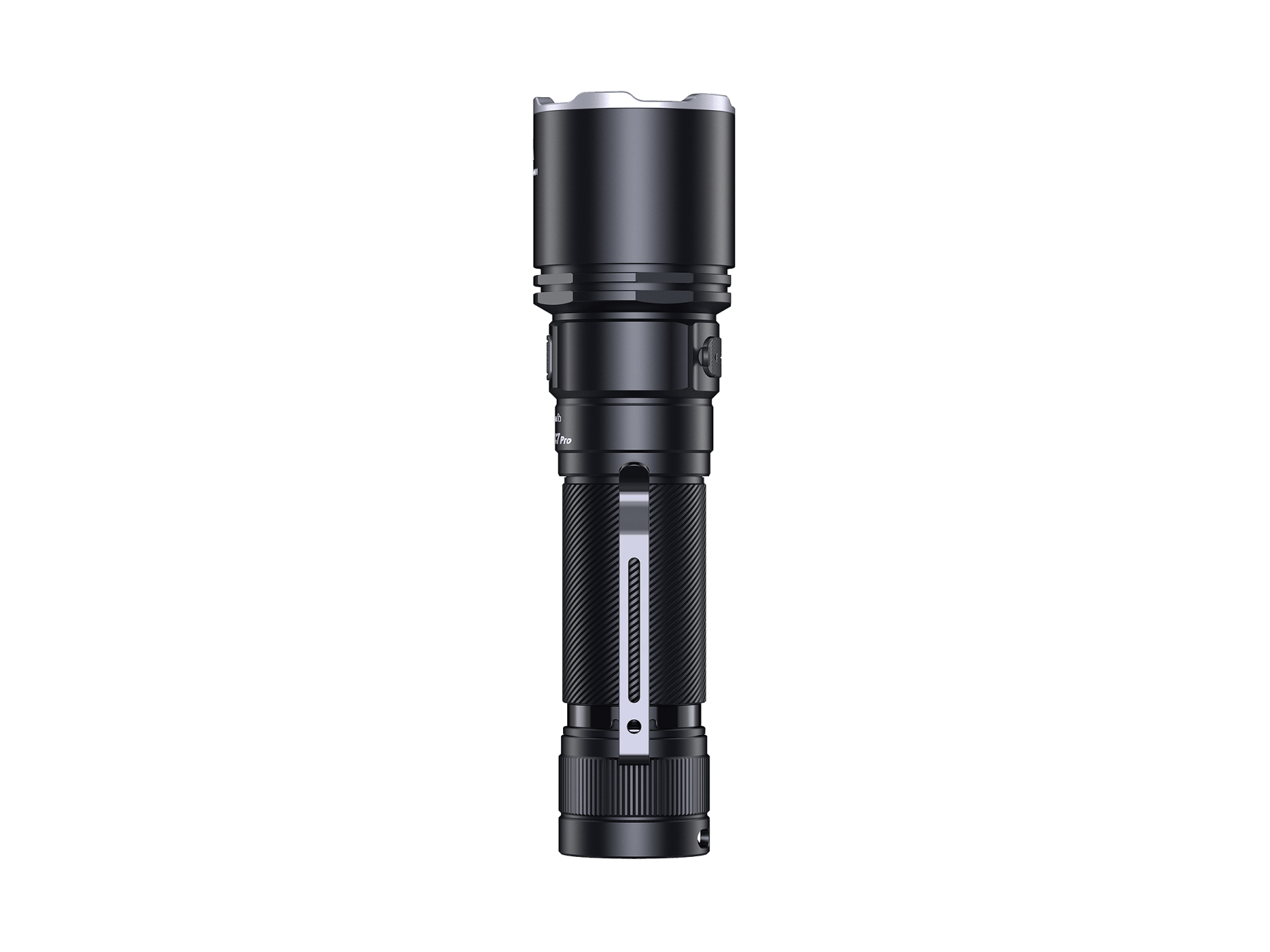

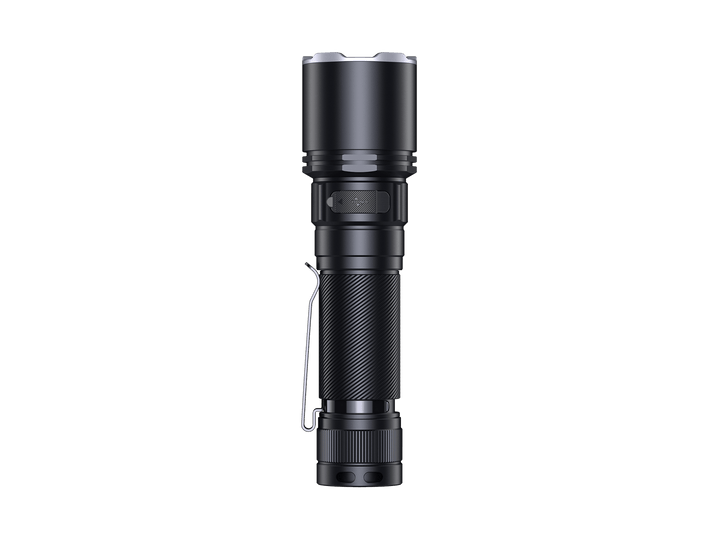

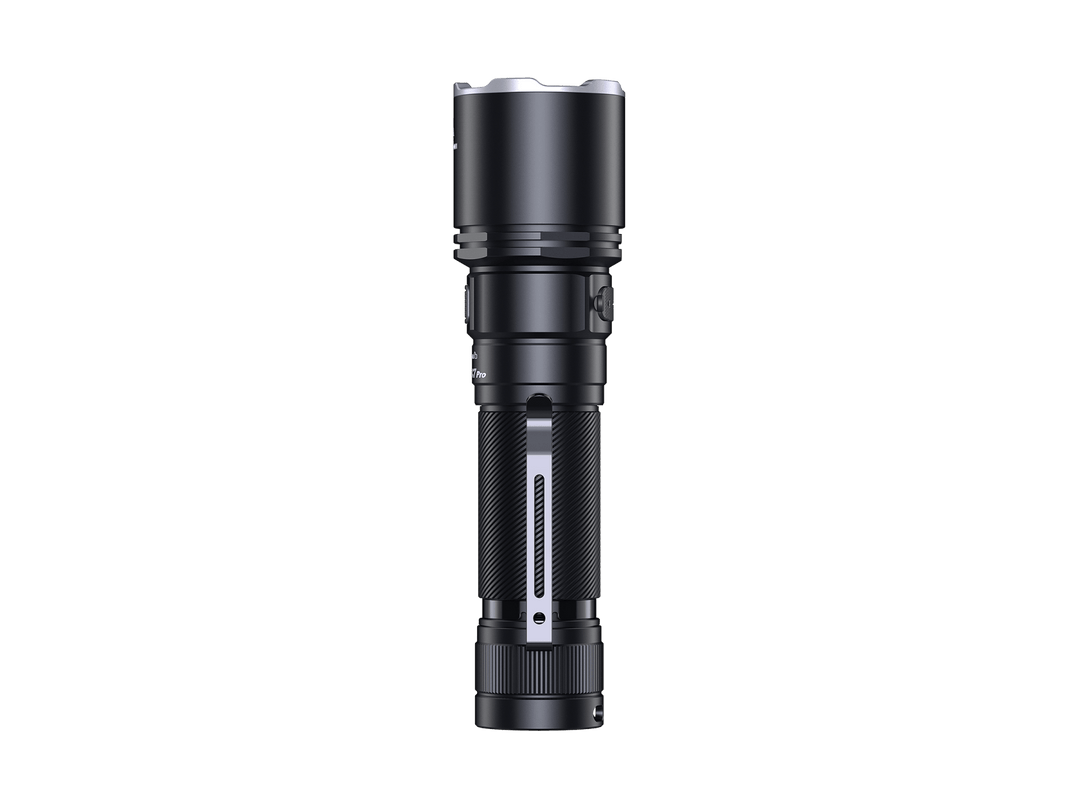

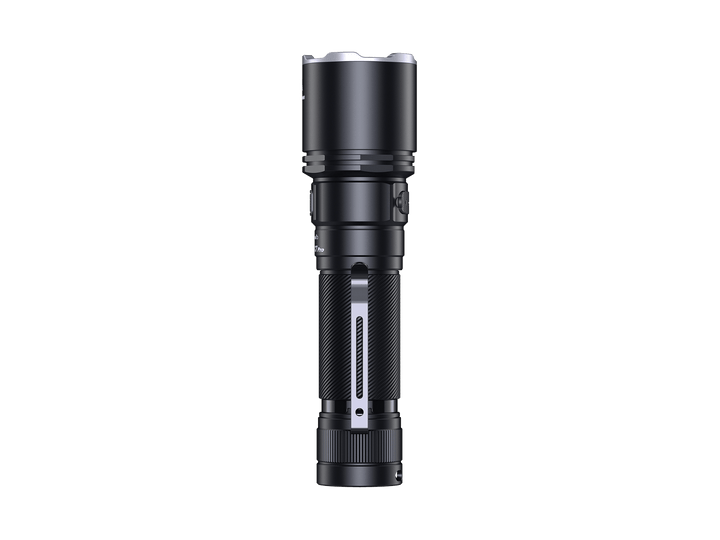

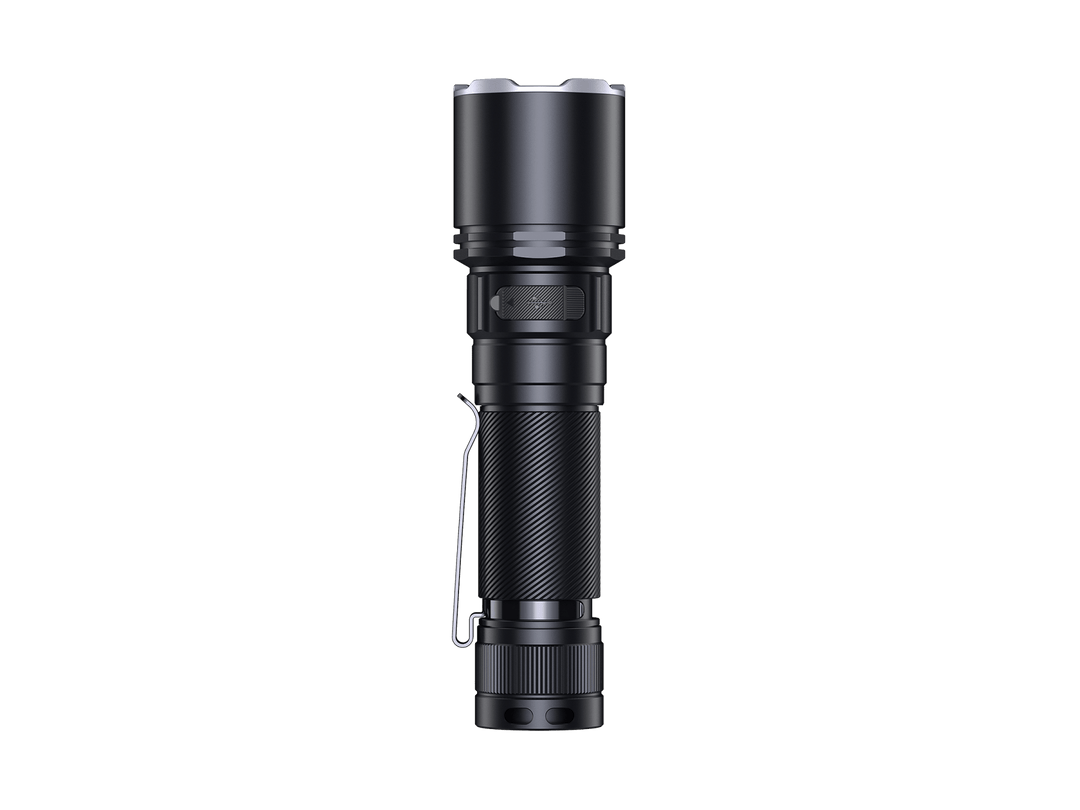

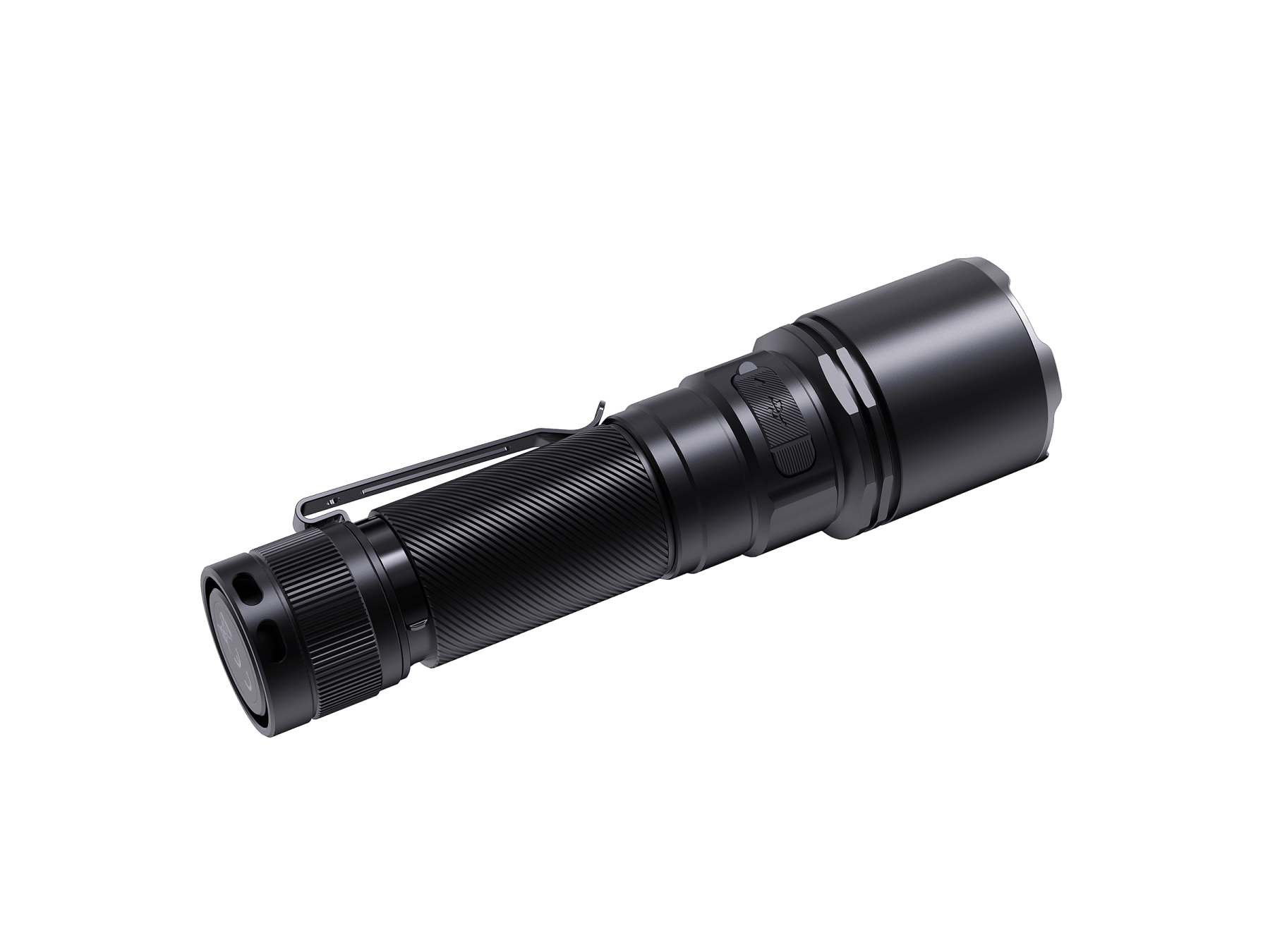

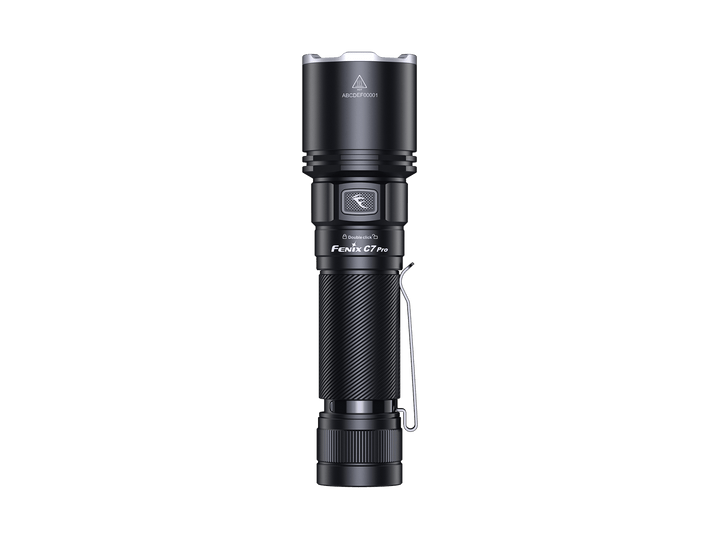

Fenix C7 Pro High-Output Fast-Charging Flashlight - 4600 Lumens

Performance Highlights

• Floodlight: 4600 lumens across an 87° beam, throwing up to 1112 ft (339m) — a softer, wider hot spot than a typical spotlight, built to blanket work areas.
• Durability: IP68 waterproof, drop-tested from 1 meter.
• Runtime: stretches to 85.5 hours on Eco; Strobe and SOS modes add emergency signaling.

Full mode-by-mode output, runtime, distance, and intensity figures are shown in the specifications chart above.

Key Features

• Four Luminus SST-25 LEDs with a constant current circuit for steady output as the battery drains
• Magnetic tail cap for hands-free mounting to steel surfaces

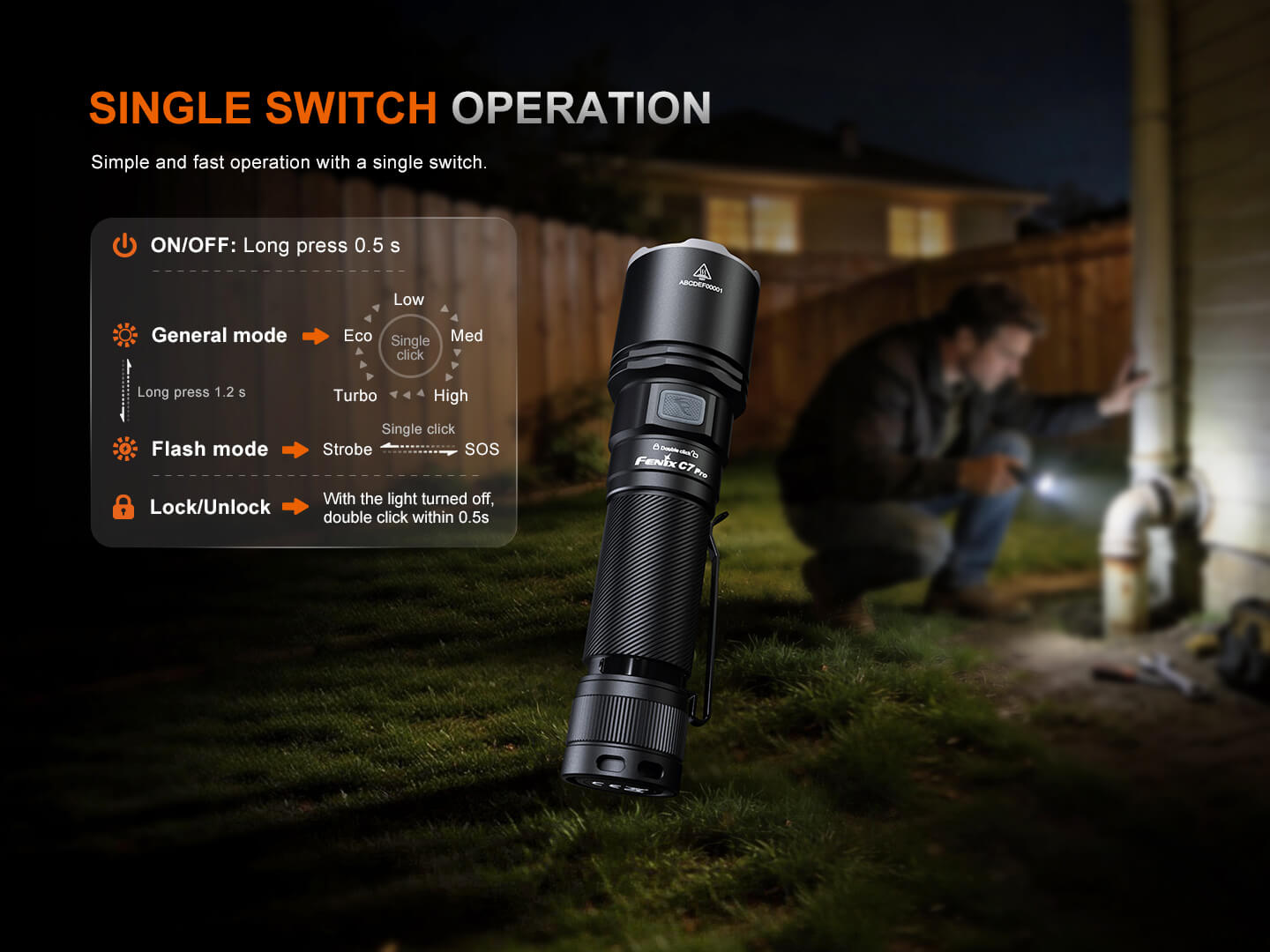

• Single-switch operation, usable with gloves
• Electronic lockout mode prevents accidental activation in transport or storage
• Battery level indicator with low-voltage warning

Battery & Charging

• Included: Fenix ARB-L21-5000 V2.0 rechargeable 5000mAh 21700 battery
• Charging: 20W USB Type-C fast charging, about 1.5 hours from depleted
• Compatibility: also works with any Fenix 21700 battery, or an 18650 battery via the ALF-18 adapter

Size & Weight

• Dimensions: 5.93" length, 1.57" head diameter, 1.12" body diameter
• Weight: 9.24 oz (including battery)

Q: What are the key features of the C7 Pro?

A: Fenix C7 Pro is a high-output fast-charging flashlight. Its key features include:

1. 4600 lumens maximum output and 339 meters maximum beam distance.
2. Powered by an included ARB-L21-5000 V2.0 rechargeable battery to provide long-lasting runtime.
3. USB Type-C port supports up to 20W fast charging; 1.5 hours from depleted to fully charged.

Q: What kind of LED is used in C7 Pro?

A:  Utilizes four Luminus SST25 LEDs with a lifespan of 50,000 hours each.

Q: What is the color temperature of C7 Pro?

A: Around 6500K.

Q: What is the operating voltage of C7 Pro?

A: 3.0- 4.2V.

Q: Is C7 Pro rechargeable? How long is the charging time?

A: Yes. The C7 Pro is rechargeable via its USB Type-C charging port. The batter level indicator will display red while charging and will turn green when fully charged. The normal charging time of the included battery is approximately 1.5 hours from depleted to fully charged with a 9 V/3A charging adapter.

Q: How to prevent accidentally activate the C7 Pro?

A: The C7 Pro features a lockout function.

Lock: With the light turned off, double click the side switch within 0.5 seconds, the light will blink twice in Low output to indicate the locked status.

Unlock: With the light locked, double click the side switch within 0.5 seconds, the light will activate in Low output to indicate that the light is unlocked.

Note: In locked status, any operation other than battery level indication and unlocking will activate two blinks in Low output to indicate the locked status.

Q: Why does the C7 Pro downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically and gradually step down its output level to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q: Why does the C7 Pro sometimes flicker?

A: The reasons that may cause the flashlight to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Q: What are the optional accessories for C7 Pro?

A: The C7 Pro comes with a lanyard. Other compatible accessories: AOT-04 traffic wand, AOD-M diffuser tip, ALD-05 helmet flashlight holder.

Condensed from the manufacturer's official manual for the Fenix C7 Pro high-output, fast-charging work flashlight. See the full downloadable PDF reference manual on this page for complete details.

Overview

• 4600 lumens maximum output and 339 meters maximum beam distance
• Uses a Luminus SST25 LED
• Includes an ARB-L21-5000 V2.0 rechargeable battery
• USB Type-C fast charging (about 1.5 hours from fully depleted)
• Boot-up battery level indication and low-voltage warning
• Intelligent overheat protection
• Made of durable aluminum alloy with a hard-anodized anti-abrasive finish

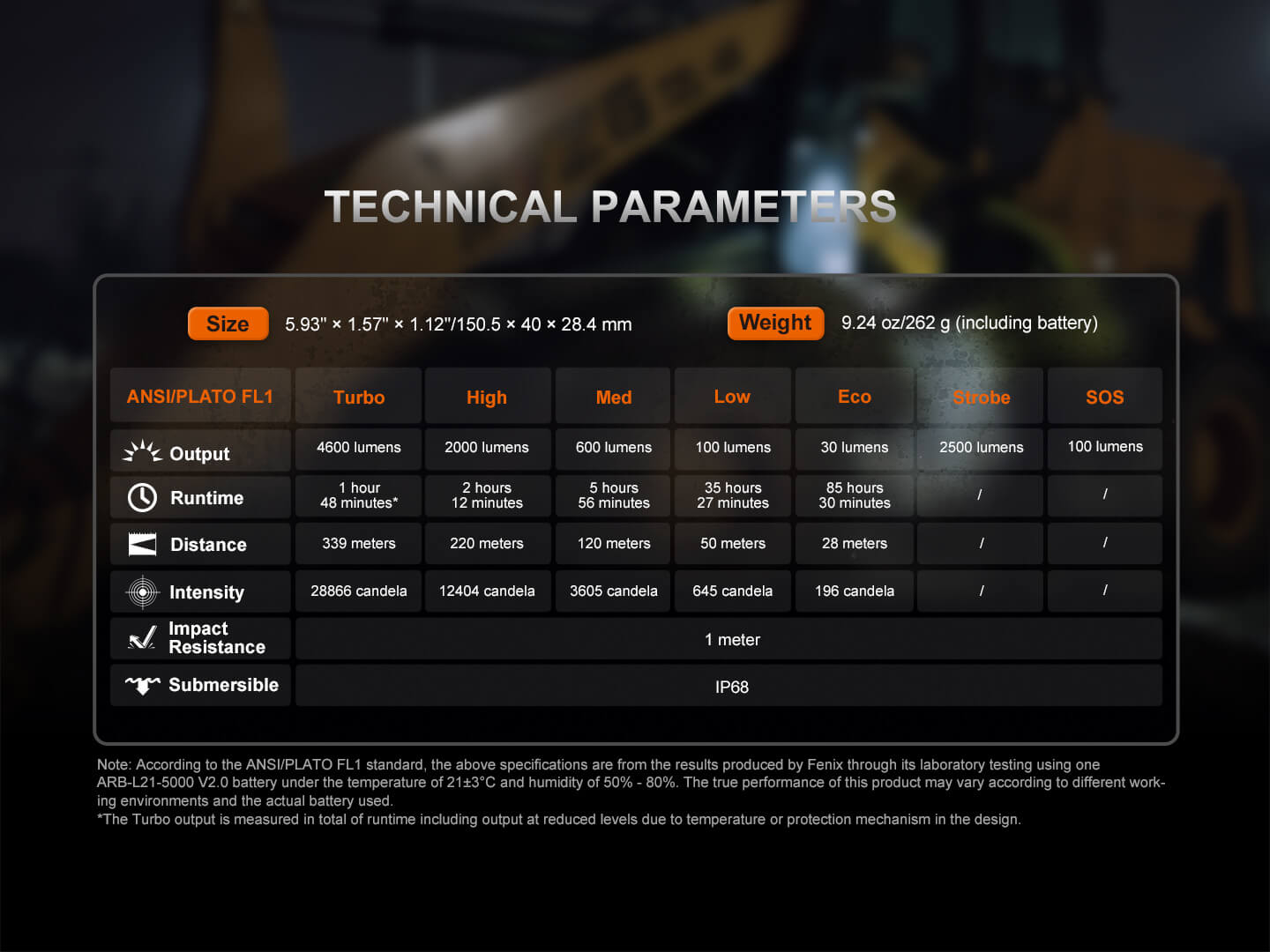

Technical Parameters (ANSI/PLATO FL1)

• Turbo: Output 4600 lumens, Runtime 1 h 48 min, Distance 339 m, Intensity 28,866 cd
• High: Output 2000 lumens, Runtime 2 h 12 min, Distance 220 m, Intensity 12,404 cd
• Med: Output 600 lumens, Runtime 5 h 56 min, Distance 120 m, Intensity 3,605 cd
• Low: Output 100 lumens, Runtime 35 h 27 min, Distance 50 m, Intensity 645 cd
• Eco: Output 30 lumens, Runtime 85 h 30 min, Distance 28 m, Intensity 196 cd
• Strobe: Output 2500 lumens
• SOS: Output 100 lumens

Specs measured by Fenix using one ARB-L21-5000 V2.0 battery at 21±3°C / 50–80% humidity; real-world performance varies.

Battery & Charging

Uses an included ARB-L21-5000 V2.0 21700 rechargeable battery. Charges via the built-in USB Type-C port, supporting 20W fast charging — about 1.5 hours from fully depleted.

Battery Level Indication

Each time the light is turned on, the indicator shows the current battery level for 3 seconds.

• Green, on: saturated, 100–85%
• Green, flashing: sufficient, 85–50%
• Red, on: poor, 50–25%
• Red, flashing: critical, 25–1%

Protection Features

Intelligent Overheat Protection: the light automatically steps down output at high temperatures to cool down, restoring the preset level once temperature drops.

Low-Voltage Warning: as the battery depletes, the light downshifts toward Eco output as a reminder to recharge.

Care & Maintenance

• Do not disassemble the sealed head — this voids the warranty.
• Use only a high-quality battery.
• Remove the battery for storage if the light won't be used for an extended period.
• Replace the O-ring with an approved spare if it shows wear, to maintain the waterproof seal.
• Clean battery contacts periodically with a rubbing-alcohol-soaked cotton swab if the light flickers or won't turn on.

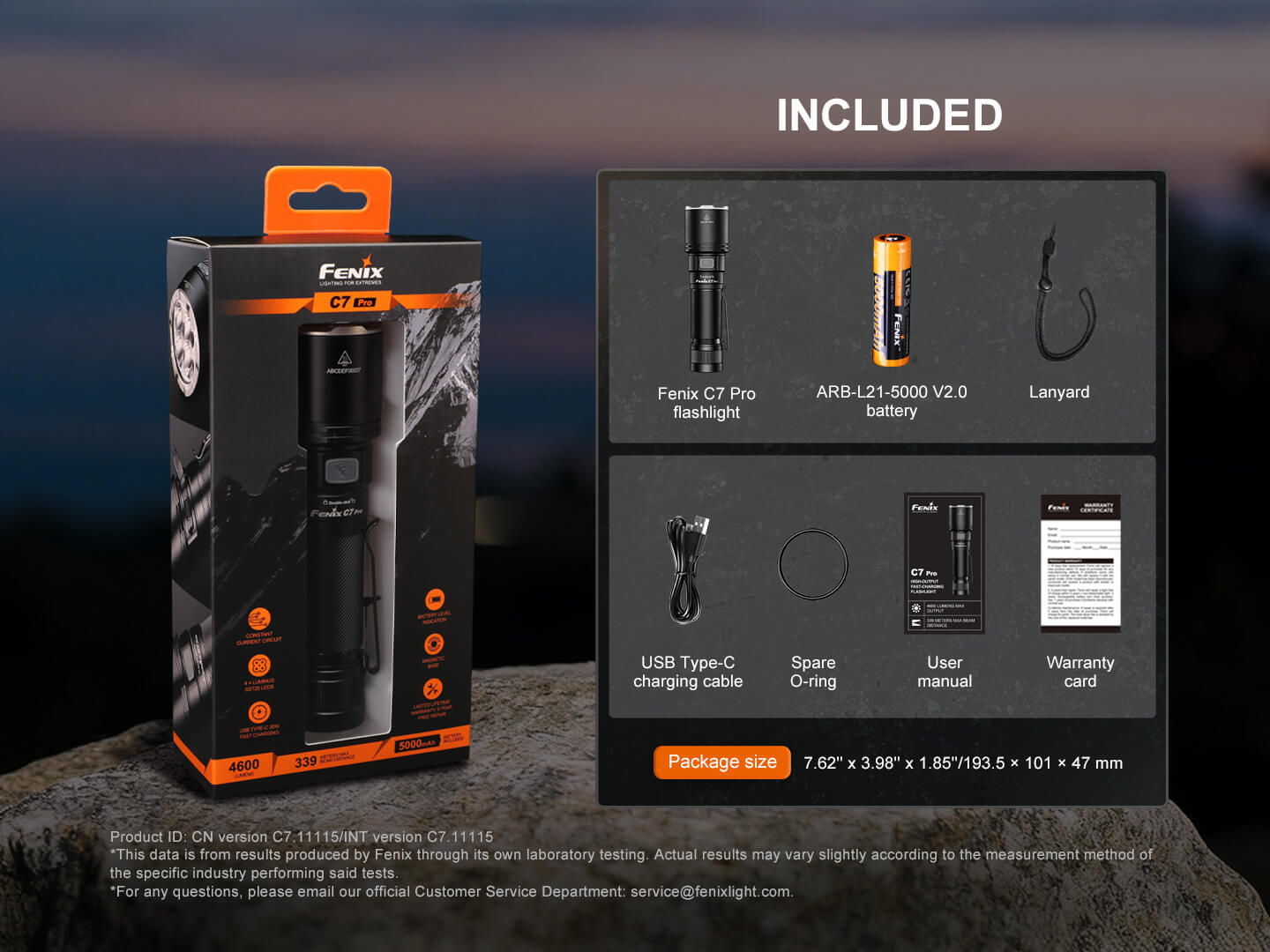

What's Included

Fenix C7 Pro flashlight, ARB-L21-5000 V2.0 battery, USB Type-C charging cable, lanyard, spare O-ring, user manual, and warranty card.
