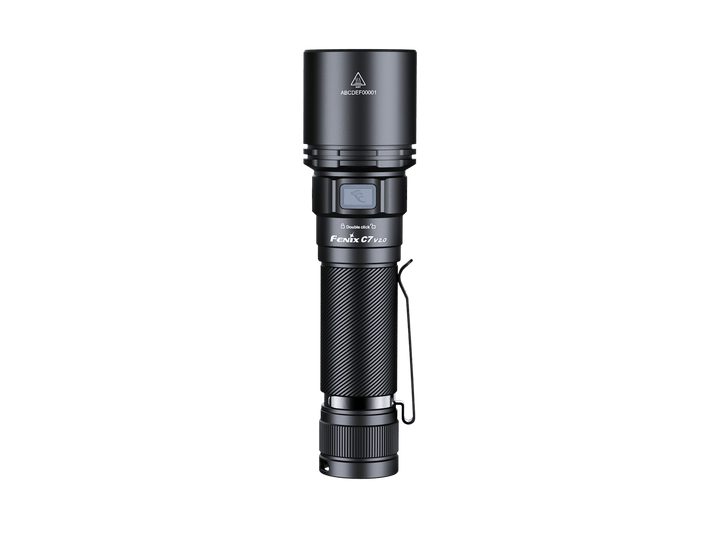

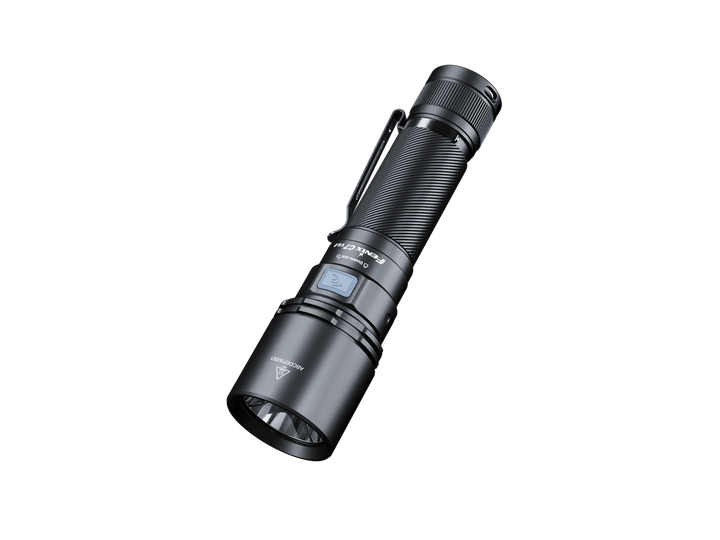

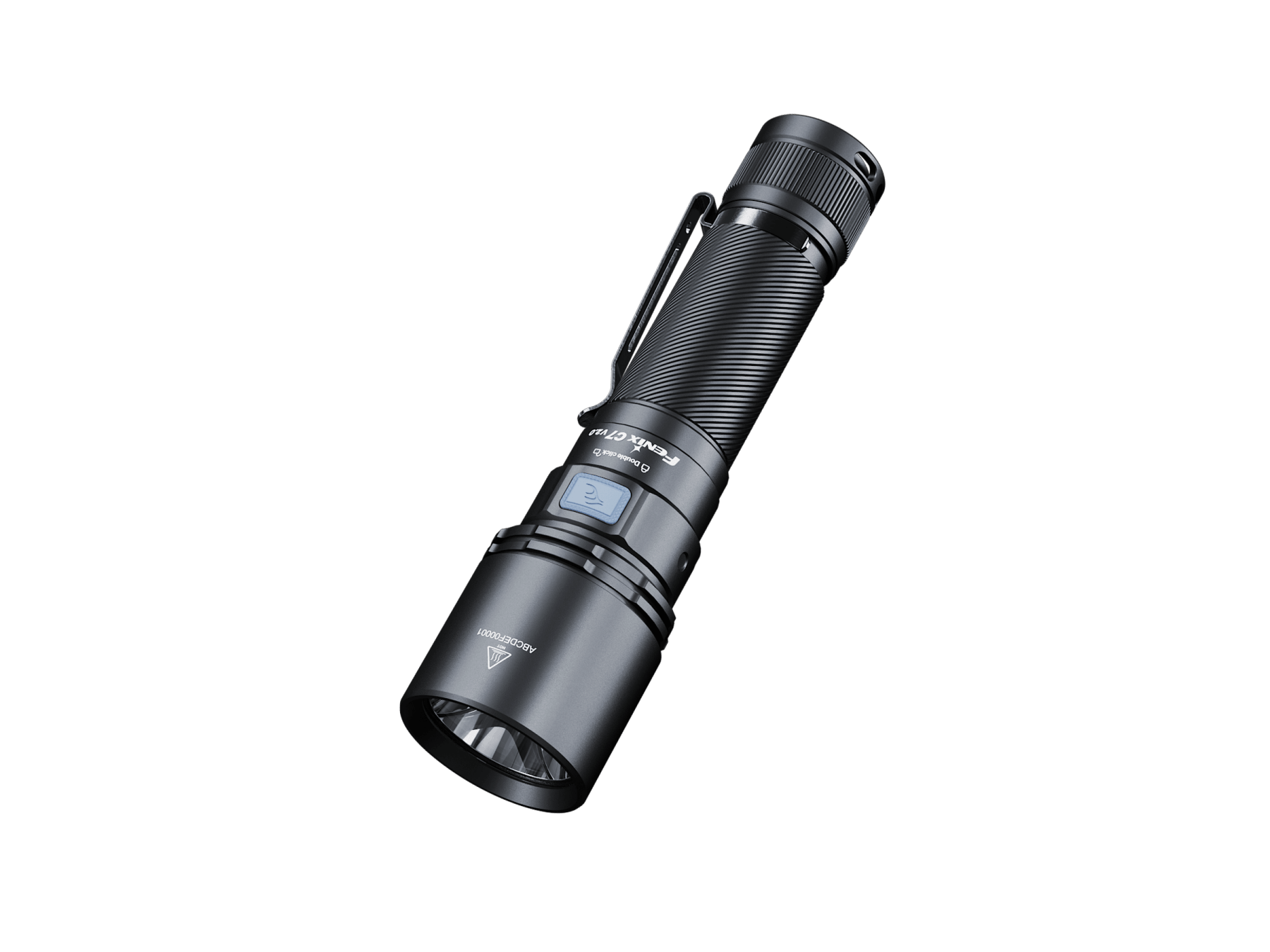

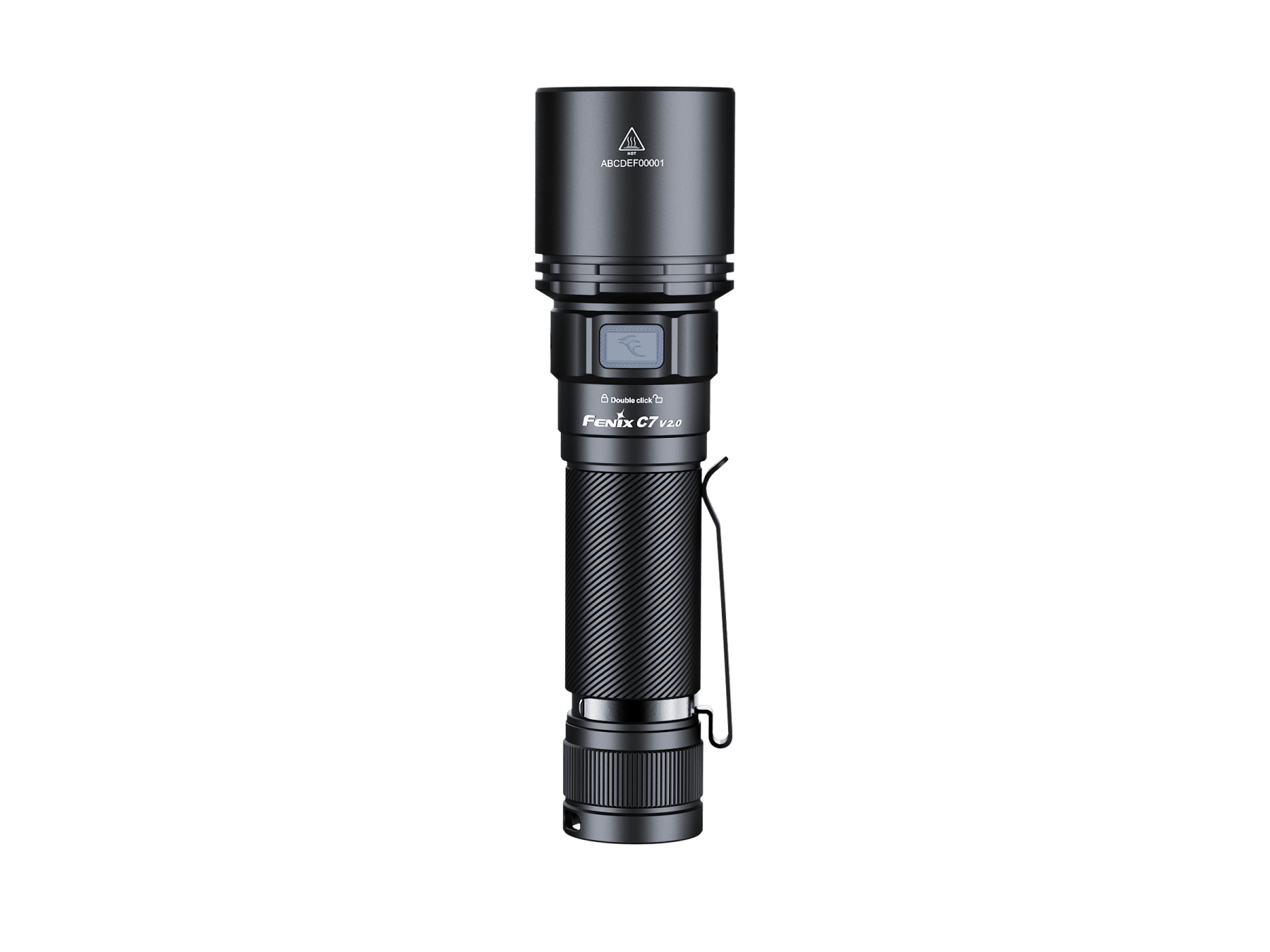

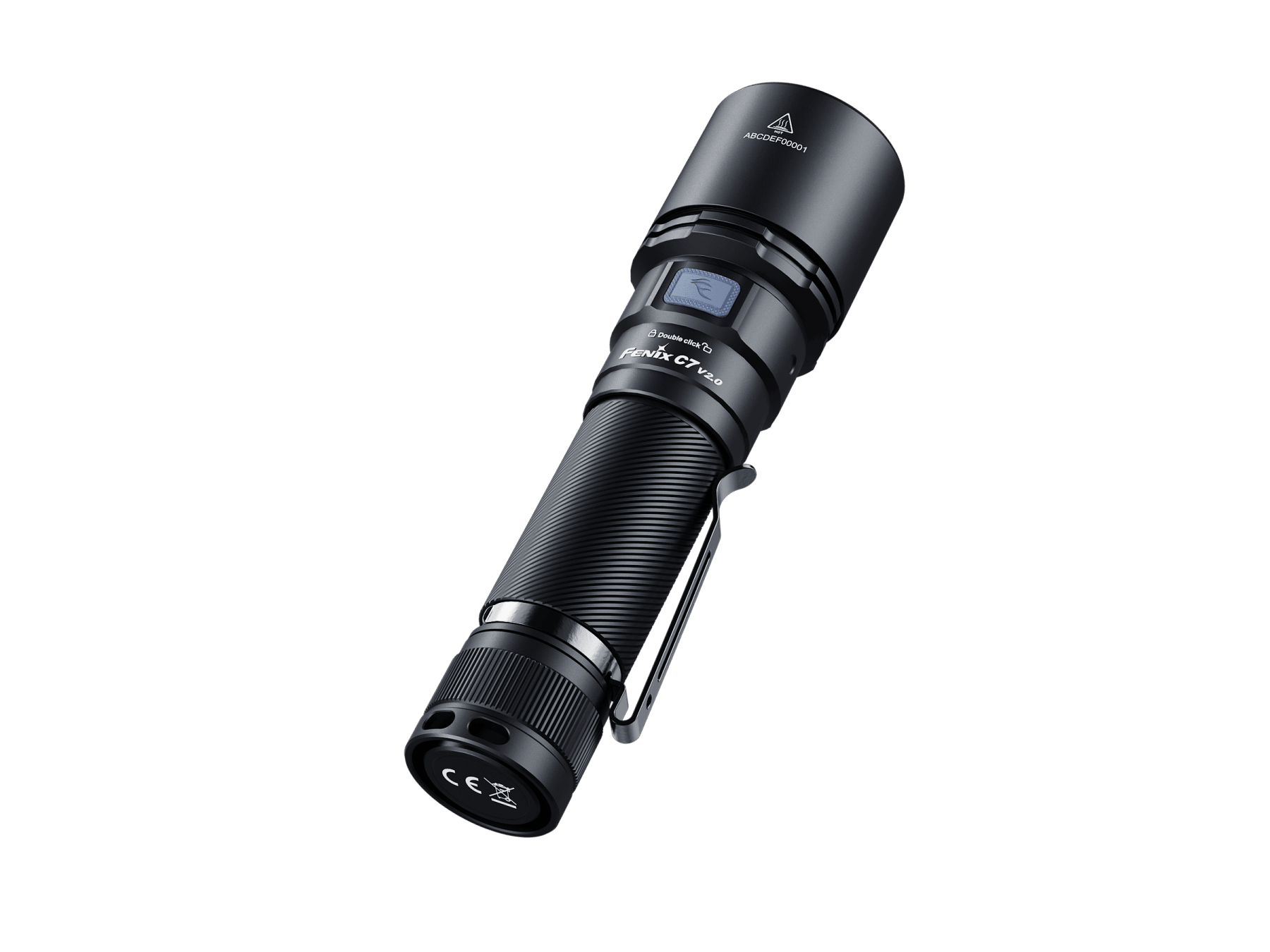

Fenix C7 V2 High-Output Work Flashlight - 3300 Lumens

Outputs

• Turbo: 3300 Lumens, 82,626 cd, 2.5 hours, 1887 feet
• High: 1400 Lumens, 2.97 hours, 1270 feet
• Med: 400 Lumens, 6.97 hours, 673 feet
• Low: 100 Lumens, 32 hours, 331 feet
• Eco: 30 Lumens, 79 hours, 181 feet
• Strobe: 2500 Lumens
• SOS: 100 Lumens

Details

• 3300 lumen output
• 575 meter beam distance
• One Luminus SFT70 Gen2 LED with a 50,000 hour lifespan
• USB Type-C Rechargeable - Charge to full in just 3 hours with a 5V/2A charger!

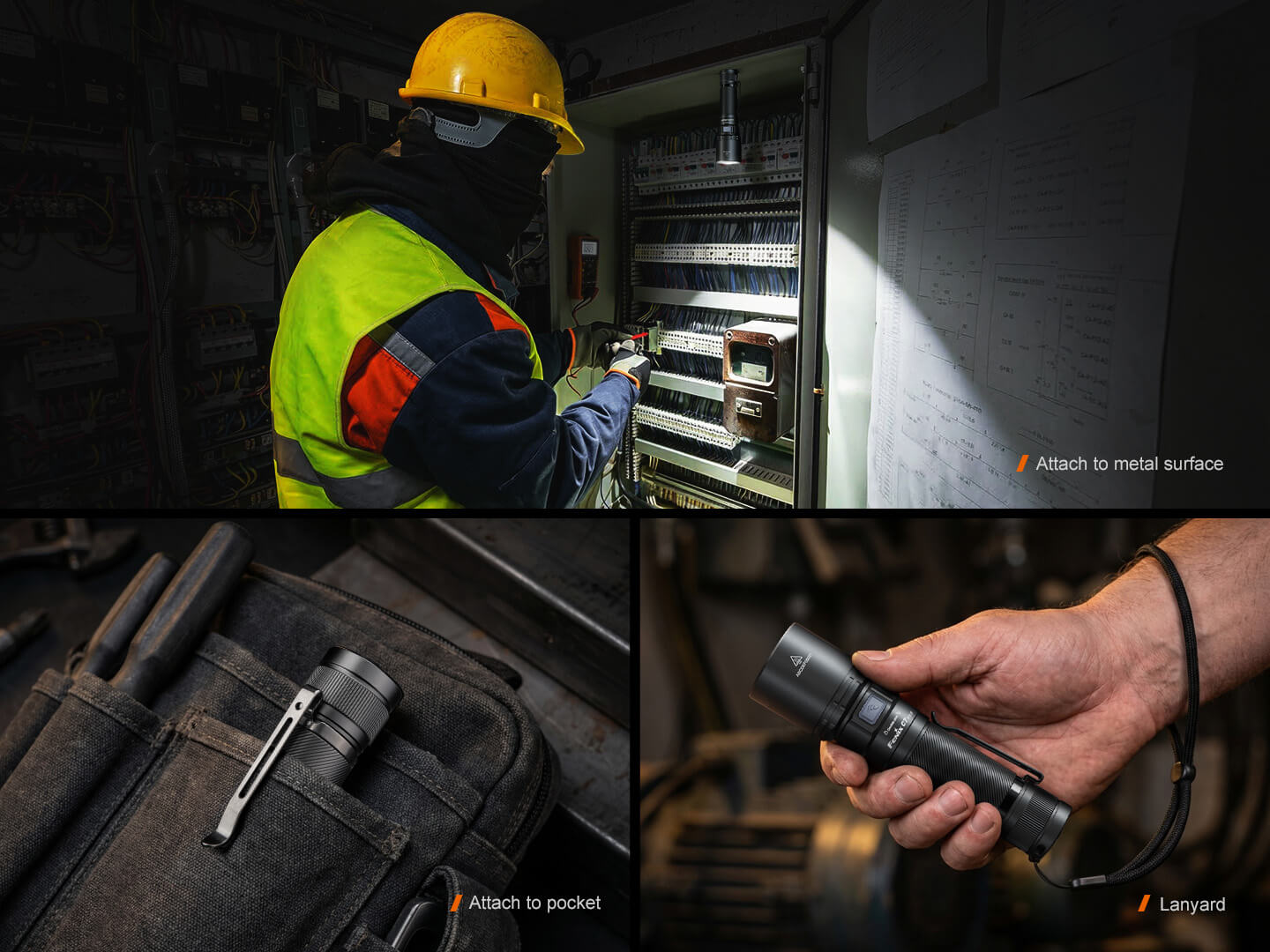

• Magnetic Tail Cap
• Constant current circuit
• Strobe and SOS flashing modes
• Electronic lockout function
• Single-switch operation

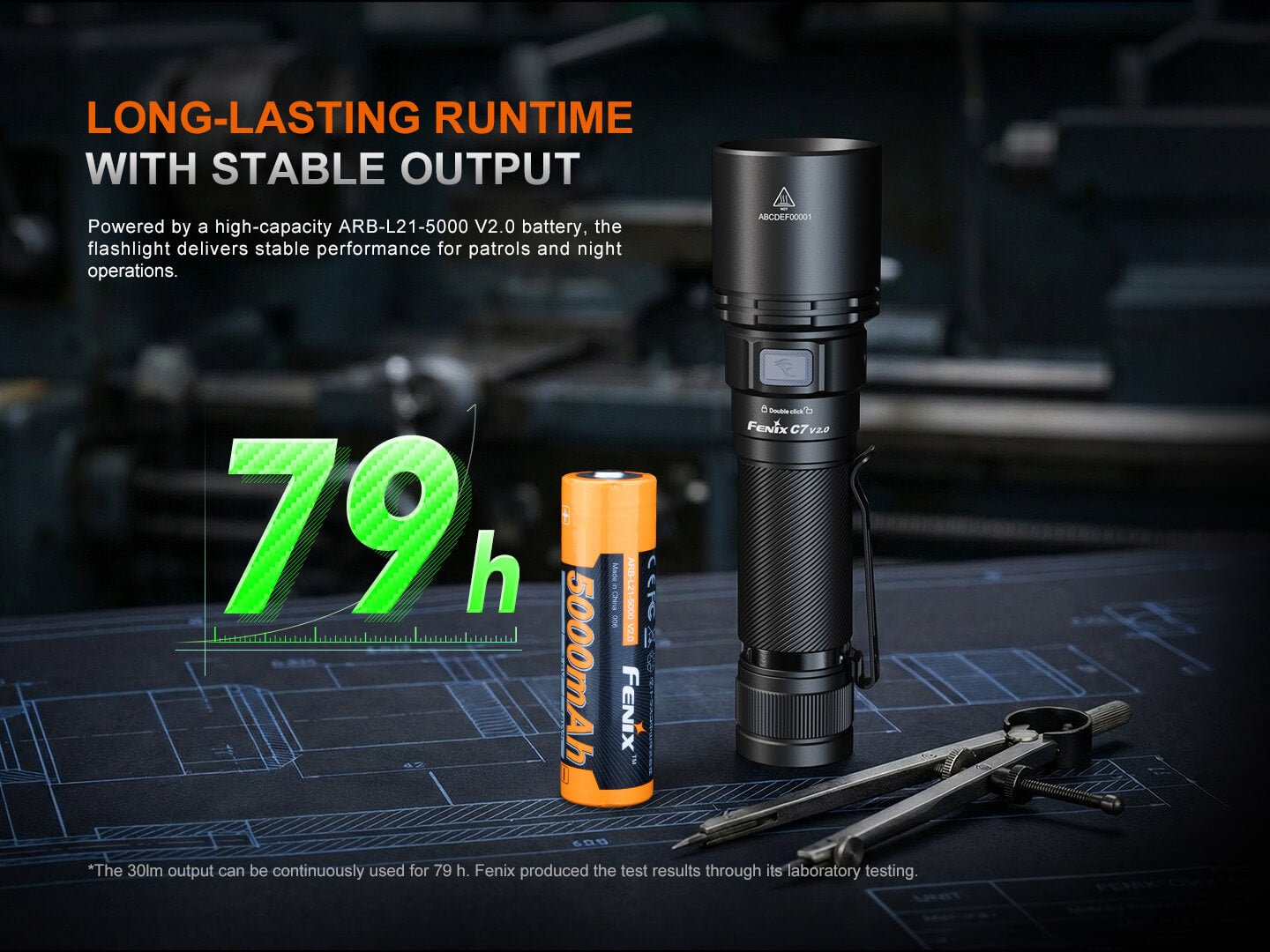

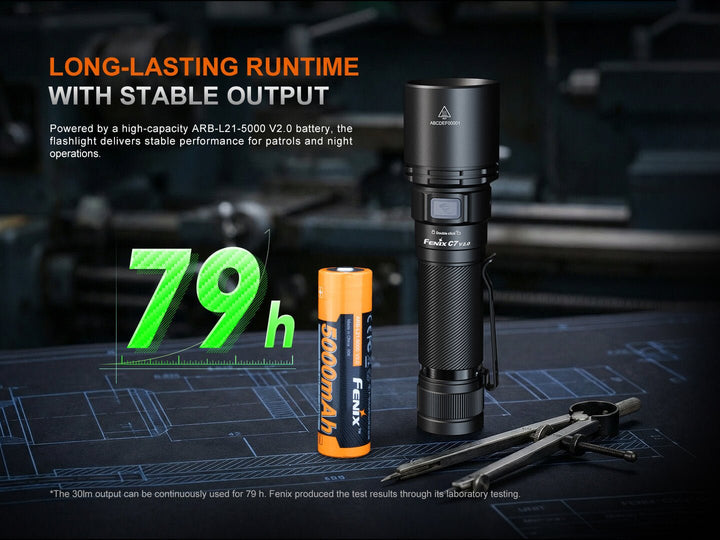

• 79 hour maximum runtime
• Rechargeable 5000mAh 21700 battery included
• Battery level indicator
• Durable pocket clip

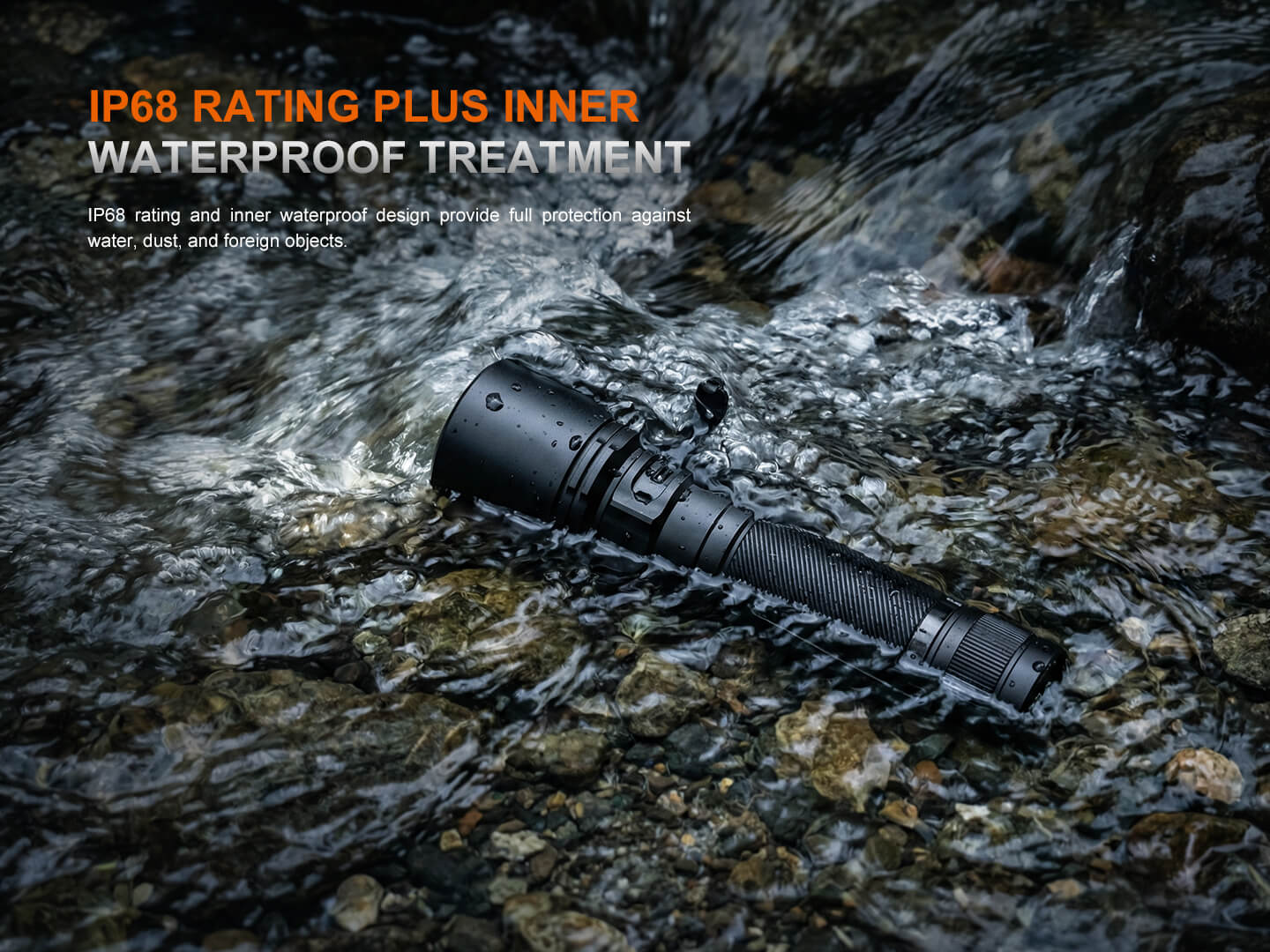

• IP68 rated waterproof (including inner waterproofing for the charging port)
• Impact resistant to 1 meter drops

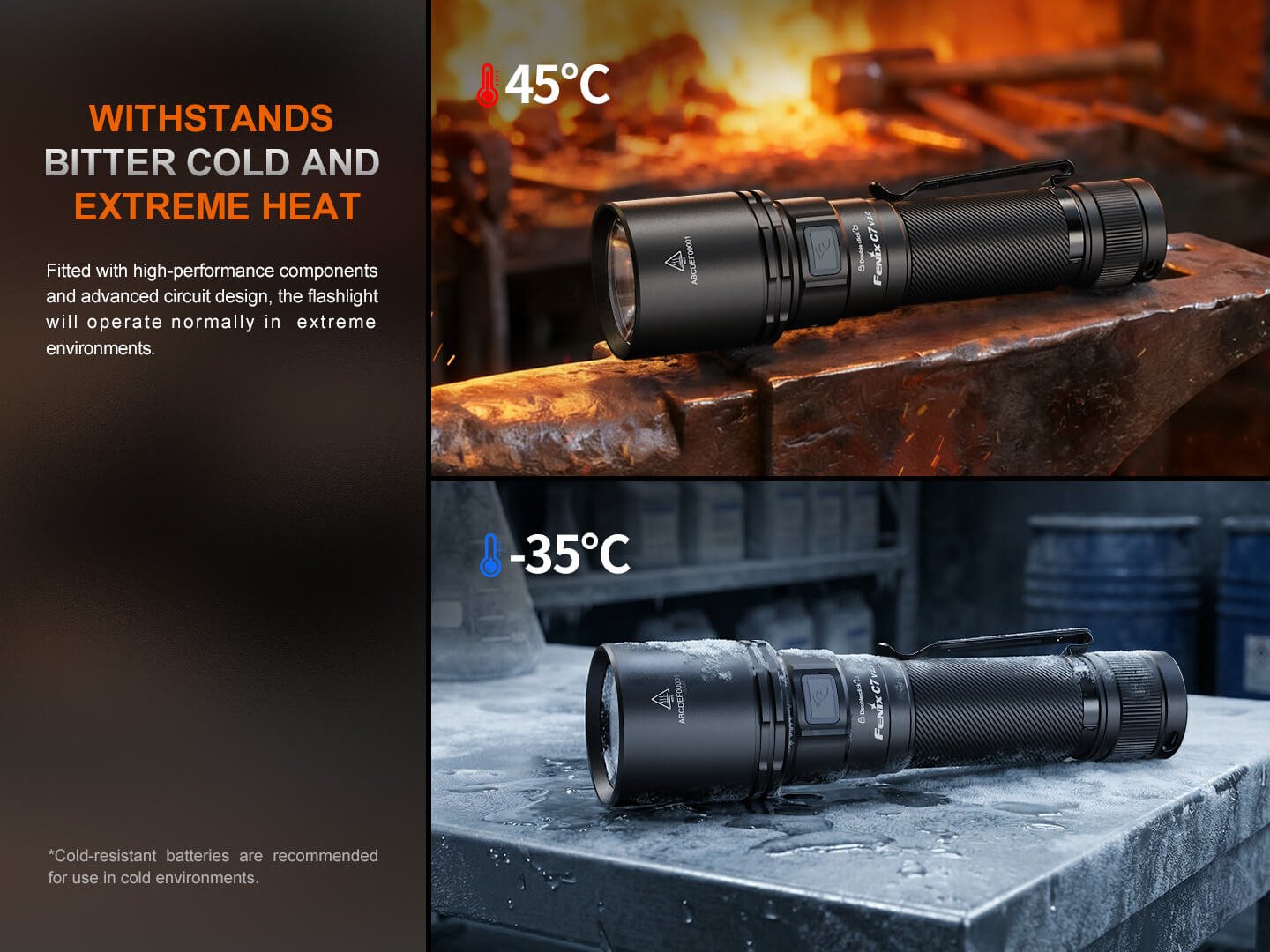

• Operable in extreme temperature environments between -31 to 113 degrees fahrenheit ( -35 to 45 celsius)

Batteries

• Included: Fenix ARB-L21-5000 V2 rechargeable 5000mAh 21700 battery
• Compatible: Any Fenix 21700 battery or any Fenix 18650 battery when using the ALF-18 battery adapter

Size

• Length: 5.93 inches
• Head Diameter: 1.57 inches
• Body Diameter: 1.08 inches
• Weight: 9.05 ounces (including battery)

Q: What are the key features of the C7 V2?

A: Fenix C7 V2 is a high-output work flashlight. Its key features include:

1. 3300 lumens maximum output and 575 meters maximum beam distance.
2. Powered by an included ARB-L21-5000 V2.0 rechargeable battery.
3. Inner waterproof USB Type-C charging port.

Q: What kind of LED is used in C7 V2?

A: Utilizes one Luminus SFT70 Gen2 LED with a lifespan of 50,000 hours.

Q: What is the operating voltage of C7 V2?

A: 3.0 - 4.2V.

Q: Is C7 V2 rechargeable? How long is the charging time?

A: Yes. The C7 V2 is rechargeable via its USB Type-C charging port. The battery level indicator will display red while charging and will turn green when fully charged. The normal charging time of the included battery is approximately 3 hours from depleted to fully charged with a 5V/2A or above charging adapter. The C7 V2 does not support fast charging.

Q: How to prevent accidentally activating the C7 V2?

A: The C7 V2 features a lockout function.

Lock: With the light turned off, double click the side switch within 0.5 seconds, the light will blink twice in Low output to indicate the locked status.

Unlock: With the light locked, double click the side switch within 0.5 seconds, the light will activate in Low output to indicate that the light is unlocked.

Note: In locked status, any operation other than battery level indication and unlocking will activate two blinks in Low output to indicate the locked status.

Q: Why does the C7 V2 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically step down its output level to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q: Why does the C7 V2 sometimes flicker?

A: The reasons that may cause the flashlight to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Condensed from the manufacturer's official manual for the Fenix C7 V2 high-output work flashlight. See the full downloadable PDF reference manual on this page for complete details.

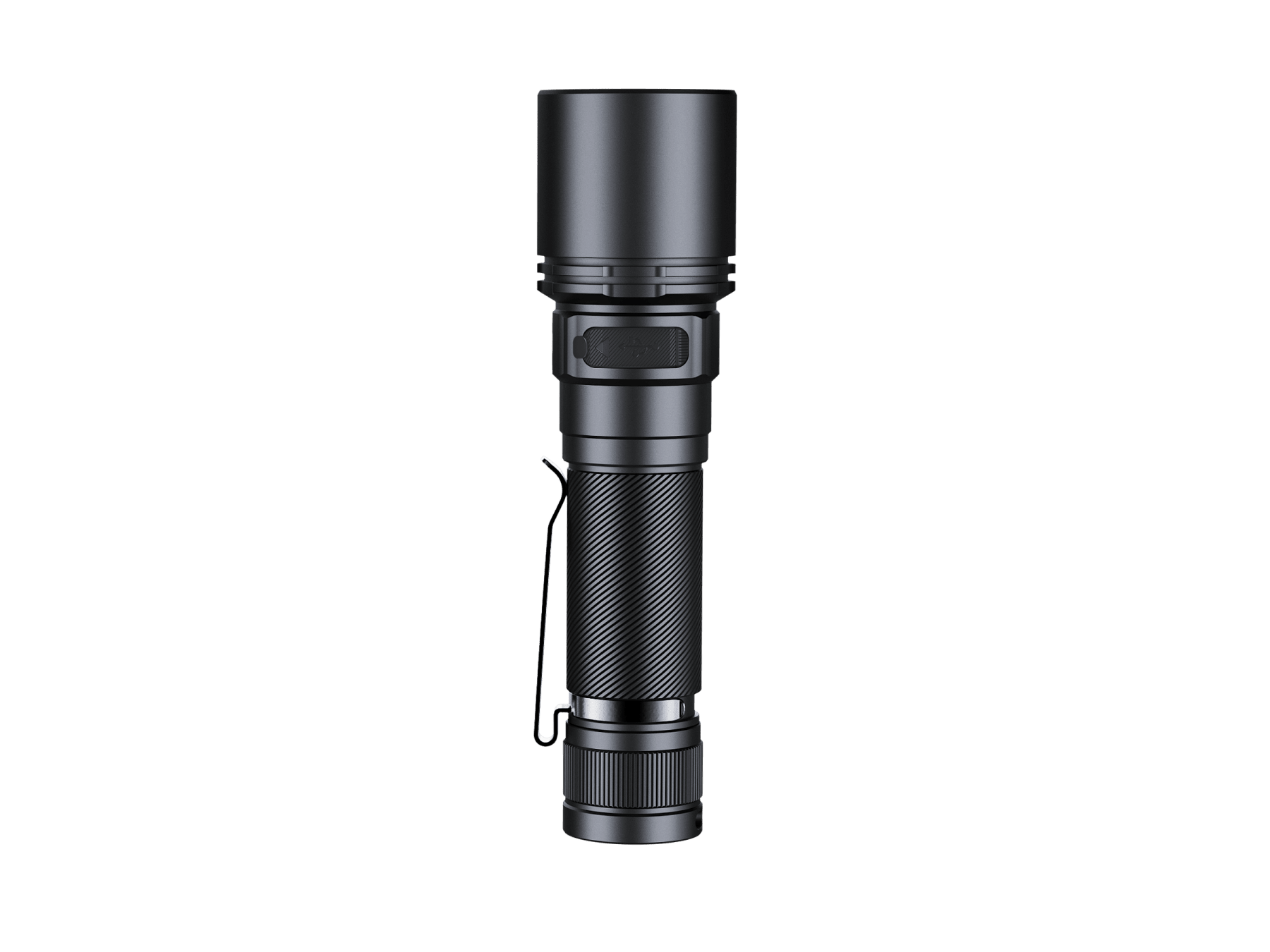

Overview

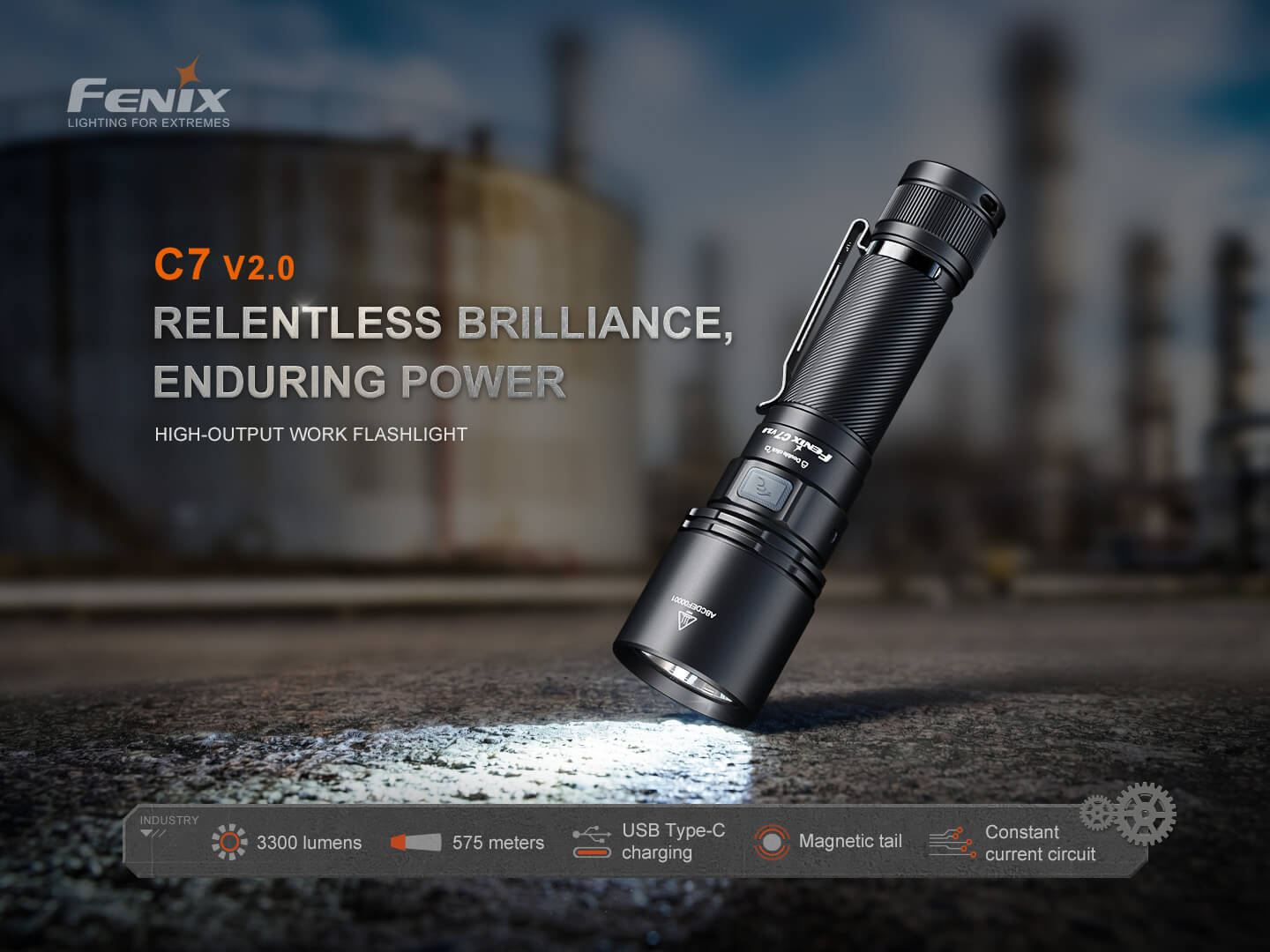

• 3300 lumens maximum output and 575 meters maximum beam distance
• Utilizes one Luminus SFT70 Gen2 LED with a lifespan of 50,000 hours
• Powered by an included ARB-L21-5000 V2.0 rechargeable battery
• Inner waterproof USB Type-C charging port

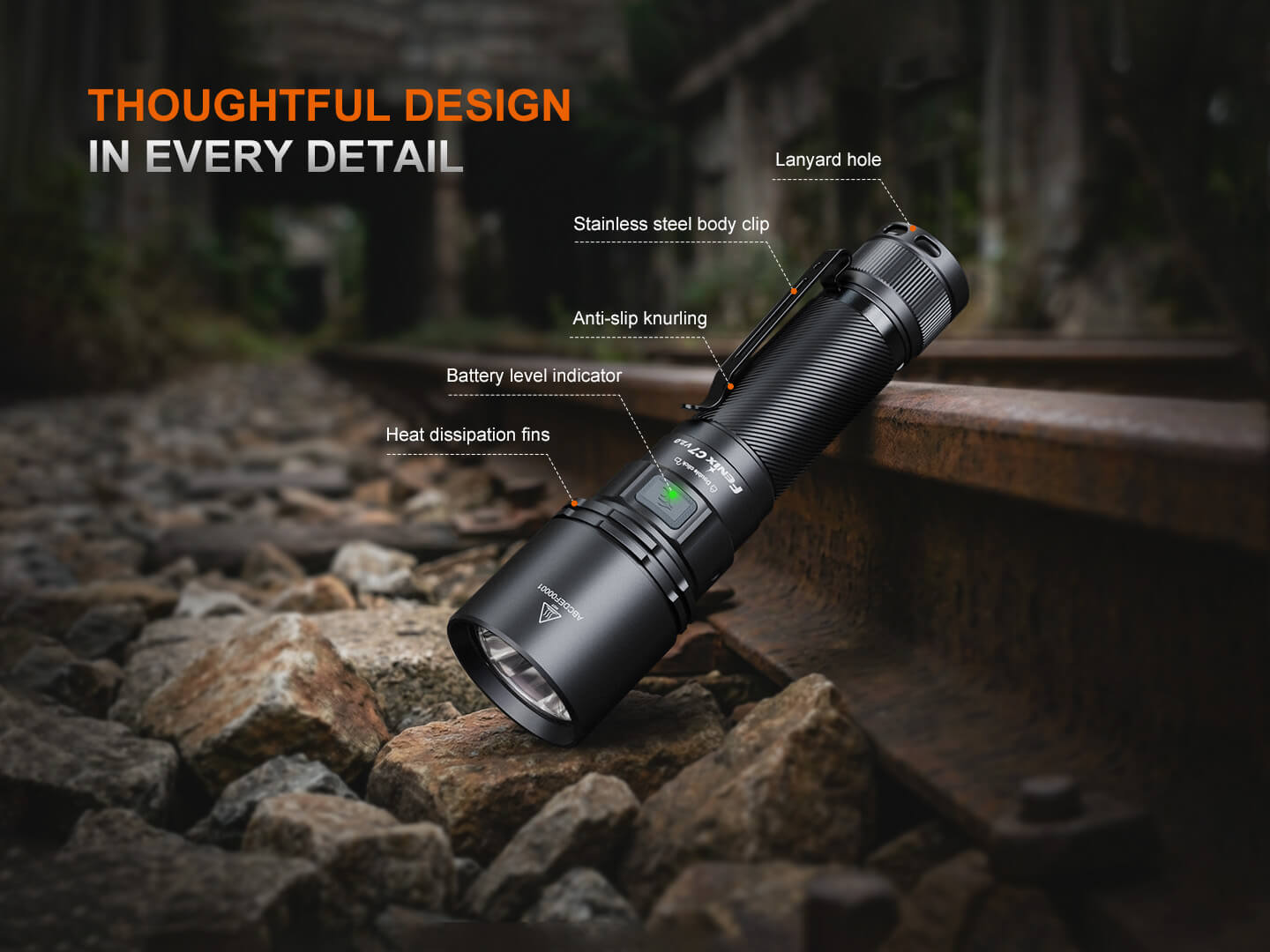

• Titanium-coated stainless steel body clip for secure attachment to pockets or tactical gear
• Magnetic tail for hands-free use
• Anti-roll, anti-slip body design

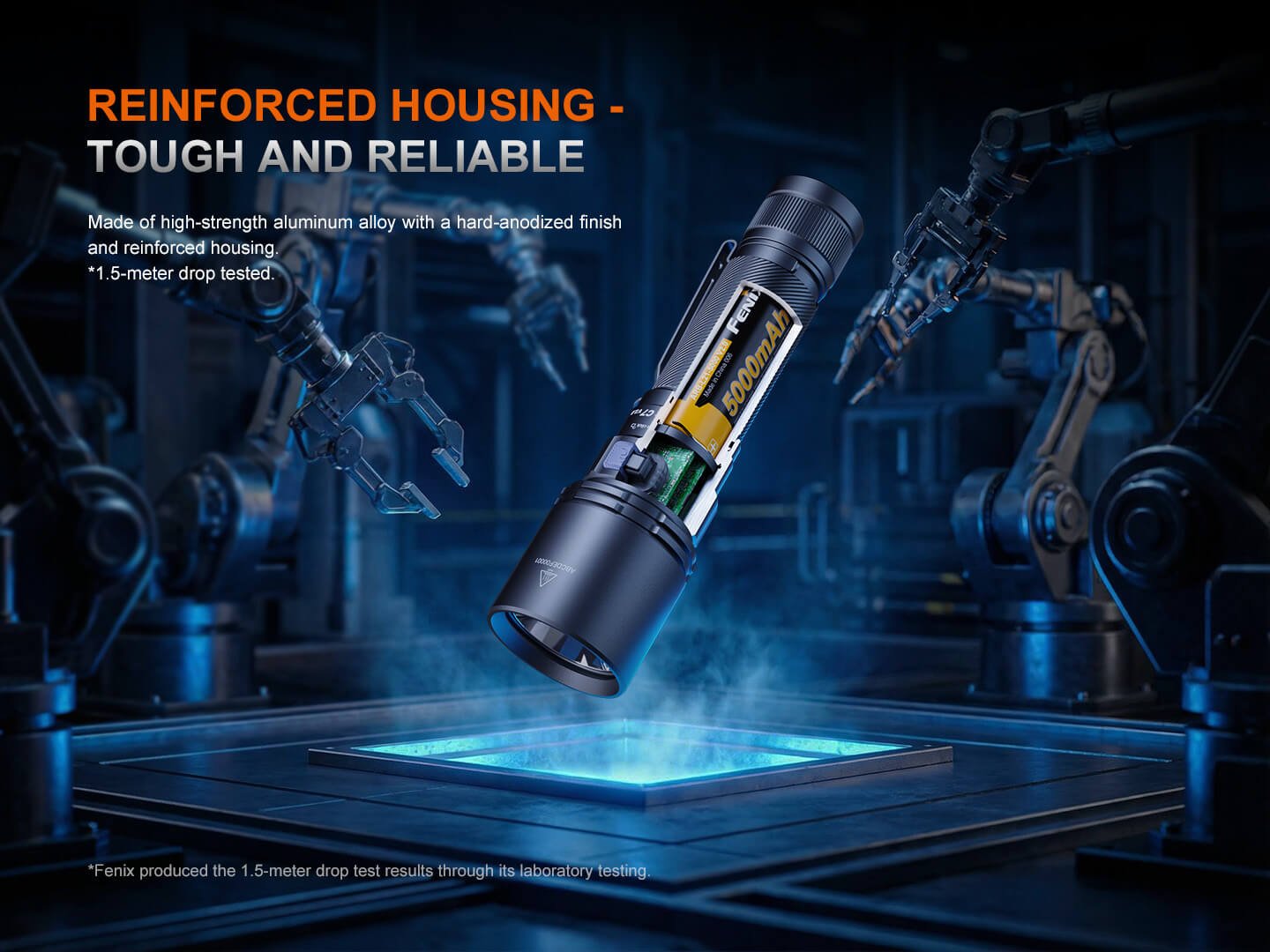

• Upgraded ultra-thick housing for exceptional durability and impact resistance
• Intelligent overheat protection and low-voltage warning
• Constant current circuit for a stable output
• Reverse polarity protection against improper battery insertion
• Made of high-strength, oxidation-resistant 6061 aluminum with a premium type HAIII hard-anodized anti-abrasive finish
• Size: 5.93'' x 1.57'' x 1.08'' / 150.6 x 40 x 27.5mm
• Weight: 9.05 oz / 256.5 g (including battery)

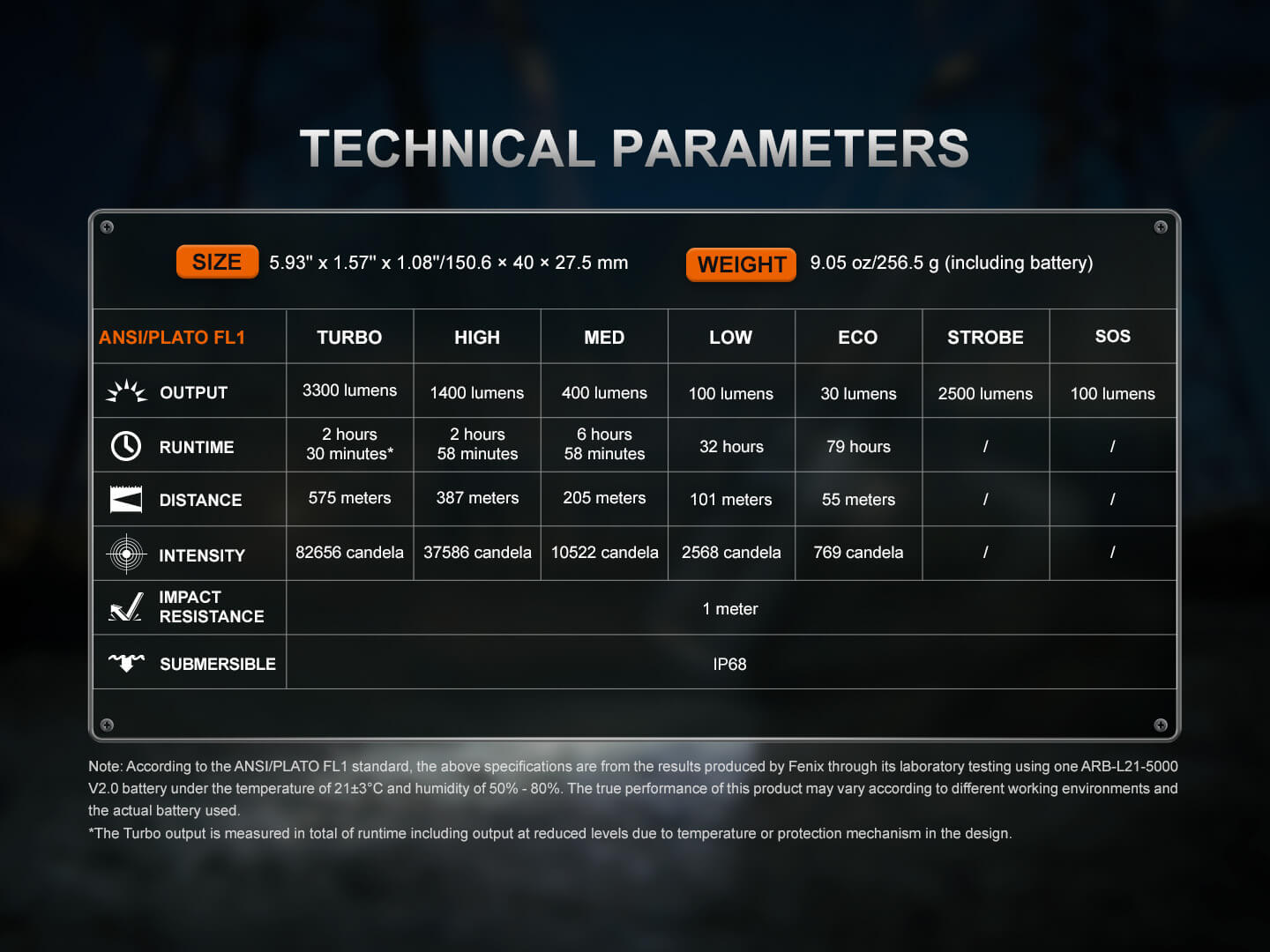

Technical Parameters (ANSI/PLATO FL1)

• Turbo: Output 3300 lumens, Runtime 2 h 30 min*, Distance 575 m, Intensity 82,626 cd
• High: Output 1400 lumens, Runtime 2 h 58 min, Distance 387 m, Intensity 37,586 cd
• Med: Output 400 lumens, Runtime 6 h 58 min, Distance 205 m, Intensity 10,522 cd
• Low: Output 100 lumens, Runtime 32 hours, Distance 101 m, Intensity 2,568 cd
• Eco: Output 30 lumens, Runtime 79 hours, Distance 55 m, Intensity 769 cd
• Strobe: Output 2500 lumens
• SOS: Output 100 lumens

Impact Resistance: 1 meter | Waterproof Rating: IP68

*Turbo runtime includes reduced-output time from thermal/protection step-down. Specs measured by Fenix using one ARB-L21-5000 V2.0 battery at 21±3°C / 50–80% humidity; real-world performance varies.

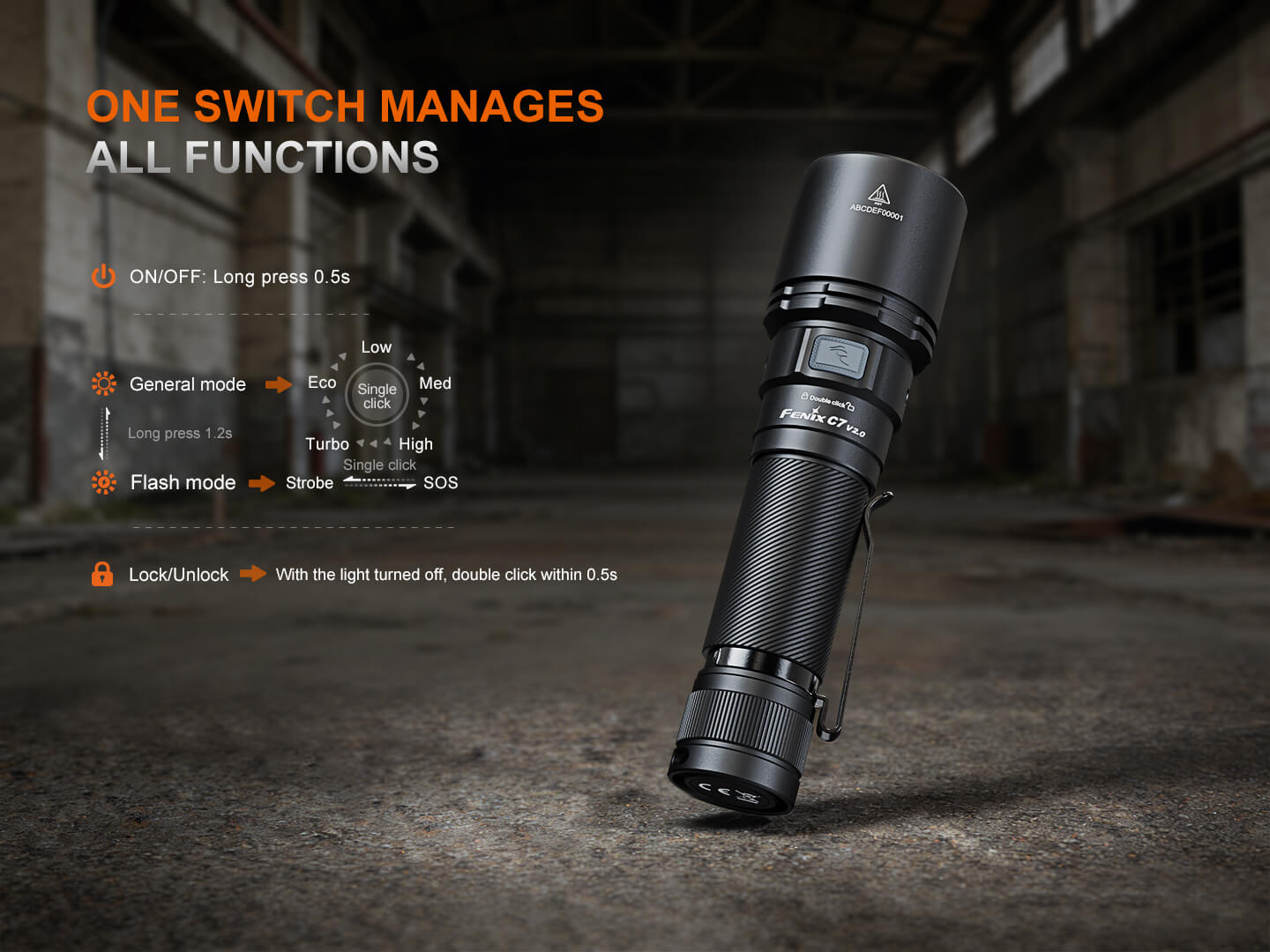

Operating Instructions

On/Off: press and hold the side switch for 0.5 seconds to turn the flashlight on/off.

Mode Switching: press and hold the side switch for 1.2 seconds to enter Strobe. Single-click the side switch to select between Strobe and SOS.

Output Selection: with the light on, single-click the side switch to cycle Eco → Low → Med → High → Turbo.

Lock/Unlock: with the light off, double-click the side switch within 0.5 seconds to lock (blinks twice in Low output to confirm). Double-click again within 0.5 seconds to unlock (activates in Low output).

Intelligent Memory Circuit: the light remembers the last-used output level, but only for outputs of 1000 lumens or below (excluding Strobe and SOS).

Battery & Charging

Uses a Fenix ARB-L21 series 21700 battery (3.6V, included). To replace: unscrew the light tail, insert the battery anode side (+) toward the light head, and screw the tail back on. Do not use 16340 batteries or LiFePO4 (18650, 3.2V) batteries — both are banned for this light; other 21700 Li-ion batteries should be used with caution.

To charge: turn off the flashlight, open the anti-dust cover to reveal the USB Type-C port, and connect the charging cable. The indicator glows red while charging and turns green when full — be sure to unplug and close the anti-dust cover once done. Charging from empty takes about 3 hours with a 5V/2A or higher adapter (this light does not support fast charging; only use a certified adapter). The light can be used while charging.

Battery Level Indication

Each time the light is turned on, the indicator shows the current battery level for 3 seconds.

• Green, on: saturated, 100–85%
• Green, flashing: sufficient, 85–50%
• Red, on: poor, 50–25%
• Red, flashing: critical, 25–1%

Protection Features

Intelligent Overheat Protection: at 60°C/140°F or above, the light automatically steps down output to cool down, and gradually restores the preset level once temperature drops.

Low-Voltage Warning: below 3.0V, the light downshifts to Eco. At Eco, the indicator blinks red rapidly and the light itself blinks for 20 seconds as a reminder; single-click the switch to stop the blinking and stay in Eco (usable for 30+ more minutes) until the battery needs recharging.

Care & Maintenance

• Do not disassemble the sealed head — this voids the warranty.
• Use only a high-quality battery.
• Remove the battery for storage if the light won't be used for an extended period.
• Unscrew the light tail or remove the battery during storage/transport to prevent accidental activation.
• Replace the O-ring with an approved spare if it shows wear, to maintain the waterproof seal.
• Clean battery contacts periodically with a rubbing-alcohol-soaked cotton swab if the light flickers or won't turn on.

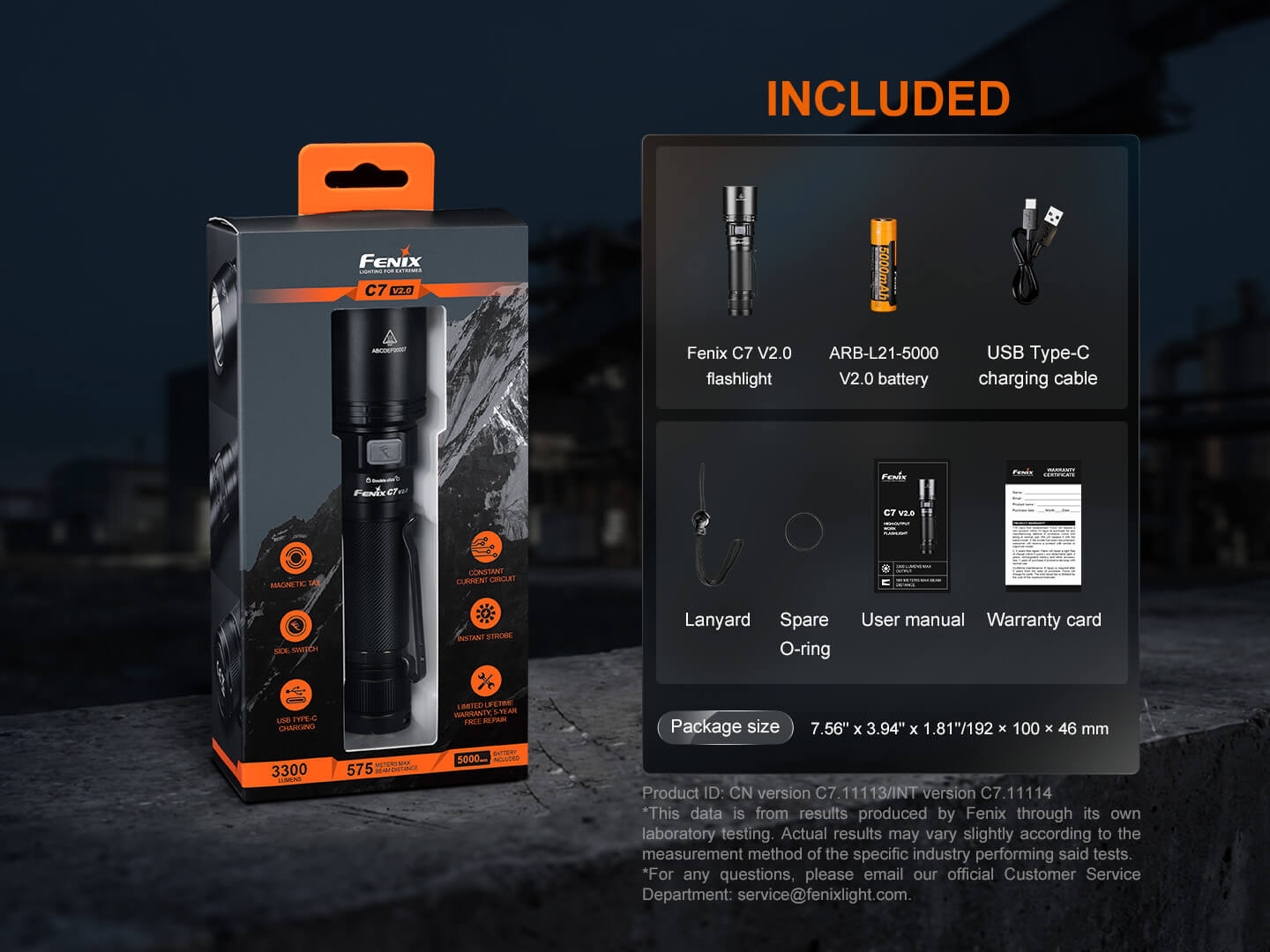

What's Included

Fenix C7 V2.0 flashlight, ARB-L21-5000 V2.0 battery, USB Type-C charging cable, lanyard, spare O-ring, user manual, and warranty card.
