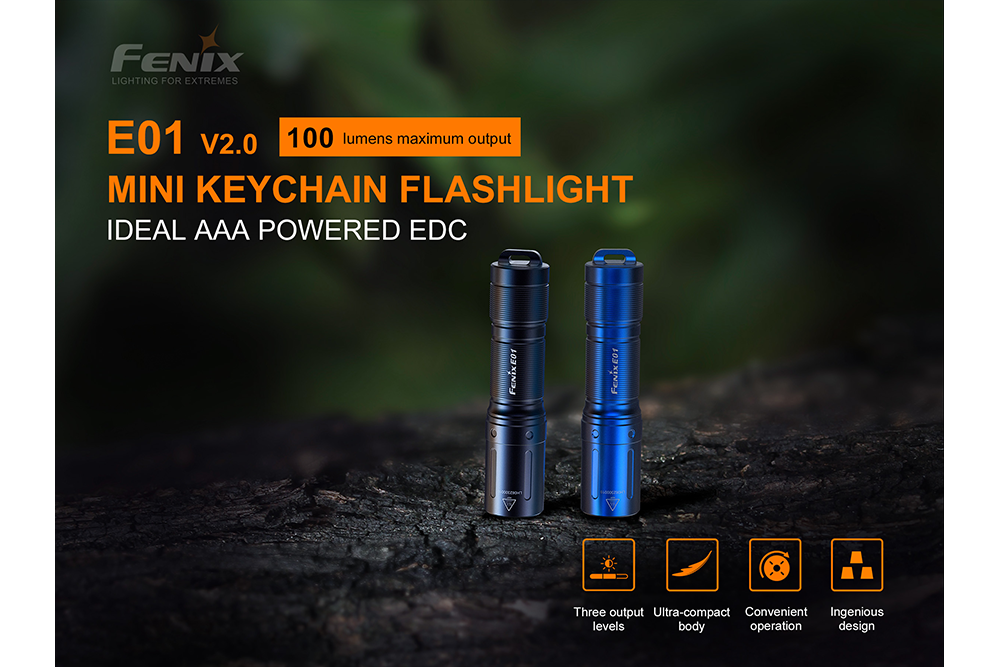

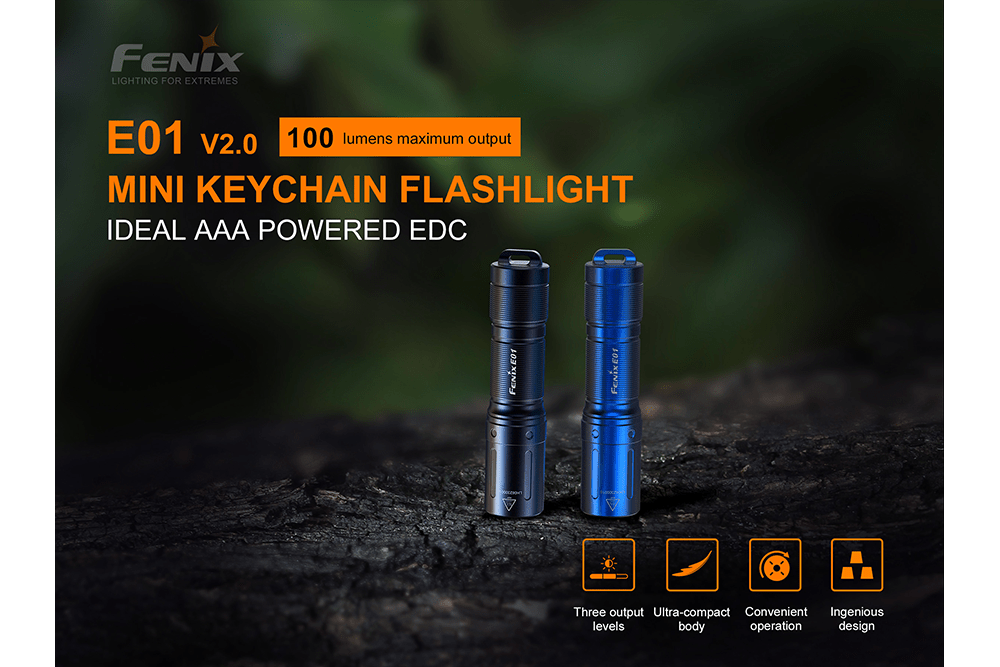

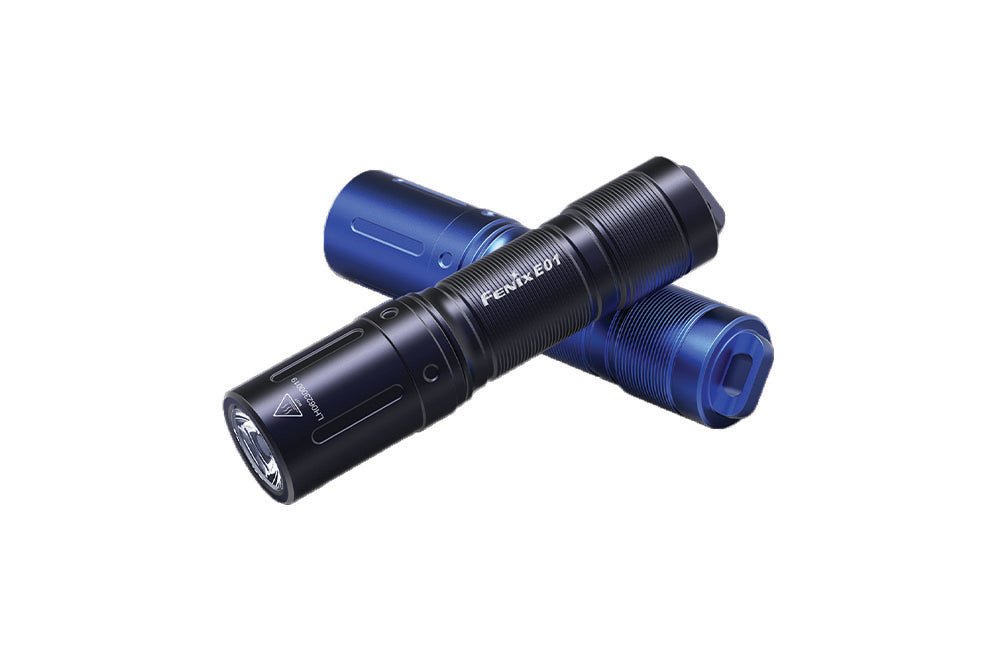

Fenix E01 V2.0 AAA LED Flashlight

Performance Highlights

• Spotlight: 100-lumen High output with a 35-meter (114 ft) beam distance in an ultra-compact keychain body

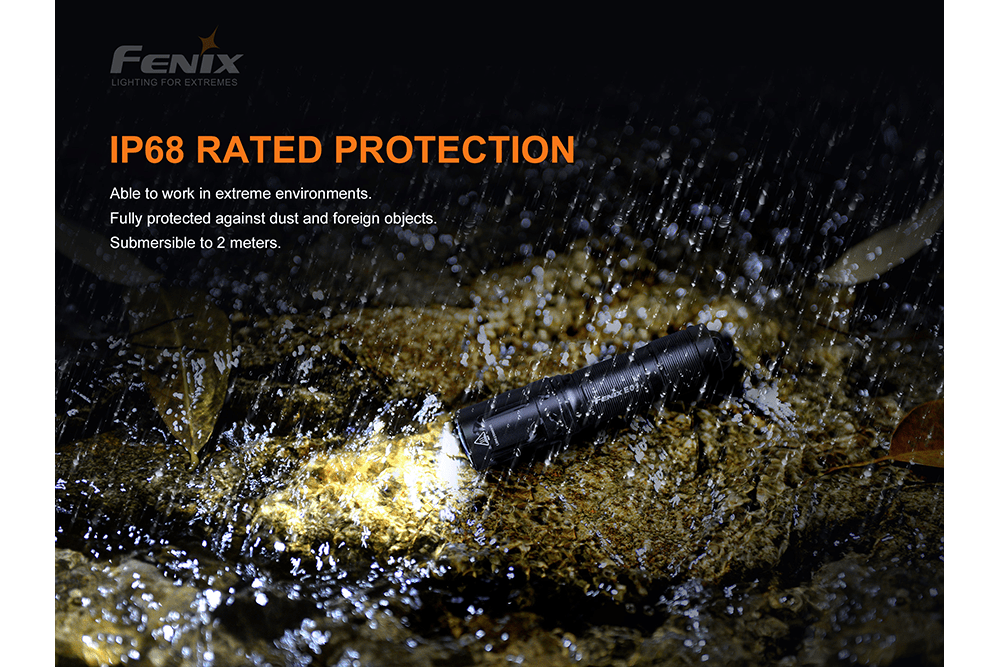

• Durability: IP68 rated (submersible to 2 meters), impact resistant to 1 meter

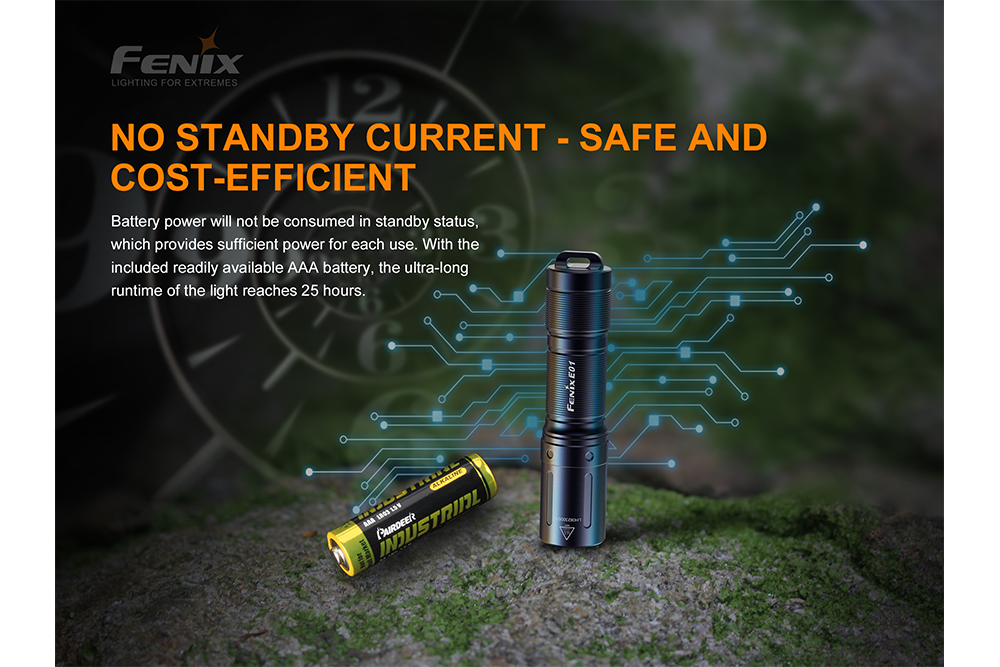

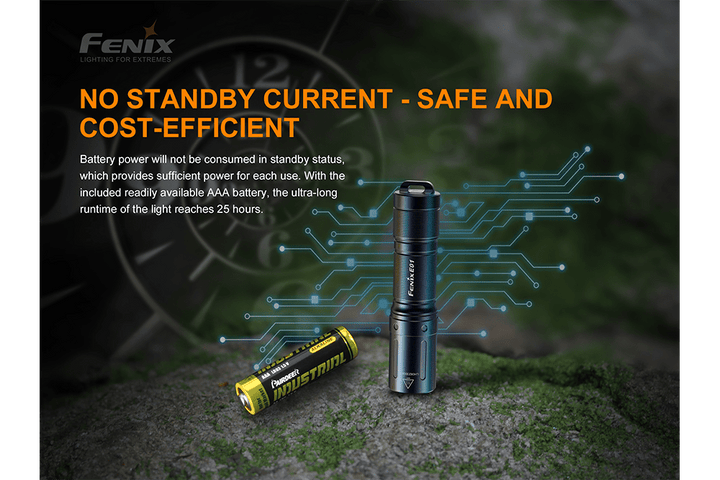

• Feature: One-handed twist-switch operation with no standby current drain

Full mode-by-mode output, runtime, distance, and intensity figures are shown in the specifications chart above.

Key Features

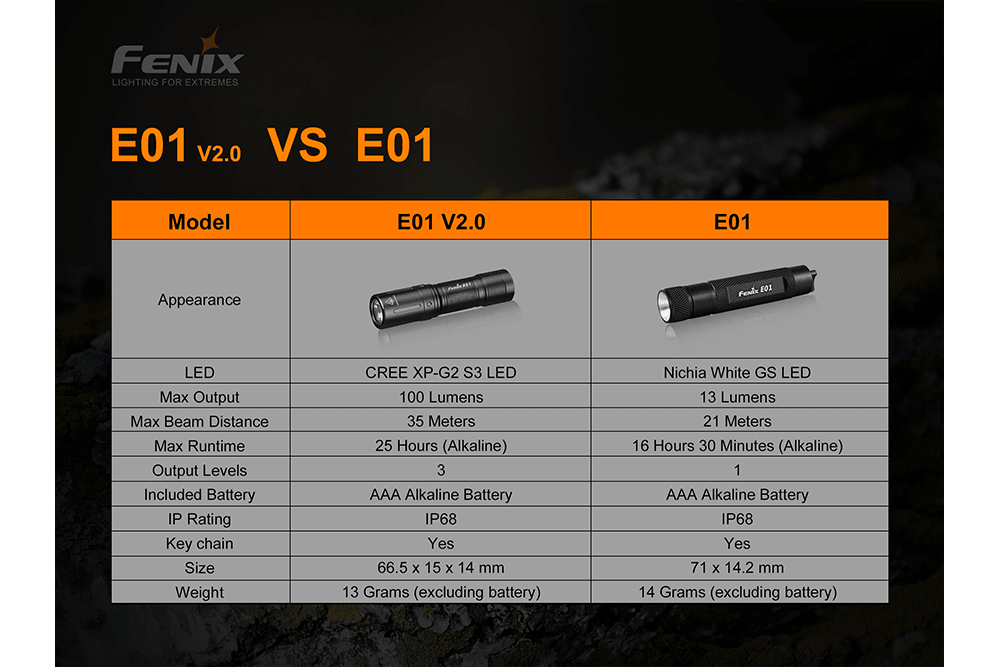

• CREE XP-G2 S3 LED
• Rotary head twist-switch operation — tighten to turn on, unscrew and re-tighten within one second to cycle outputs
• Intelligent overheat protection on High output

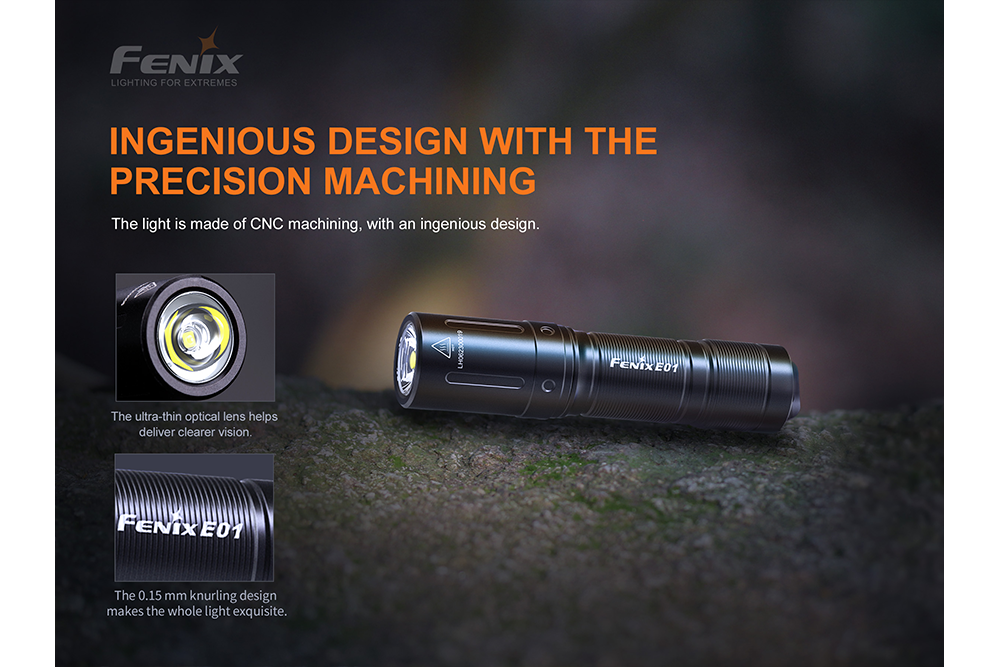

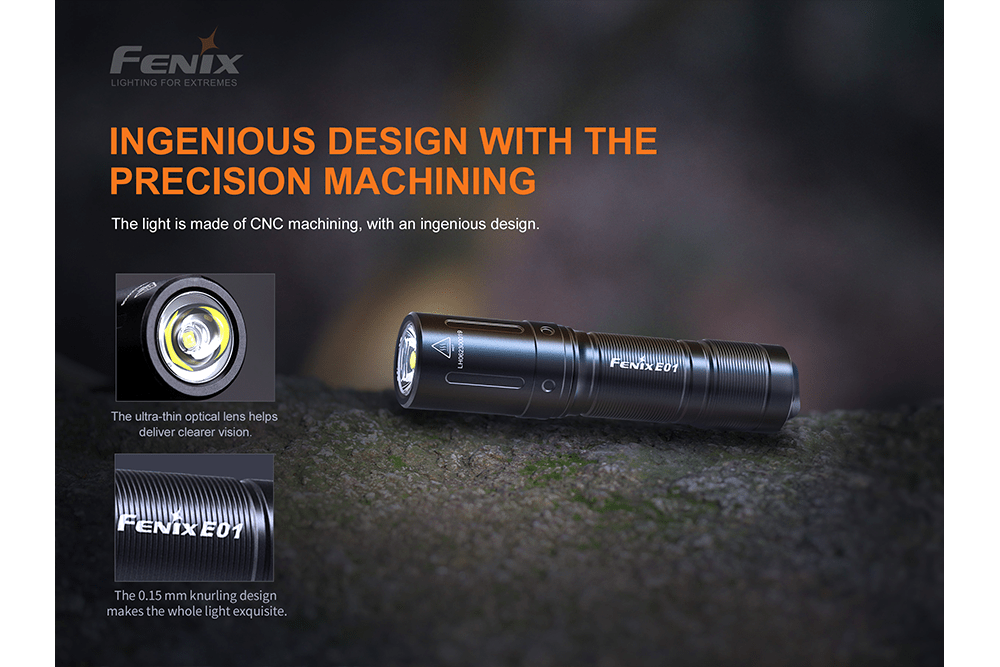

• All-metal CNC-machined body with a HAIII hard-anodized finish

Battery

• Battery type: Single AAA battery (Pairdeer alkaline included)
• Recommended: AAA Ni-MH (rechargeable)
• Usable: Alkaline or non-rechargeable Lithium AAA
• Not supported: Rechargeable Li-ion 10440/10450 batteries

Size & Weight

• Length: 2.62 inches
• Head Diameter: 0.59 inches
• Body Diameter: 0.55 inches
• Weight: 0.46 ounces (excluding battery)

What batteries work in the Fenix E01 V2 LED flashlight?

The Fenix E01 V2.0 flashlight runs on a single AAA Alkaline battery or AAA Ni-MH battery.

Can the E01 V2 be affixed with a pocket clip?

There are no pocket clips available for a light of this size.

What LED is used in the E01 V2?

The E01 V2 uses a Luminus SST20 Cold White LED.

The Fenix E01 V2.0 is an ultra-compact AAA keychain flashlight. This summary is drawn from the manufacturer’s official user manual — see the downloadable PDF reference manual on the product page for complete details.

Product Features

• 100 lumens maximum output, powered by a single AAA battery
• Ultra-compact size for everyday carry
• One-handed operation via the rotating switch
• All-metal CNC-machined light body with premium HAIII hard-anodized finish
• Size: 2.62" x 0.59" x 0.55" / 66.5 x 15 x 14 mm
• Weight: 0.46 oz / 13 g (excluding battery)

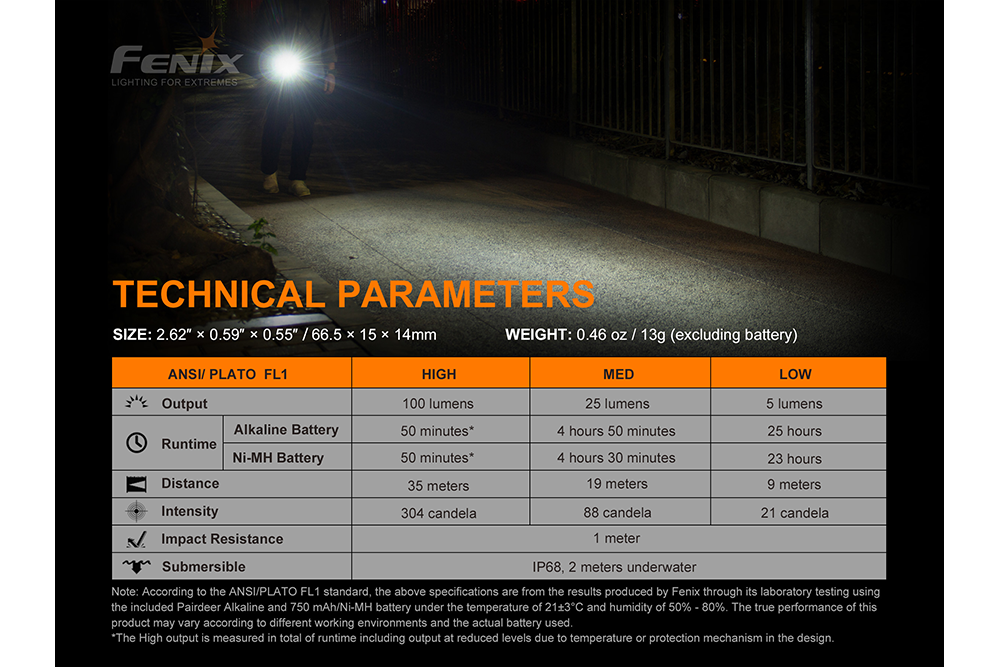

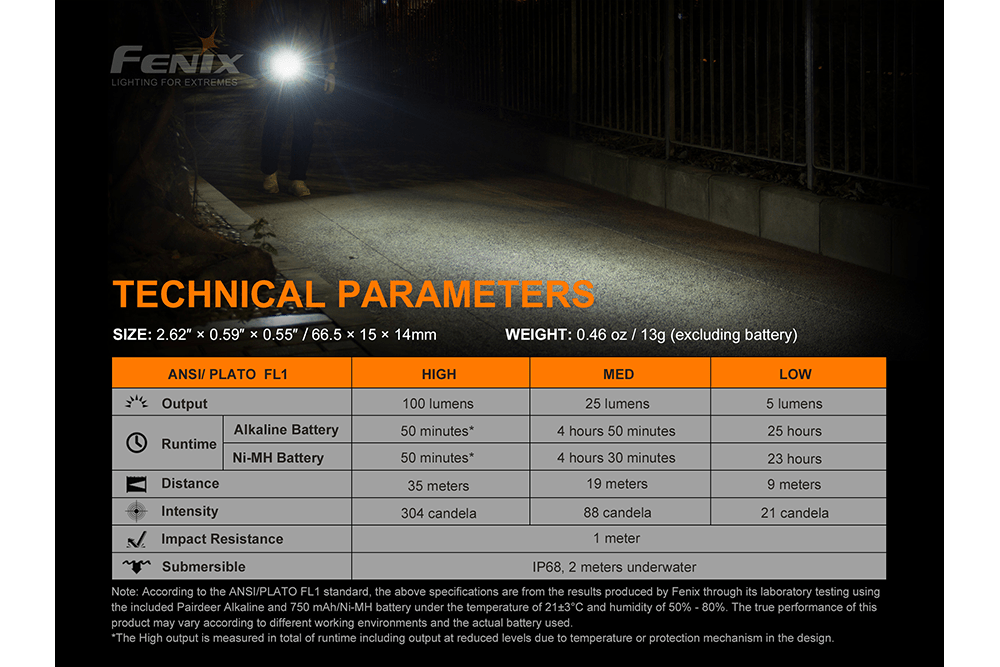

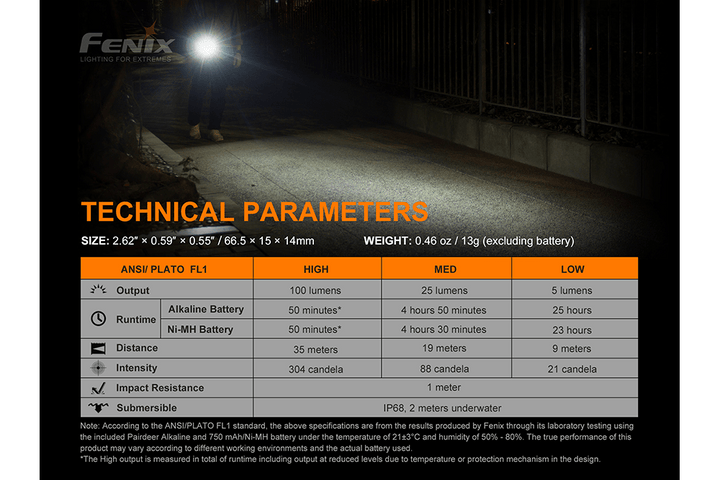

Technical Parameters

Specifications below reflect Fenix's lab testing with the included Pairdeer alkaline and a 750mAh Ni-MH battery at 21±3°C / 50-80% humidity. Actual performance varies by environment and battery used.

• High: Output 100 lumens, Runtime 50 minutes* (alkaline) / 50 minutes* (Ni-MH), Distance 35 meters, Intensity 304 candela
• Med: Output 25 lumens, Runtime 4 hours (alkaline) / 4 hours 30 minutes (Ni-MH), Distance 19 meters, Intensity 88 candela
• Low: Output 5 lumens, Runtime 25 hours (alkaline) / 23 hours (Ni-MH), Distance 9 meters, Intensity 21 candela

Impact Resistance: 1 meter Waterproof: IP68, 2 meters underwater

Battery

Uses one AAA battery. Recommended: Ni-MH (rechargeable). Usable: Alkaline or non-rechargeable Lithium AAA. Do NOT use rechargeable Li-ion 10440/10450 batteries — banned for this light.

Operating Instructions

On/Off: Tighten the light head to turn on the light; unscrew the light head to turn off.

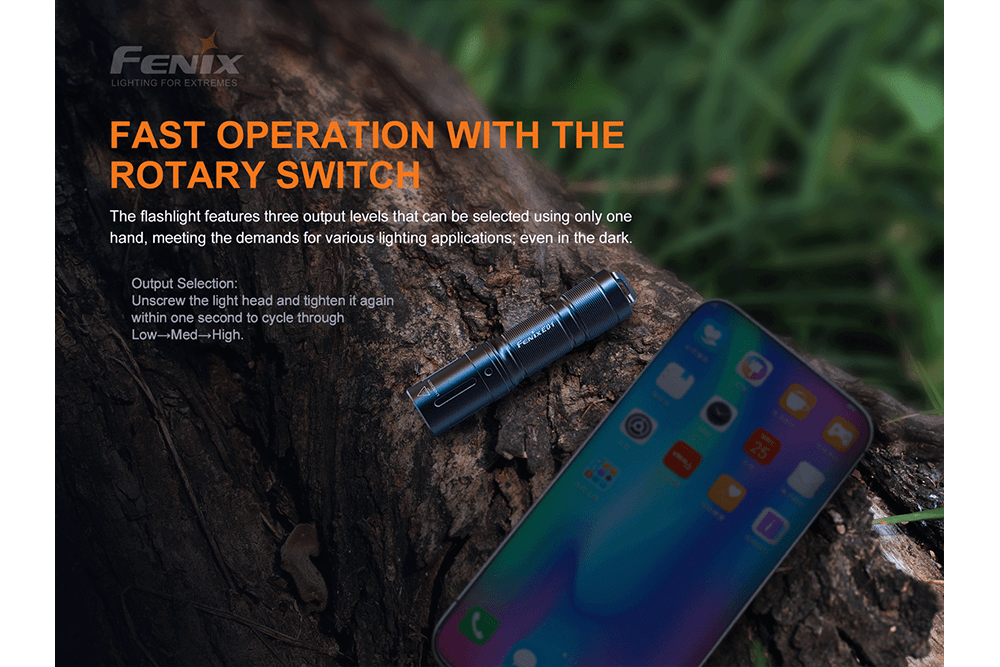

Output Selection: Unscrew the light head and re-tighten it within one second to cycle through Low → Med → High.

Intelligent Overheat Protection

The light accumulates heat on High output over extended periods. To reduce temperature, it will automatically step down a few lumens; High can be reselected once cooled.

Usage and Maintenance

• Disassembling the sealed head can damage the light and voids the warranty.
• Use a high-quality battery.
• Remove the battery if the light will not be used for an extended period, to avoid damage from electrolyte leakage or battery explosion.
• Long-term use can wear the O-ring; replace with an approved spare to maintain a proper water seal.
• Periodically clean the battery contacts — dirty contacts can cause flickering, intermittent operation, or failure to illuminate.

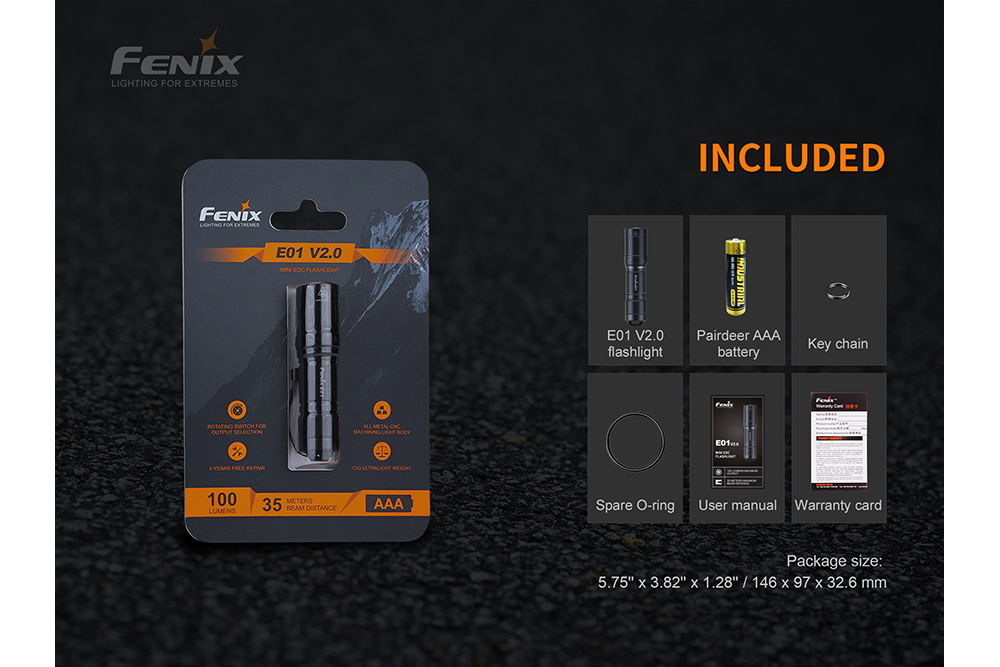

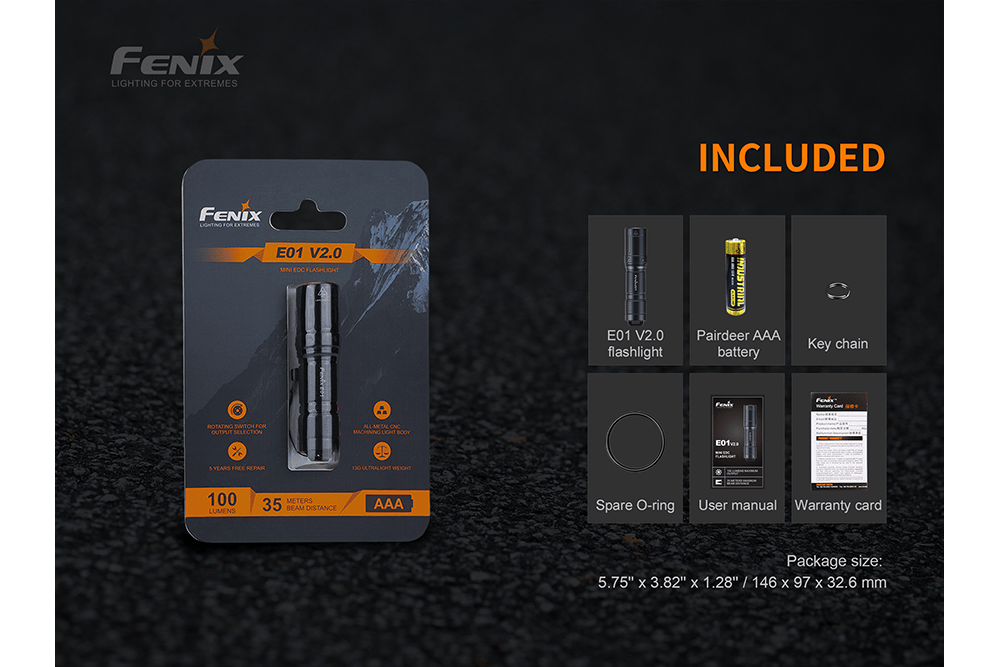

What's Included

E01 V2.0 flashlight, Pairdeer AAA battery, key chain, spare O-ring, user manual, warranty card

Warnings

• This flashlight is a high-intensity lighting device capable of causing eye damage. Avoid shining it directly into anyone's eyes.
