Warning
- The LED light with red laser is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the light directly into anyone's eyes.
- This flashlight will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
- Do not shine an object at close range, to avoid burning the object or causing danger due to high temperature.
- The LED of this flashlight is not replaceable; so the entire light should be replaced when the LED reaches the end of its life.

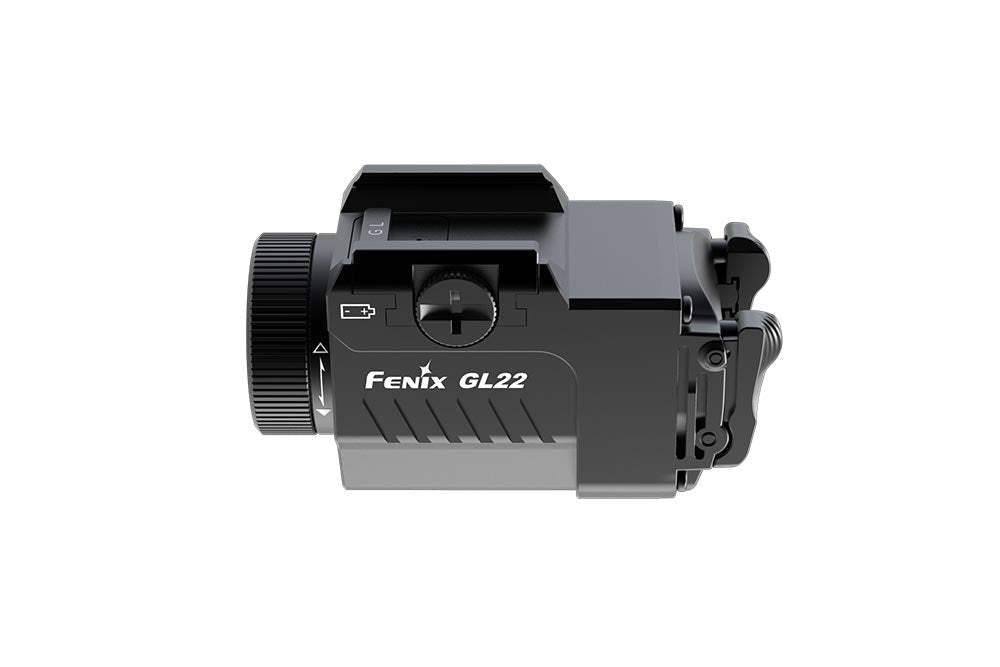

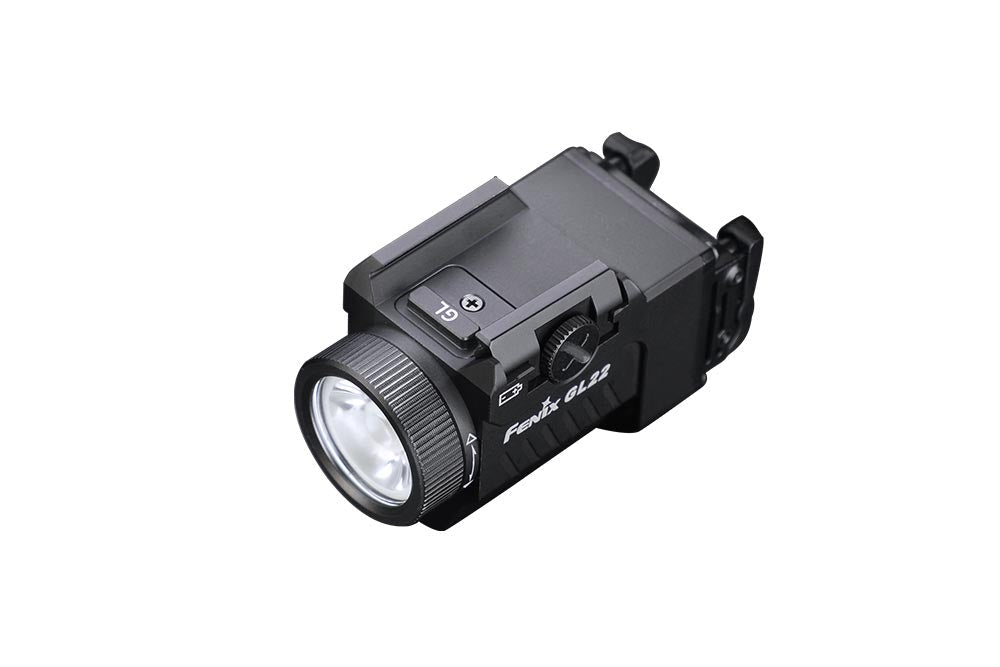

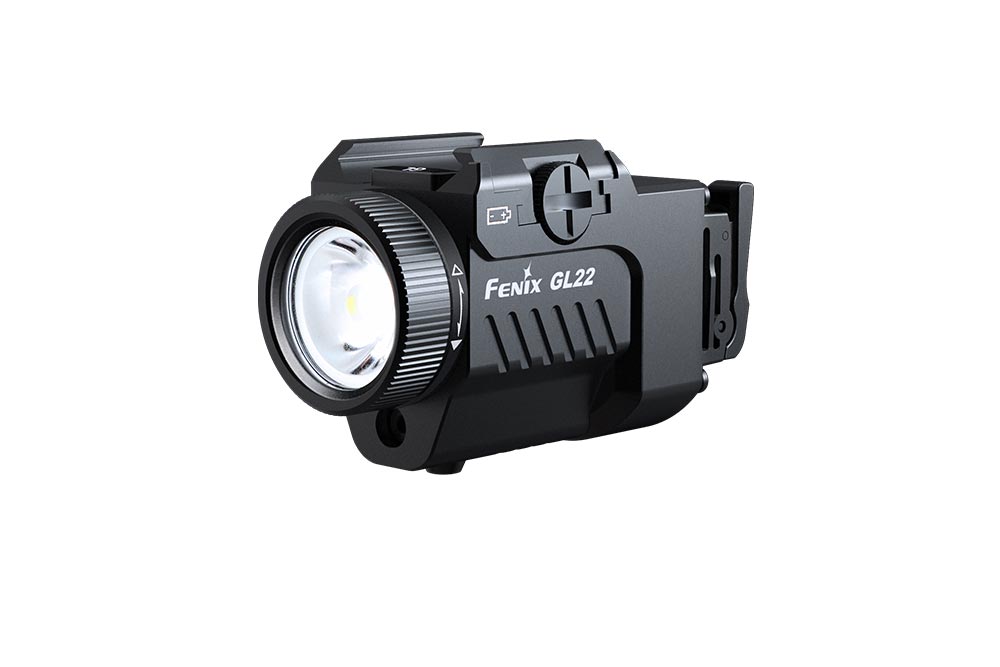

Overview

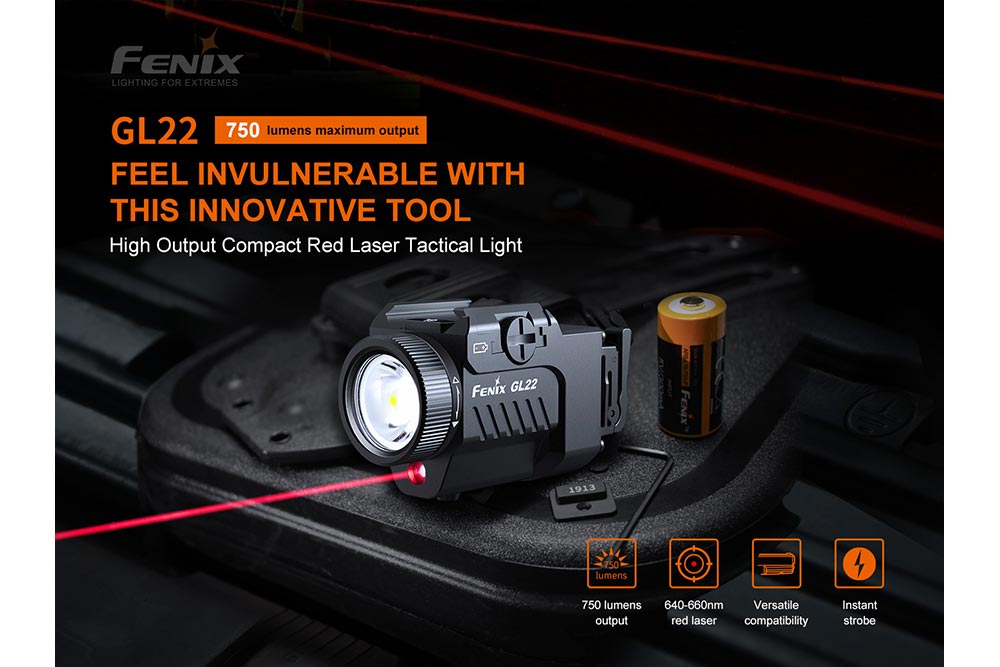

- 750 lumens maximum output, 180 meters maximum beam distance
- A Luminus LED with a lifespan of 50,000 hours
- Includes a 16340 rechargeable Li-ion battery; also compatible with a CR123A lithium battery
- Designed for guns with tactical rails
- Precise red laser sight
- Instant strobe
- Two-handed operation with dual tactical tail switch
- Made of durable A6061-T6 aluminum with a premium type HAIII hard-anodized anti-abrasive finish
- Size: 2.64'' x 1.65'' x 1.22'' / 67 x 42 x 31mm
- Weight: 3.32 oz / 94 grams (including battery)

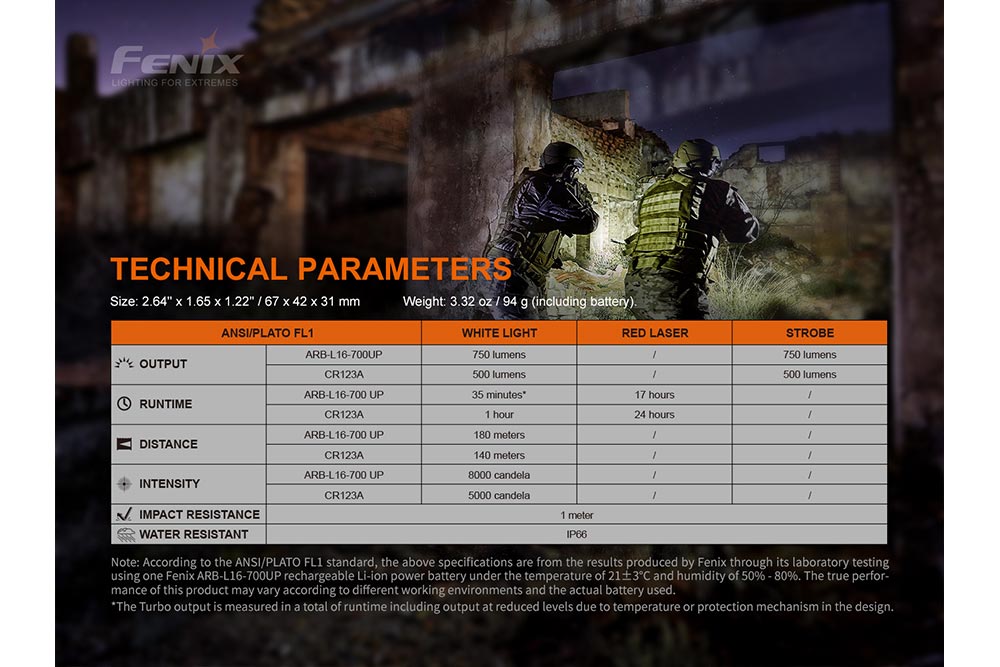

Technical Parameters (ANSI/PLATO FL1)
- White Light (ARB-L16-700UP): Output 750 lumens, Runtime 35 minutes*, Distance 180 meters, Intensity 8,000 candela
- White Light (CR123A): Output 500 lumens, Runtime 1 hour, Distance 140 meters, Intensity 5,000 candela

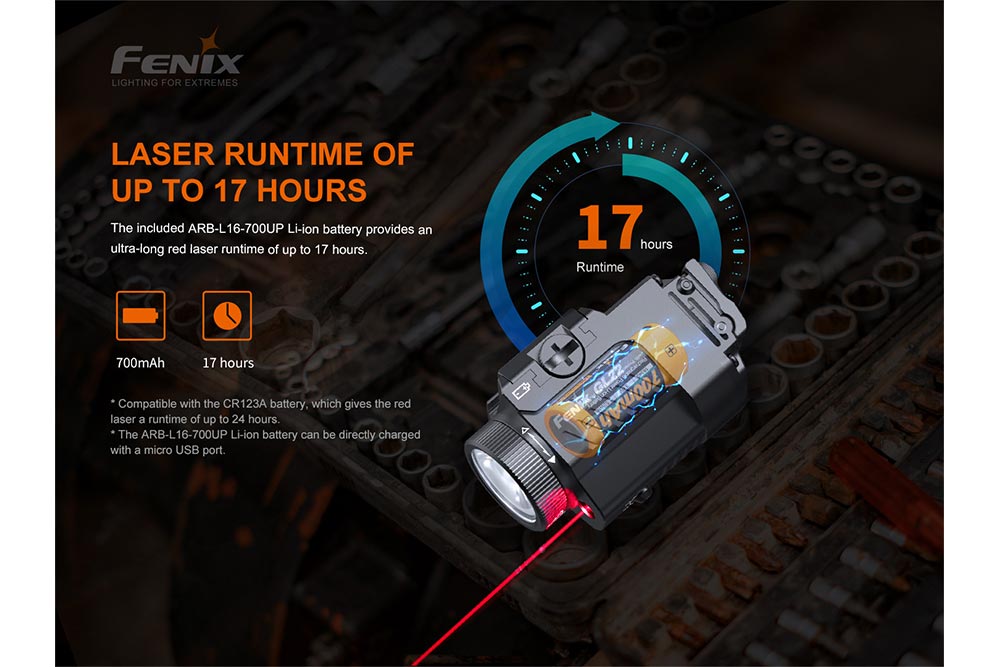

- Red Laser: Runtime 17 hours (ARB-L16-700UP) / 24 hours (CR123A)
- Strobe: Output 750 lumens (ARB-L16-700UP) / 500 lumens (CR123A)

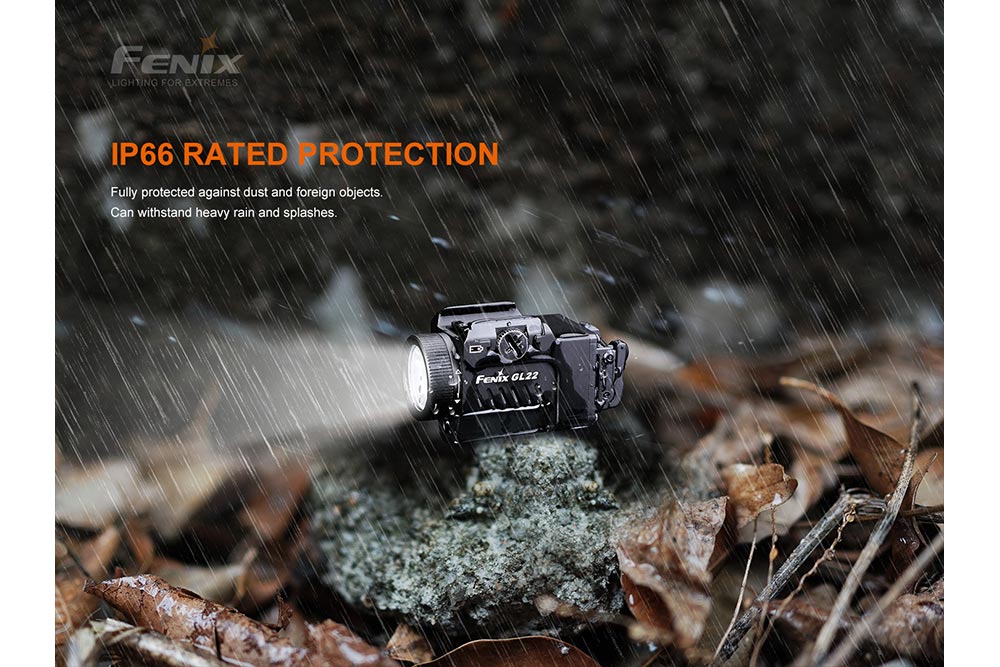

Impact Resistance: 1 meter | Water Resistant: IP66
*The White Light output is measured in a total of runtime including output at reduced levels due to temperature or protection mechanism in the design. Specs measured by Fenix using one Fenix ARB-L16-700UP rechargeable Li-ion battery at 21±3°C / 50–80% humidity; real-world performance varies.
Important Warnings
FAILURE TO READ AND FOLLOW THESE OPERATING INSTRUCTIONS AND WARNINGS WHEN HANDLING A FIREARM OR THE GL22 CAN BE DANGEROUS AND CAN RESULT IN SERIOUS INJURY, DAMAGE TO PROPERTY, OR DEATH.
Before attaching, inspecting, or servicing a firearm-mounted GL22:
- Engage the safety of the firearm if applicable.
- Remove the magazine from the firearm if applicable.
- Open the action and inspect the chamber to be sure it is empty.
Flashlight Mounting & Removal

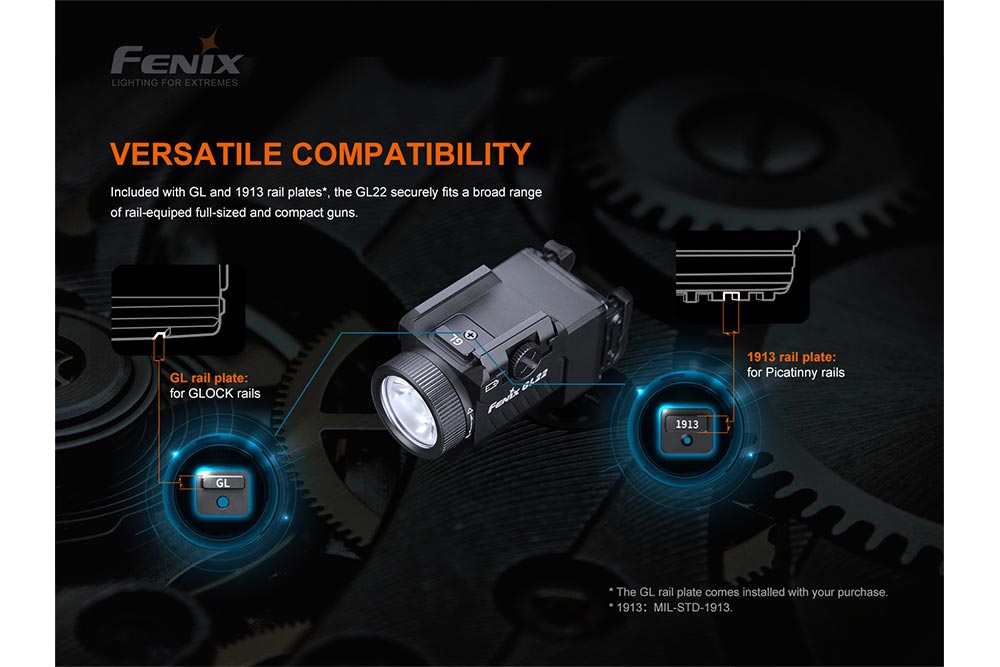

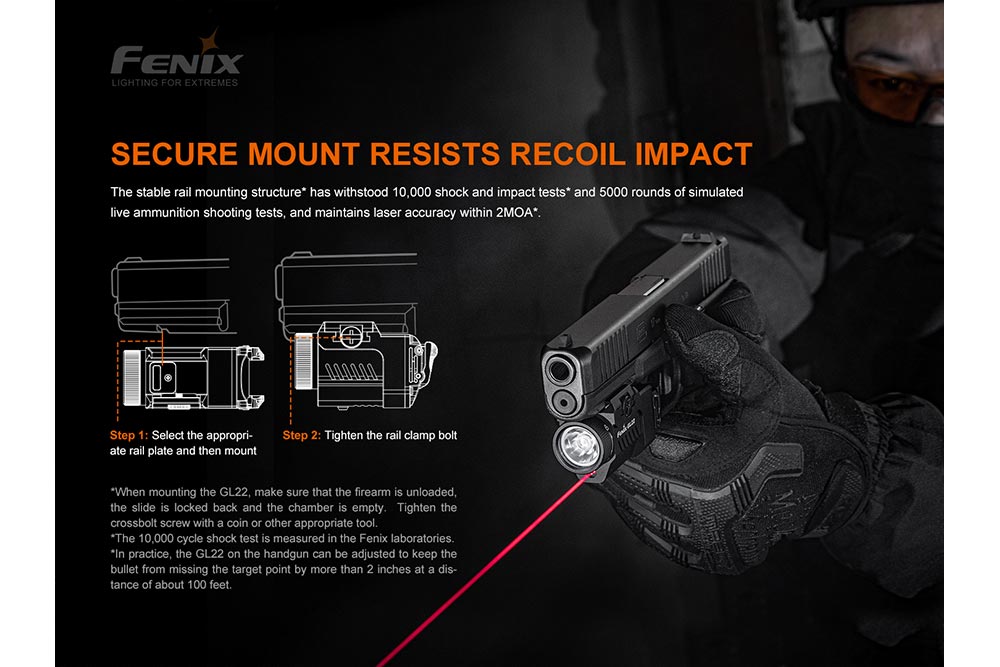

Make sure that the firearm is unloaded and the breech is open. It is imperative that safety measures be employed at all times while handling the firearm. Make sure your firearm rail is Picatinny rail or Glock rail and choose the appropriate rail plate (Glock is mounted by default); you can change the rail plate to make the tactical light more suitable for your firearm.
- The GL22 is designed for precise aiming; it requires a basic tool or simply a coin to be attached to or detached from the side of the weapon or accessory rail.
- Loosen the rail clamp bolt.
- Place the fixed portion of the rail clamp against the accessory rail and align the rail key with the appropriate cross groove in the accessory rail.
- Tighten the rail clamp bolt and make sure it is securely attached to the firearm. Again, a coin should be helpful to obtain sufficient tightness.
Hot Caution: The GL22 provides a powerful beam. When operated for a while, it will get uncomfortably hot. This is normal and is not a defect.
Operating Instructions

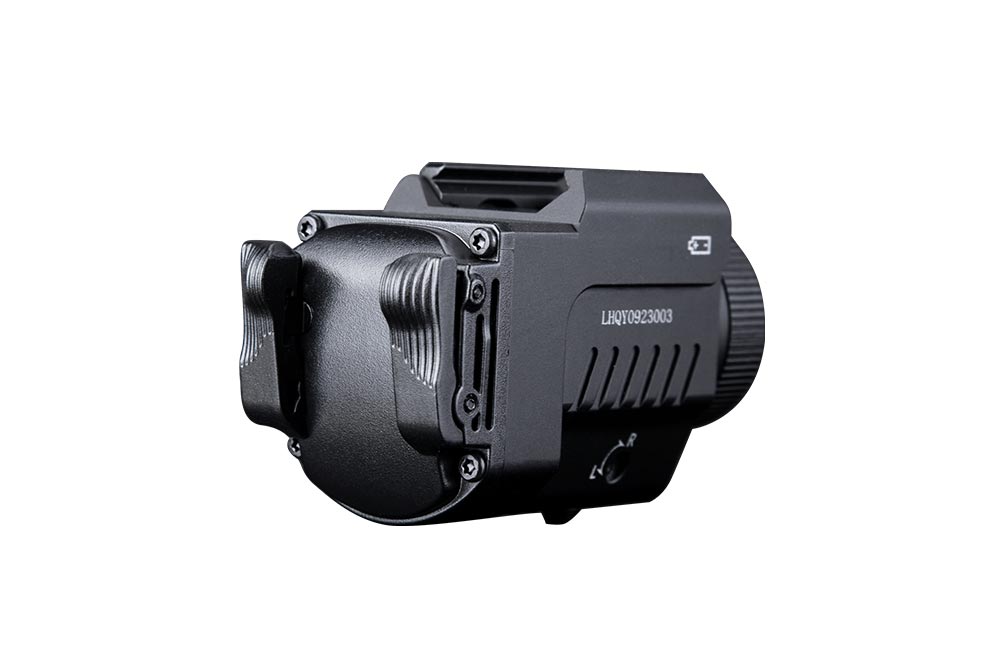

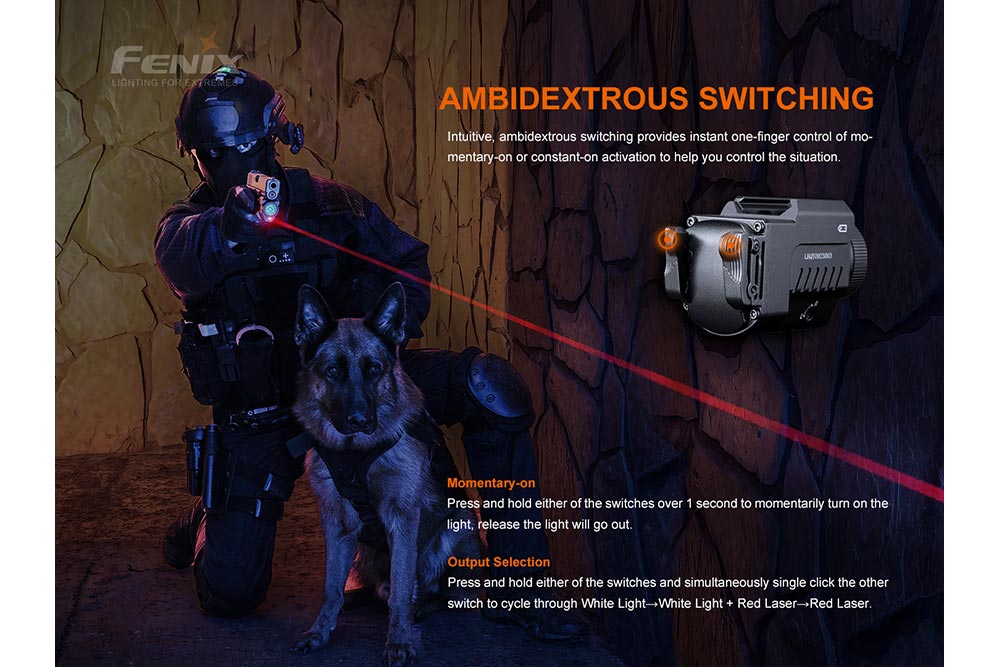

Switch: the dual tail switch can be operated with both hands.
On/Off: single click either of the switches to turn on/off the light. With the light switched off, press and hold either of the switches for over 1 second to momentarily turn on the light.
Output Selection: with the light switched on, press and hold either of the switches and simultaneously single click the other switch to cycle through White Light → White Light + Red Laser → Red Laser.
Instant Strobe: with the light switched on, press and hold either of the switches for 0.5 seconds to enter Strobe; release and the light will return to general mode. Note: the use of light in Strobe mode may cause seizures in persons with photo-sensitive epilepsy.

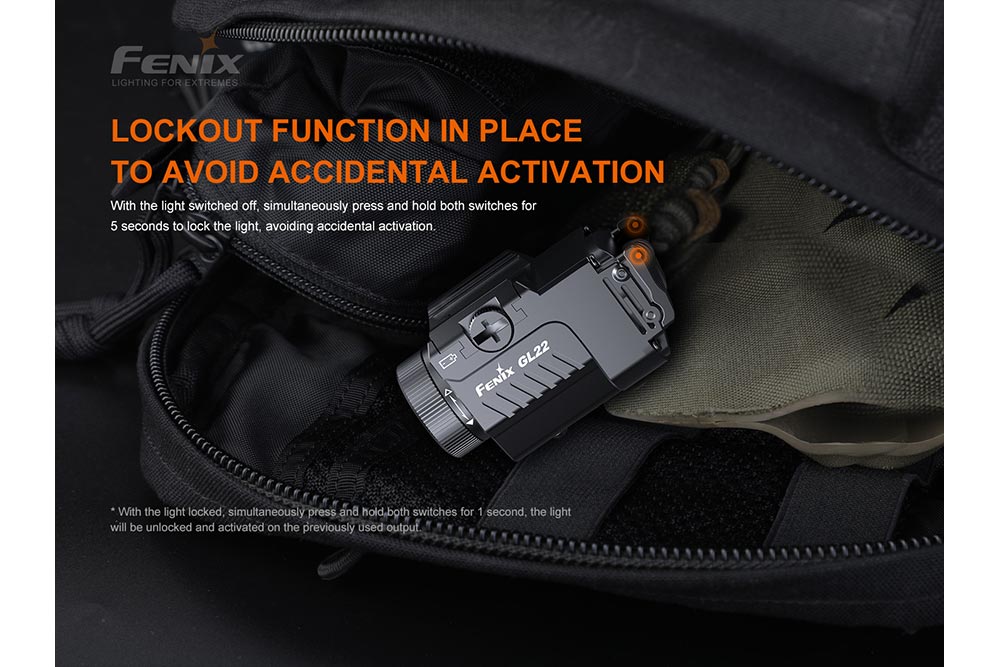

Lock/Unlock: to lock, with the light switched off, simultaneously press and hold both switches for 5 seconds; the light will blink twice on white light to indicate locked status. To unlock, with the light locked, simultaneously press and hold both switches for 1 second; the light will be unlocked and activated on the previously used output.
Intelligent Memory Circuit: the light memorizes the last selected output. When turned on again, the previously used output will be recalled.
Laser Sight Zeroing: the windage adjustment is at the left side of the light and the elevation adjustment is at the bottom; use the included Allen wrench clockwise or counter-clockwise to move the laser point. When making large adjustments there may be an interaction that causes the laser to move diagonally or bind — rotate the opposing adjustment screw counterclockwise if needed. Laser parameters: CLASS 3R laser product, wavelength 640–660nm, optical power output <5mW.
Battery Specifications & Installation
- Fenix ARB-L16 Series (16340, 3.6V): Recommended
- Non-rechargeable Lithium (CR123A, 3V): Usable
- Rechargeable LiFePO4 (16340, 3.2V): Banned
16340 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; cell damage or short-circuiting are potential risks the user assumes.
For safety purposes, the light must be removed from the firearm before the battery compartment is opened or closed. Unscrew and remove the face cap assembly, insert a CR123A or 16340 battery with the cathode side (−) towards the light head, then fully tighten the face cap assembly to ensure the battery makes complete contact with the internal electrical contacts.
Intelligent Overheat Protection
The light will accumulate a lot of heat when used on higher output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user the reselection of higher modes.
Low-Voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until 50 lumens is reached. When this happens at 50 lumens, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery.
Note: This only works with a Fenix ARB-L16 Series 16340 rechargeable Li-ion battery.
Usage and Maintenance
It is imperative that safety measures be employed at all times while handling the firearm.
- The use of a firearm under any circumstance may be dangerous. Serious injury or even death may result without proper training in the safe handling of firearms. Proper training should be obtained from an accredited firearms safety program conducted by competent, qualified instructors in the military, police academies, or National Rifle Association affiliated instruction programs.
- Read your firearm's manual before attaching your gun-mounted light.
- Never point a firearm at something you are not willing to destroy.
- Fenix recommends that the GL22 should only be activated with the non-trigger hand while employing a two-hand grip on the firearm and with the trigger finger outside the trigger guard when possible. Failure to do so could result in an accidental discharge and serious injury, damage to property, or death.
- Thoroughly practice (employing safe training conditions) with the GL22 and firearm before using the weapon in a tactical situation.
- If you shoot ammunition and get the lens coated, try rubbing the lens with fine steel wool or Froglube CLP.
- Since gun maintenance requires the use of organic solvents, organic solvents contaminating key components of the light or laser module may cause malfunctions, and the light will not receive normal warranty service.
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using only a high-quality protected battery.
- If the light will not be used for an extended period, remove the battery for proper storage.
- Lock the light or remove the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the light's performance, as dirty contacts may cause the light to flicker, shine intermittently, or fail to illuminate. If the battery level is poor, recharge or replace it; if contacts are dirty, clean them with a cotton swab soaked in rubbing alcohol. If the above methods don't work, contact your authorized distributor.

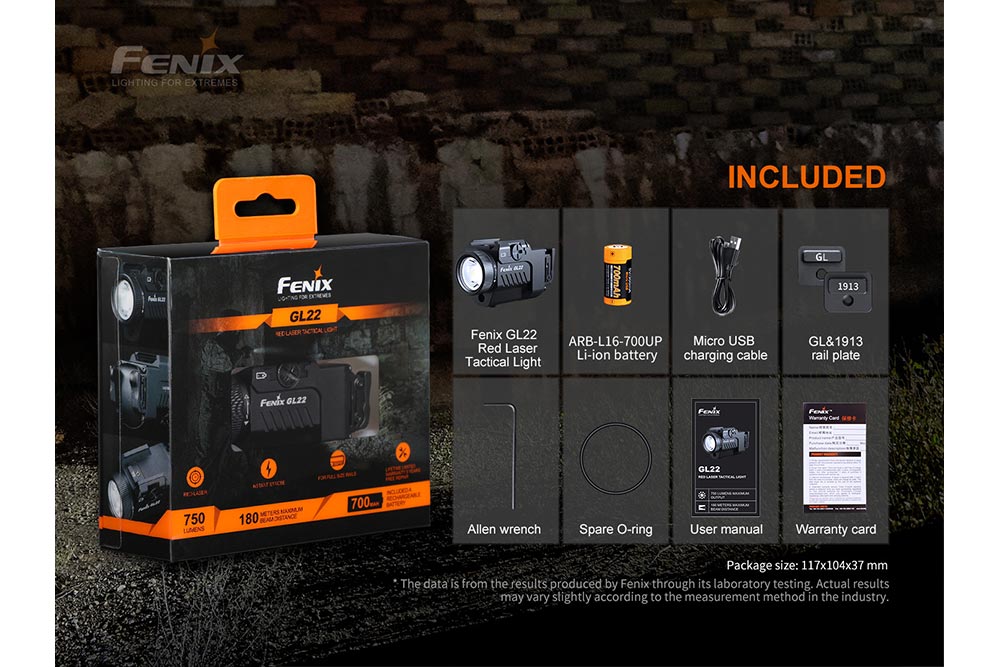

What's Included
Fenix GL22 red laser tactical light, ARB-L16-700UP Li-ion battery, Micro USB charging cable, Picatinny rail plate, Allen wrench, spare O-ring, user manual, and warranty card.
