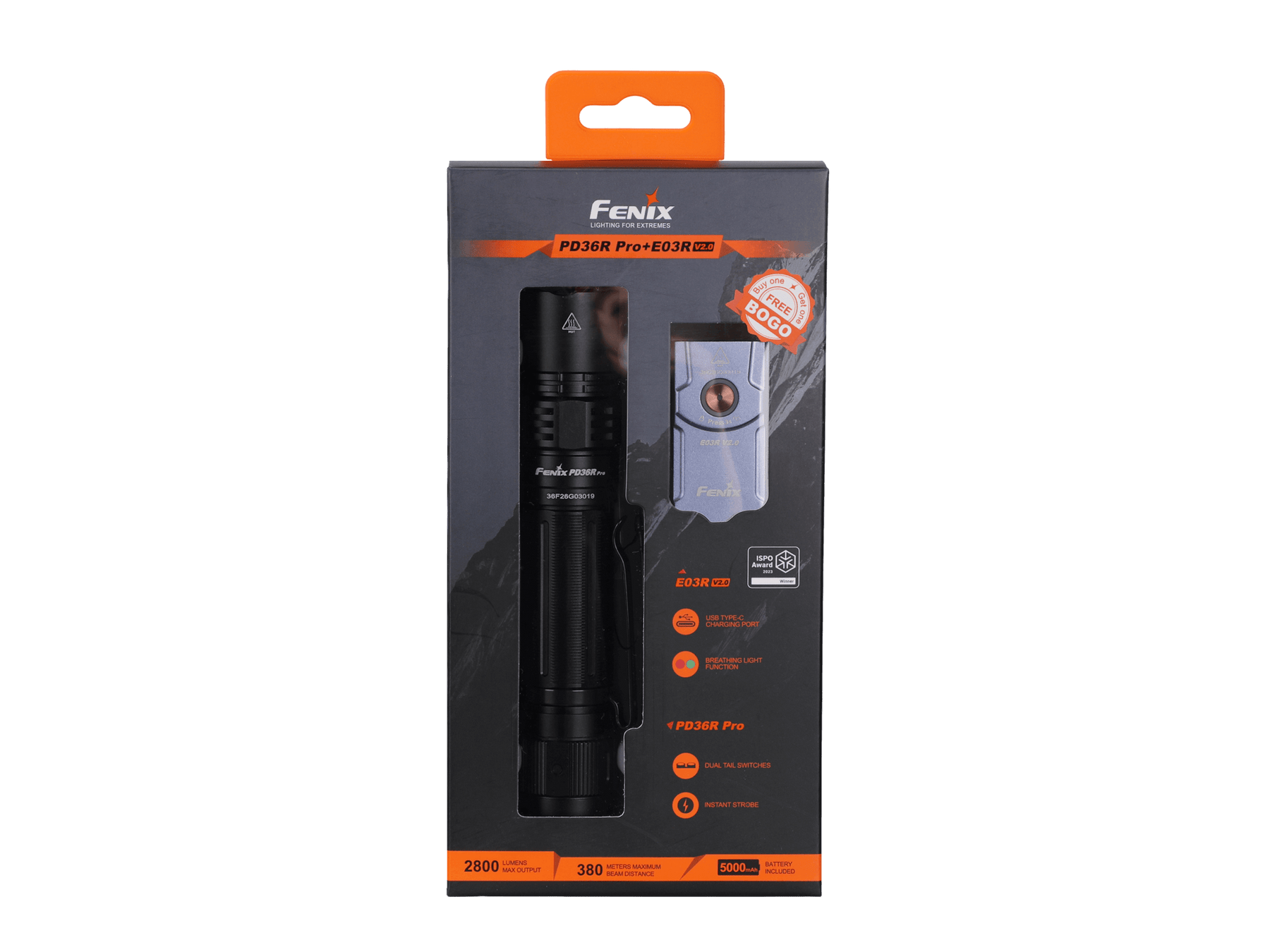

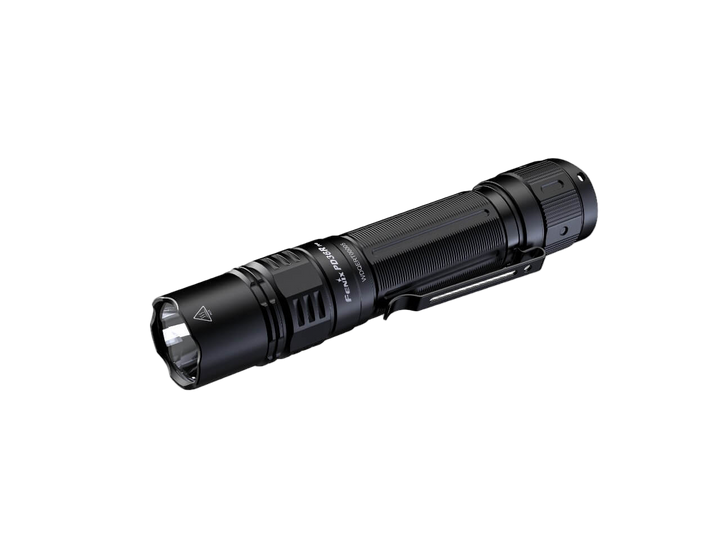

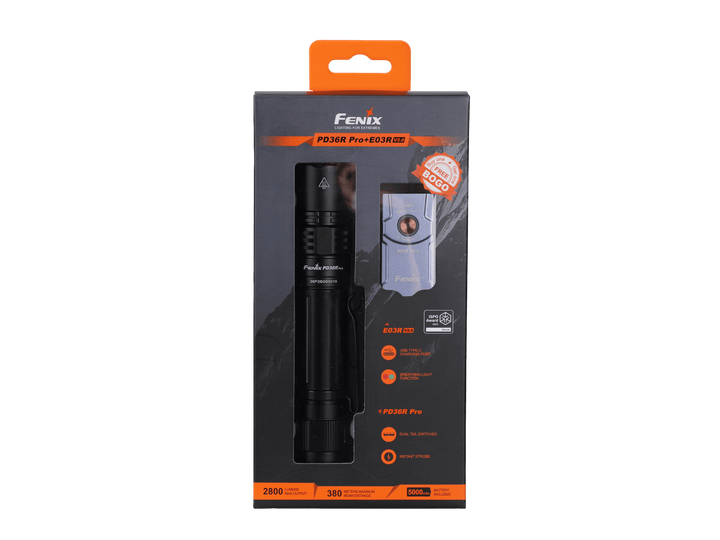

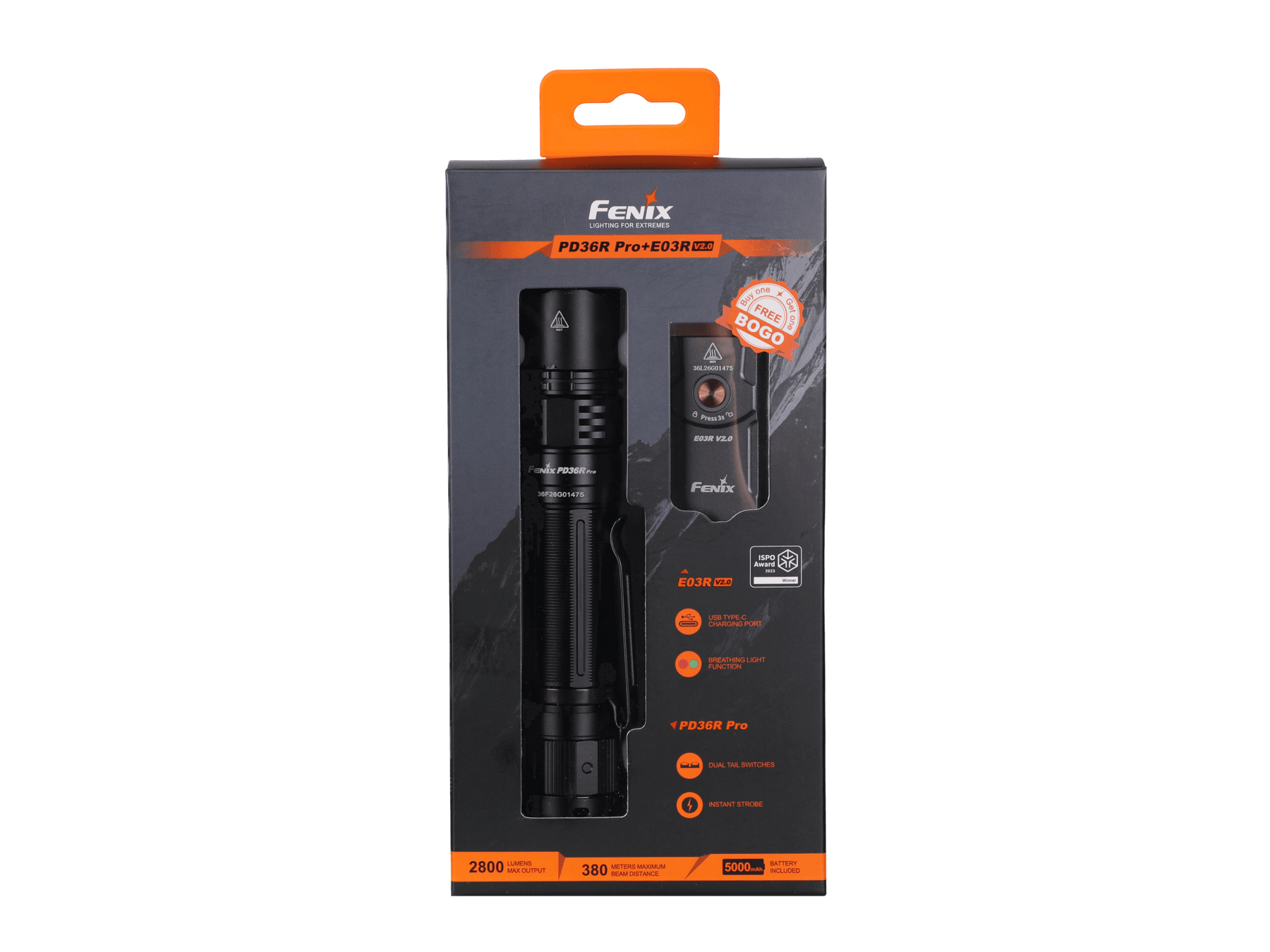

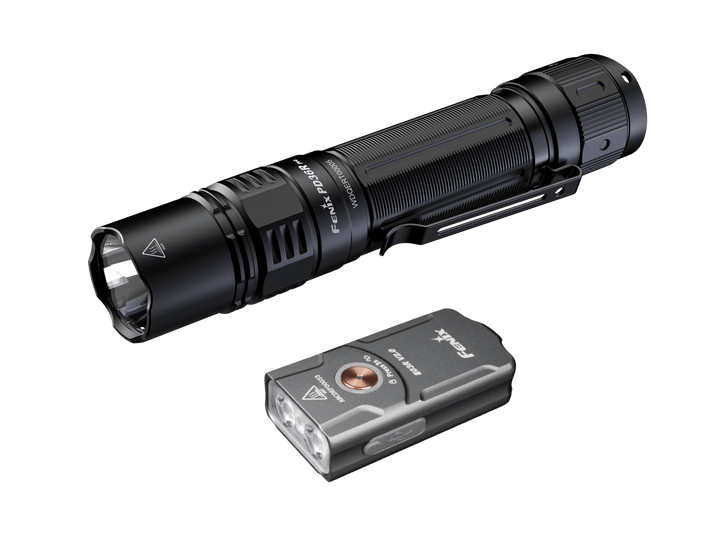

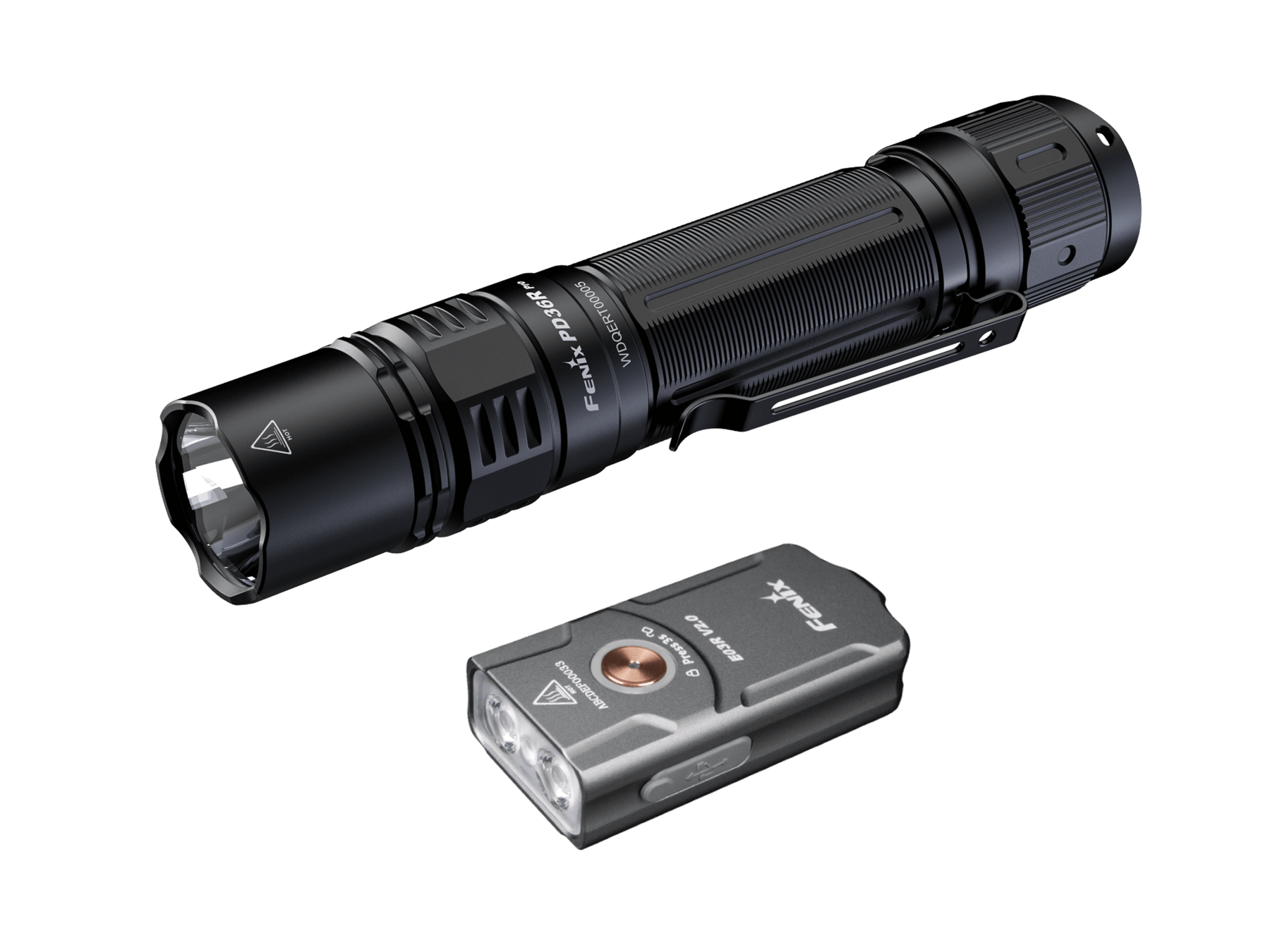

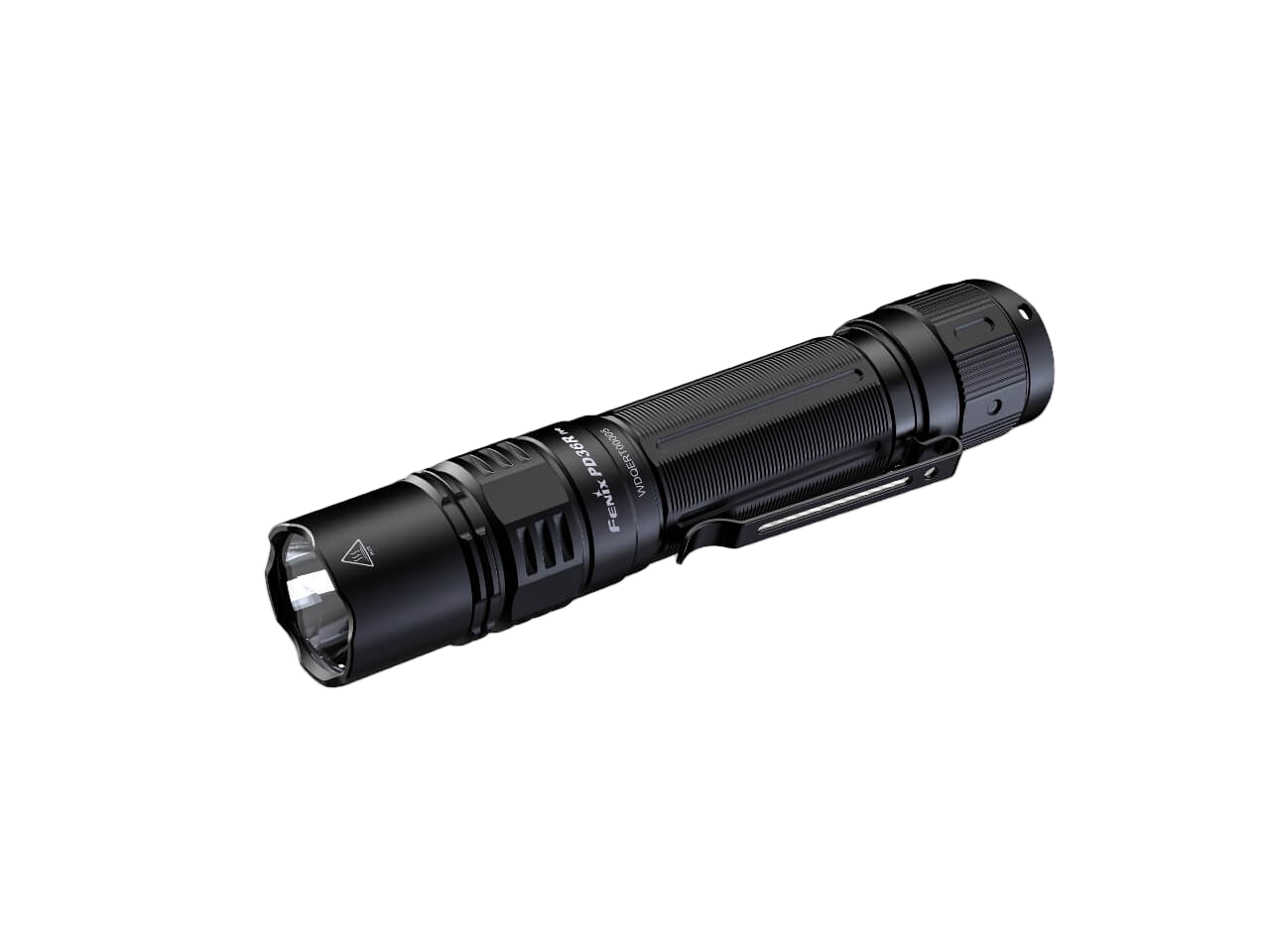

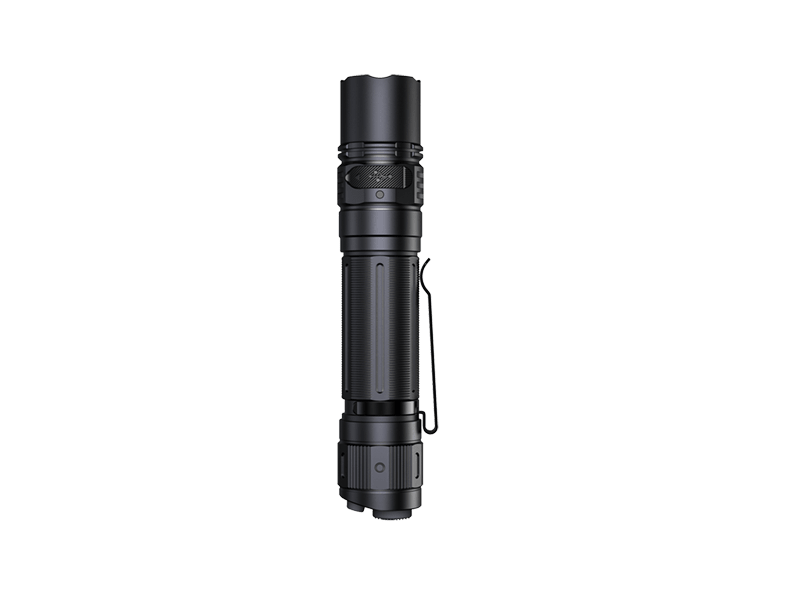

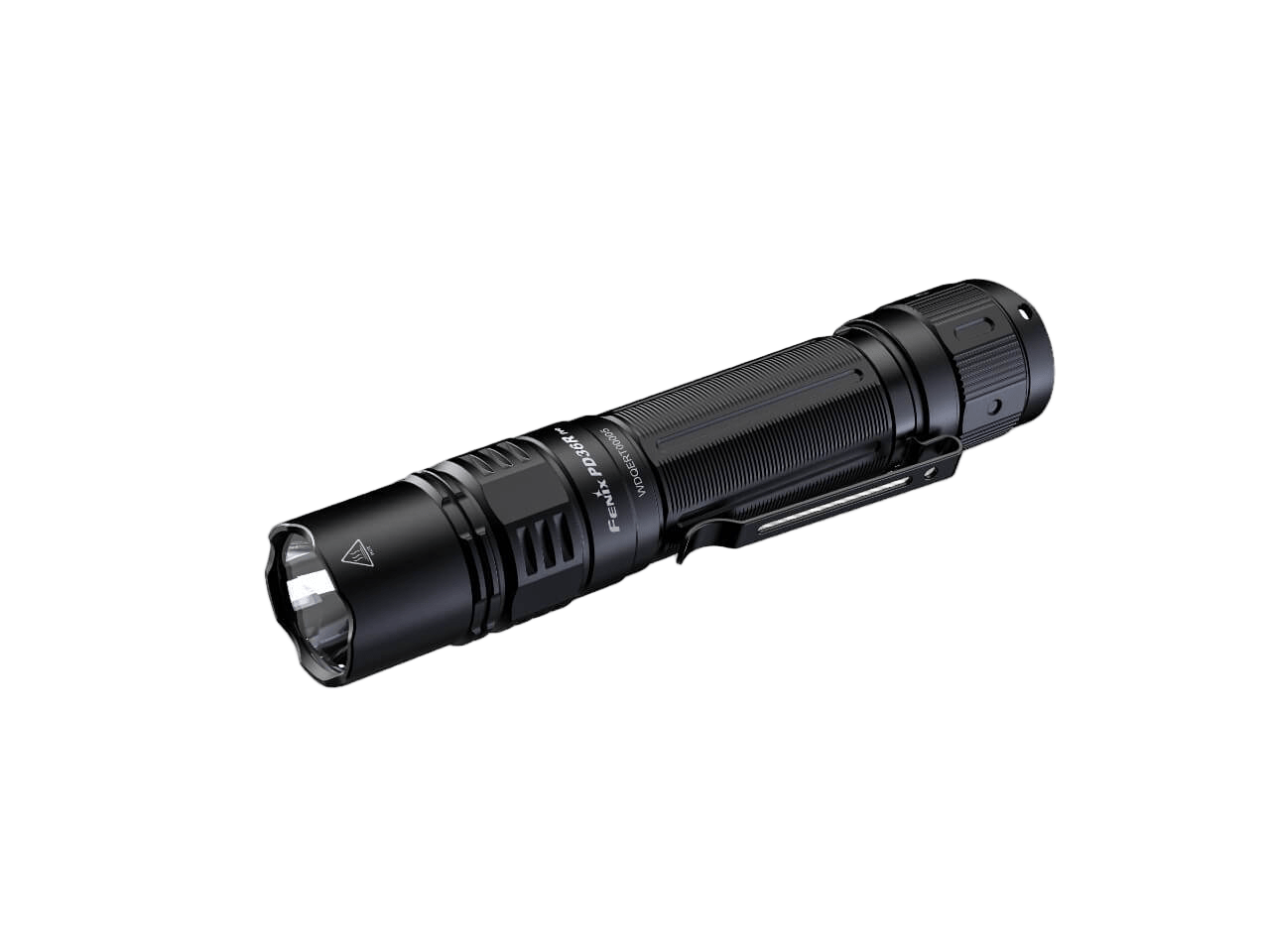

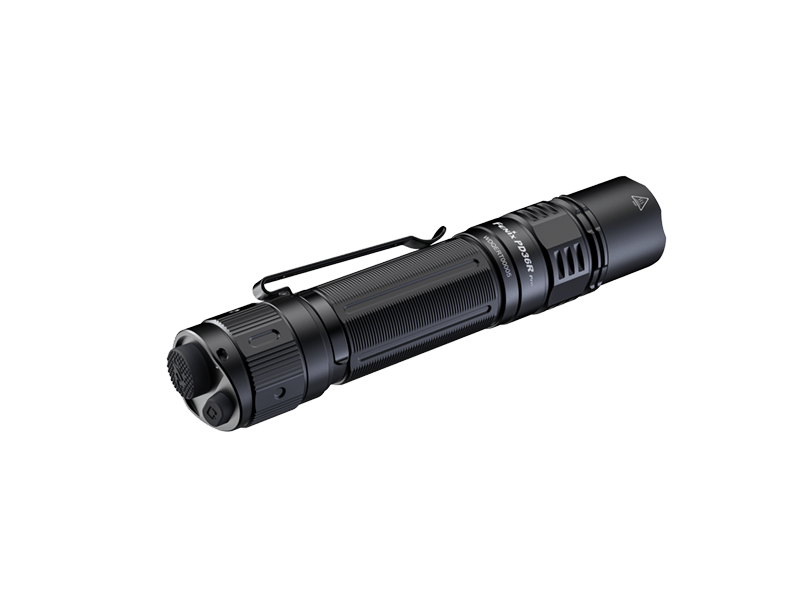

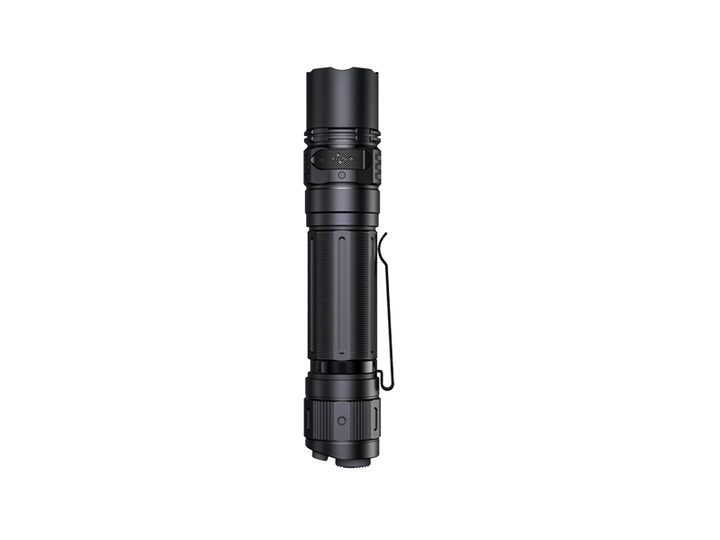

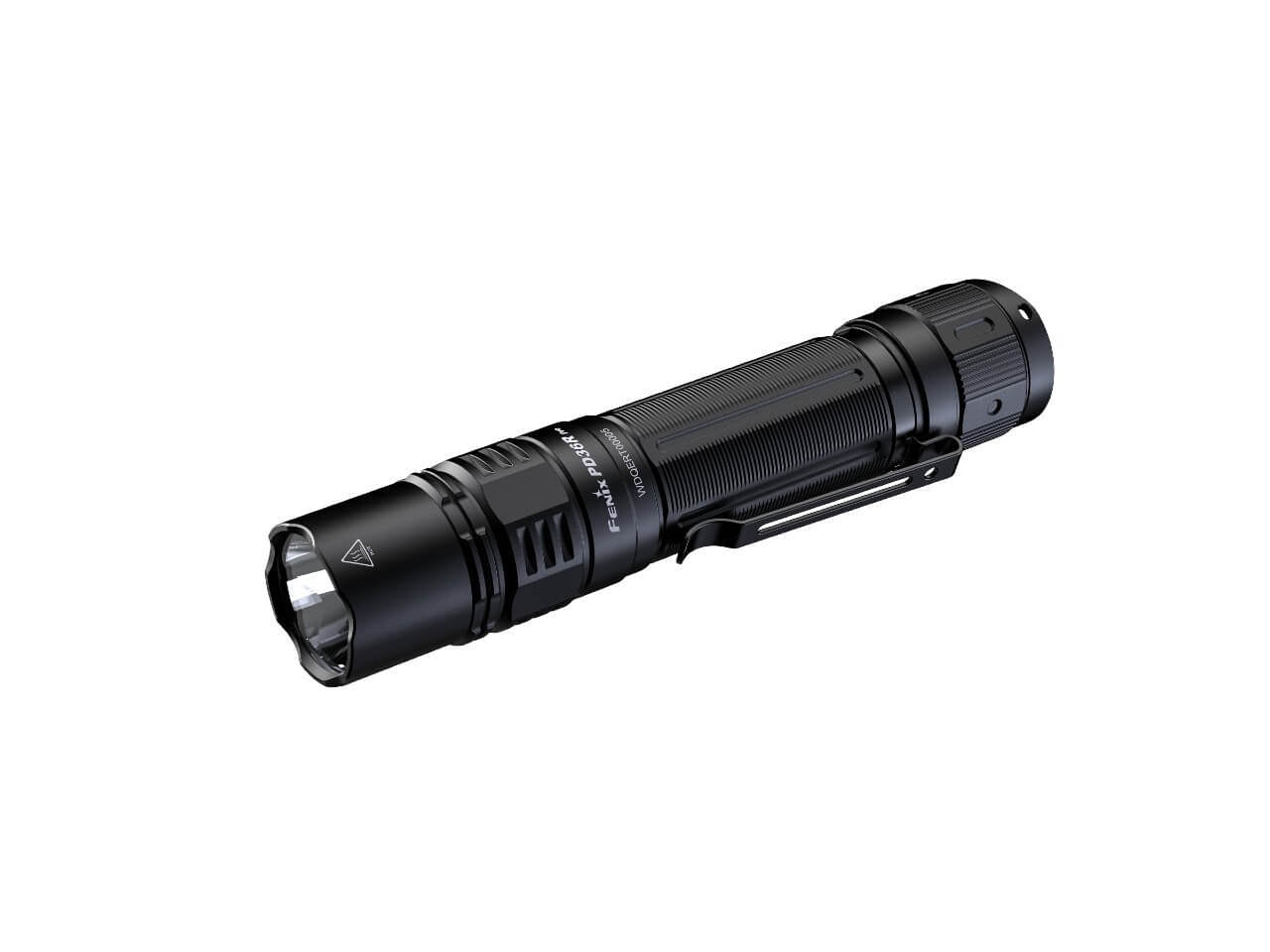

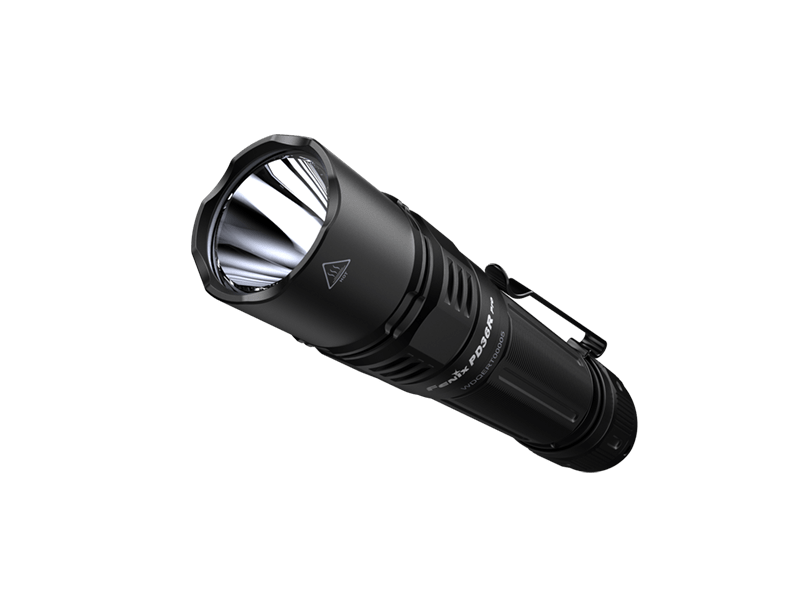

Fenix PD36R Pro 2800 Lumen Flashlight

Outputs

• Turbo: 2800 Lumens, 36,600 cd, 3.5 hours, 1250 ft
• High: 1000 Lumens, 3.95 hours, 738 ft
• Med: 350 Lumens, 8.25 hours, 427 ft
• Low: 150 Lumens, 19 hours, 295 ft
• Eco: 30 Lumens, 42 hours, 131 ft
• Strobe: 2500 Lumens

Details

• Luminus SFT-70 LED with 50,000 hour lifespan
• USB Type-C charging
• Dual Switch Operation
• High-strength Aluminum Body
• Premium type HAIII Hard-anodized anti-abrasive finish
• 21700 Battery Included
• Two-way body clip
• Compact body design

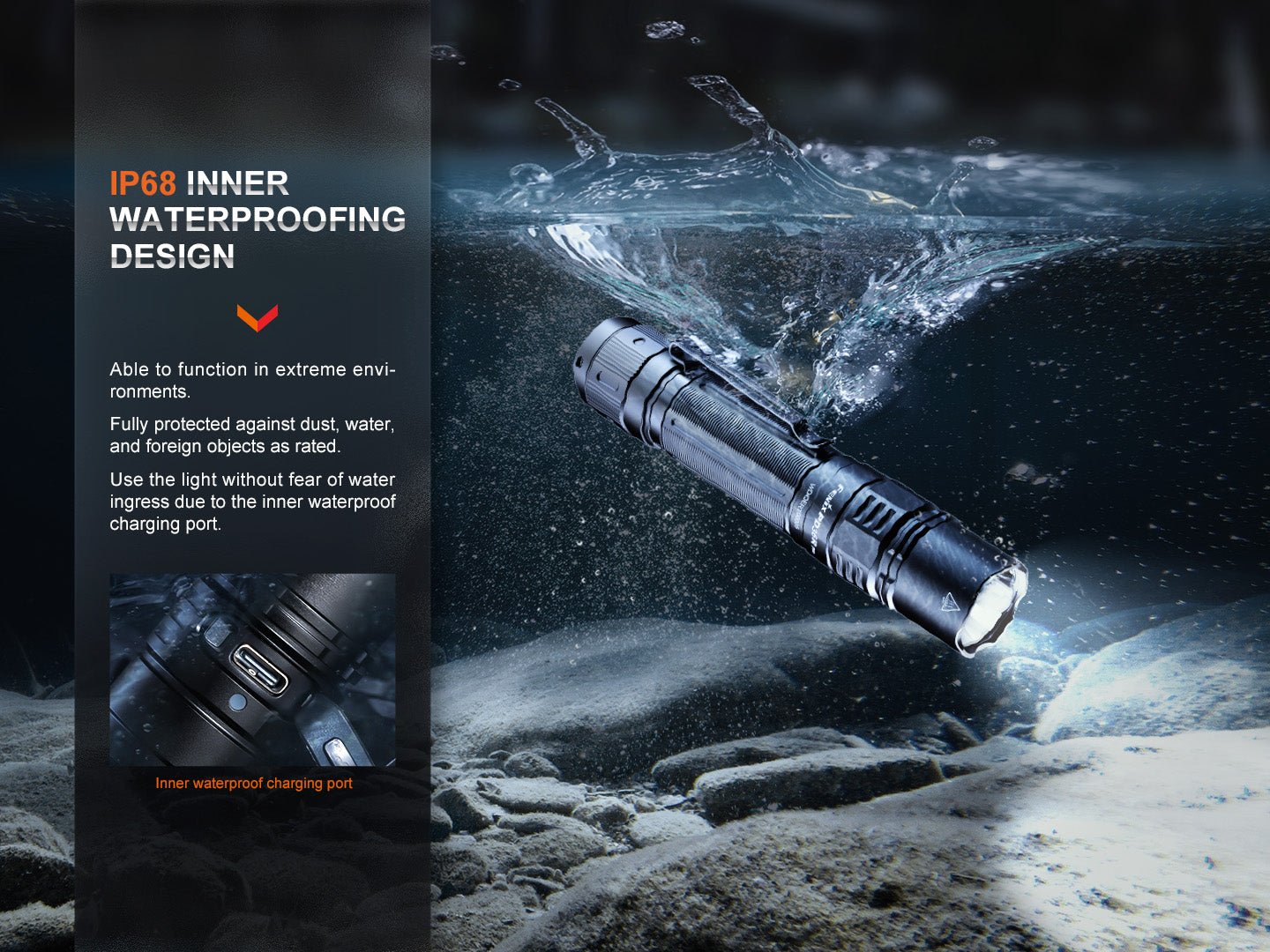

• IP68 Waterproof rating (6.5 feet for 30 minutes)
• Inner waterproofing protects from water damage even with the dust cover removed
• Withstands a 5 ft. drop on all sides

Battery

• Included: Fenix ARB-L21-5000 V2.0 Rechargeable 5000mAh 21700 battery
• Compatible: ARB-L21-5000U and ARB-L21-4000P

Size

• Length: 5.74 Inches
• Diameter: 1.1 Inch
• Weight: 5.96 Ounces

What is the color temperature of PD36R Pro?

Around 6500K.

What is the working voltage of PD36R Pro?

Voltage: 3.0 - 4.2V.

Is PD36R Pro rechargeable?

Yes, PD36R Pro is rechargeable with a USB Type-C. The charging time is about 3 hours. (The indicator will display red while charging and will turn green when fully charged.)

What kind of battery can be used in PD36R Pro?

We recommend that you use 1 Fenix ARB-L21-5000 V2.0 Li-ion battery. You can also use the Fenix ARB-L21-5000U and Fenix ARB-L21-4000P.

Condensed from the manufacturer's official manual for the Fenix PD36R Pro heavy-duty rechargeable tactical flashlight. See the downloadable PDF reference manual on this page for complete details.

Safe Use Warnings

• Keep this light out of the reach of children.
• Do NOT shine the light directly into the eyes of anyone.
• Do NOT shine the light at flammable objects at close range, to avoid causing danger due to high temperature.
• Do NOT use the light in inappropriate ways such as biting it in the mouth, to avoid personal injury or life-threatening risk if the light or internal battery fails.
• This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the light, or remove the battery, to prevent accidental activation when the light is placed in a closed, flammable environment such as a pocket or backpack.
• The LED of this flashlight is not replaceable; the whole light should be replaced when the LED reaches the end of its life.

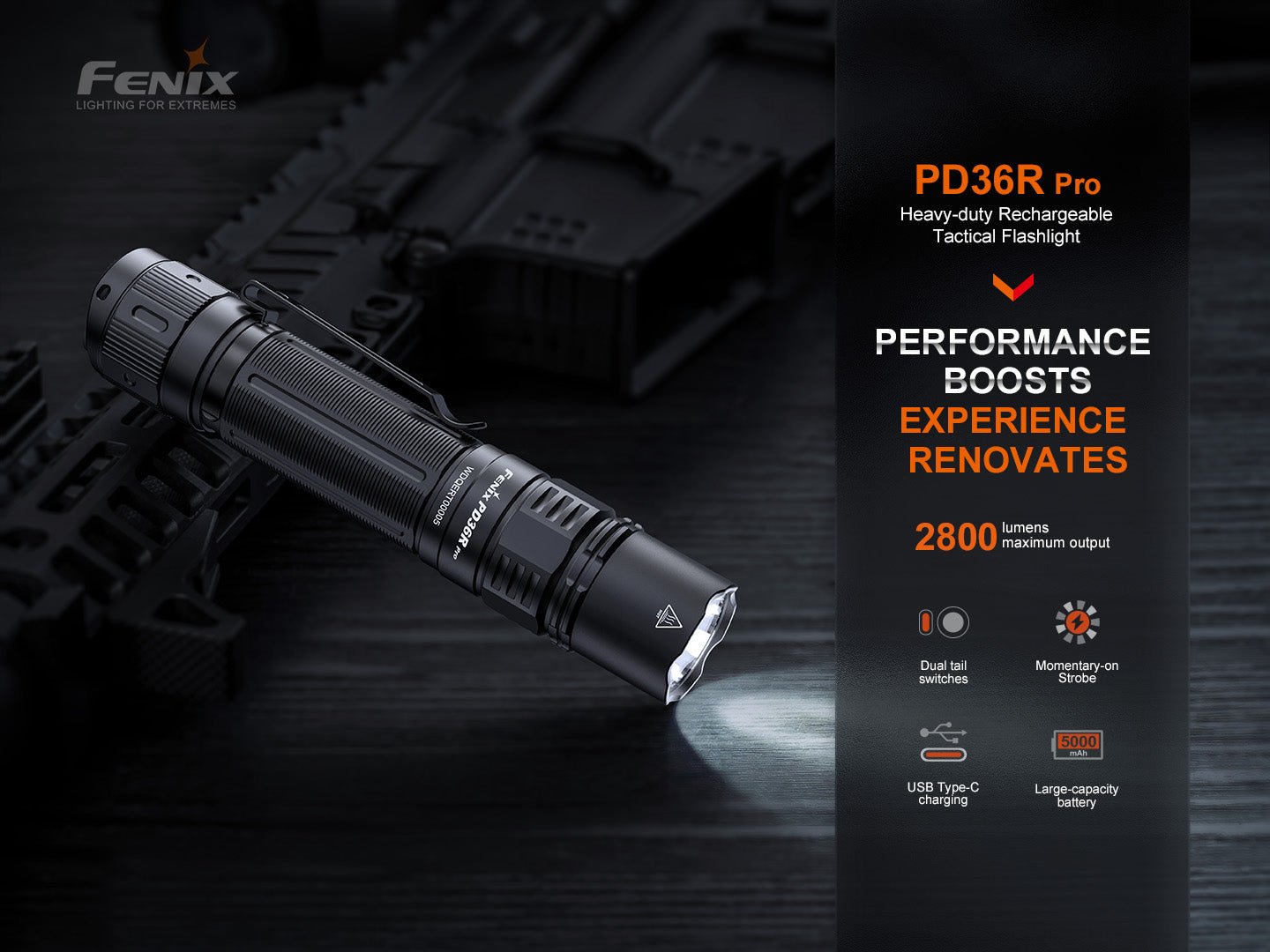

Overview

• 2800 lumens maximum output and 380 meters maximum beam distance
• A Luminus SFT70 LED with a lifespan of 50,000 hours

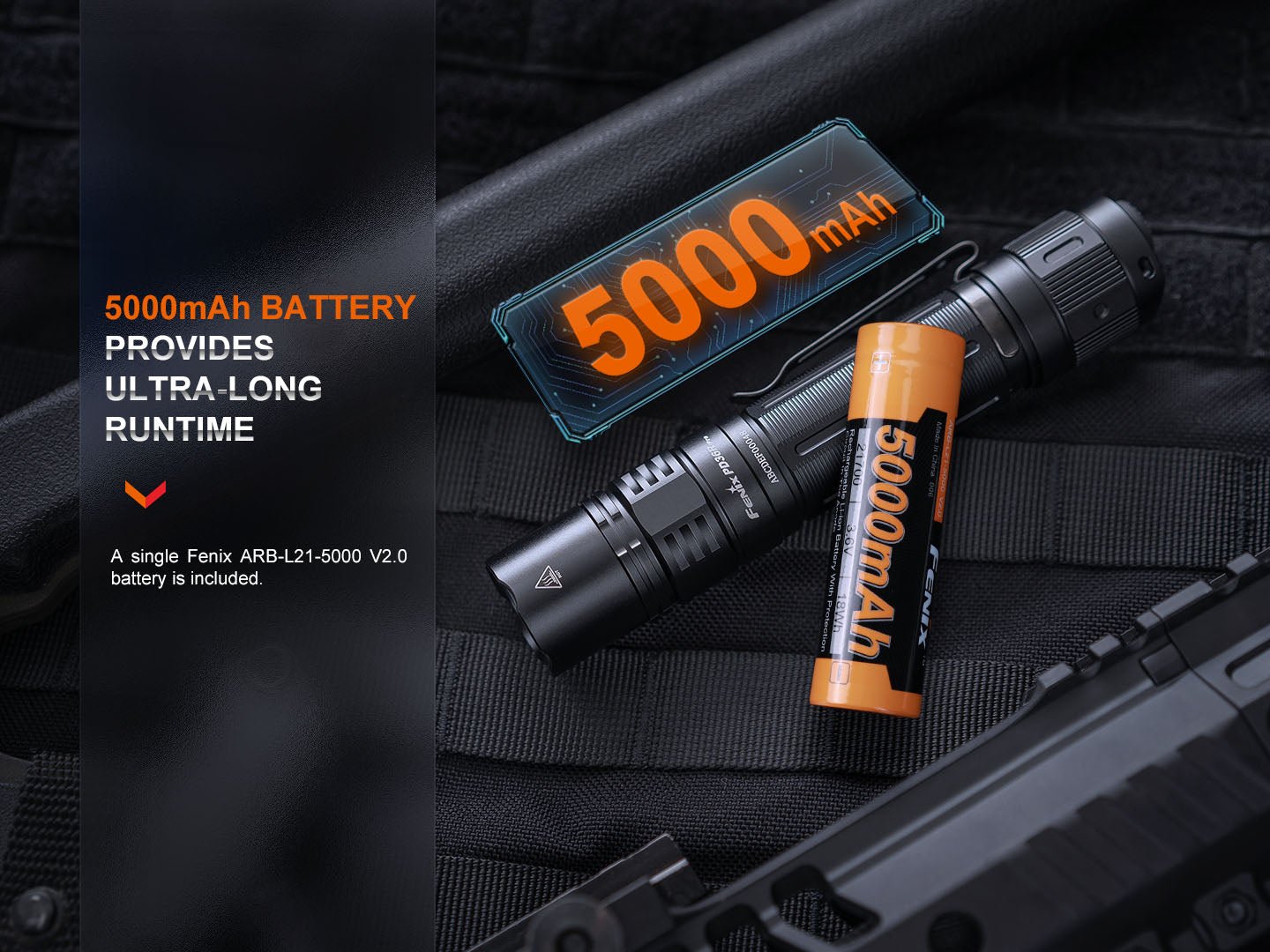

• Includes a 5000 mAh 21700 rechargeable Li-ion battery (ARB-L21-5000 V2.0)
• Instant activation and instant strobe with dual tactical switch
• Reverse polarity protection, to protect from improper battery insertion
• Toughened ultra-clear glass lens with anti-reflective coating
• Boot-up battery level indication and low-voltage warning
• Made of durable A6061-T6 aluminum with a premium type HAIII hard-anodized anti-abrasive finish
• Size: 5.74'' x 1.01'' x 1.04'' / 145.8 x 25.7 x 26.5mm
• Weight: 5.96 oz / 169 grams (including battery)

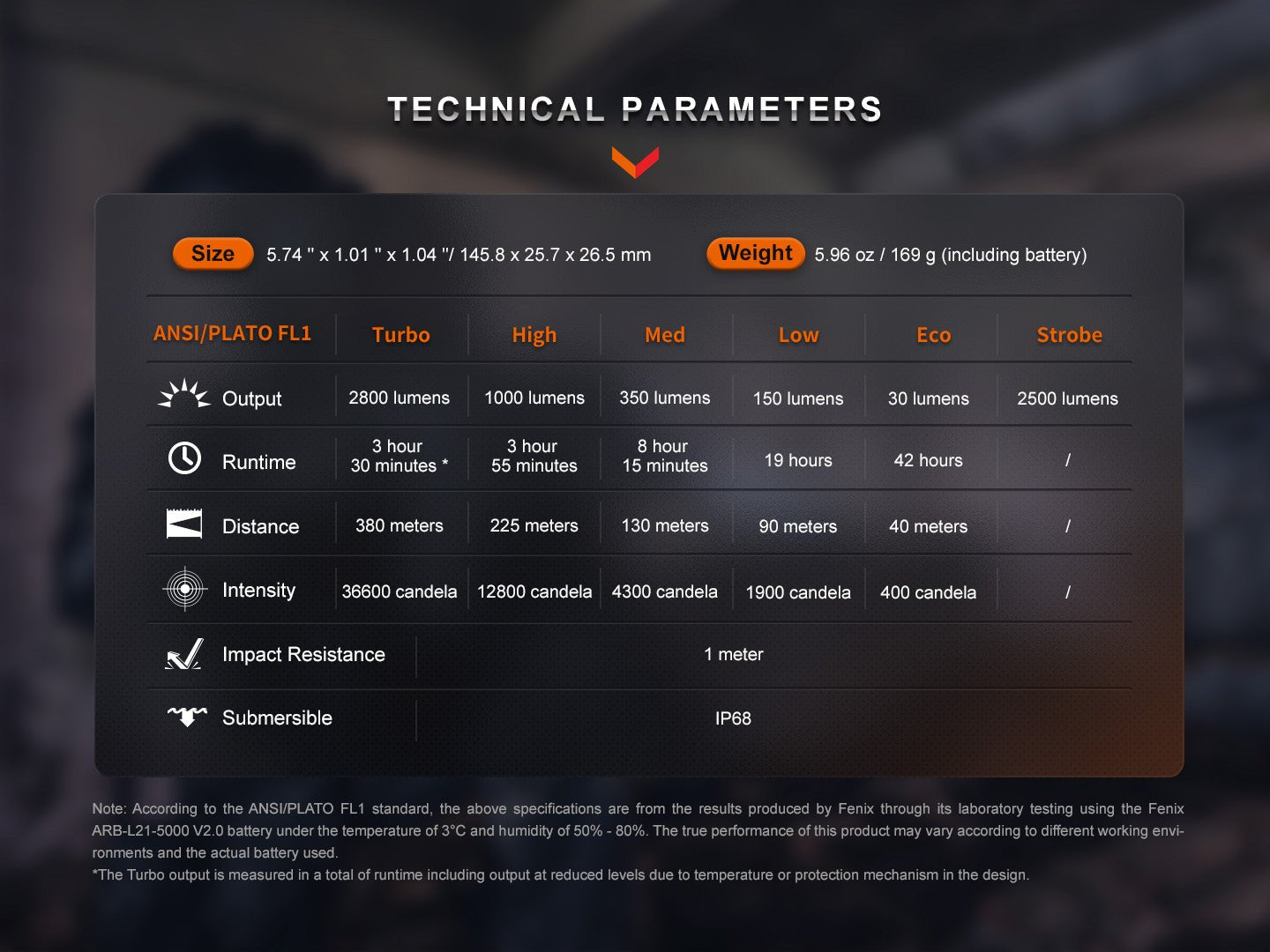

Technical Parameters (ANSI/PLATO FL1)

• Turbo: Output 2800 lumens, Runtime 3 h 30 min*, Distance 380 m, Intensity 36,600 cd
• High: Output 1000 lumens, Runtime 3 h 55 min, Distance 225 m, Intensity 12,800 cd
• Med: Output 350 lumens, Runtime 8 h 15 min, Distance 130 m, Intensity 4,300 cd
• Low: Output 150 lumens, Runtime 19 hours, Distance 90 m, Intensity 1,900 cd
• Eco: Output 30 lumens, Runtime 42 hours, Distance 40 m, Intensity 400 cd
• Strobe: Output 2500 lumens

Impact Resistance: 1 meter | Submersible: IP68

*The Turbo output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design. Specs measured by Fenix using one Fenix ARB-L21-5000 V2.0 rechargeable Li-ion battery at 21±3°C / 50–80% humidity; real-world performance varies.

Operating Instructions

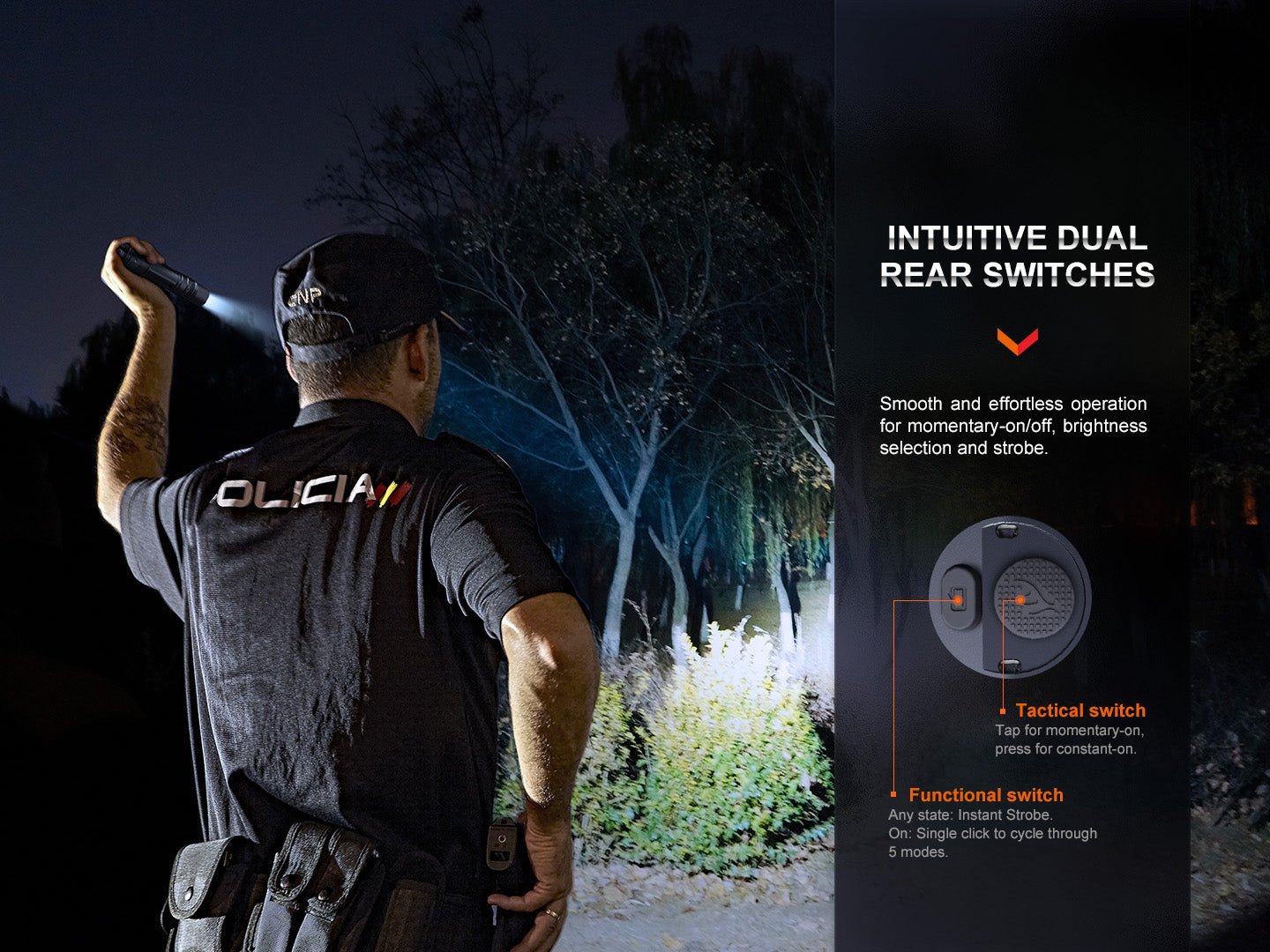

Switches: the round tail switch is the tactical switch, for instant activation. The oval tail switch is the functional switch, for output selection and instant strobe.

On/Off: tap the tactical switch to silently and momentarily turn on the light, release it and the light will go out. Fully press the tactical switch to constantly turn on the light, press again and the light will go out.

Output Selection: with the light switched on, single-click the functional switch to cycle through Turbo → Eco → Low → Med → High.

Strobe: with the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, and click the functional switch once again to turn back to the general mode. With the light switched off, press the functional switch to enter strobe; release and the light will go out.

Intelligent Memory Circuit: the light memorizes the last selected output, excluding Strobe. When turned on again, the previously used output of general mode will be recalled.

Battery Specifications & Replacement

• Fenix ARB-L21-5000 V2.0 (21700, 3.6V): Recommended
• Fenix ARB-L21-5000U (21700, 3.6V): Usable
• Fenix ARB-L21-4000P (21700, 3.6V): Usable
• Rechargeable Li-ion (21700, 3.6V, non-Fenix): Caution

21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; cell damage or short-circuiting are potential risks the user assumes.

To replace: unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.

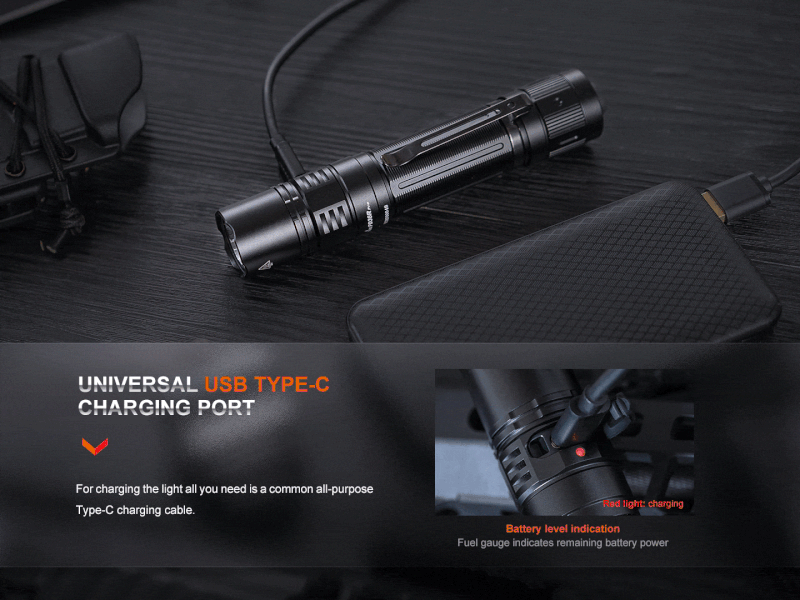

Charging

• First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
• The indicator will display red while charging, and will turn green when fully charged.
• Once charging is completed, be sure to close the anti-dust cover to maintain the dustproof and waterproof ability.

Note: The normal charging time of the included Fenix ARB-L21-5000 V2.0 rechargeable Li-ion battery is approximately 3 hours from depletion to full charging. Recharge a stored light every four months to maintain optimum performance of the battery. The light is unavailable while charging and do not remove the battery during charging.

Battery Level Indication

Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.

• Green light on: saturated, 100–85%
• Green light flashes: sufficient, 85–50%
• Red light on: poor, 50–25%
• Red light flashes: critical, 25–1%

Note: This only works with a Fenix ARB-L21 series 21700 rechargeable Li-ion battery.

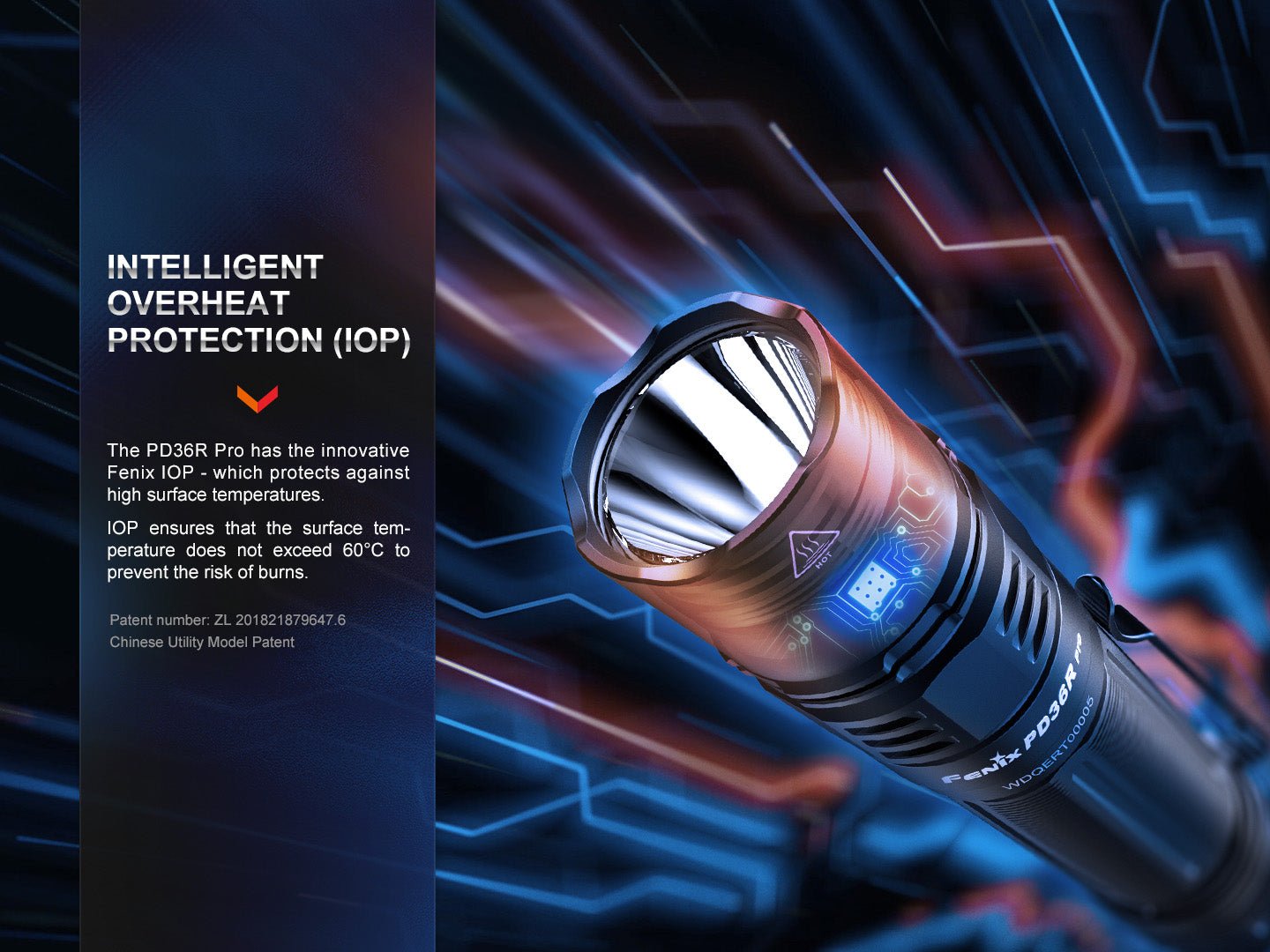

Intelligent Overheat Protection

The light will accumulate a lot of heat when used on High or Turbo modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user the reselection of High or Turbo modes.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the battery level indicator constantly blinks red to remind you to timely recharge or replace the battery.

Note: This only works with a Fenix ARB-L21 series 21700 rechargeable Li-ion battery.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using only a high-quality protected battery.
• If the light will not be used for an extended period, remove the battery for proper storage.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the light's performance, as dirty contacts may cause the light to flicker, shine intermittently, or fail to illuminate. If the battery level is poor, recharge or replace it; if the contacts are dirty, clean them with a cotton swab soaked in rubbing alcohol. If the above methods don't work, contact your authorized distributor.

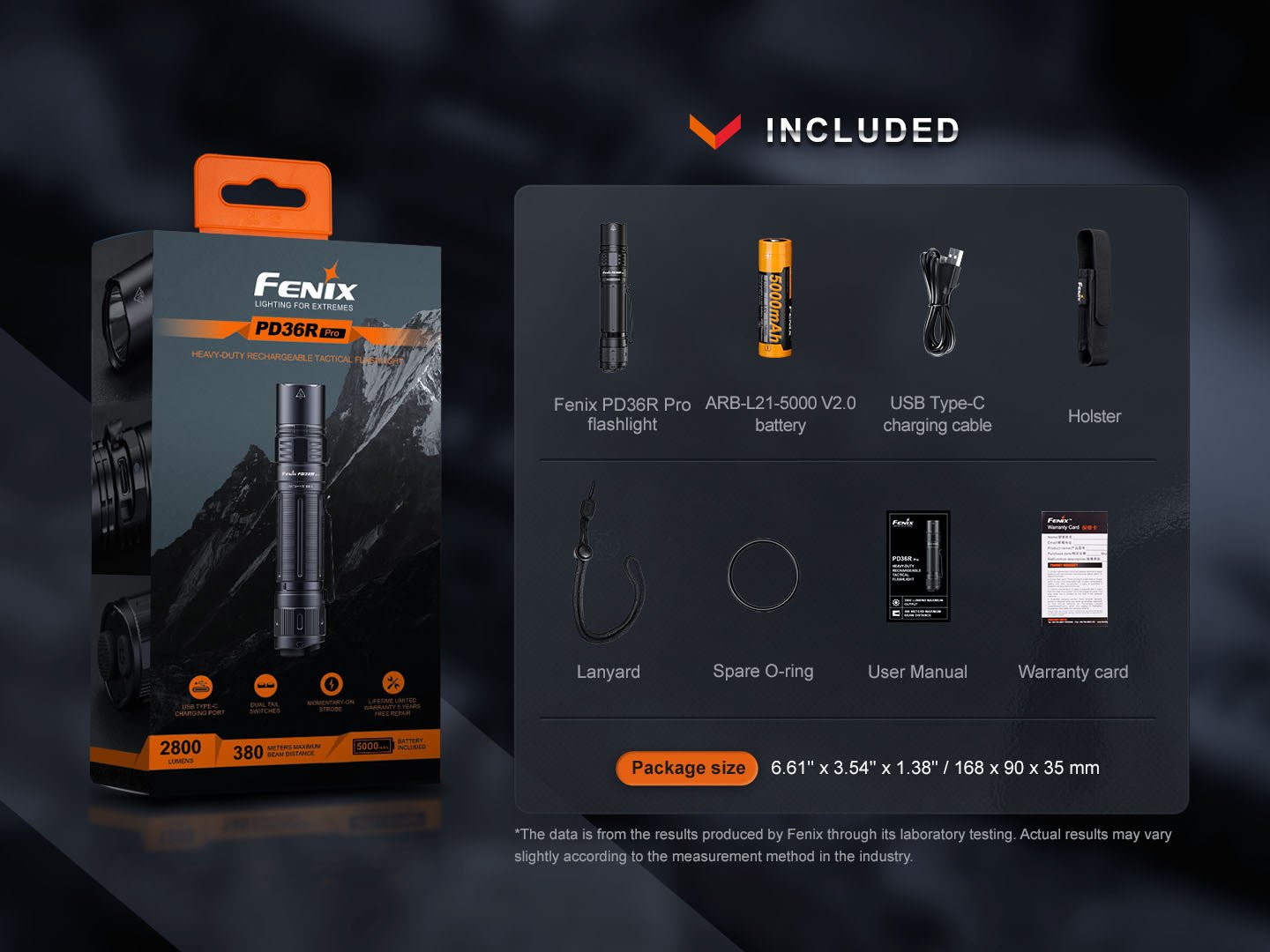

What's Included

Fenix PD36R Pro flashlight, ARB-L21-5000 V2.0 Li-ion battery, USB Type-C charging cable, holster, lanyard, spare O-ring, user manual, and warranty card.
