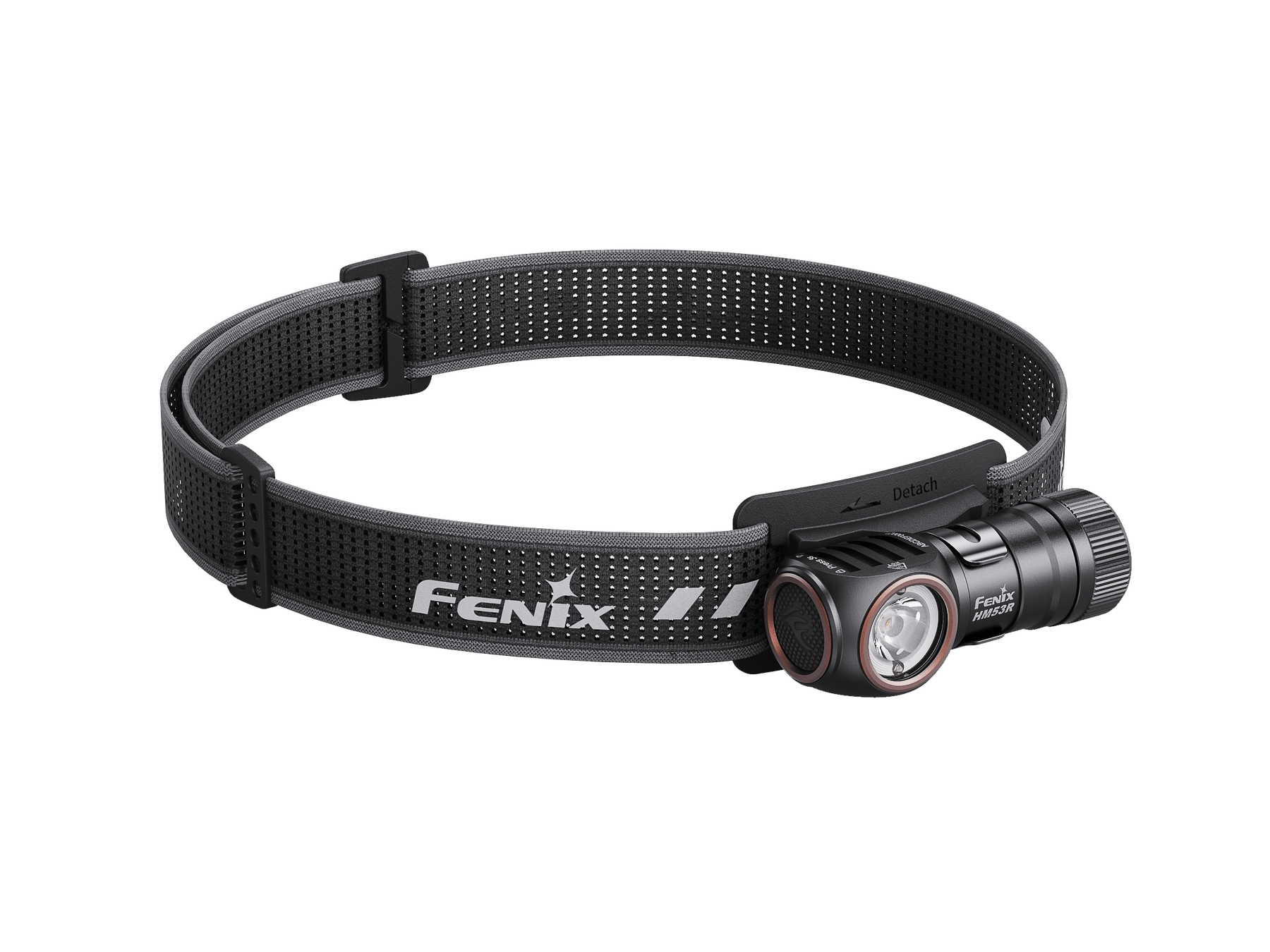

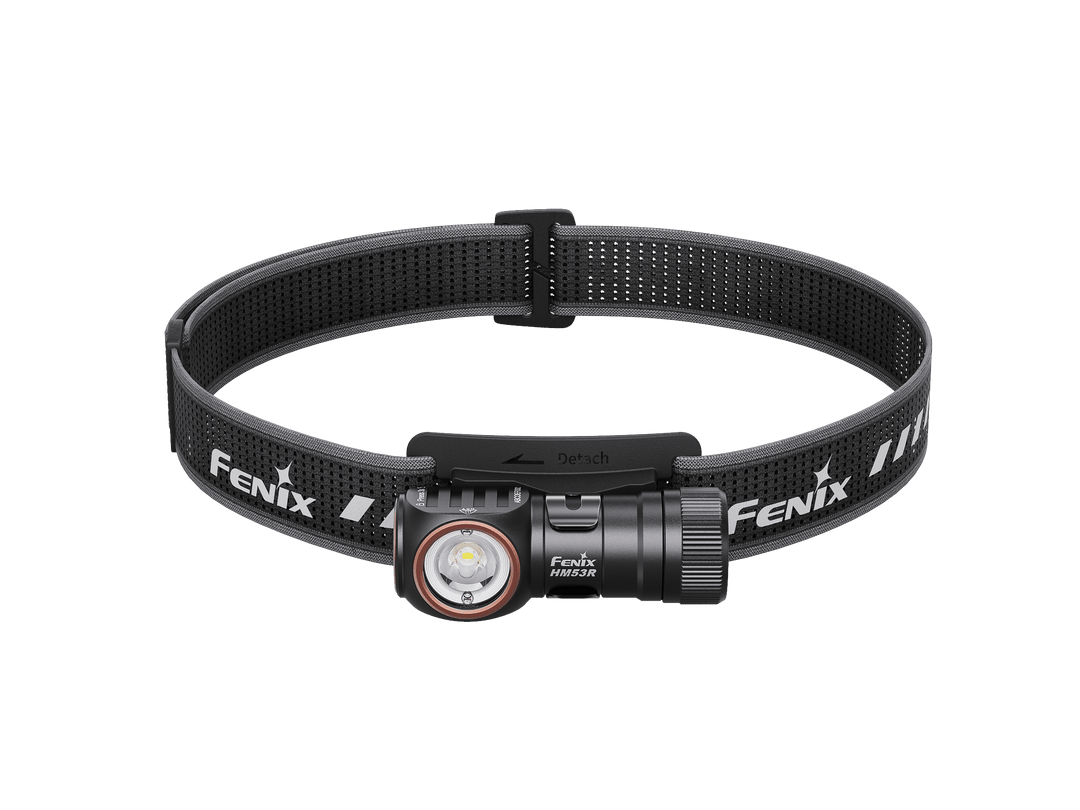

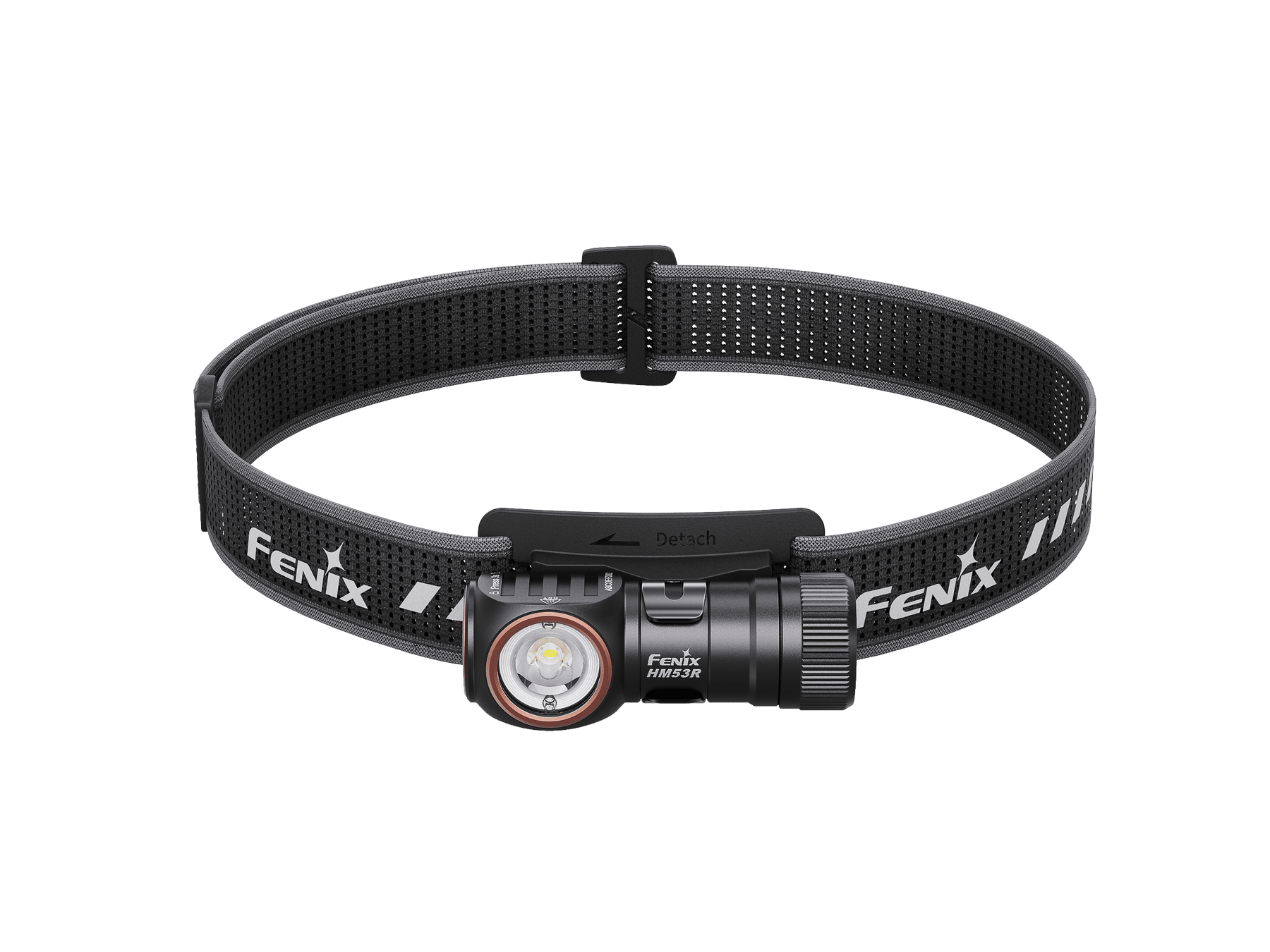

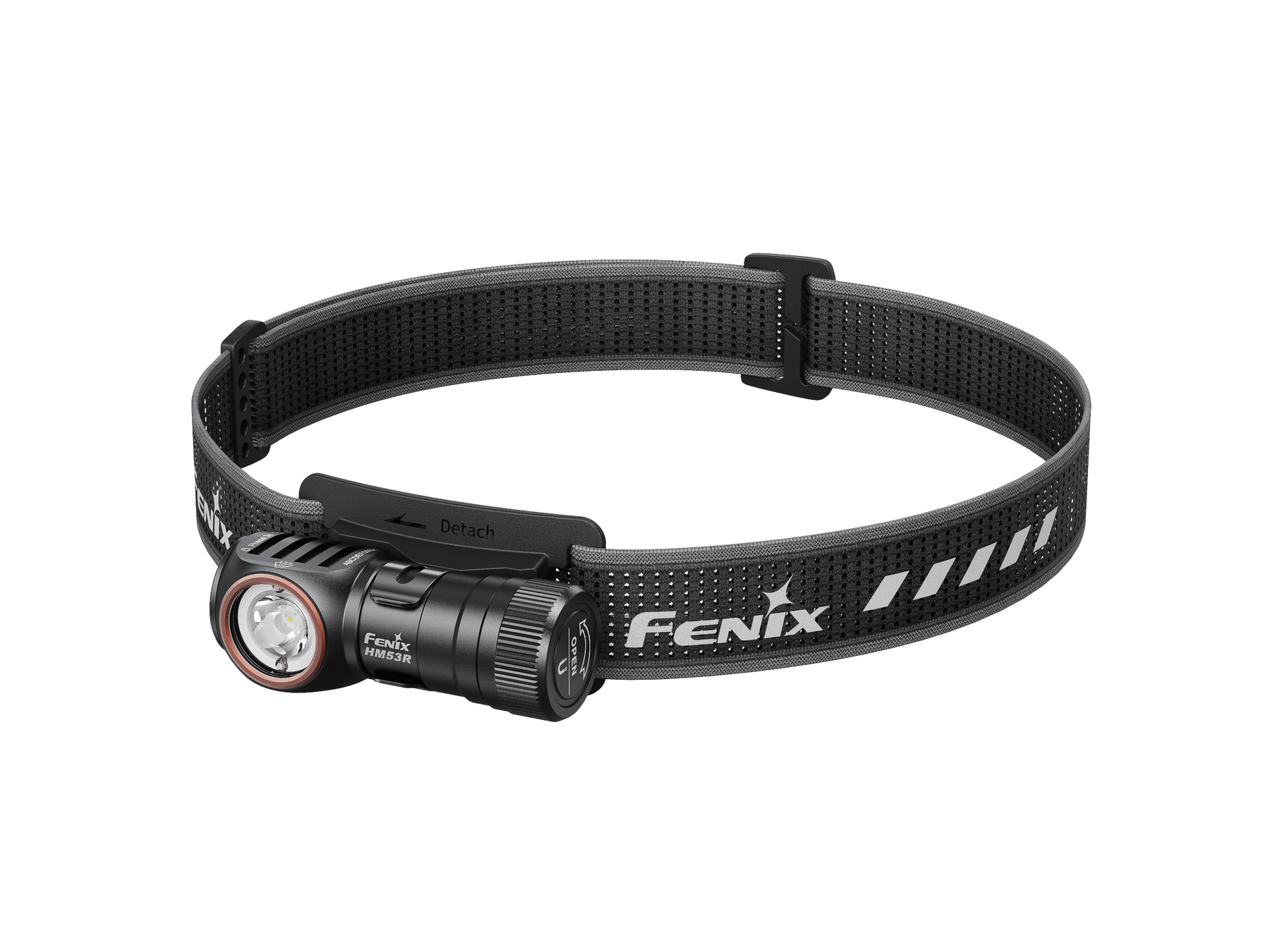

Fenix HM53R Multi-Function Removable Headlamp

$69.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Satisfaction guaranteed
  • Free shipping for orders over $25
  • Backed by the Fenix Limited Lifetime Warranty

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

The Fenix HM53R is a remarkably versatile lighting solution built for those who refuse to be limited by a single-purpose tool. Delivering a powerful 1,200 lumens with a beam that reaches up to 518 feet, this compact light weighs just 102 grams and offers both white and red light sources; including a flashing red mode for emergencies or visibility. What truly sets the HM53R apart is its innovative 2-in-1 design: the light detaches from the headband in seconds to function as a standalone handheld flashlight, and a tough body clip lets you secure it to a pocket, belt, or pack for hands-free convenience without the headband. Whether you're navigating a trail, working a job site, or responding to an emergency, the HM53R adapts to the moment.

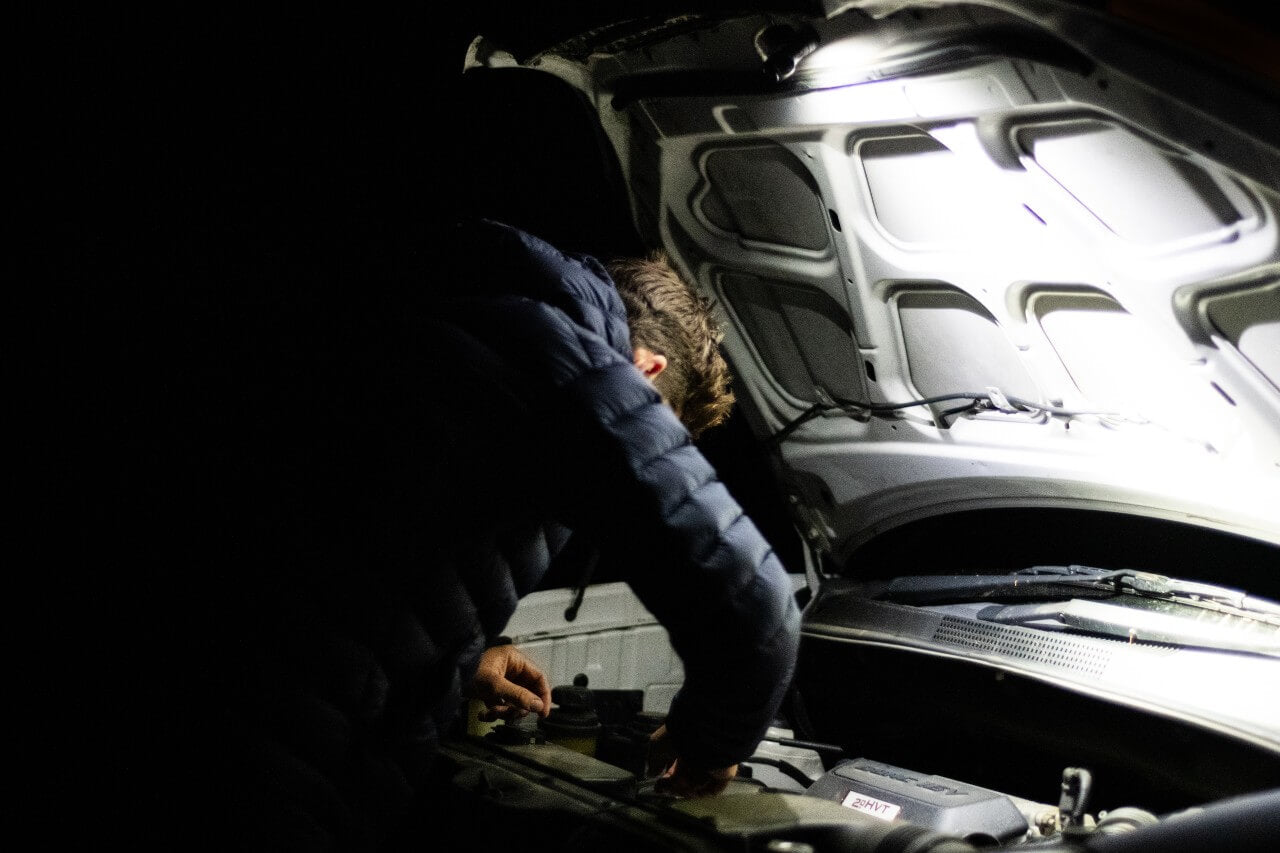

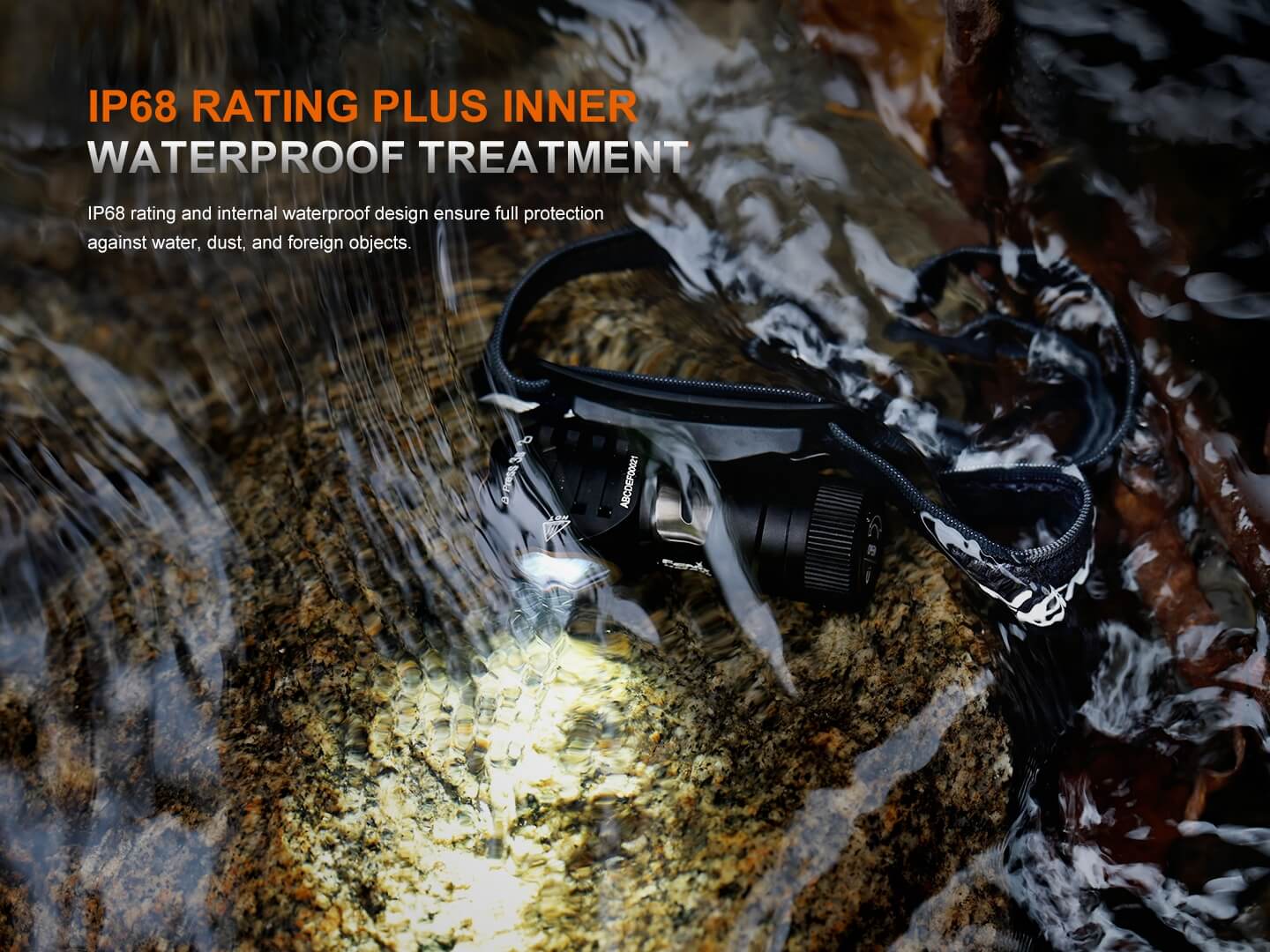

Built to perform in the most demanding conditions, the HM53R carries an IP68 waterproof rating and withstands drops from up to 2 meters, so it can take the abuse your adventures dish out. A convenient magnetic tail cap enables quick one-handed attachment to metal surfaces, keeping your light right where you need it. The included rechargeable 18350 battery charges via USB-C and delivers up to 135 hours of runtime, with a battery level indicator so you're never caught off guard in the dark. Lockout mode prevents accidental activation during storage or transport, ensuring every bit of that charge is there when you need it most.

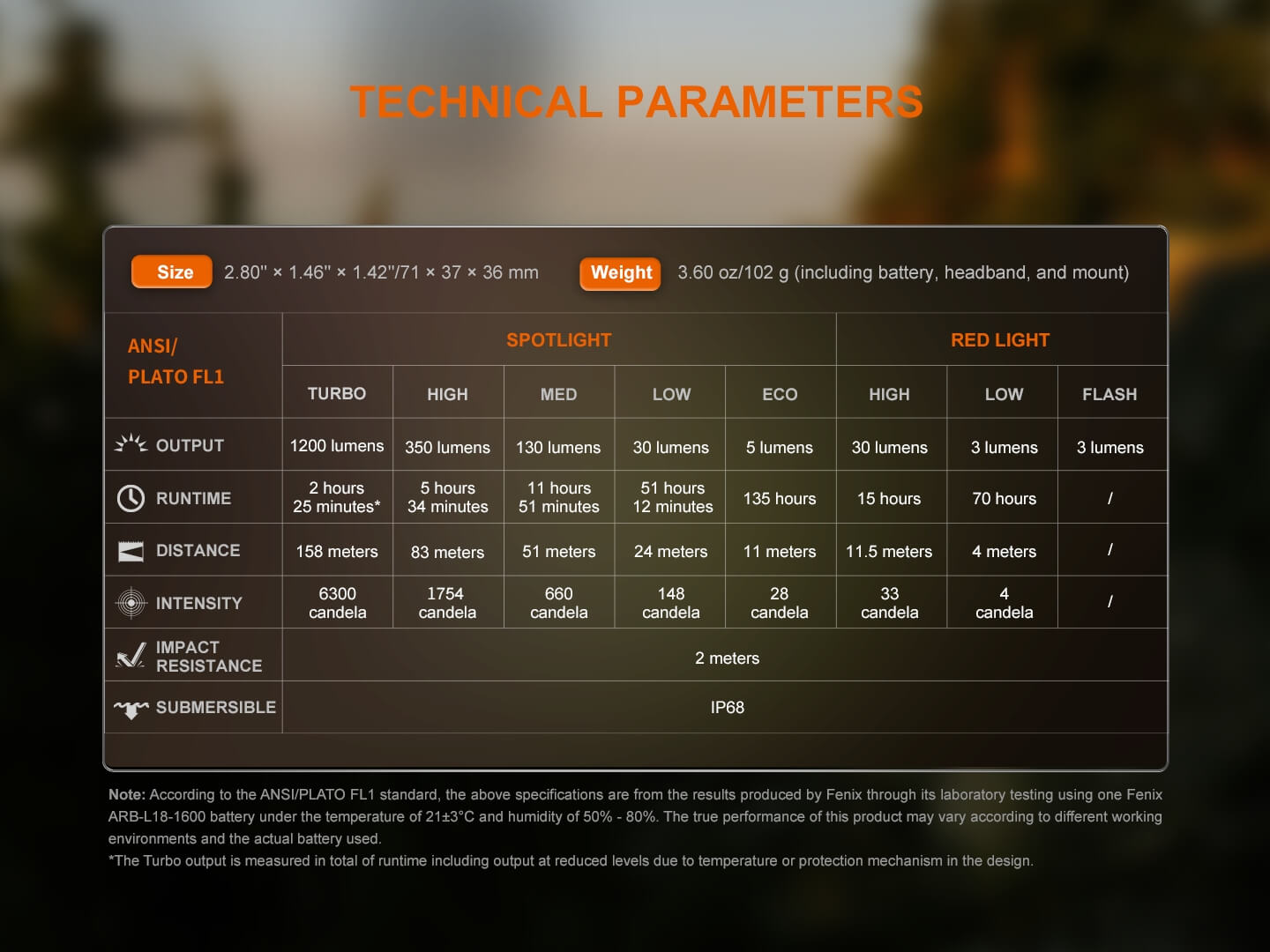

Outputs

  • White Outputs
  • Turbo: 1200 Lumens, 2.42 hours, 518 feet
  • High: 350 Lumens, 5.57 hours, 272 feet
  • Med: 130 Lumens, 11.85 hours, 167 feet
  • Low: 30 Lumens, 51.2 hours, 79 feet
  • Eco: 50 Lumens, 135 hours, 36 feet
  • Red Outputs
  • High: 30 Lumens, 15 hours, 38 feet
  • Low: 3 Lumens, 70 hours, 13 feet
  • Flash: 3 Lumens

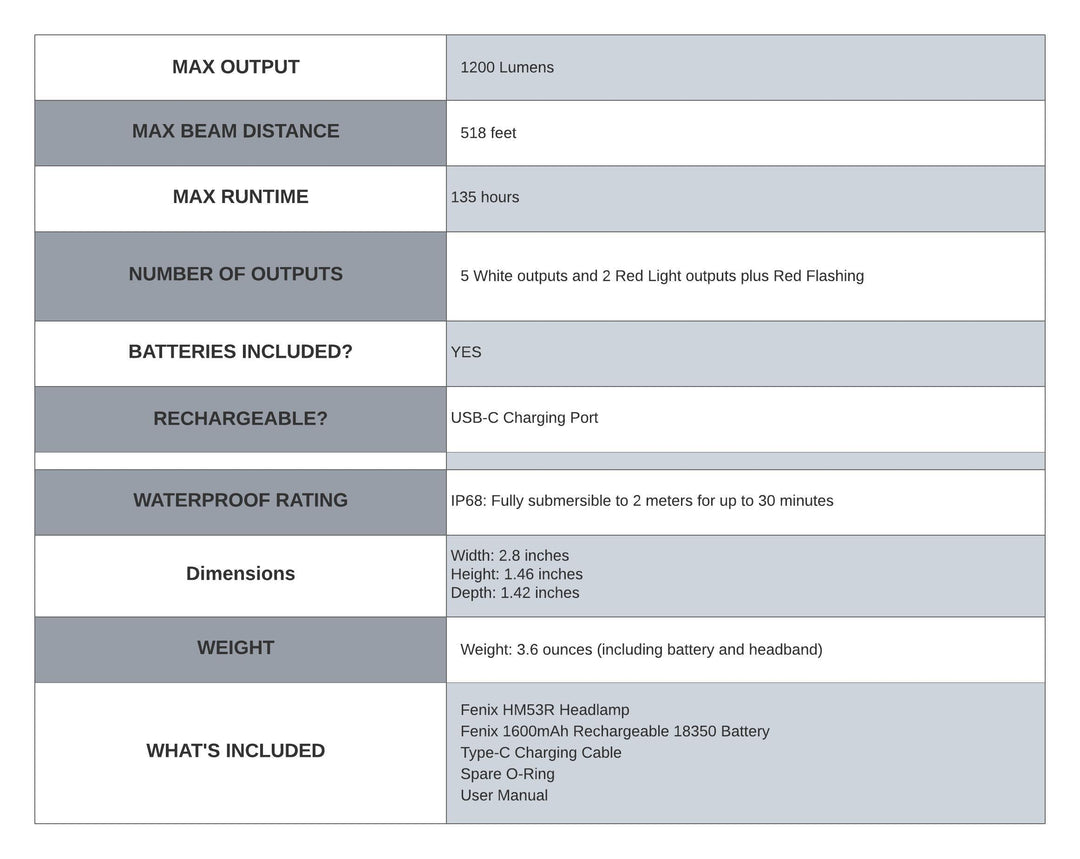

Details

  • 1200 lumen maximum output
  • 158 meter beam distance
  • White and red light sources

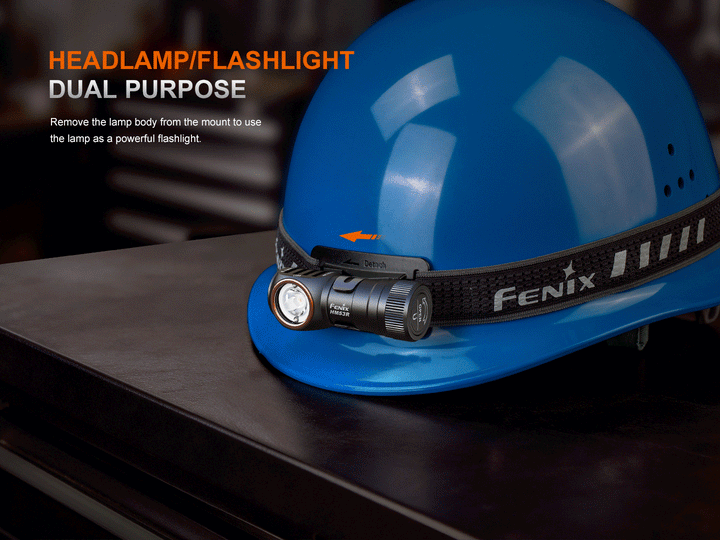

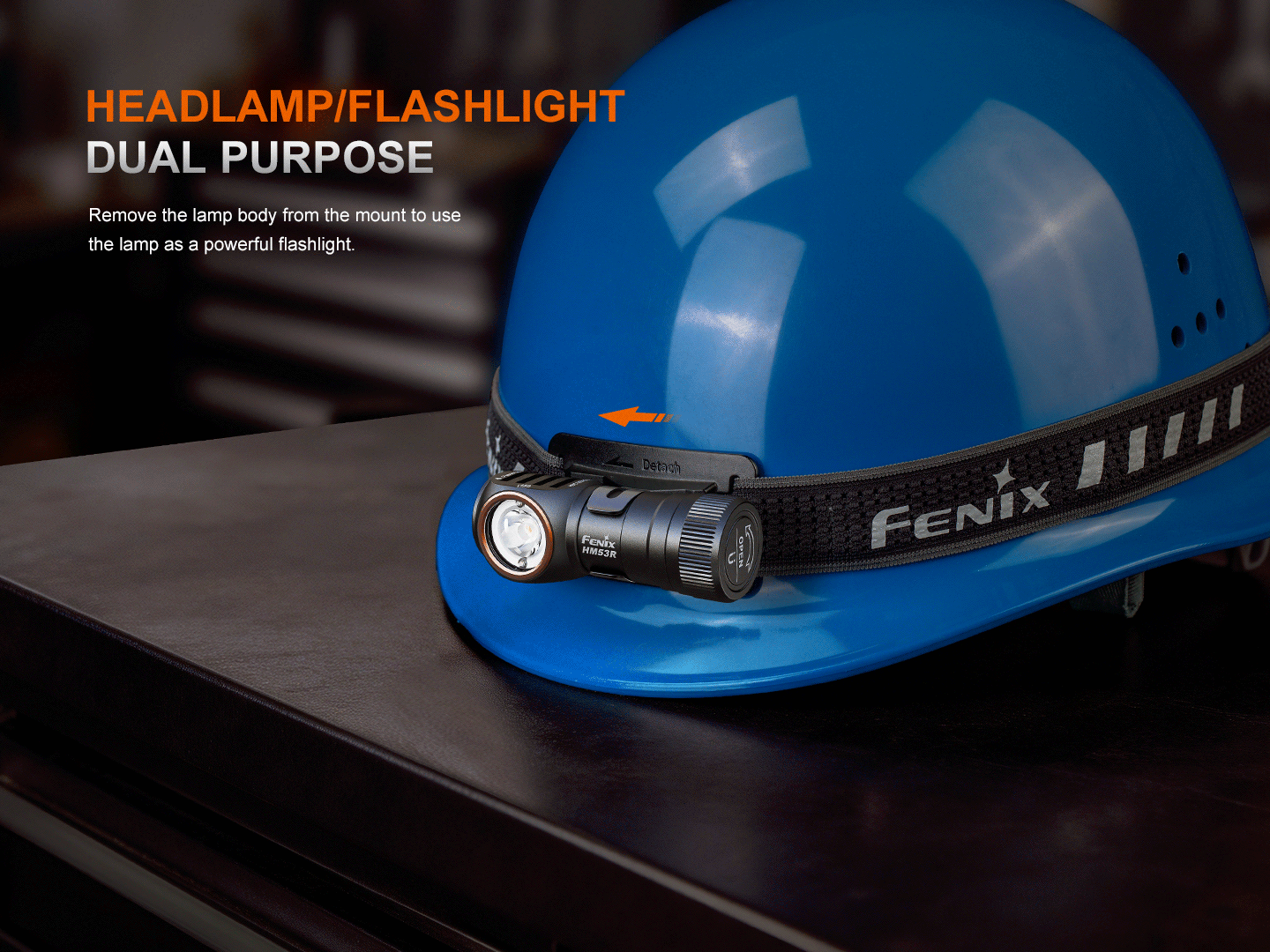

  • 2-in-1: Headlamp is removeable from the headband to be used as a handheld light
  • Magnetic tail cap
  • Flashing red light

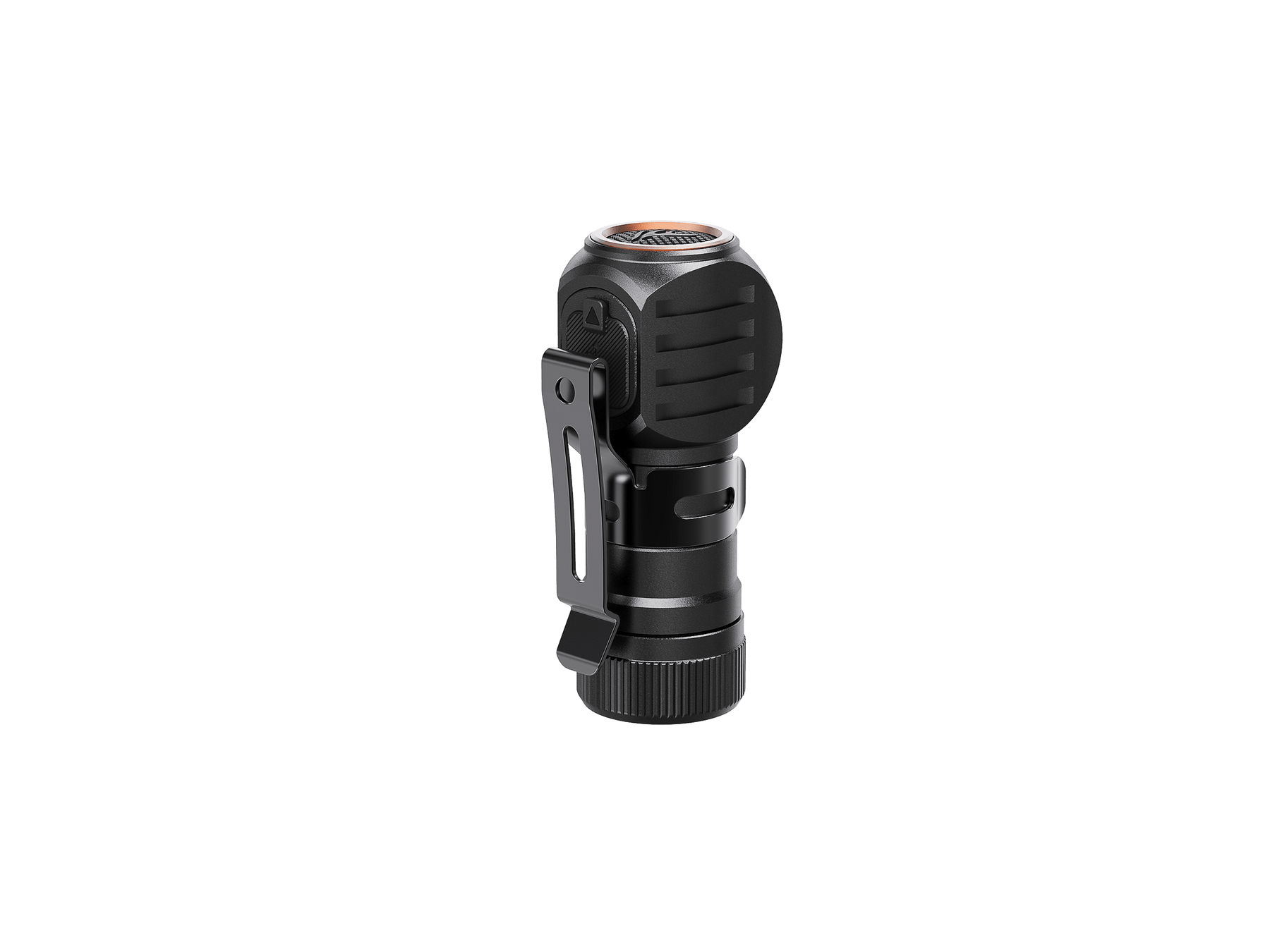

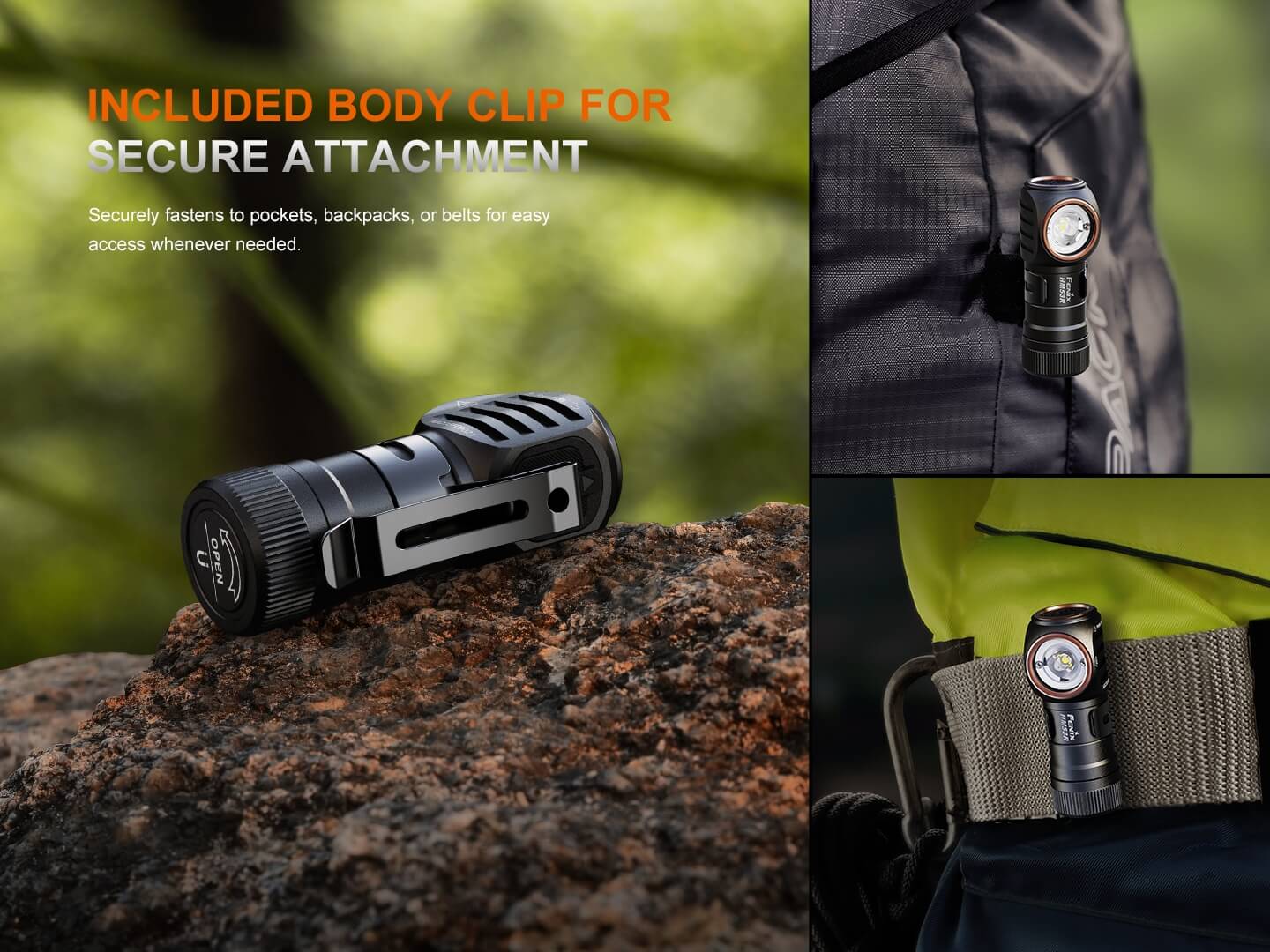

  • Tough body clip for clipping to pocket, belt, pack, etc
  • Lockout mode

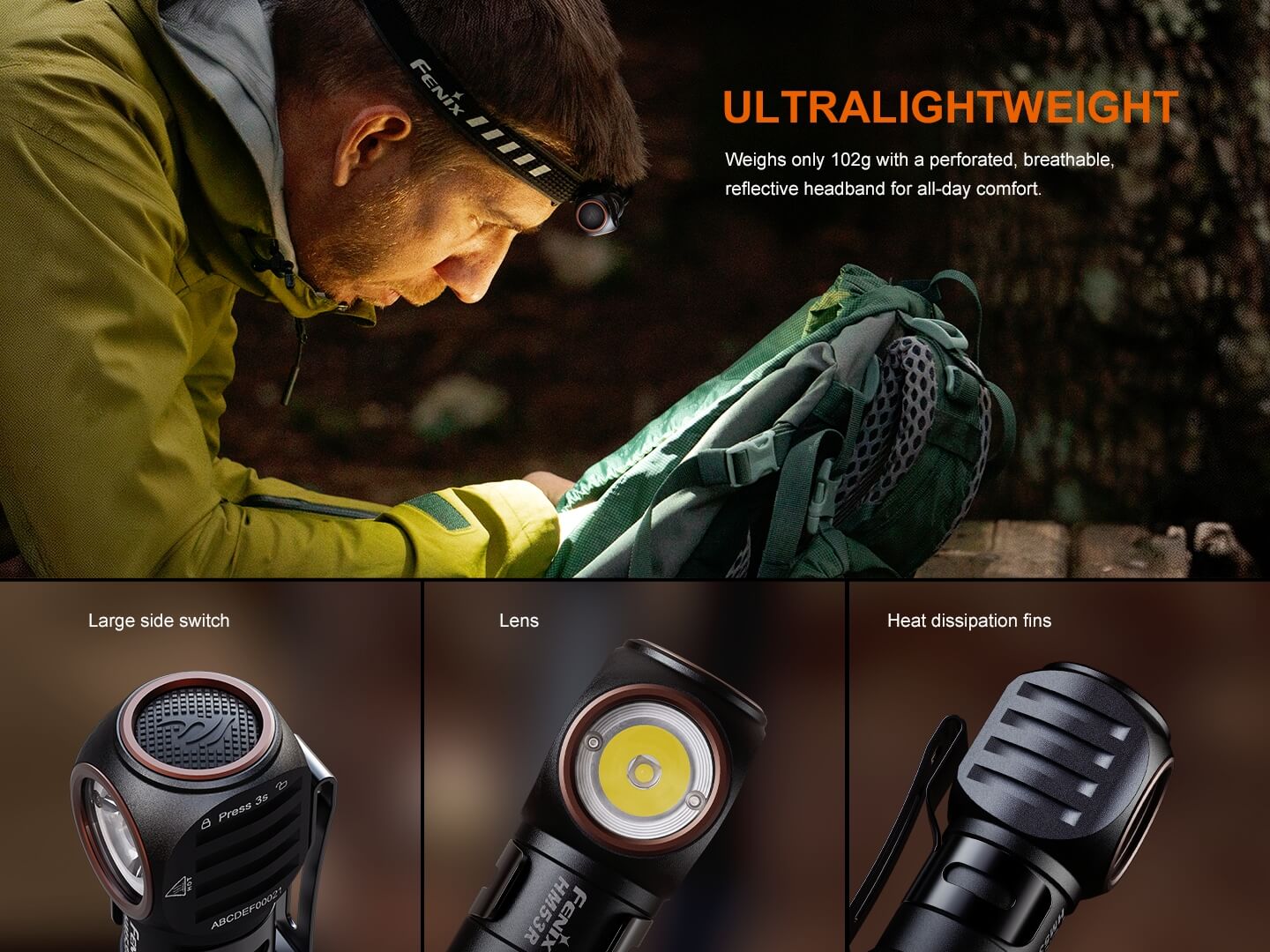

  • Weighs only 102g
  • 135 hour maximum runtime
  • USB-C Rechargeable
  • Battery Level Indicator
  • IP68 waterproof

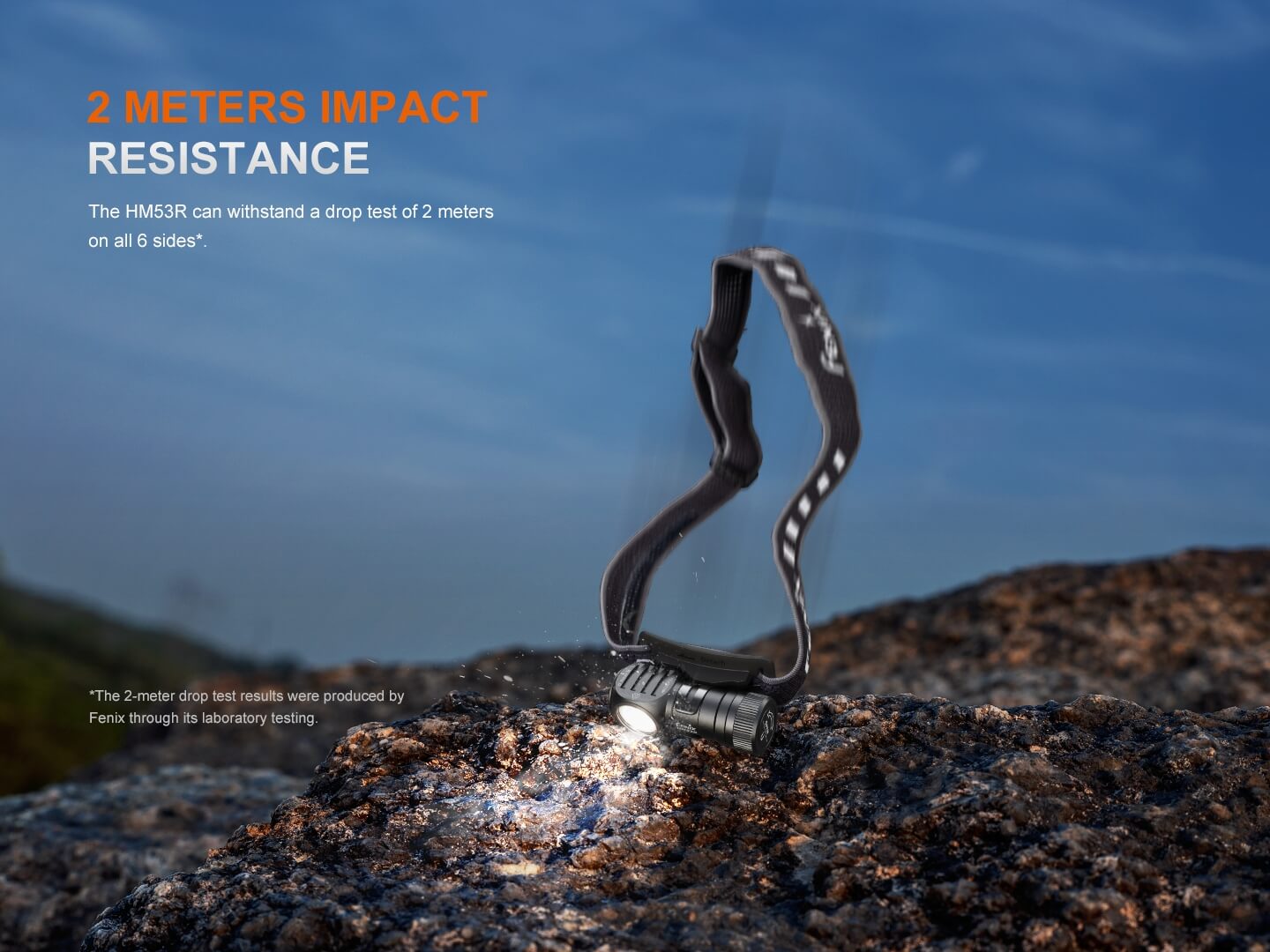

  • 2 meter impact resistance

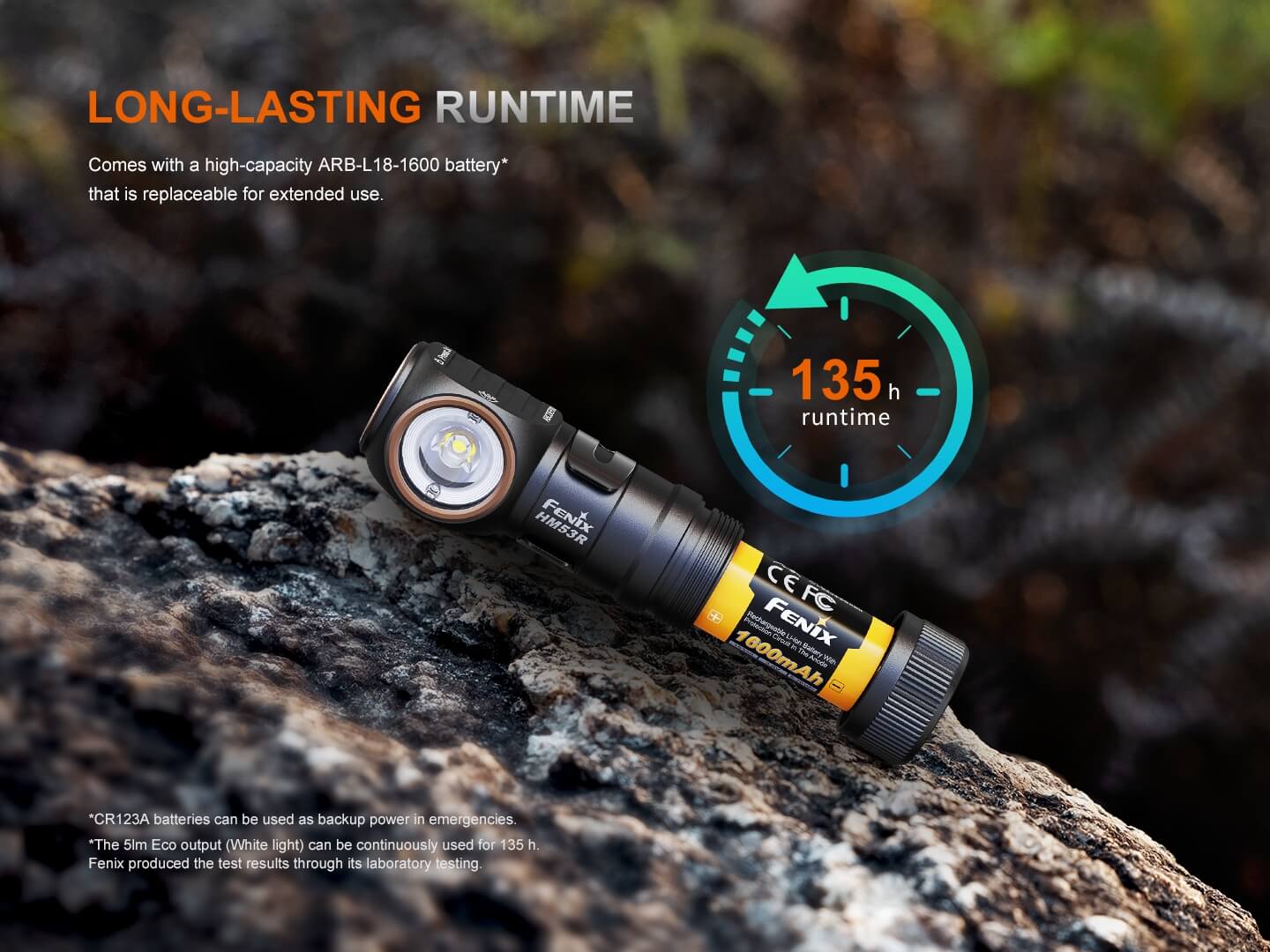

  • Rechargeable 18350 battery included

Batteries

  • Included: Fenix ARB-L18-1600 rechargeable 18350 battery
  • Compatible: Any Fenix brand 18350 battery

Size

  • Width: 2.8 inches
  • Height: 1.46 inches
  • Depth: 1.42 inches
  • Weight: 3.6 ounces (including battery and headband)

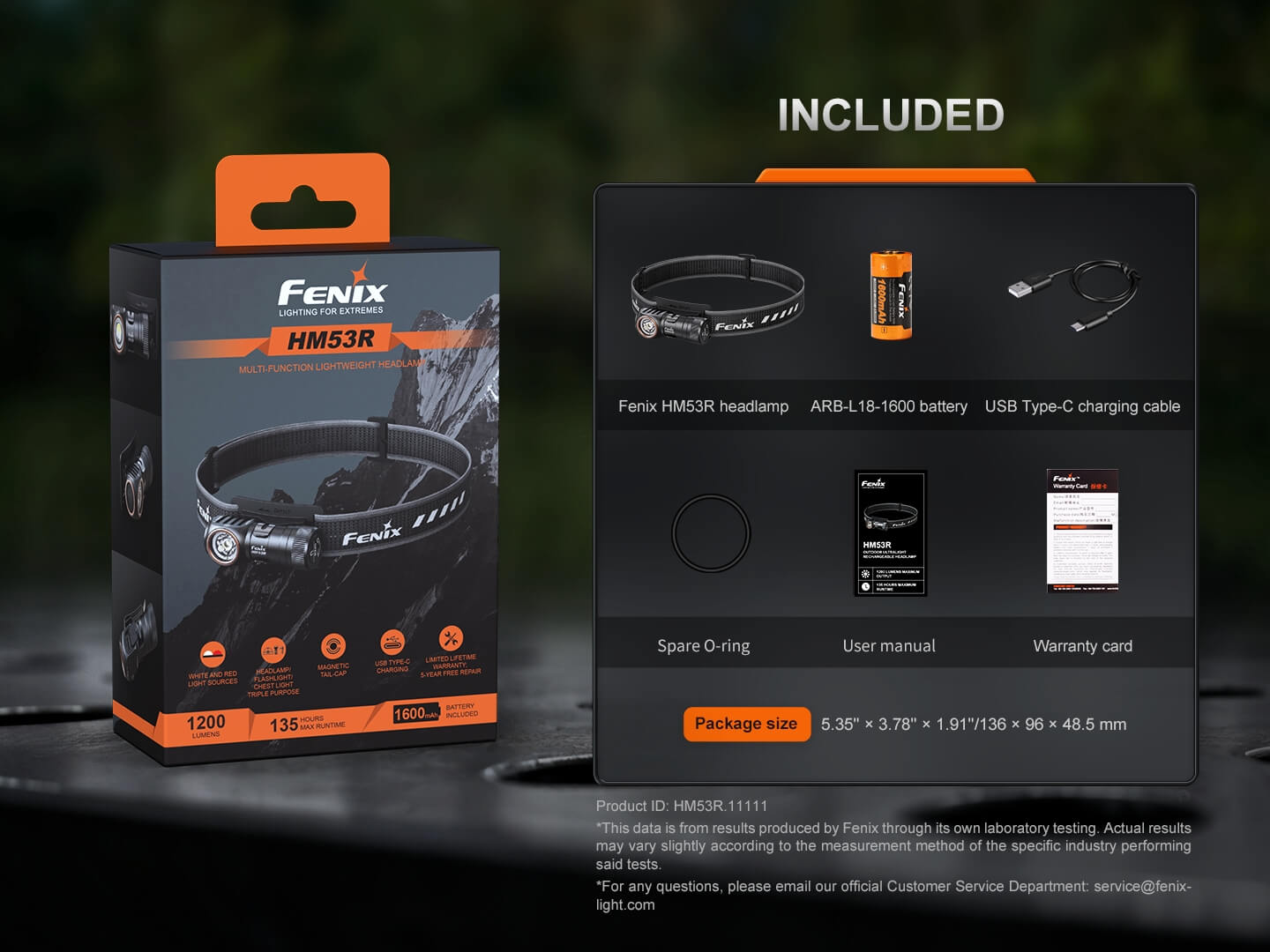

  • Fenix HM53R Multi-functional headlamp
  • Fenix ARB-L18-1600 Rechargeable 18350 Battery
  • USB Type-C Charging Cable
  • Spare O-Ring
  • Fenix HM53R User Manual

Q: What are the key features of the HM53R?

A: The Fenix HM53R is a lightweight multifunctional headlamp that is mainly used for outdoor and industrial scenarios. Its key features include:

  1. 1200 lumens maximum output, 158 meters maximum beam distance.
  2. High-output cold white light and red light.
  3. Headlamp mount, body clip, and magnetic tail-cap provide multiple mounting options.

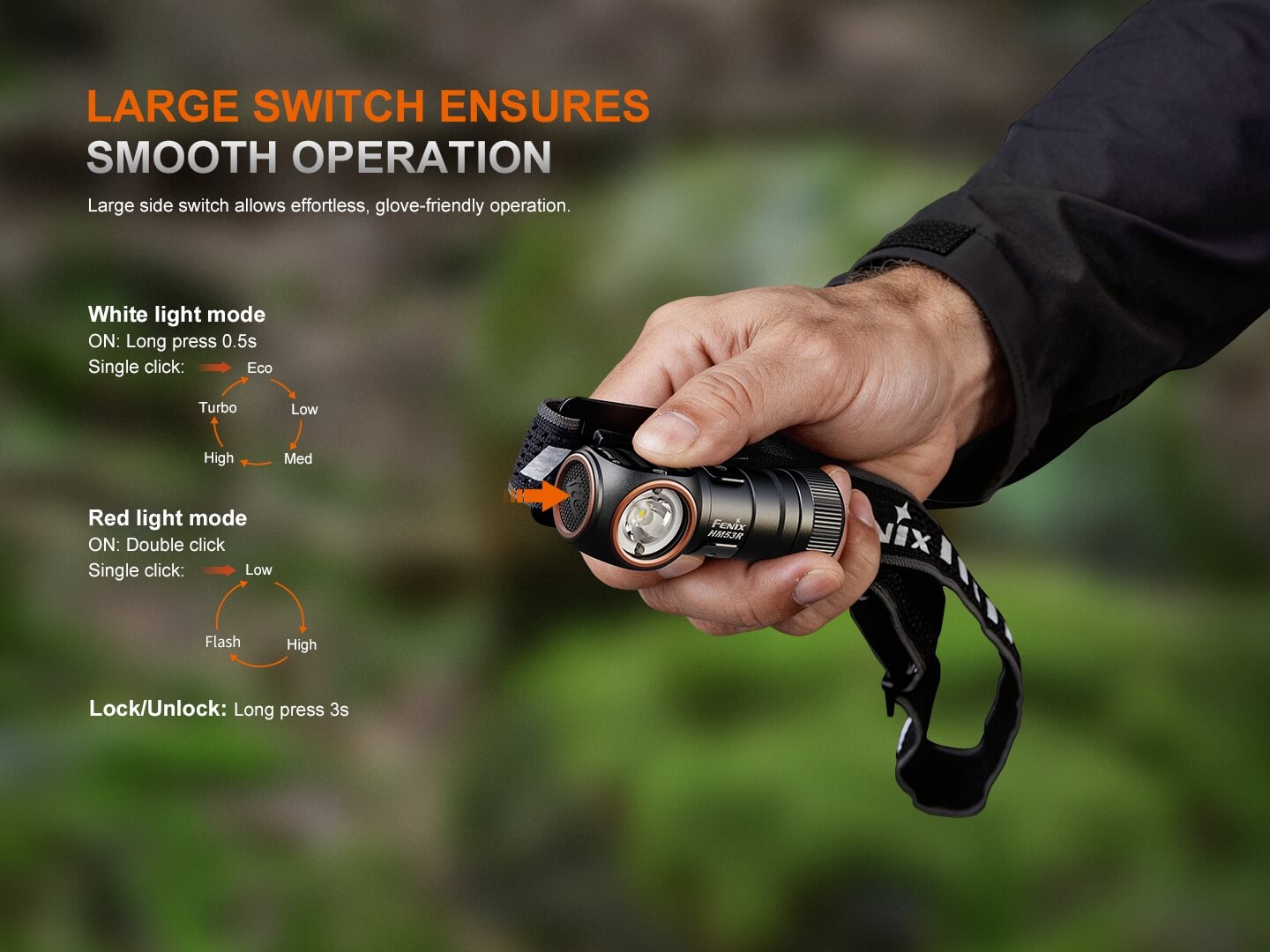

  4. Large side switch for simple and glove-friendly operation.

Q: What kind of LEDs are used in HM53R?

A: Uses one Luminus SST-25 cold white LED and two OSRAM-2835 red LEDs; with a lifespan of 50,000 hours each.

Q: What is the color temperature of HM53R?

A: 6500K.

Q: What is the working voltage of HM53R?

A: Operating voltage: 3.0 V~4.2 V. Maximum operating voltage range: 2.75 V~4.2 V.

Q: Is HM53R rechargeable? How long is the charging time?

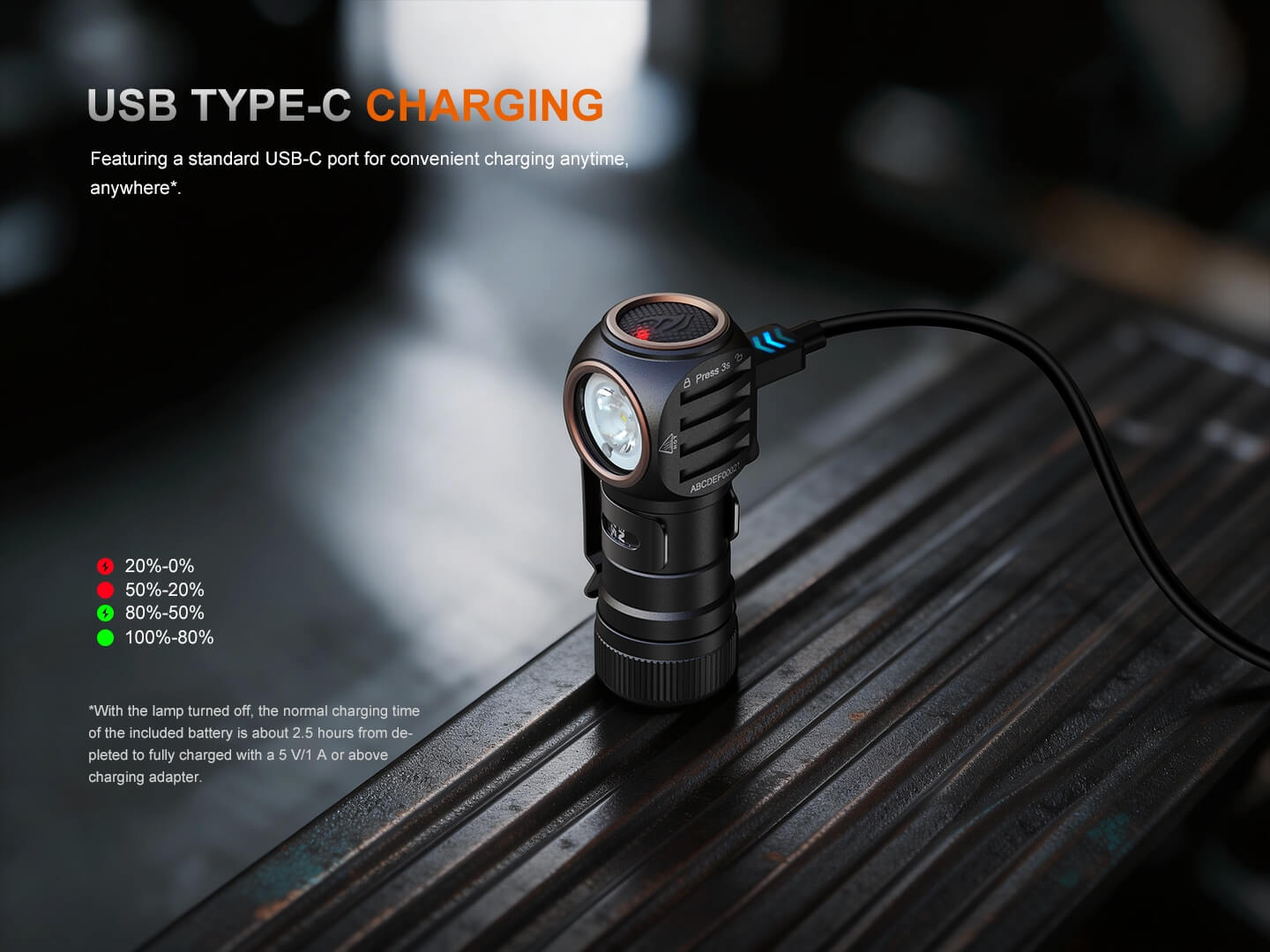

A: Yes. The HM53R features a USB Type-C port for charging. The normal charging time is approximately 2.5 hours from depleted to fully charged with a 5 V/1 A or above charging adapter.

Q: How to prevent accidentally activating the HM53R?

A:

Lock: With the lamp turned off, press and hold the switch for 3 seconds, the lamp will blink four times in Eco output of White light and then go out to indicate the locked status.

Unlock: With the light locked, press and hold the switch for 3 seconds, the lamp will blink four times and then activate in Eco output of White light to indicate that the lamp is unlocked.

Note: In locked status, clicking the switch will activate four blinks in Eco output of White light before turning off to indicate the locked status.

Q: Why does the HM53R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C or above, the headlamp will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output level is reached.

Q: Why does the HM53R sometimes flicker?

A: The reasons that may cause the headlamp to flicker, shine intermittently or even fail to illuminate:

A: Poor battery level.

Solution: Recharge or replace the battery.

B: The contact point or contact of the battery or headlamp is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.
