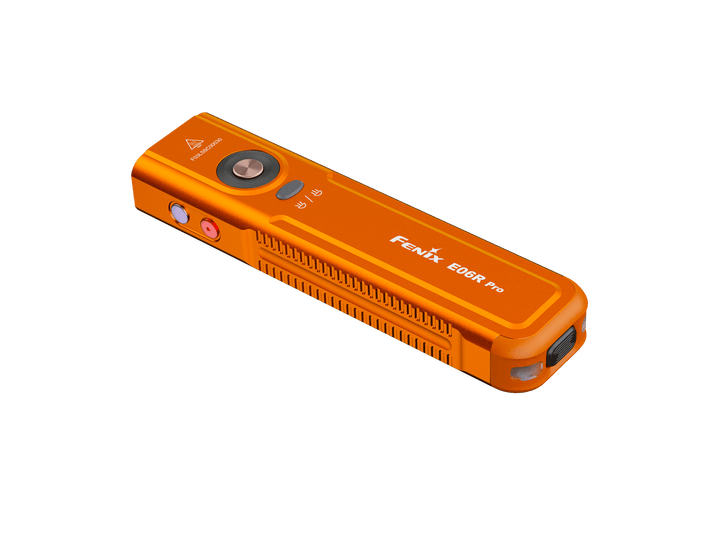

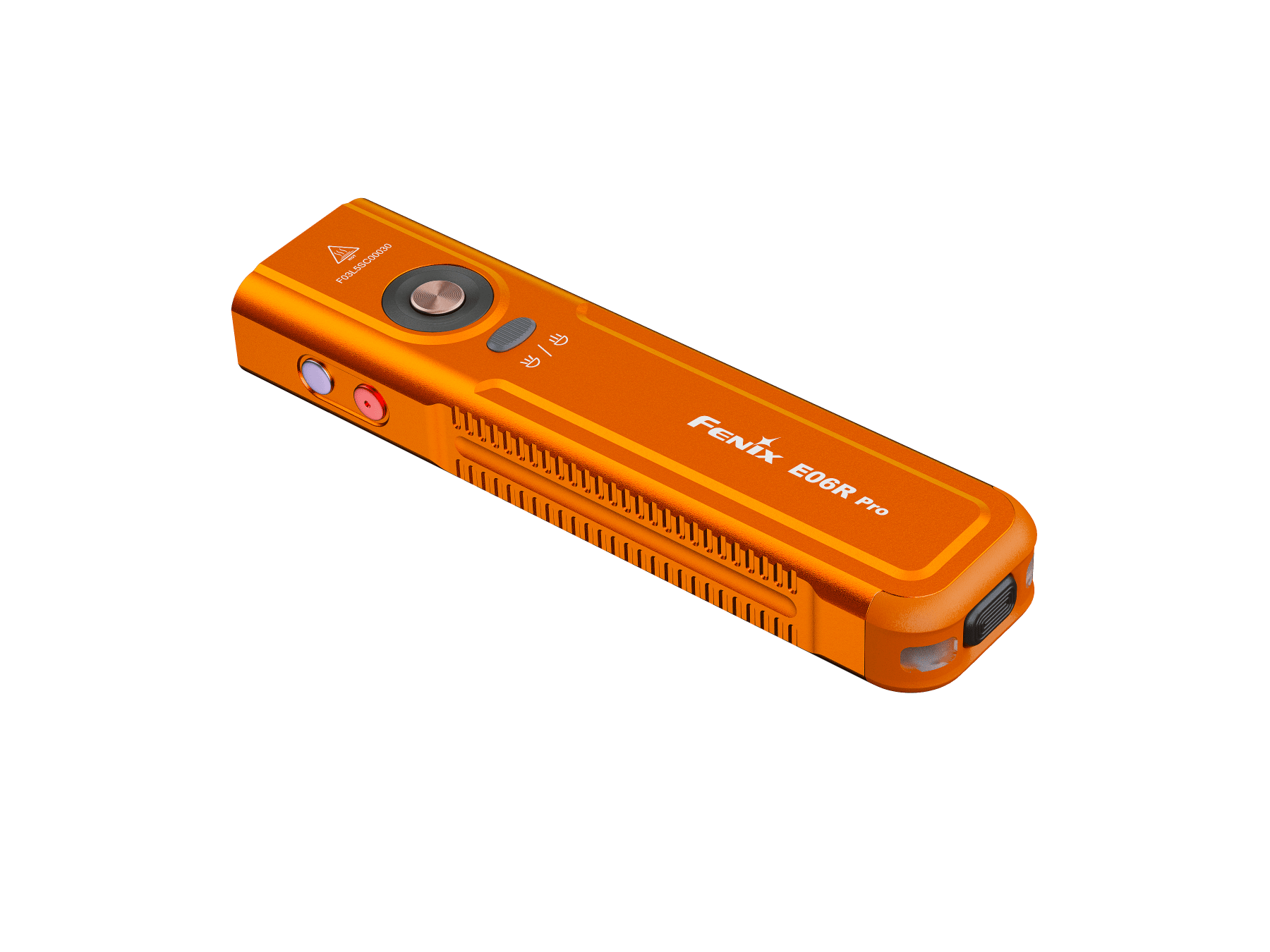

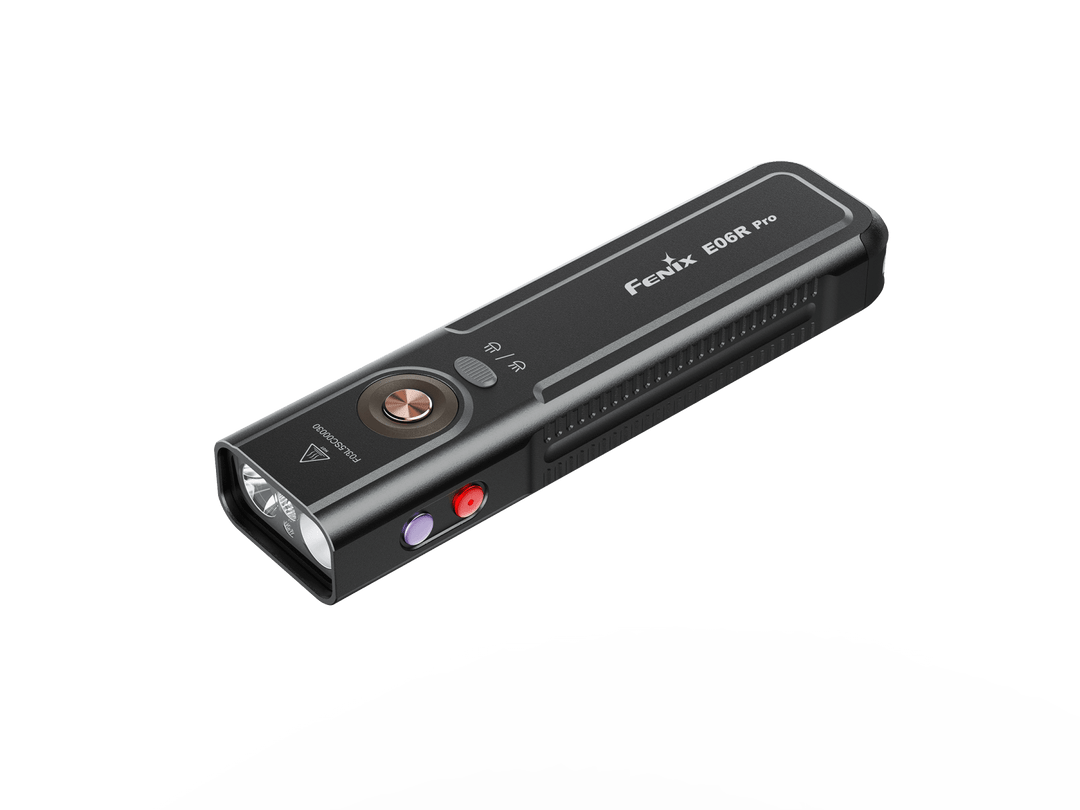

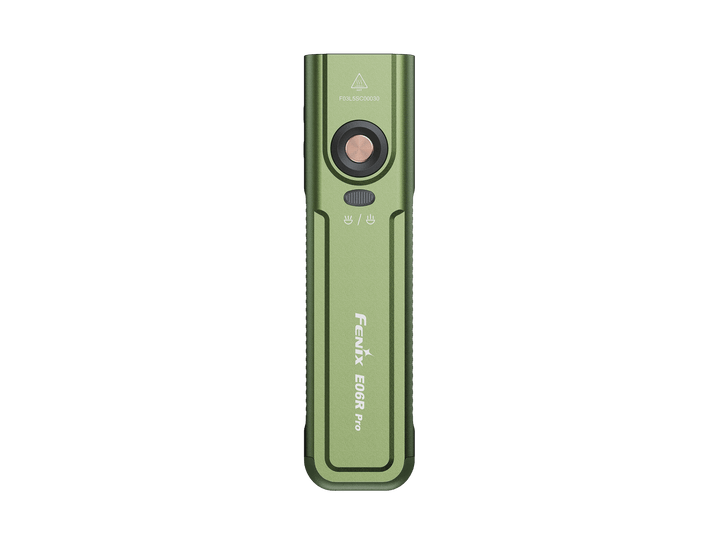

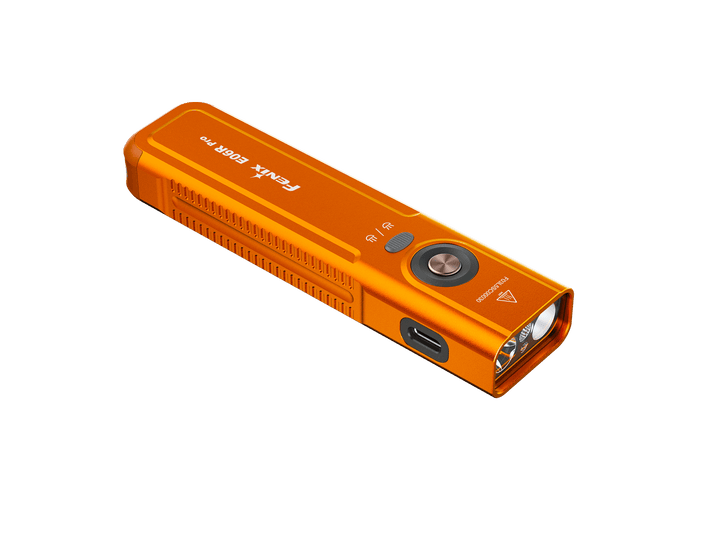

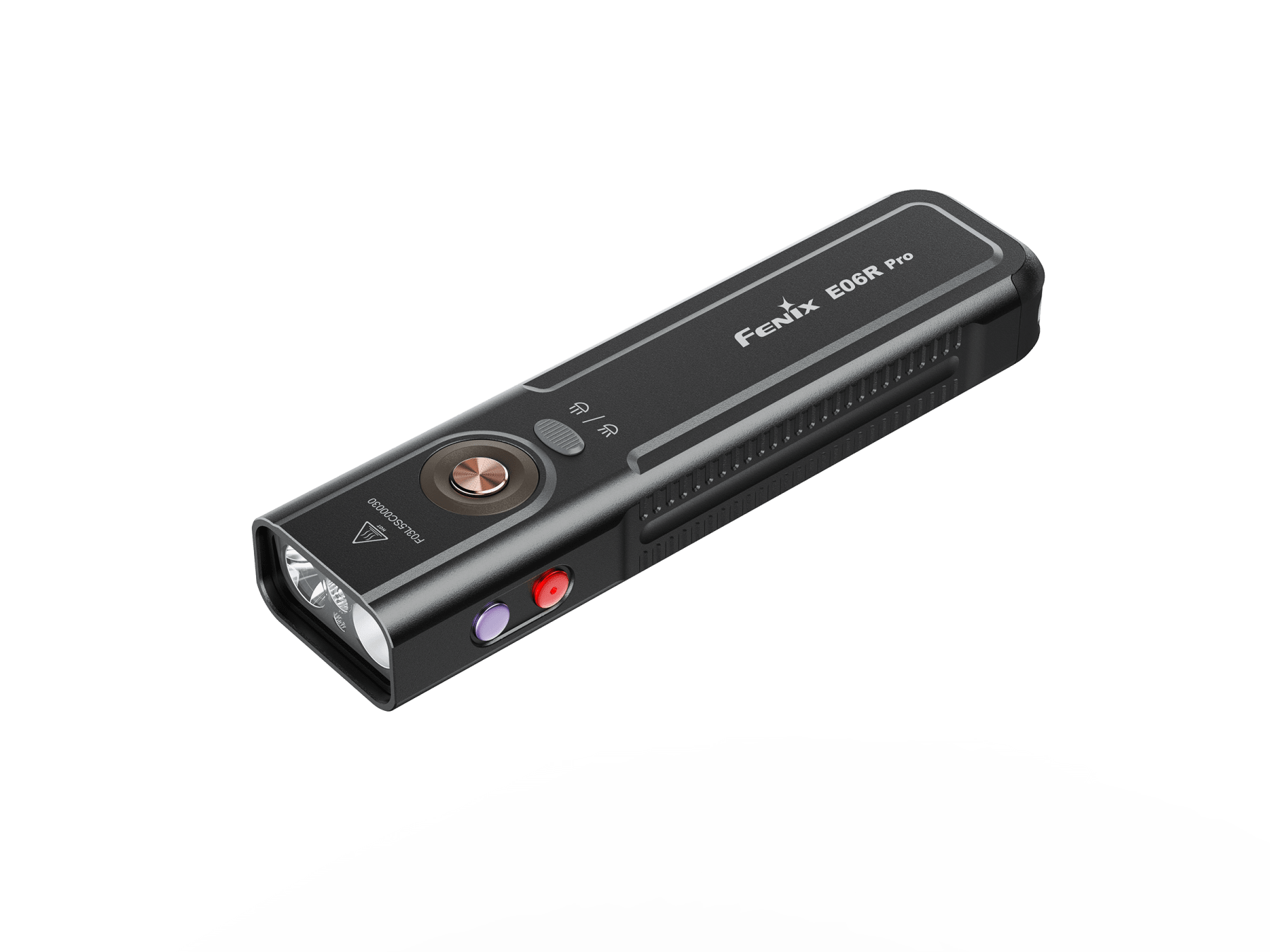

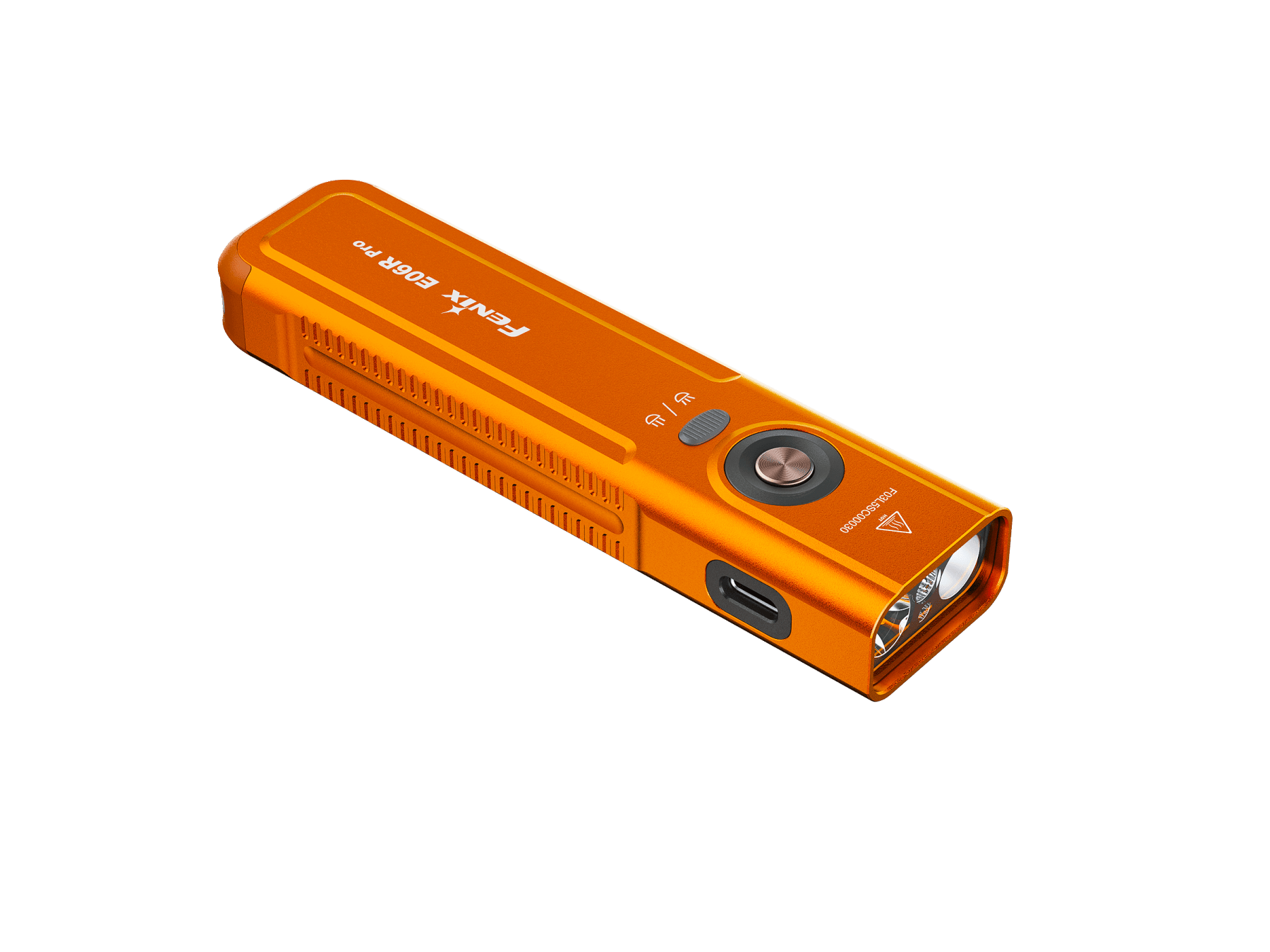

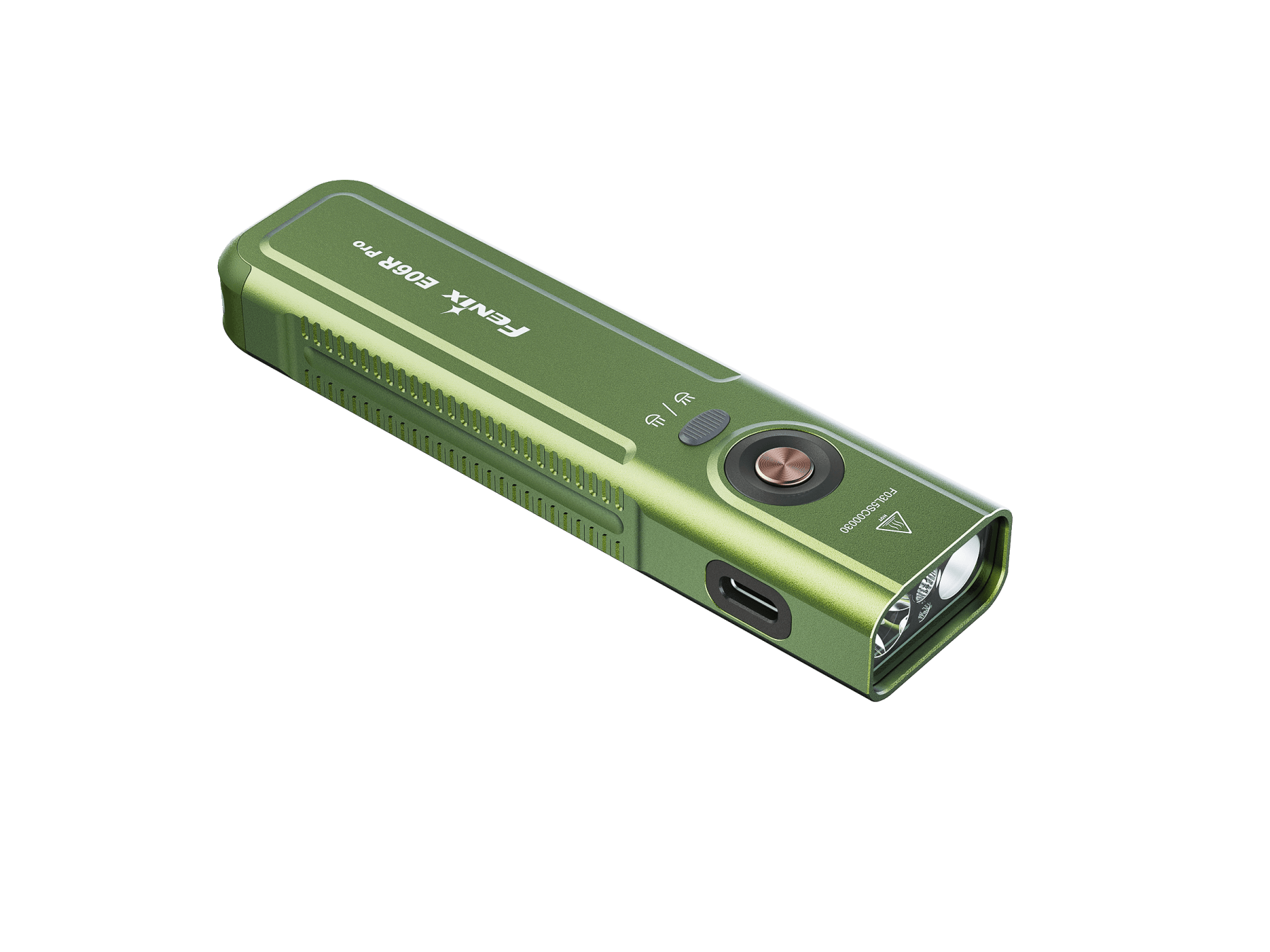

Fenix E06R Pro Keychain Light with White, UV, & Red Laser Lights - 1600 Lumens

Performance Highlights

• Output: Turbo reaches 1600 lumens at 525 ft; adjustable spot/flood white light covers both throw and flood needs.
• Runtime: Eco extends to 24 hours (spot) / 24.5 hours (flood); Moonlight reaches 104-111 hours.
• Extras: Independently switched UV light (1300mW, 365nm) and a Class 3R red laser (2-4.5mW) add professional-use versatility.

Full mode-by-mode output, runtime, distance, and intensity figures are shown in the specifications chart above.

Key Features

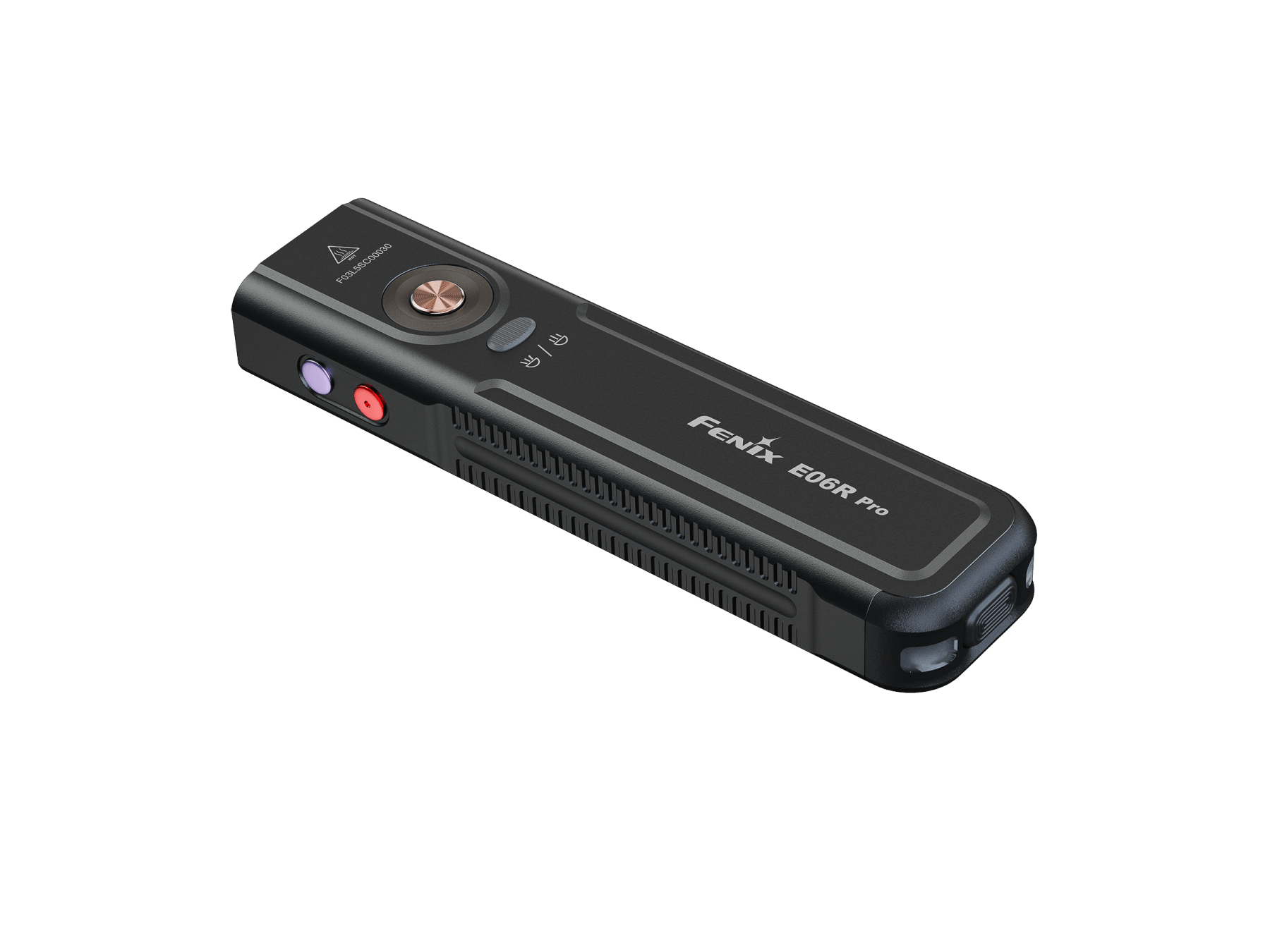

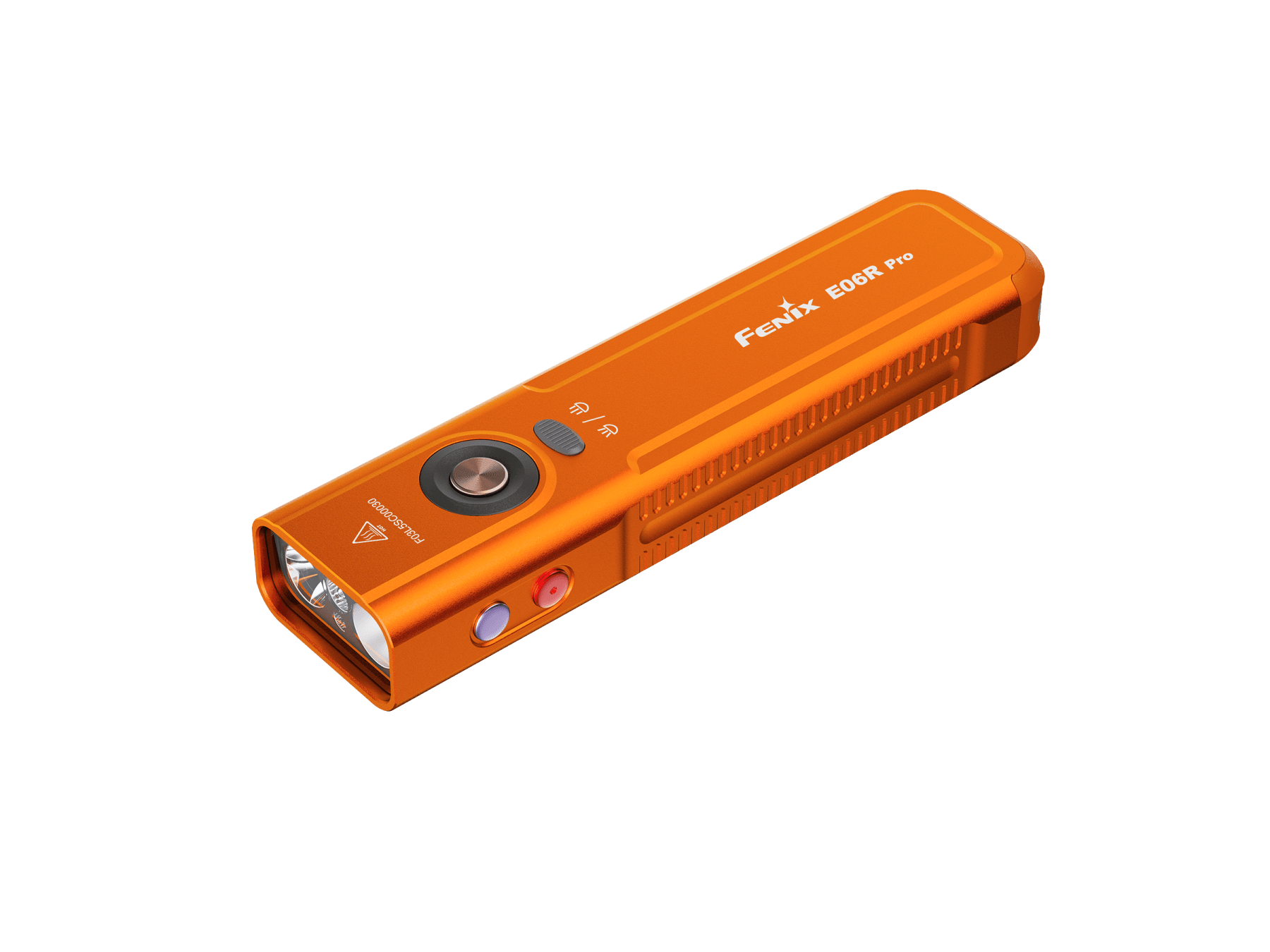

• Spotlight/floodlight adjustable white light via a dedicated oval switch, plus separate UV and red-laser light sources
• 3D mood-light ring with 5 effects: red flash, blue flash, red & blue flash, RGB, aurora

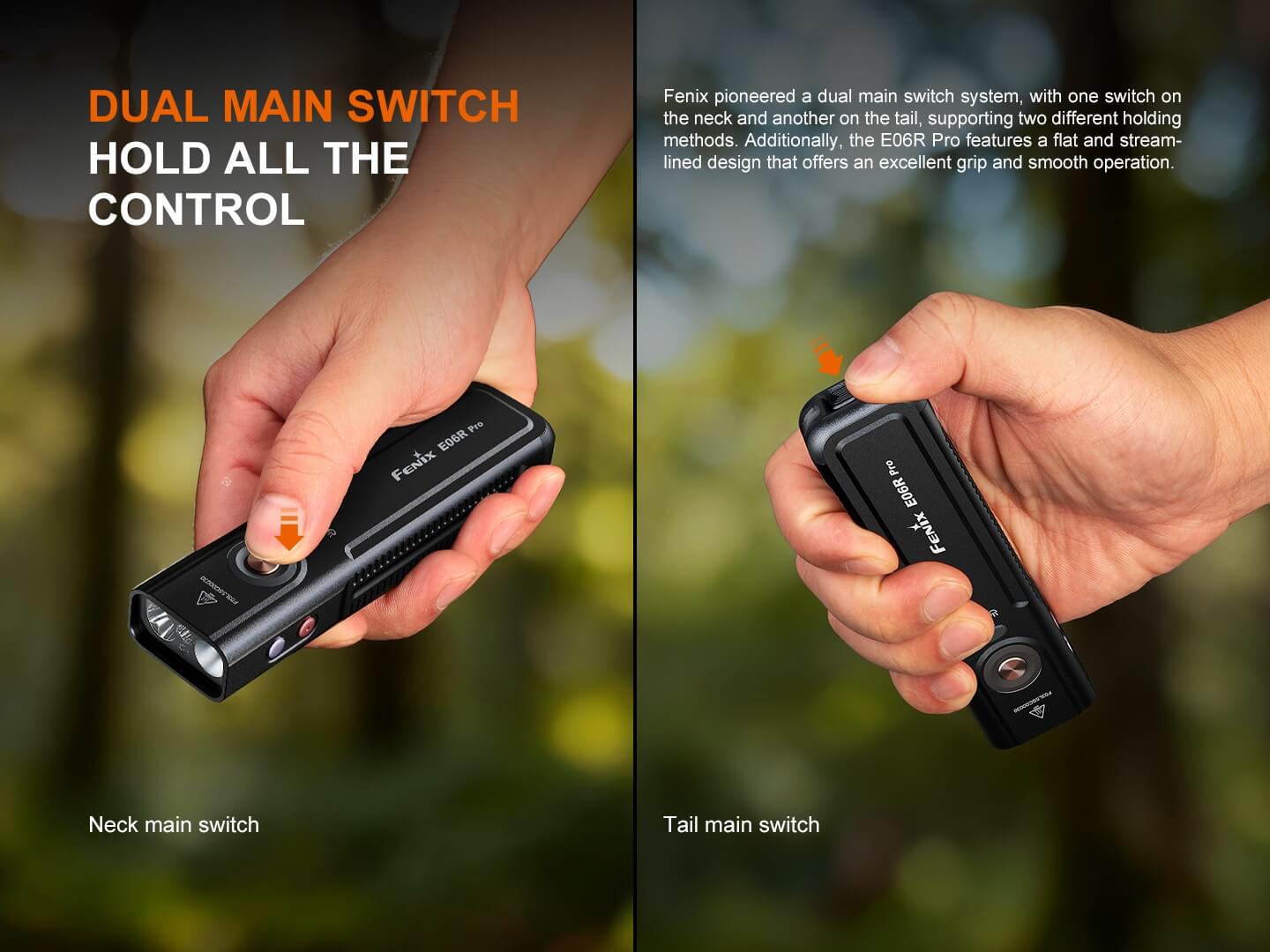

• Dual main-switch design (neck-mounted + tail) for one-handed or two-handed operation
• Instant Turbo and Strobe access from the tail switch

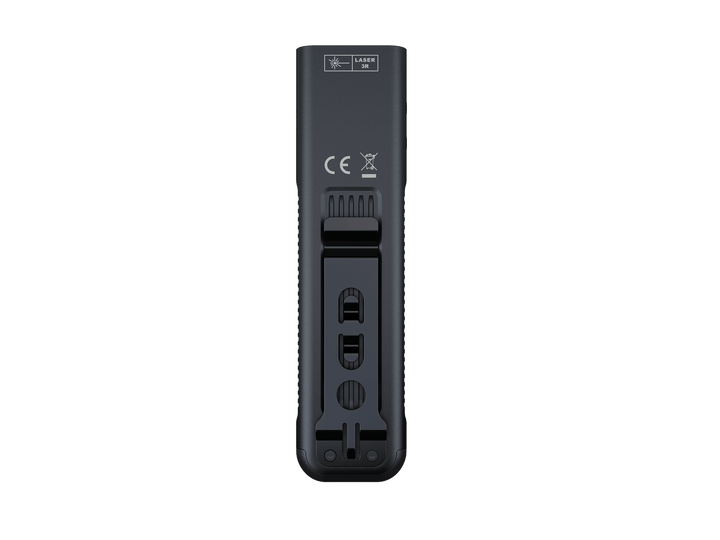

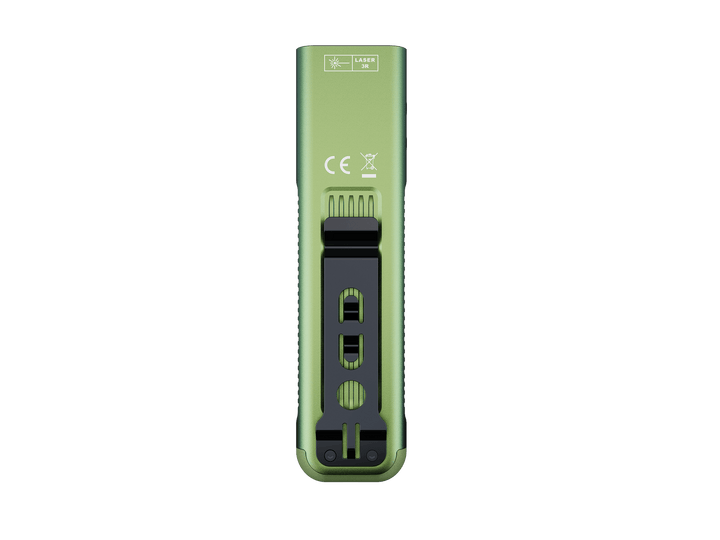

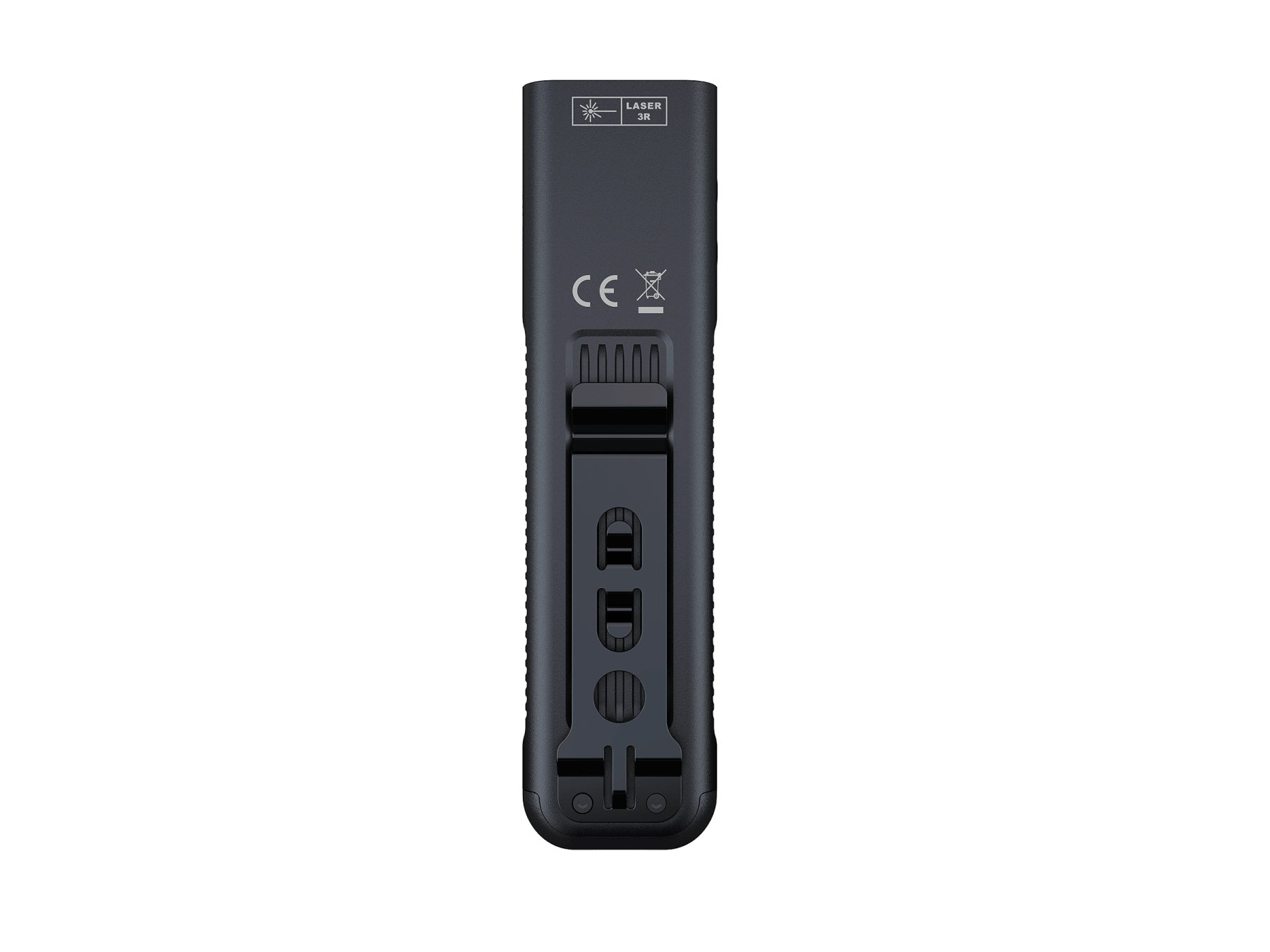

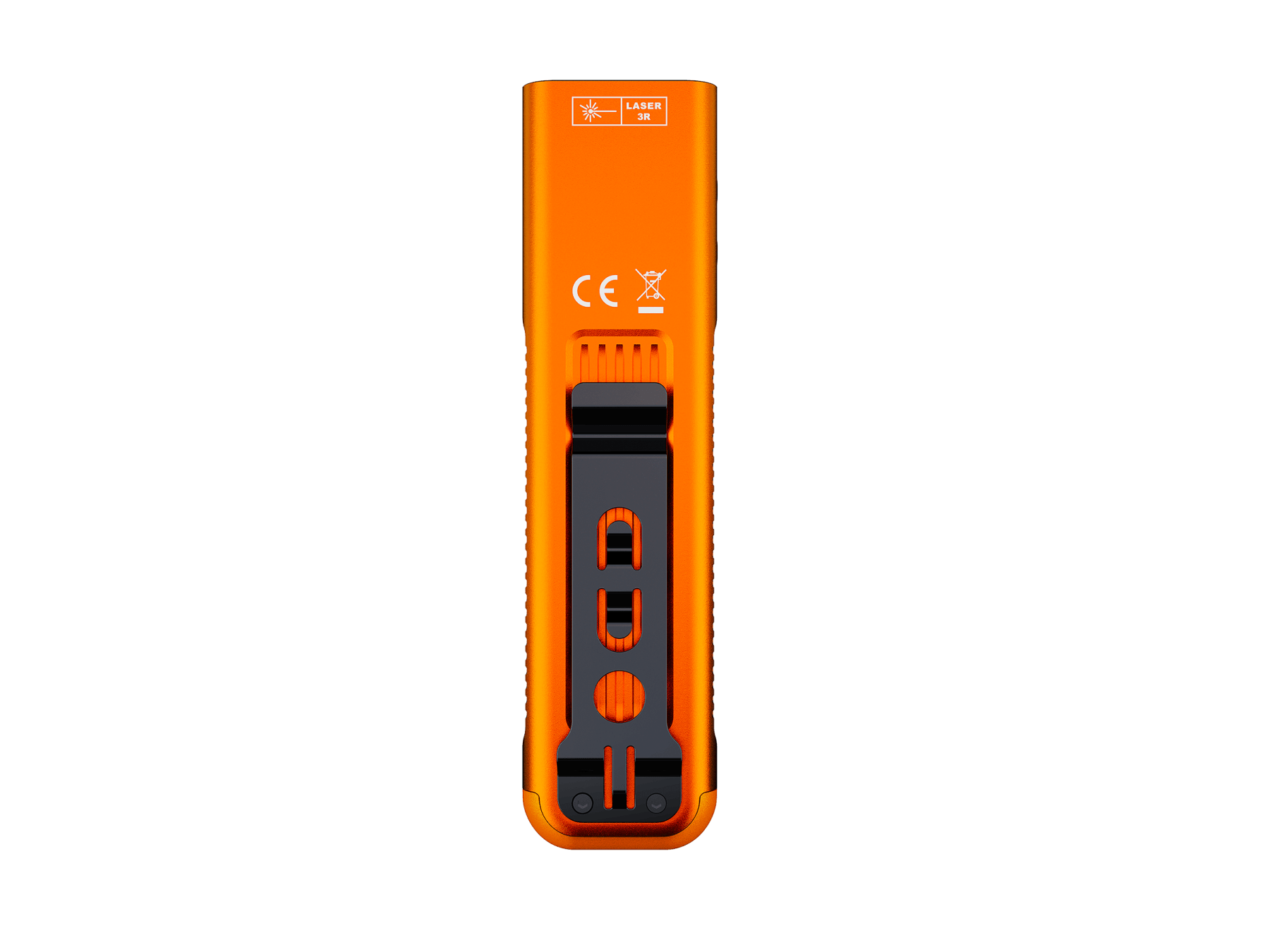

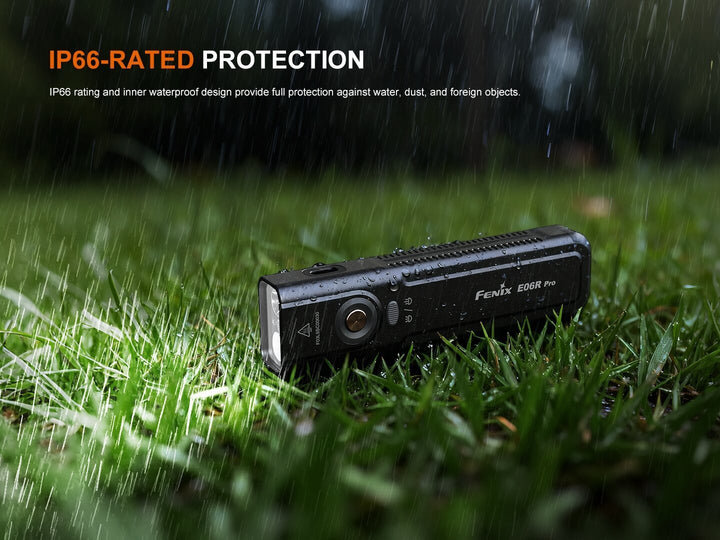

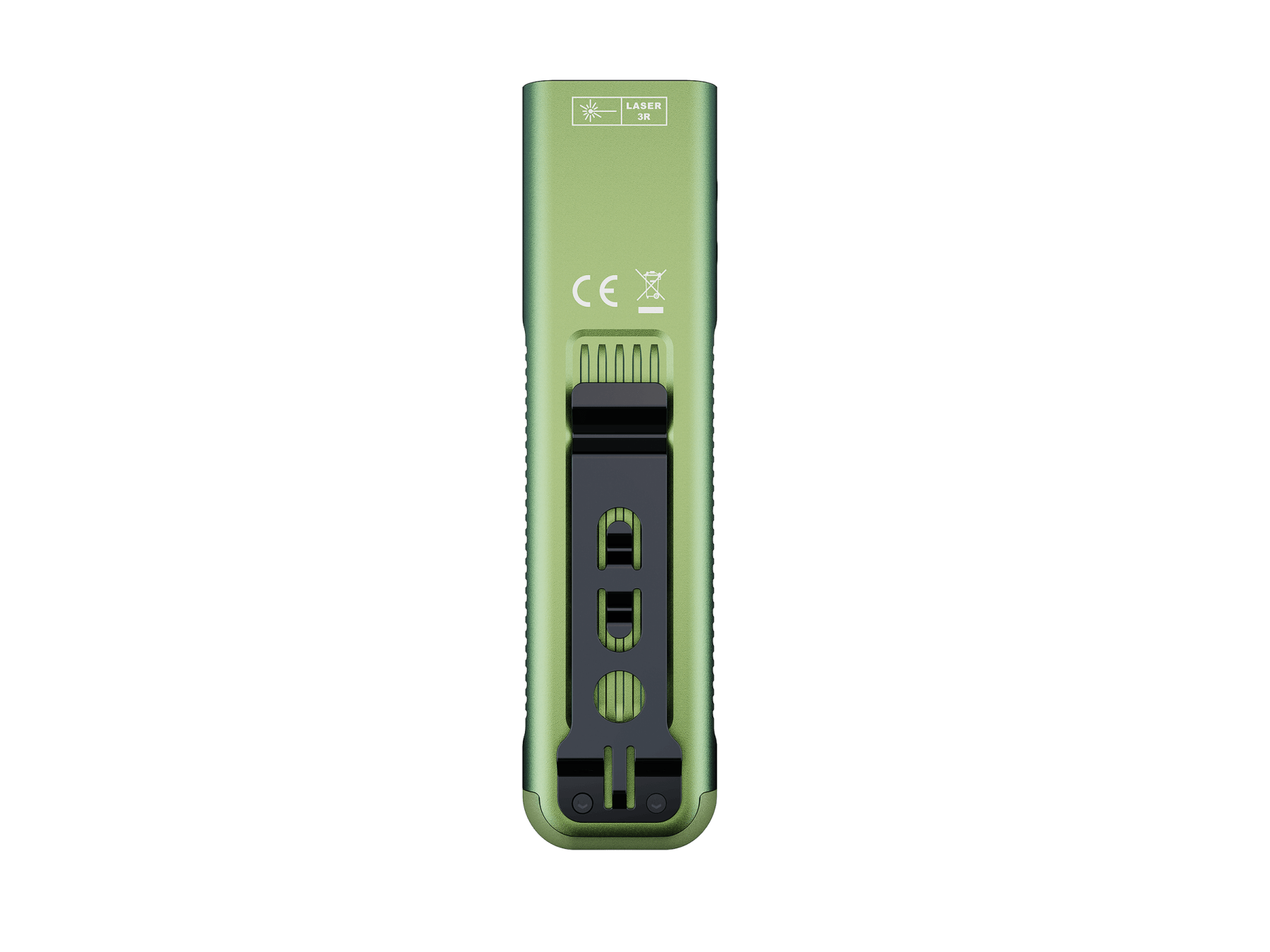

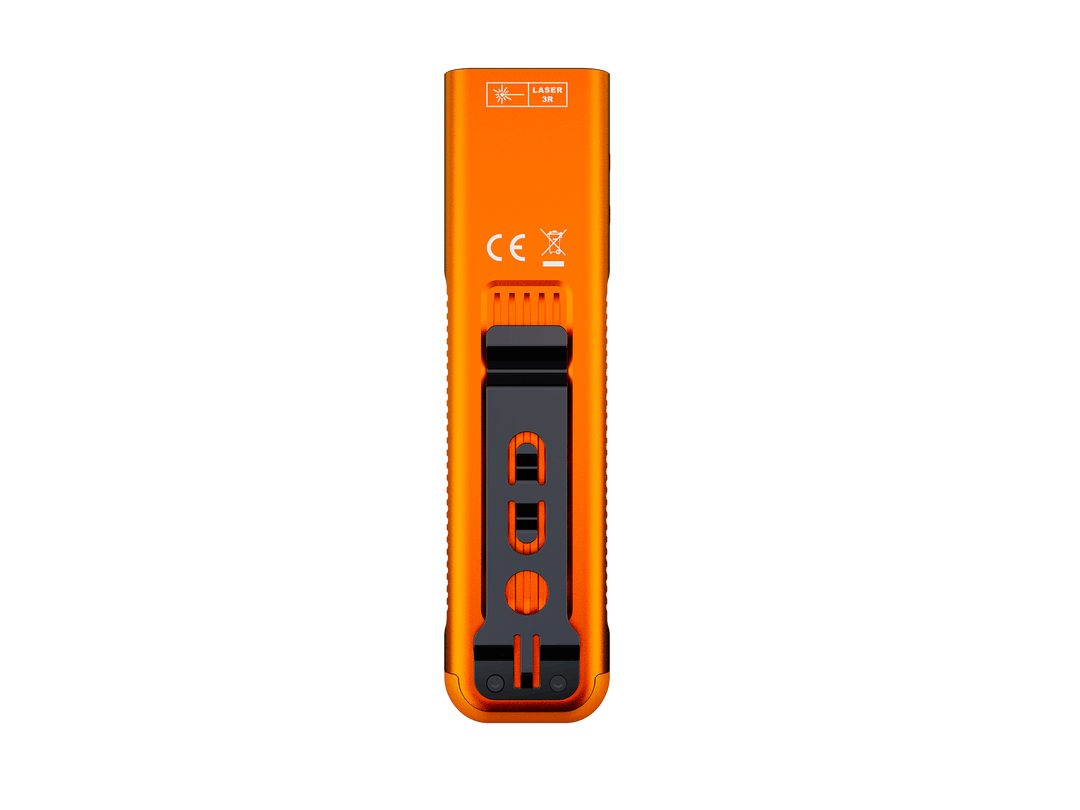

• Flat body with keychain hole and belt clip; IP66 waterproof, 1 meter impact resistance
• For professional use only — complies with EU photobiological safety standard EN 62471

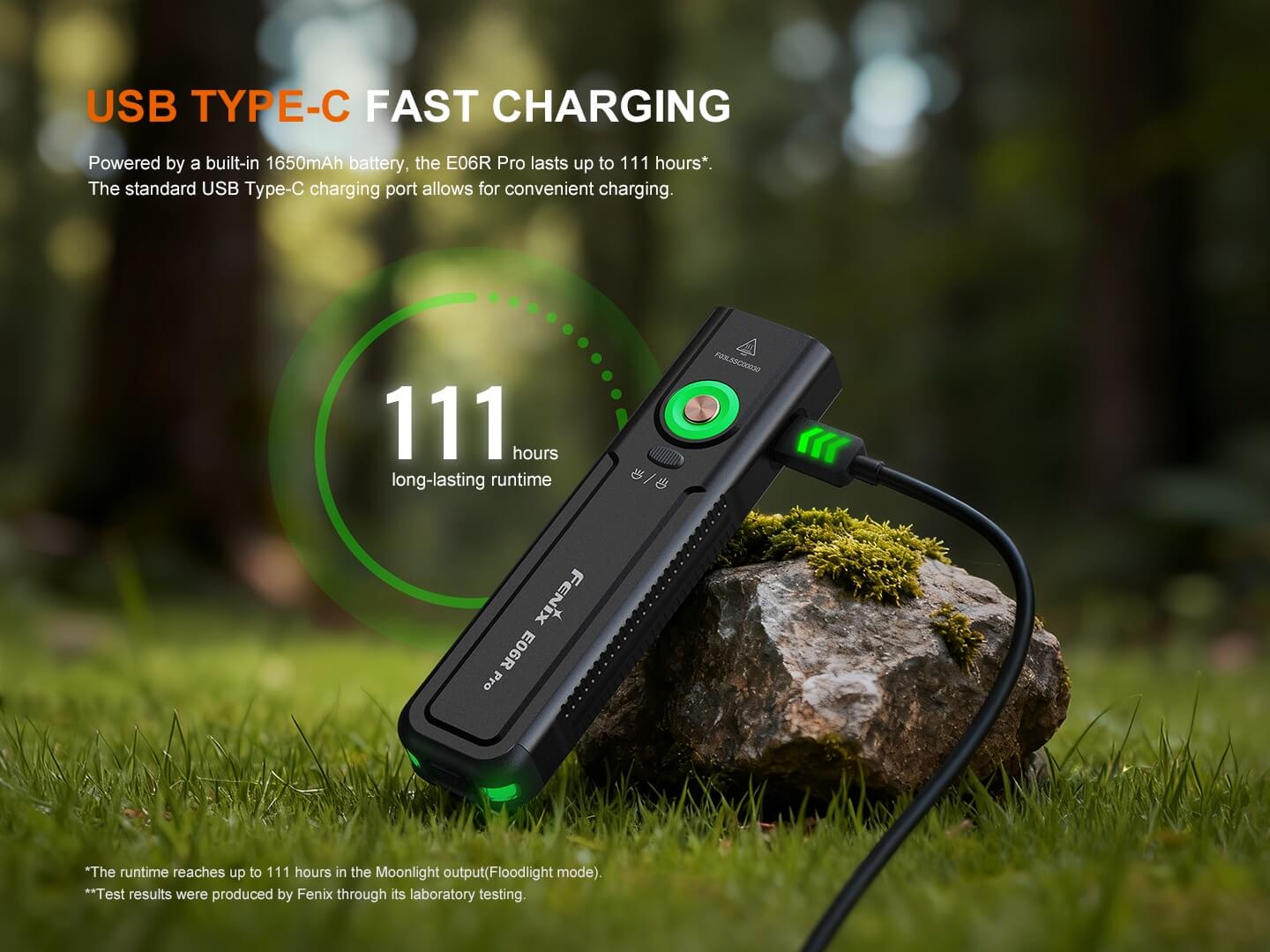

Battery & Charging

• Included: Built-in 1650mAh rechargeable battery
• Charging: USB Type-C; indicator red while charging, green when full
• Note: Below 3.3V only White light mode is available while charging; above 3.3V, Scene mode and Turbo mode are unavailable while charging

Size & Weight

• Dimensions: 4.84" x 1.23" x 0.82" (122.87 x 31.17 x 20.91 mm)
• Weight: 3.67 oz (104.1 g, including battery)

What LEDs does the E06R Pro use, and can they be replaced?

The Fenix E06R Pro uses one Luminus SST20 LED (spotlight) and one Luminus SFT25 LED (floodlight), each rated for a 50,000-hour lifespan. Fenix doesn't offer an LED replacement service, and replacing them yourself isn't recommended — it can affect performance or damage the light.

What is the color temperature and operating voltage of the E06R Pro?

The spotlight runs around 6500K and the floodlight around 5500K.

Operating voltage is 2.8–4.2V, with a max current of 5.6A.

Is the E06R Pro rechargeable? How long does it take to charge?

Yes — it charges via USB Type-C. The ring light glows red while charging and turns green once fully charged.

What kind of battery does the E06R Pro use?

The E06R Pro runs on a built-in 1650mAh battery that isn't user-replaceable.

Why does the E06R Pro step down to a lower brightness after running for a while?

Two possible reasons: Intelligent Overheat Protection automatically reduces output once the light reaches 60°C/140°F to help it cool down, or the Low-Voltage Warning downshifts brightness as the battery depletes until the lowest output is reached.

Why does my E06R Pro flicker or shine intermittently?

Usually one of two things: a low battery (recharge it), or dirty contact points on the battery or flashlight (clean them with a cotton swab and rubbing alcohol). If neither resolves it, contact your authorized distributor.

Why does the red laser show extra light spots or lines after extended use?

This is a normal optical effect, not a defect. A small amount of light reflects off the flashlight's multiple lens layers, creating faint secondary spots that are barely visible beyond about 3 meters, and heat from extended use can cause tiny, temporary shifts in the lens that move or dim these spots until the light cools. If the laser looks like a line or scattered light instead of a clean dot, the laser lens is likely just dirty — wiping it clean restores the normal dot shape.

The Fenix E06R Pro is a professional-grade keychain light with adjustable spot/flood white light, UV light, and a red laser. This summary is drawn from the manufacturer’s official user manual — see the downloadable PDF reference manual on the product page for complete details.

Product Features

• 1600 lumens maximum output and 160 meters maximum beam distance; spotlight/floodlight adjustable
• One Luminus SST20 LED and one Luminus SFT25 LED, 50,000-hour lifespan each
• Built-in 1650mAh rechargeable battery, max runtime of 111 hours in Eco mode
• USB Type-C charging
• Multiple light sources: white light (spot and flood), UV light, and a red laser
• 3D light ring with five lighting effects: Red flash, Blue flash, Red & Blue flash, RGB, and Aurora
• Neck-mounted switch plus tail switch for dual-switch control; each light source controlled separately

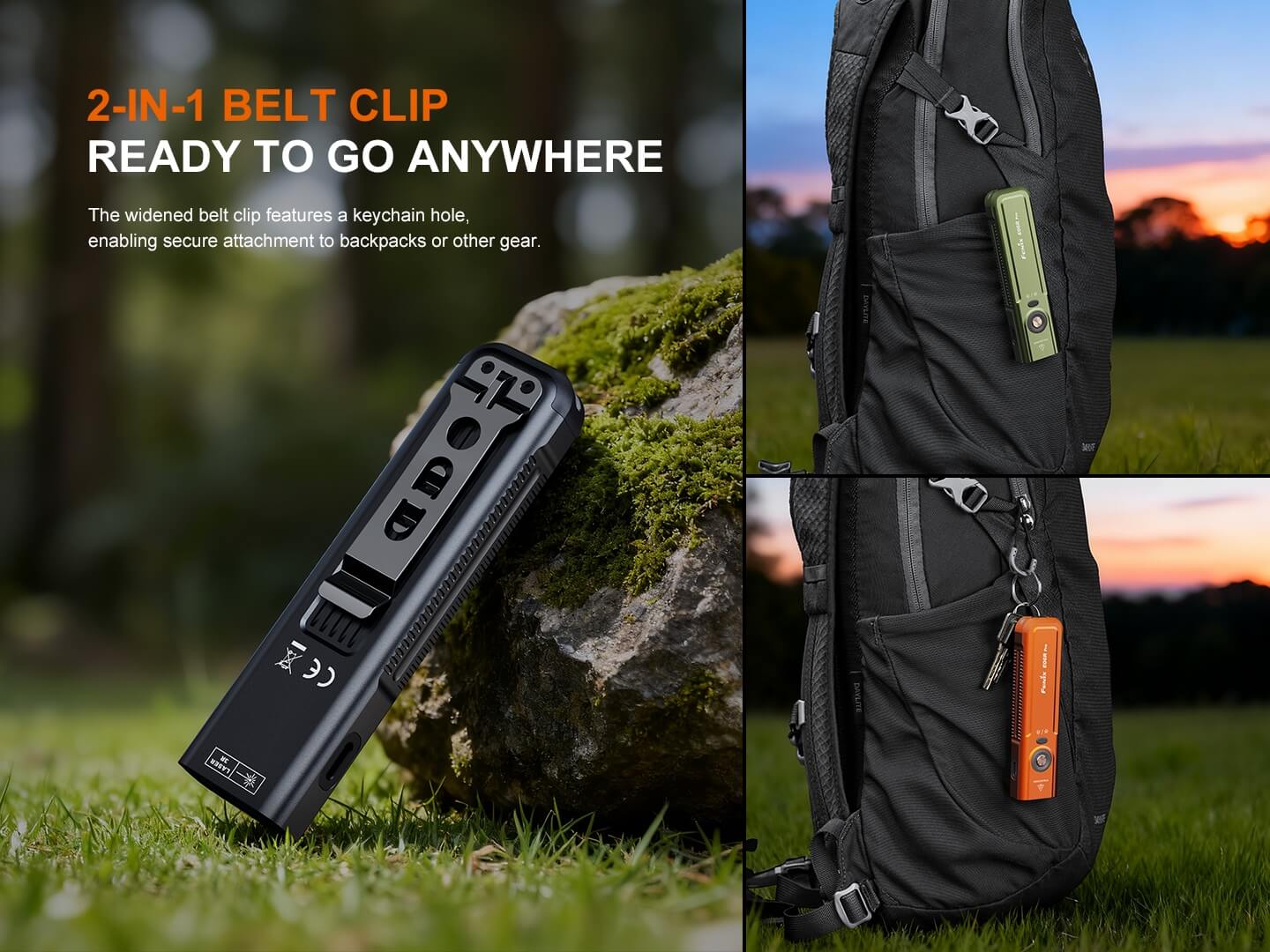

• Flat design for easy pocket storage; keychain hole and belt clip for multiple carry options

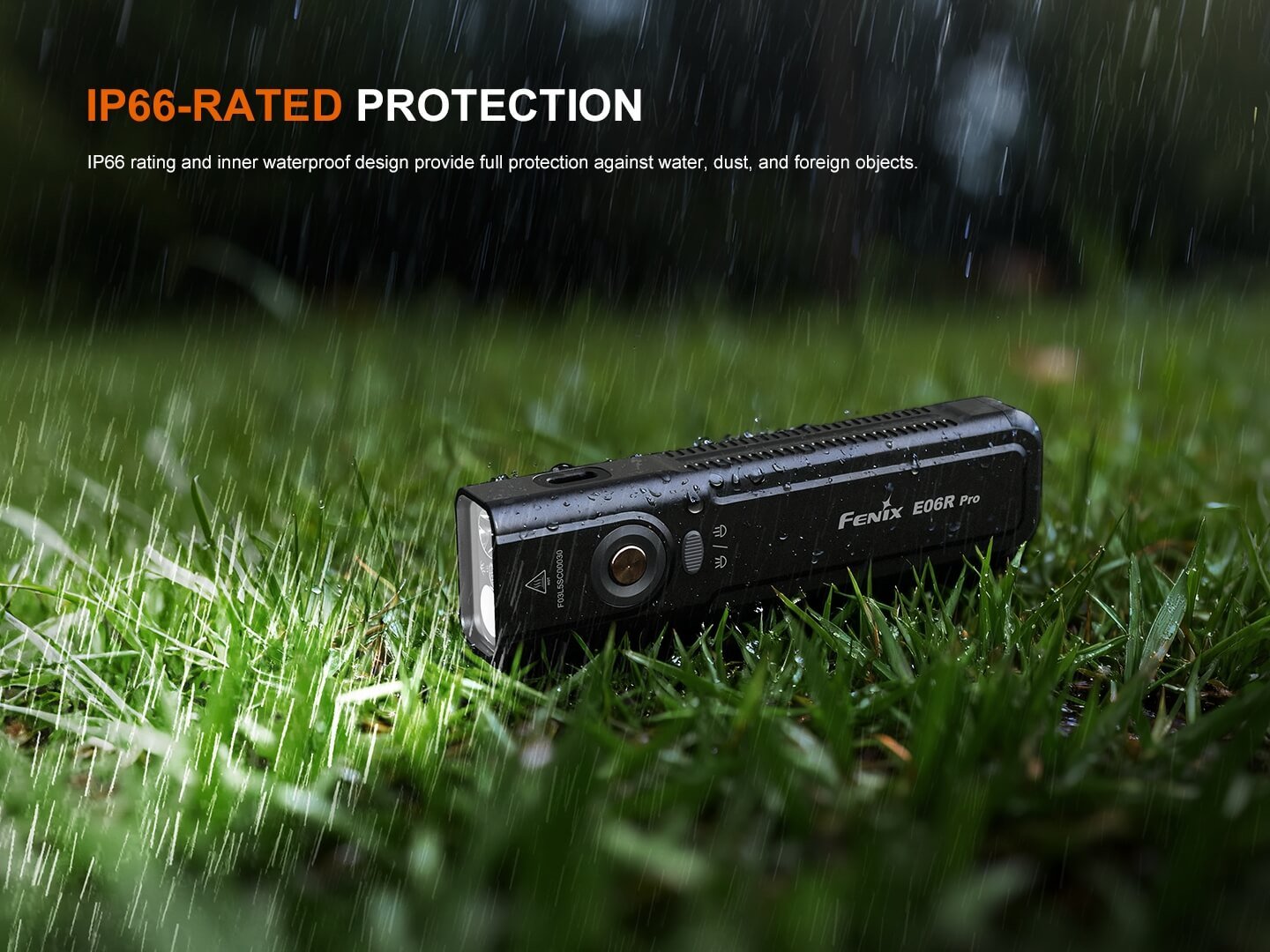

• IP66-rated protection; battery level indication and low-voltage warning
• Size: 4.84" x 1.23" x 0.82" / 122.87 x 31.17 x 20.91 mm
• Weight: 3.67 oz / 104.1 g (including battery)
• For professional use only — not intended for untrained individuals or children; complies with EU photobiological safety standard EN 62471

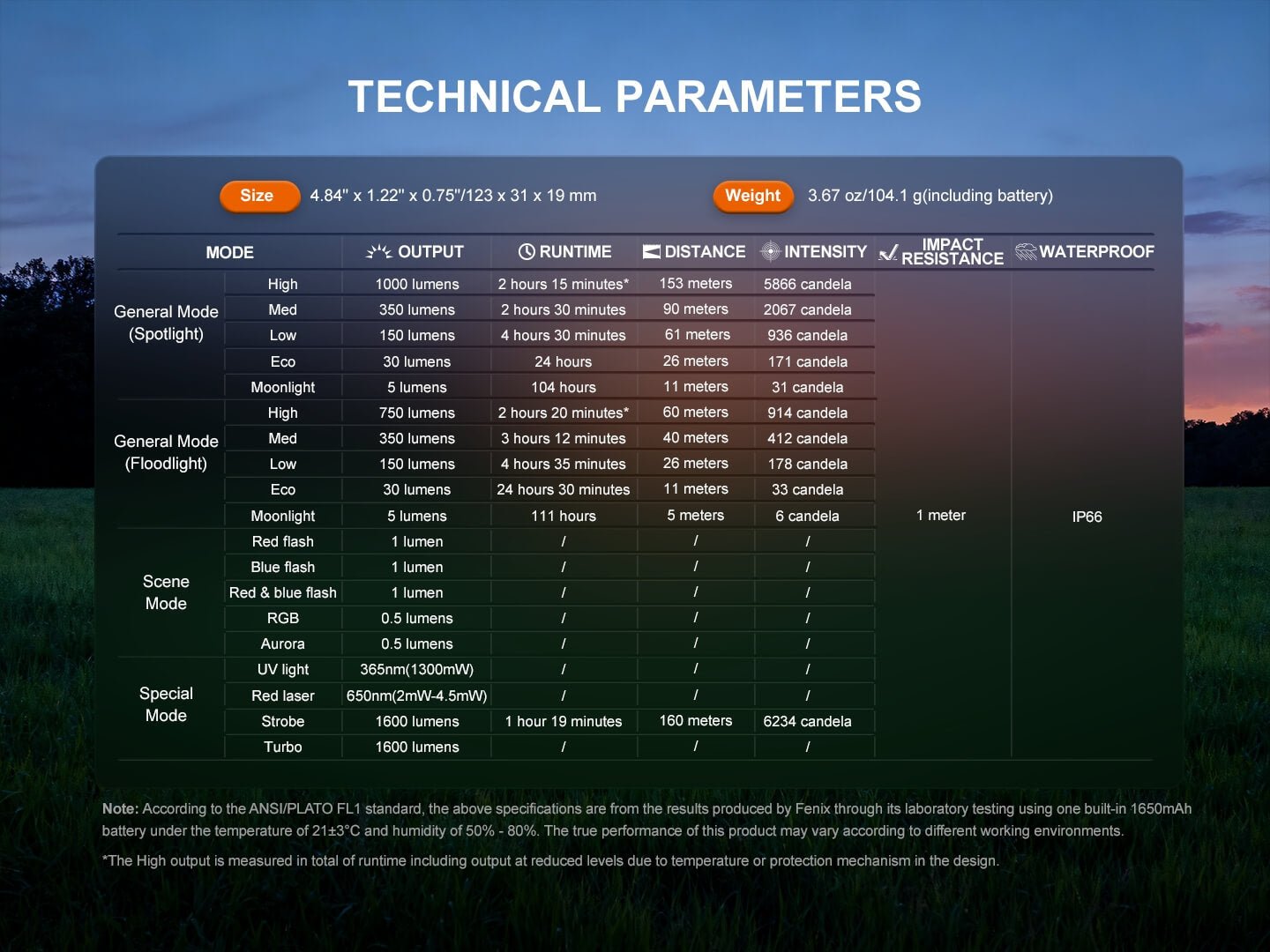

Technical Parameters

Specifications reflect Fenix's lab testing with the built-in 1650mAh battery at 21±3°C / 50-80% humidity. Actual performance varies by environment.

• Spotlight – High: Output 1000 lumens, Runtime 2 hours 15 minutes*, Distance 153 meters, Intensity 5866 candela
• Spotlight – Med: Output 350 lumens, Runtime 2 hours 30 minutes, Distance 90 meters, Intensity 2067 candela
• Spotlight – Low: Output 150 lumens, Runtime 4 hours 30 minutes, Distance 61 meters, Intensity 936 candela
• Spotlight – Eco: Output 30 lumens, Runtime 24 hours, Distance 26 meters, Intensity 171 candela
• Spotlight – Moonlight: Output 5 lumens, Runtime 104 hours, Distance 11 meters, Intensity 31 candela
• Floodlight – High: Output 750 lumens, Runtime 2 hours 20 minutes, Distance 60 meters, Intensity 914 candela
• Floodlight – Med: Output 350 lumens, Runtime 3 hours 12 minutes, Distance 40 meters, Intensity 412 candela
• Floodlight – Low: Output 150 lumens, Runtime 4 hours 35 minutes, Distance 26 meters, Intensity 178 candela
• Floodlight – Eco: Output 30 lumens, Runtime 24 hours 30 minutes, Distance 11 meters, Intensity 33 candela
• Floodlight – Moonlight: Output 5 lumens, Runtime 111 hours, Distance 5 meters, Intensity 6 candela
• Scene – Red Flash / Blue Flash / Red & Blue Flash / RGB / Aurora: Output 0.5-1 lumen, Runtime —, Distance —, Intensity —
• UV Light: Output 1300mW @ 365nm, Runtime —, Distance —, Intensity —
• Red Laser: Output 2-4.5mW @ 650nm, Runtime —, Distance —, Intensity —
• Strobe: Output 1600 lumens, Runtime —, Distance —, Intensity —
• Turbo: Output 1600 lumens, Runtime 1 hour 19 minutes, Distance 160 meters, Intensity 6234 candela

Impact Resistance: 1 meter Waterproof: IP66

Operating Instructions

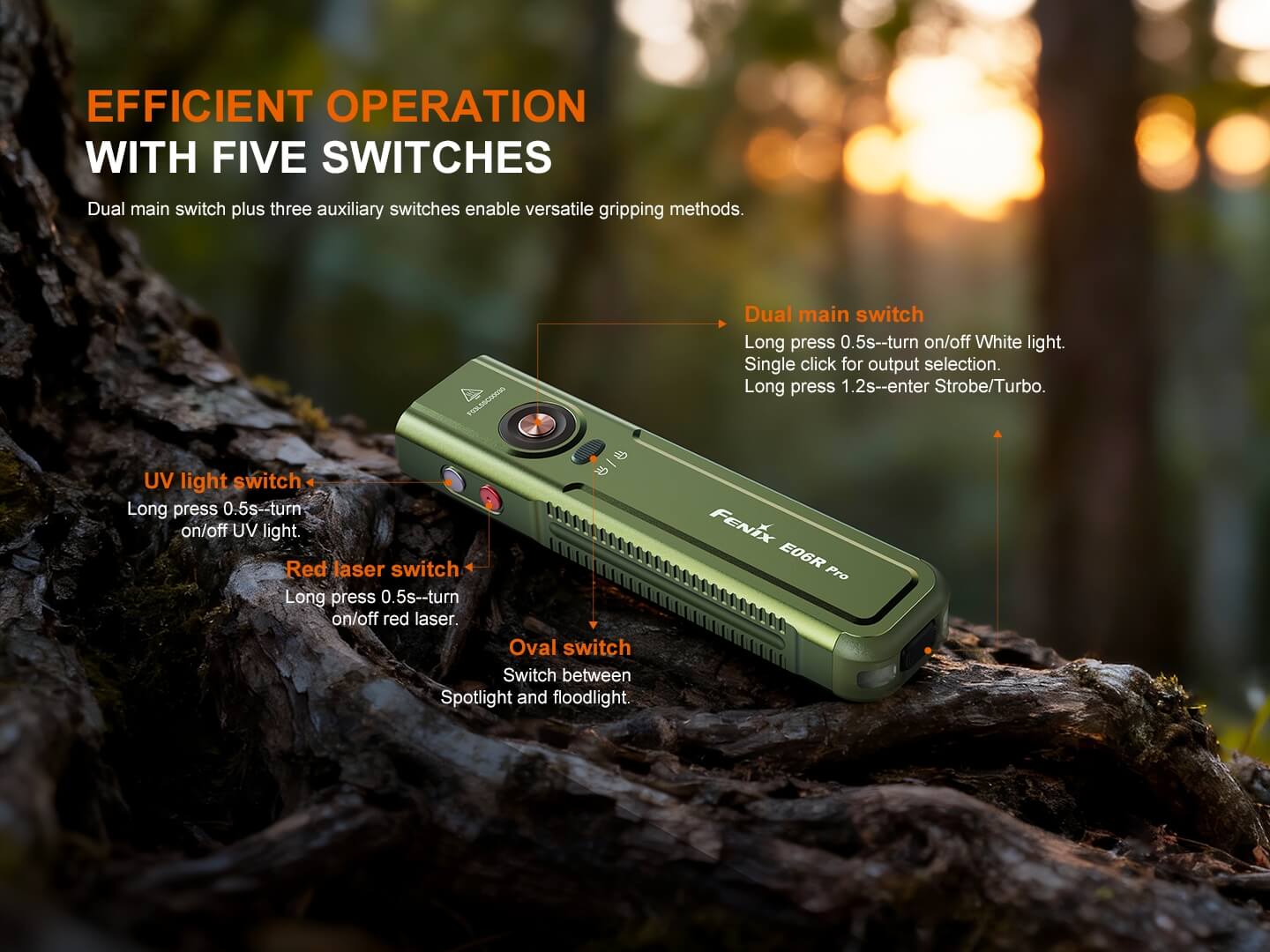

White Light Mode: Press and hold the neck-mounted switch/tail switch for 0.5 seconds to turn on/off. Single click to cycle Eco → Low → Med → High. Single click the oval switch to toggle Spotlight/Floodlight.

UV Light Mode: Press and hold the side purple switch for 0.5 seconds to turn on the UV light (from off, or to switch from White light mode); press and hold again to turn off.

Red Laser Mode: Press and hold the side red switch for 0.5 seconds to turn on the red laser (from off, or to switch from White light mode); press and hold again to turn off.

Scene Mode (3D Mood Light Ring): With the light off, double-click the neck-mounted switch to turn on; single click to cycle Red flash → Blue flash → Red & blue flash → RGB → Aurora. Press and hold 0.5 seconds to turn off.

Strobe Mode: With the light off, press and hold the neck-mounted switch for 1.2 seconds to enter Strobe. From White light mode, press and hold 1.2 seconds to enter Strobe, and single click to recall the previous output.

Turbo Mode: With the light off, press and hold the tail switch for 0.8 seconds to enter Turbo. From White light mode, press and hold the tail switch 0.8 seconds to enter Turbo, and single click to recall the previous output.

Lock/Unlock: With the light off, press and hold the purple and red switches simultaneously for 2 seconds to lock (blinks twice on Eco) or unlock (activates on Moonlight).

Intelligent Memory Circuit: The light memorizes and recalls the last-used White light output.

Charging

• Turn off the light and connect the USB Type-C charging cable.
• Indicator glows red while charging and turns green when fully charged.
• Unplug the cable once charging completes.
• While charging: if battery level is below 3.3V, only White light mode is available; if above 3.3V, Scene mode and Turbo mode are unavailable.

Battery Level Indication

• Green light on: 100%-85% (saturated)
• Green light flashing: 85%-50% (sufficient)
• Red light on: 50%-25% (poor)
• Red light flashing: 25%-1% (critical)

Intelligent Overheat Protection

The light steps down output automatically once it reaches 60°C/140°F or above on high output levels; it gradually recalls the preset level once cooled, and high output can be reselected as needed.

Low-Voltage Warning

The light downshifts brightness automatically until Moonlight is reached; in Moonlight the indicator blinks red continuously to prompt a recharge (the light will not shut off automatically).

Usage and Maintenance

• Fully charge the light before its next use.
• Recharge a stored light every four months to preserve battery performance.
• Disassembling the sealed head can damage the light and voids the warranty.
• Lock the light to prevent accidental activation during storage or transport.

What's Included

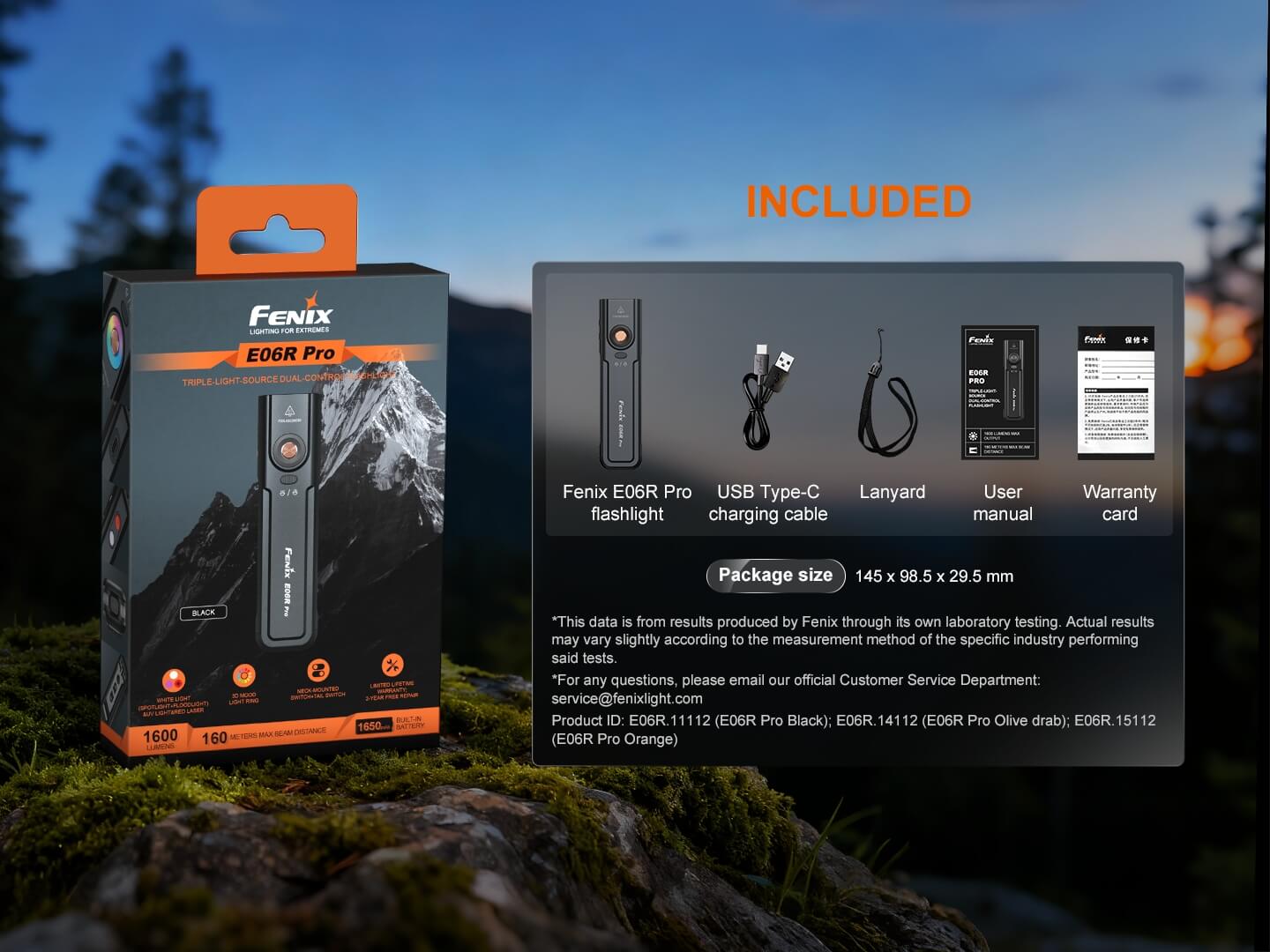

Fenix E06R Pro flashlight, USB Type-C charging cable, lanyard, user manual, warranty card

Warnings

• Do not shine the light directly into anyone's eyes — this is a high-intensity lighting device.
• Keep out of reach of children.
• Do not place the light head near flammable objects.
• Do not hold the light in your mouth or use it in other unintended ways.
• The light shell can become hot during extended use — handle with care to avoid burns.
• Lock the light before placing it in pockets or backpacks to prevent accidental activation.
• The LEDs are not replaceable; the whole light must be replaced at end of LED life.
• For professional use only — not for untrained individuals or children.
• UV radiation hazard: this light emits UV radiation that may harm eyes and skin. Never look directly at the UV LED or beam, and never aim it at people, animals, or exposed skin. UV reflects off surfaces (mirrors, metal), increasing exposure risk. Always wear certified UV-protective goggles and skin protection during use, and restrict UV use to professional applications only.
