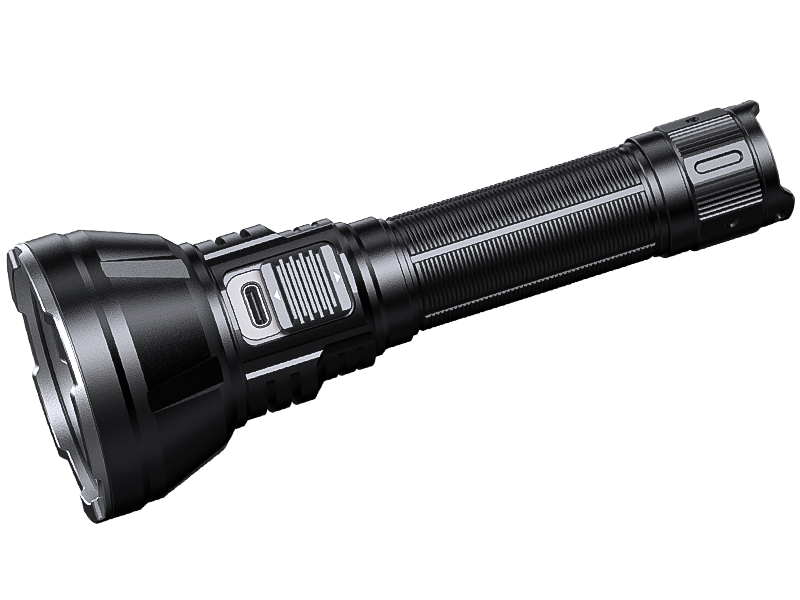

The Fenix HT32R is a rechargeable hunting flashlight with white spot and flood beams plus red, green and blue light. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

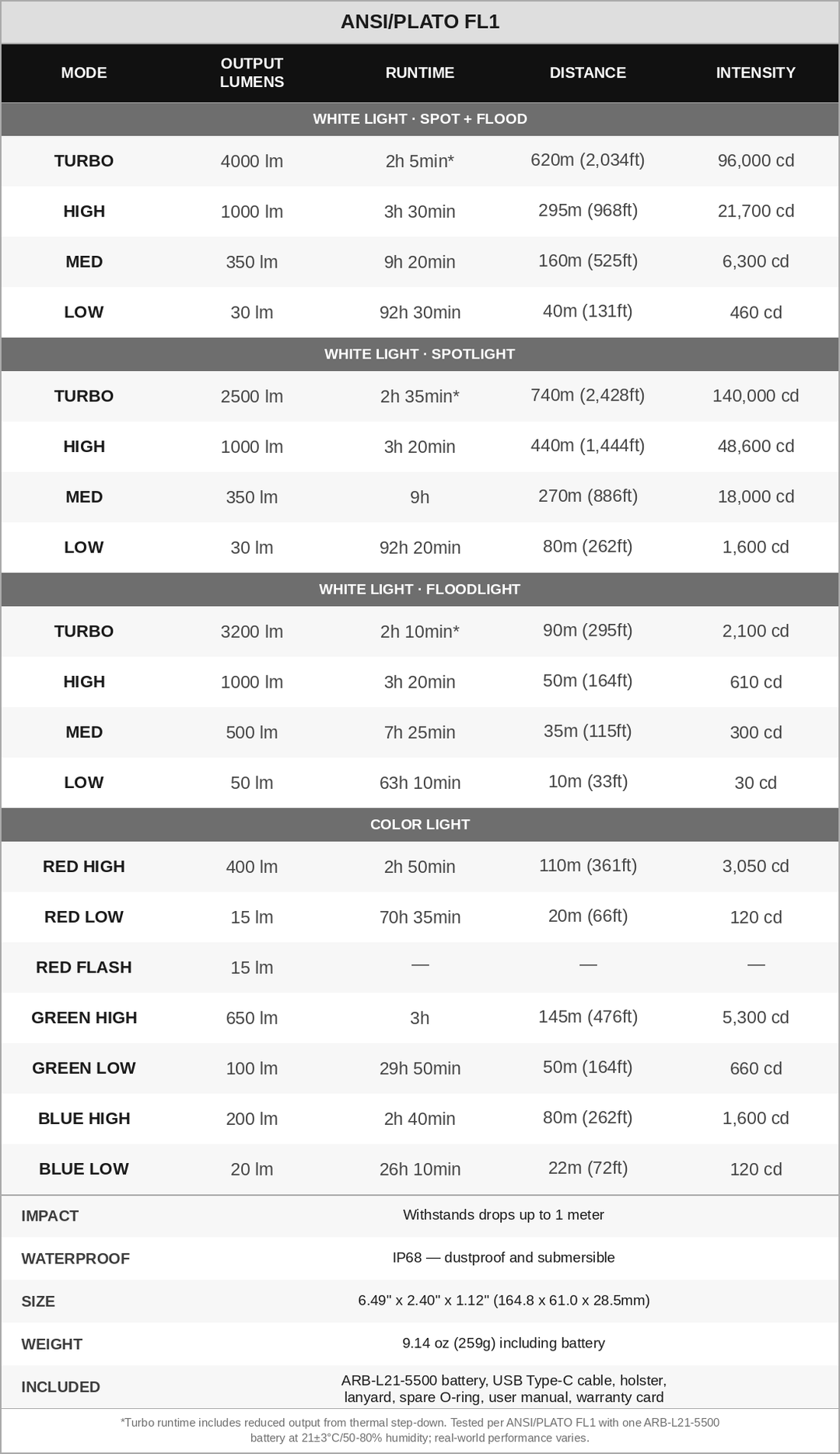

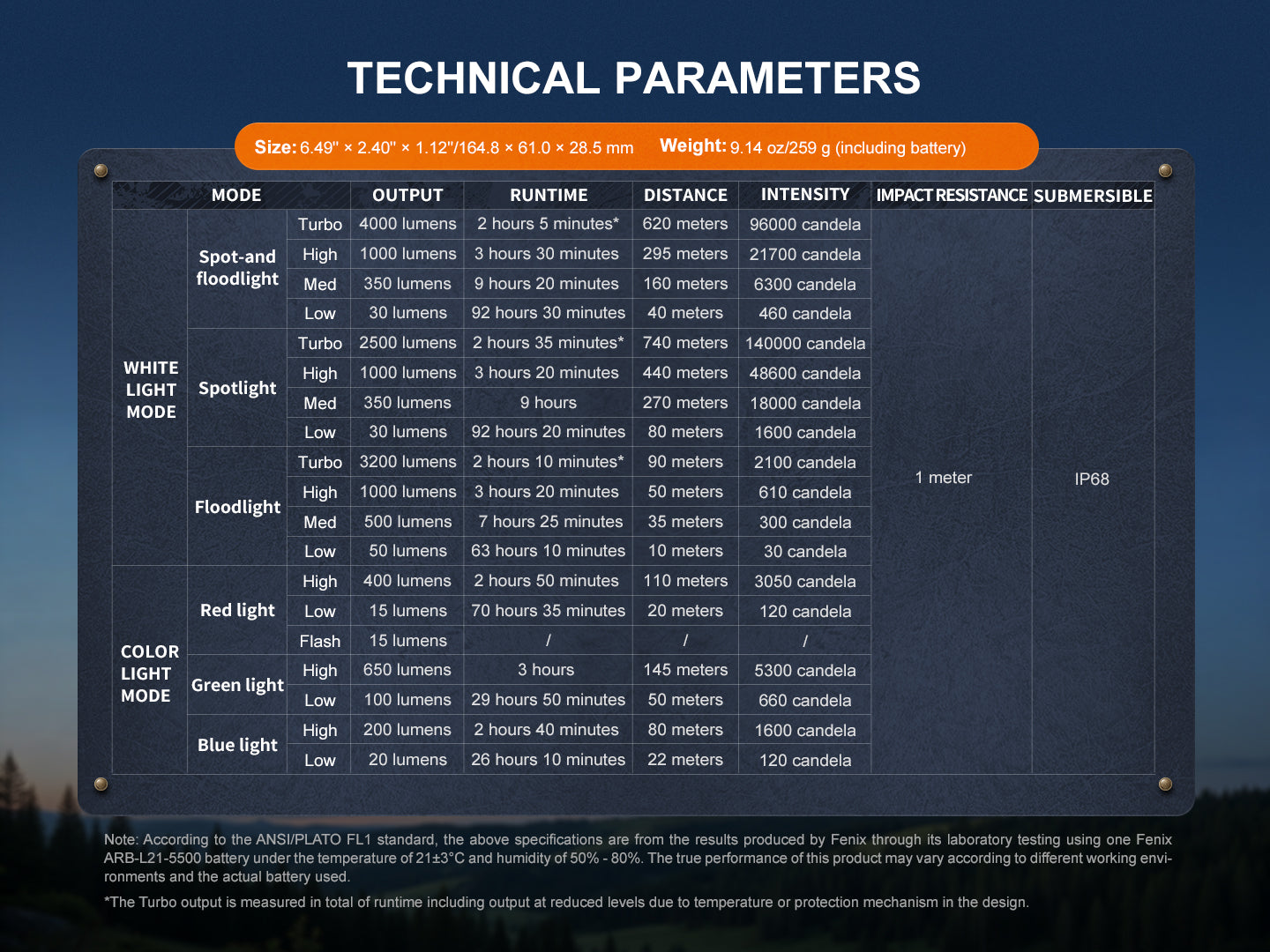

Technical Parameters (ANSI/PLATO FL1)
White light mode, Spot-and-floodlight
- Turbo: 4000 lumens, 2 hours 5 minutes*, 620 meters, 96,000 cd
- High: 1000 lumens, 3 hours 30 minutes, 295 meters, 21,700 cd
- Med: 350 lumens, 9 hours 20 minutes, 160 meters, 6,300 cd
- Low: 30 lumens, 92 hours 30 minutes, 40 meters, 460 cd
White light mode, Spotlight
- Turbo: 2500 lumens, 2 hours 35 minutes*, 740 meters, 140,000 cd
- High: 1000 lumens, 3 hours 20 minutes, 440 meters, 48,600 cd
- Med: 350 lumens, 9 hours, 270 meters, 18,000 cd
- Low: 30 lumens, 92 hours 20 minutes, 80 meters, 1,600 cd
White light mode, Floodlight
- Turbo: 3200 lumens, 2 hours 10 minutes*, 90 meters, 2,100 cd
- High: 1000 lumens, 3 hours 20 minutes, 50 meters, 610 cd
- Med: 500 lumens, 7 hours 25 minutes, 35 meters, 300 cd
- Low: 50 lumens, 63 hours 10 minutes, 10 meters, 30 cd
Color light mode
- Red High: 400 lumens, 2 hours 50 minutes, 110 meters, 3,050 cd
- Red Low: 15 lumens, 70 hours 35 minutes, 20 meters, 120 cd
- Red Flash: 15 lumens
- Green High: 650 lumens, 3 hours, 145 meters, 5,300 cd
- Green Low: 100 lumens, 29 hours 50 minutes, 50 meters, 660 cd
- Blue High: 200 lumens, 2 hours 40 minutes, 80 meters, 1,600 cd
- Blue Low: 20 lumens, 26 hours 10 minutes, 22 meters, 120 cd
Impact Resistance: 1 meter. Submersible: IP68. Specifications are from Fenix's laboratory testing using one Fenix ARB-L21-5500 battery at 21±3°C and 50-80% humidity; real-world performance may vary with working environment and the actual battery used. *Turbo runtime is measured in total, including output at reduced levels due to the built-in temperature protection.
Safe Use Warnings
- Do not look directly at the light source, stare at the light spot, or shine the flashlight directly into anyone's eyes.
- Do not place this flashlight within reach of children.
- Do not place the light head near flammable objects. High temperatures can cause objects to overheat and become flammable or ignite.
- Do not use this flashlight in inappropriate ways, such as holding the unit in your mouth. Doing so could cause serious personal injury or death if the flashlight or internal battery fails.
- This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to prevent burns.
- Turn off and lock the flashlight or remove the battery to prevent accidental activation when it is placed in a closed and flammable environment such as pockets and backpacks.
- The LEDs of this flashlight are not replaceable; the whole flashlight will need to be replaced when any one of the LEDs reaches the end of its lifespan.
Product Features
- 4000 lumens maximum output, 740 meters maximum beam distance.

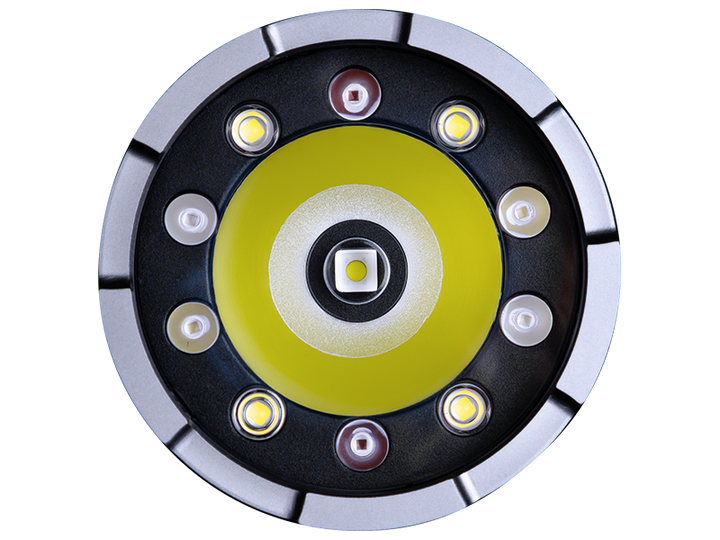

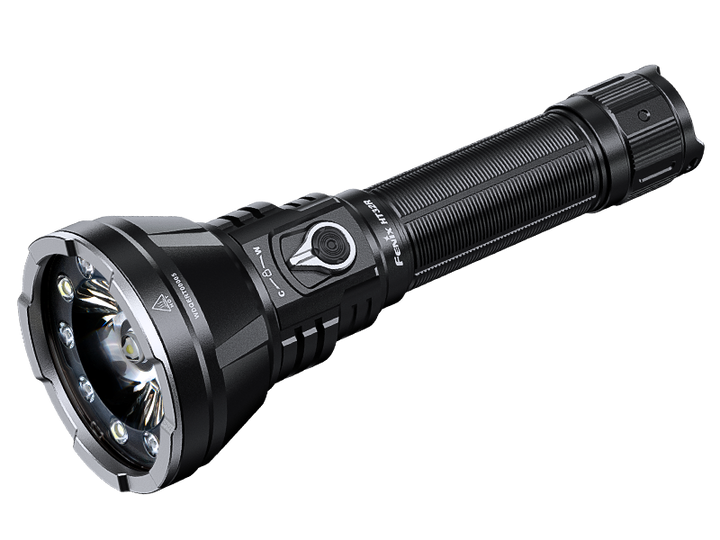

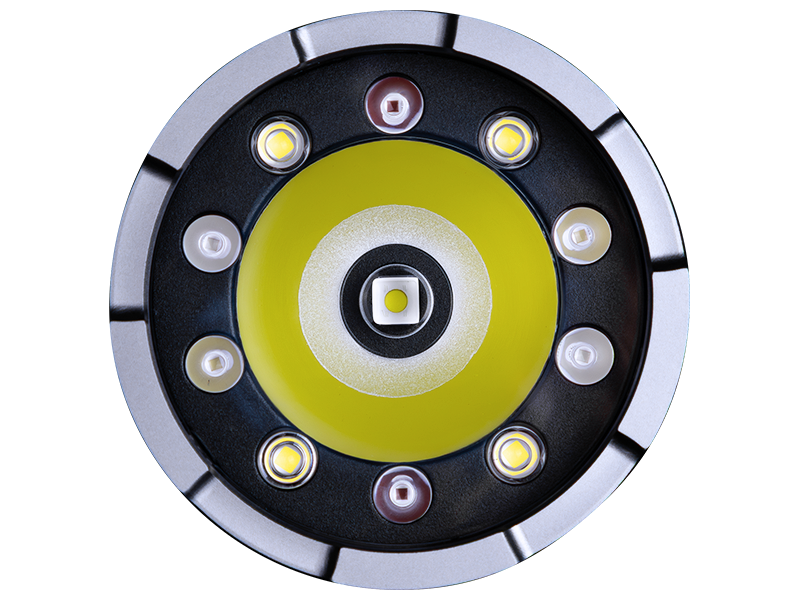

- TIR multi-LED lens: 1 Luminus SFT42R LED for the central spotlight, 4 Luminus SST20F LEDs for the floodlight, and 6 Osram Ostar LEDs for the triple-color lighting.
- In White light mode, the spotlight reaches up to 2500 lumens and the floodlight up to 3200 lumens.
- Red light up to 400 lumens, green light up to 650 lumens, blue light up to 200 lumens.

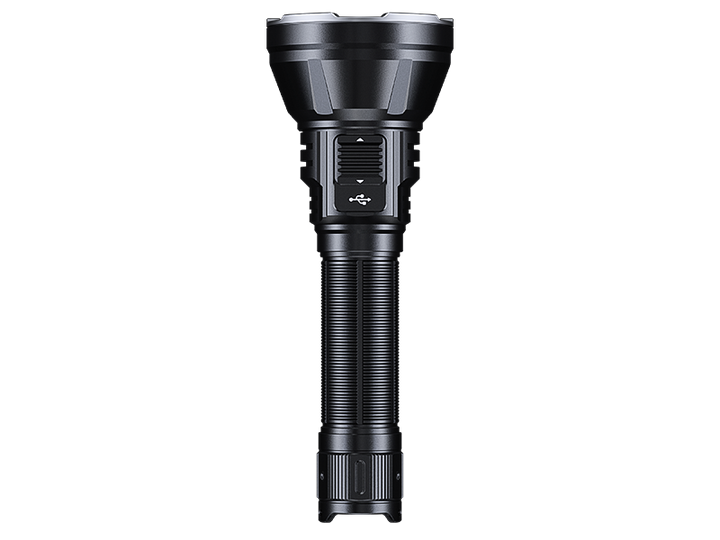

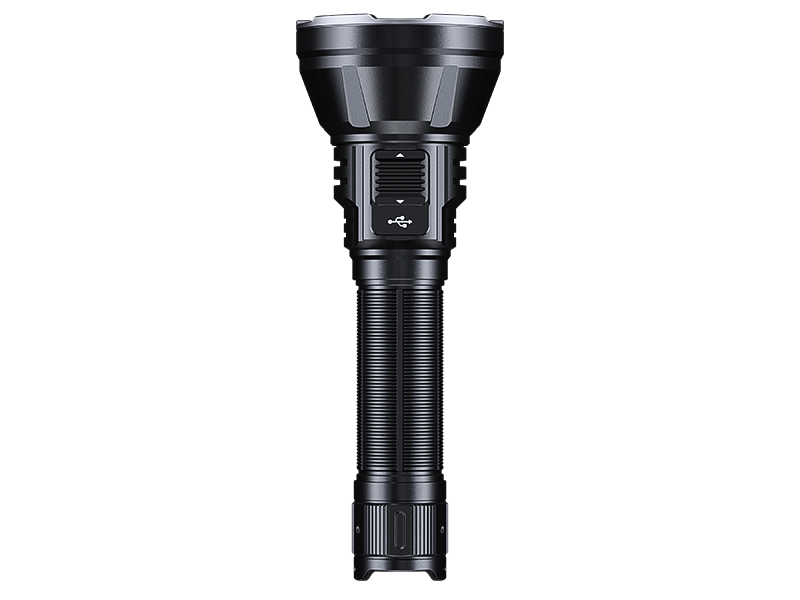

- USB Type-C charging port on the neck with a sliding cover for dust and water protection.

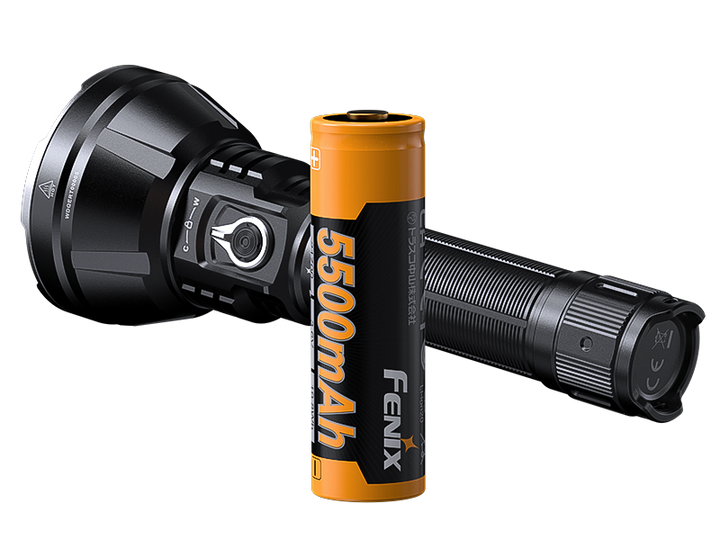

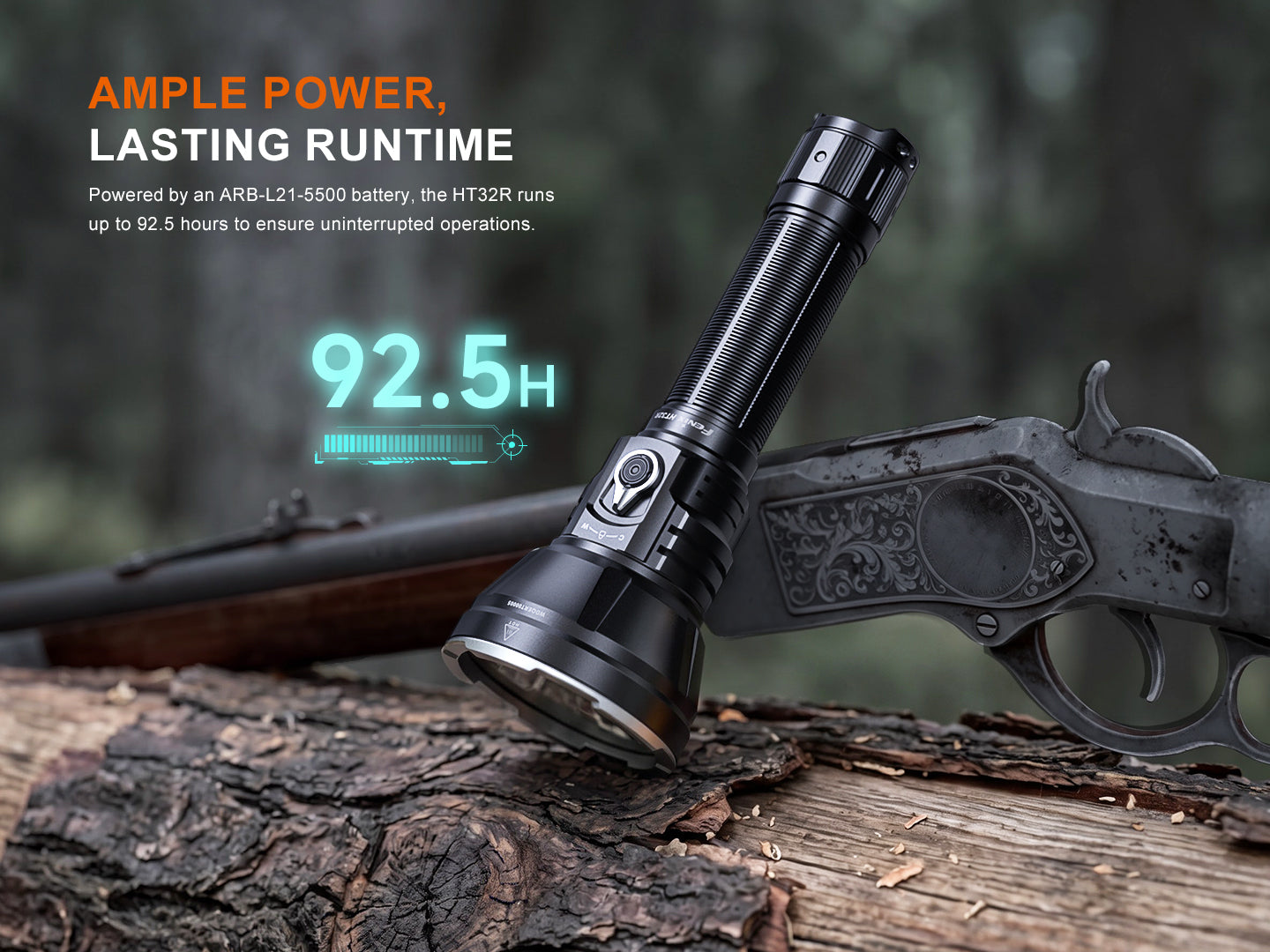

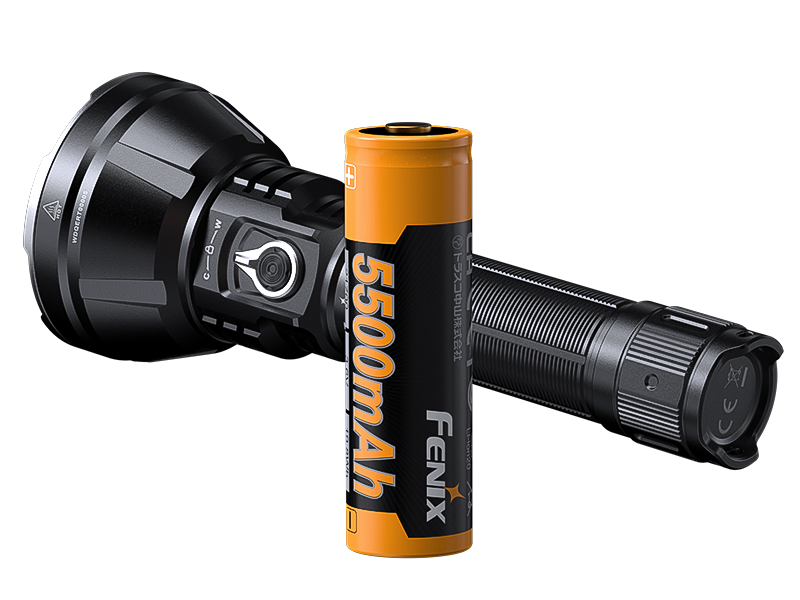

- Powered by an included ARB-L21-5500 battery.

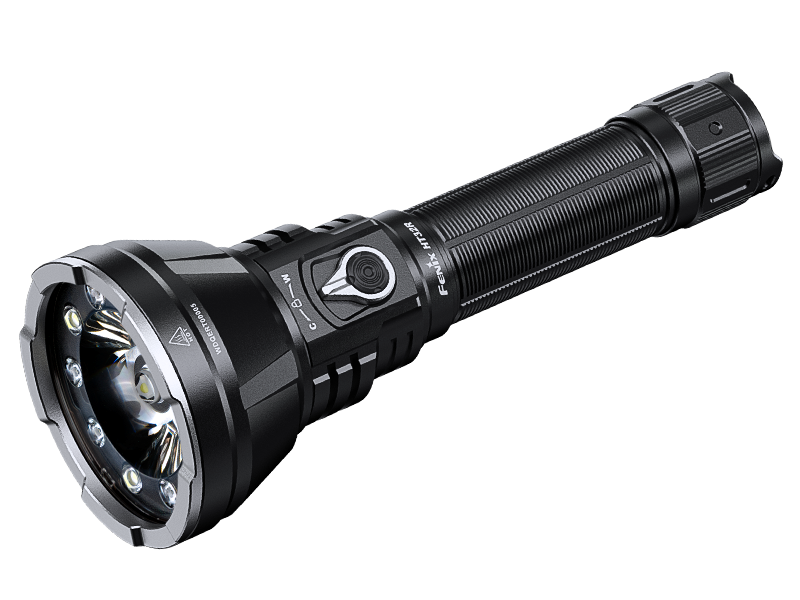

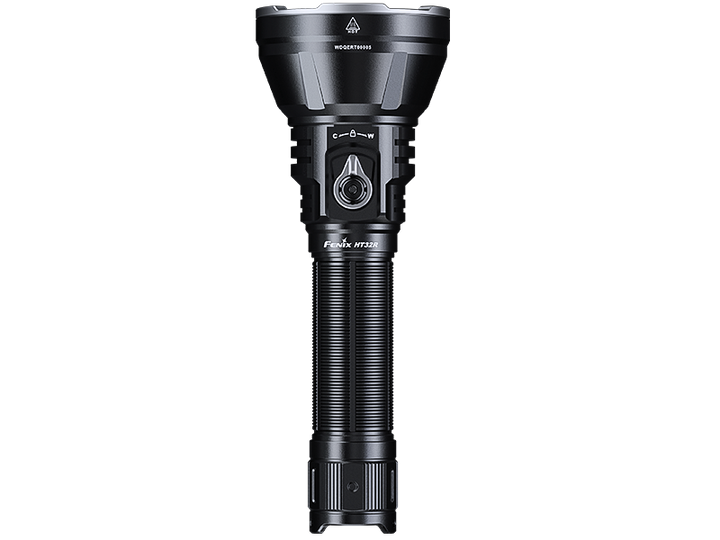

- Toggle switch and electronic switch for fast and simple operation.
- Made of A6061-T6 aluminum alloy with a matte black hard-anodized finish.
- Size: 6.49" x 2.40" x 1.12" / 164.8 x 61.0 x 28.5 mm.
- Weight: 9.14 oz / 259 g (including battery).
Operating Instructions
On: In Lockout mode, turn the toggle switch to W or C to turn on the flashlight in White light mode or Color light mode. With the light off and unlocked, press and hold the electronic switch for 0.5 seconds to turn it on.
Off: With the light on and unlocked, press and hold the electronic switch for 0.5 seconds to turn it off. In any state, turn the toggle switch to Lockout mode to turn off the flashlight.

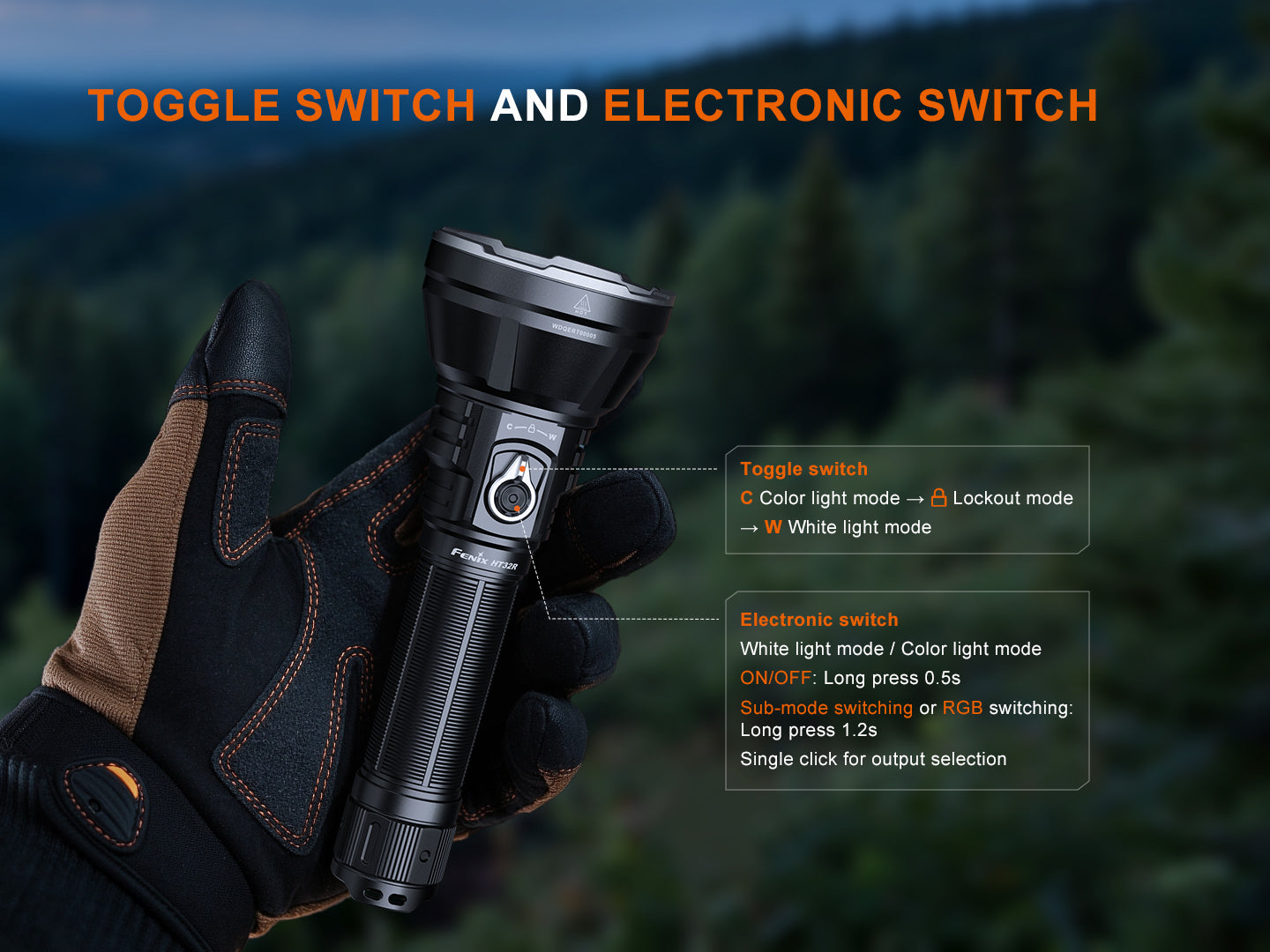

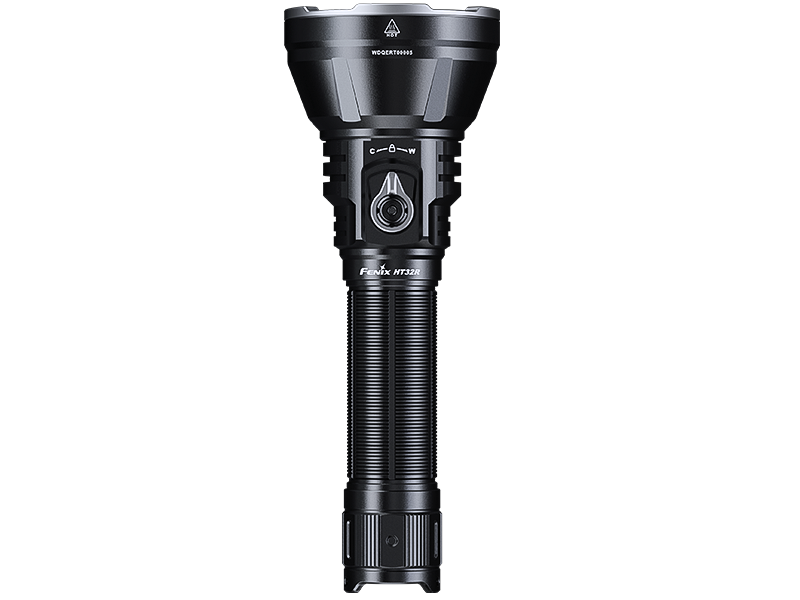

Mode Switching: With the light head pointing upward, turn the toggle switch from left to right to select Color light mode (C) → Lockout mode → White light mode (W). In White light mode, press and hold the electronic switch for 1.2 seconds to cycle through Spot-and-floodlight → Spotlight → Floodlight. In Color light mode, press and hold the electronic switch for 1.2 seconds to cycle through Red → Green → Blue light. Note: holding the electronic switch for 0.5 seconds turns the flashlight off; keep holding until 1.2 seconds to switch sub-modes.
Output Selection: In Spot-and-floodlight, Spotlight or Floodlight mode, single click the electronic switch to cycle through Low → Med → High → Turbo. In Red light mode, single click to cycle through Low → High → Flash. In Green or Blue light mode, single click to cycle through Low → High.
Intelligent Memory Circuit: The flashlight memorizes the last selected sub-mode of both White and Color light modes. It also memorizes the last selected output of White light mode (except Turbo), but not of Color light mode: when turned on again in Color light mode, it always starts in Low.
Battery Specifications
- Fenix ARB-L21-5000 V2.0: 21700, 3.6V — Recommended
- Fenix ARB-L21-5000U: 21700, 3.6V — Recommended
- Fenix ARB-L21-4000P: 21700, 3.6V — Recommended
*Do not use an 18650, CR123A, or 16340 battery. 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.
Battery Replacement
Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.
Charging

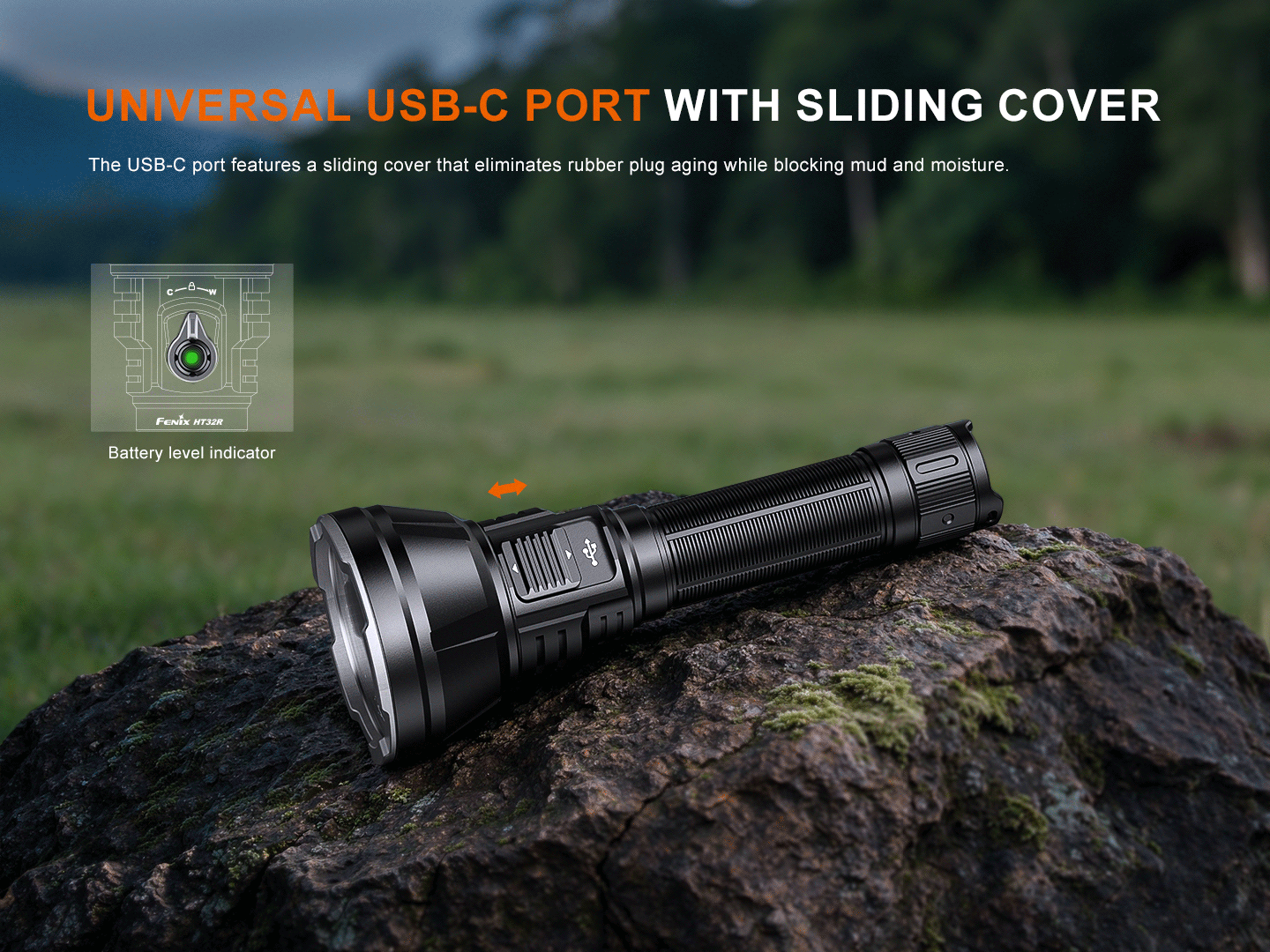

- Slide the port cover to reveal the USB Type-C charging port, then connect the USB Type-C end of the charging cable to the flashlight.
- The indicator displays red while charging and turns green when fully charged.
- When charging fails or the battery is inserted backwards, the battery level indicator flashes red or stays off to remind you to check the battery.
- Fast charging time for the included battery is approximately 1.5 hours from depleted to fully charged with a 9V/3A charging adapter (approximately 2.5 hours without fast charging, such as with a 5V/3A adapter).
Note: the flashlight can be used while charging. Brightness may vary depending on conditions, but the number of output levels stays the same. When a remote pressure switch is connected, the flashlight cannot be activated while charging.
Battery Level Indication
With the light off, single click the electronic switch to check the battery status; the indicator lasts 3 seconds. Each time the light is turned on, the indicator also shows the current battery level for 3 seconds.
- Green light on: saturated, 100–85%
- Green light flashes: sufficient, 85–50%
- Red light on: poor, 50–25%
- Red light flashes: critical, 25–1%
*Works only with a Fenix ARB-L21 21700 series battery.
Low-Voltage Warning
When the voltage drops below the preset level, the flashlight gradually reduces brightness. If the voltage is still too low, the battery level indicator blinks red to remind you to recharge or replace the battery, until the battery runs out. *Works only with a Fenix ARB-L21 21700 series battery.
Intelligent Overheat Protection
The flashlight accumulates a lot of heat when used at high output levels for extended periods. At 60°C/140°F or above, it automatically steps down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, it gradually recalls the preset output level.
Usage and Maintenance
- Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
- Fenix recommends using an excellent quality battery.
- If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage.
- Lock the flashlight or remove the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
- Periodic cleaning of the battery contacts improves performance, as dirty contacts may cause the flashlight to flicker, shine intermittently, or fail to illuminate. A. Low battery level: replace or recharge the battery. B. Dirty contacts: clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact Fenix Store support through live chat (the chat button on any page of fenix-store.com) or at support@fenix-store.com.

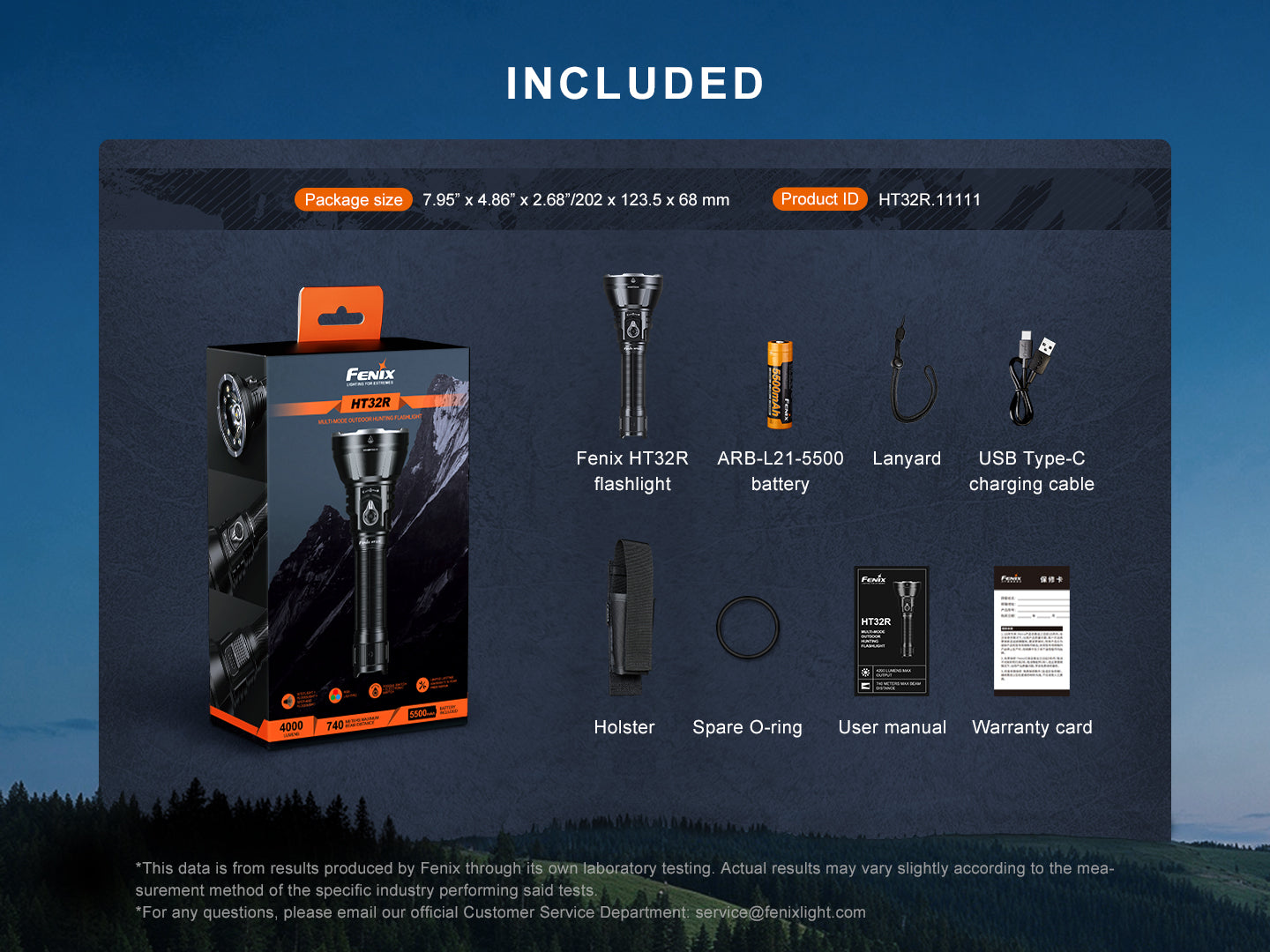

What's Included
- Fenix HT32R flashlight
- ARB-L21-5500 battery
- USB Type-C charging cable
- Holster
- Lanyard
- Spare O-ring
- User manual
- Warranty card
Warranty and Support
Keep your proof of purchase and contact Fenix Store support through live chat (the chat button on any page of fenix-store.com) or at support@fenix-store.com for warranty service. See our Warranty and Repair page for details.
