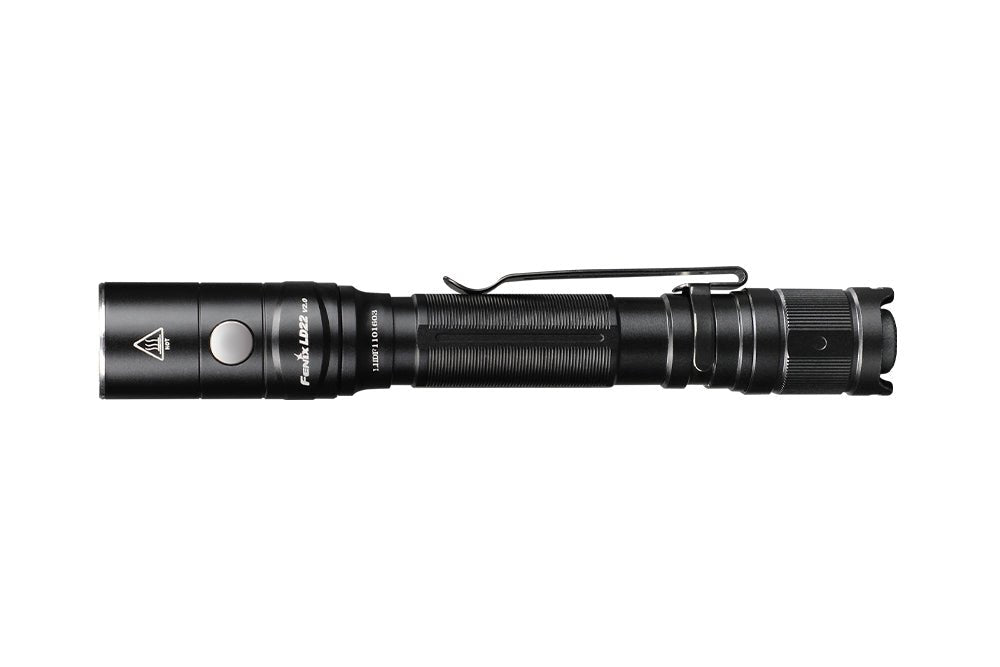

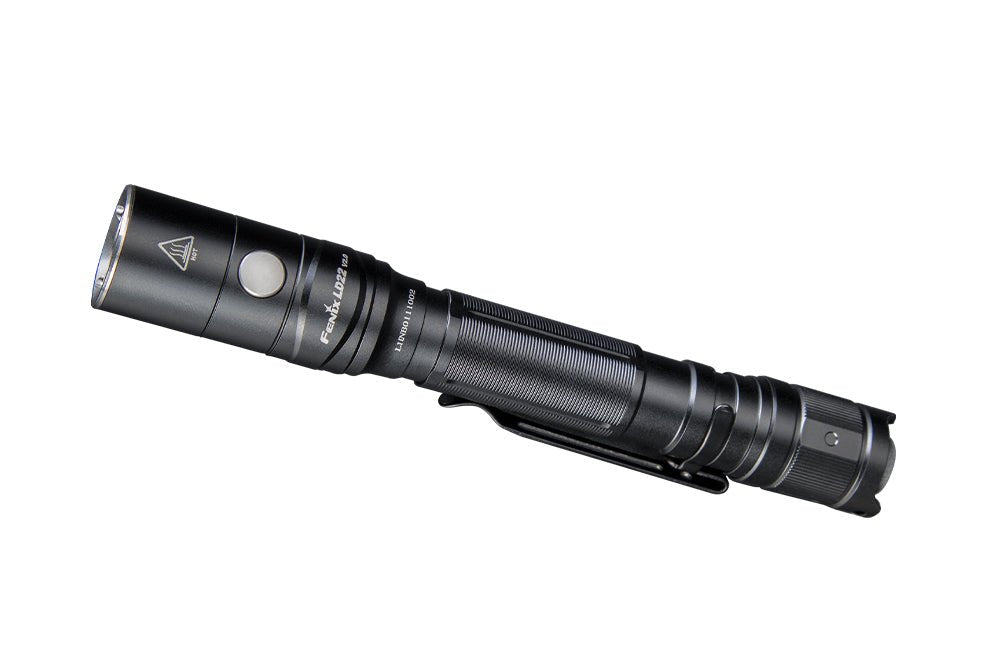

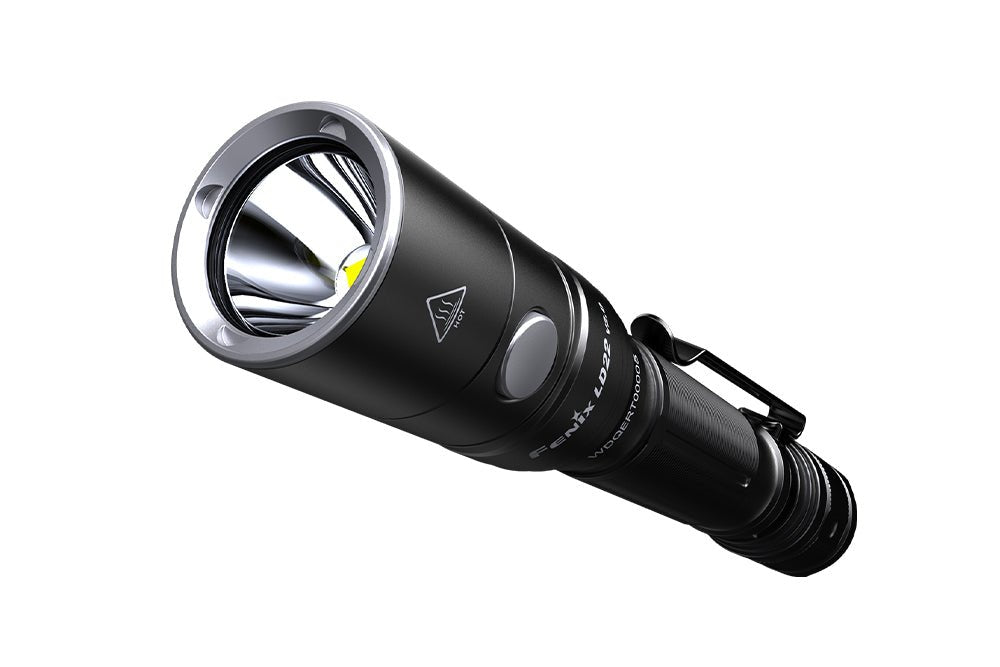

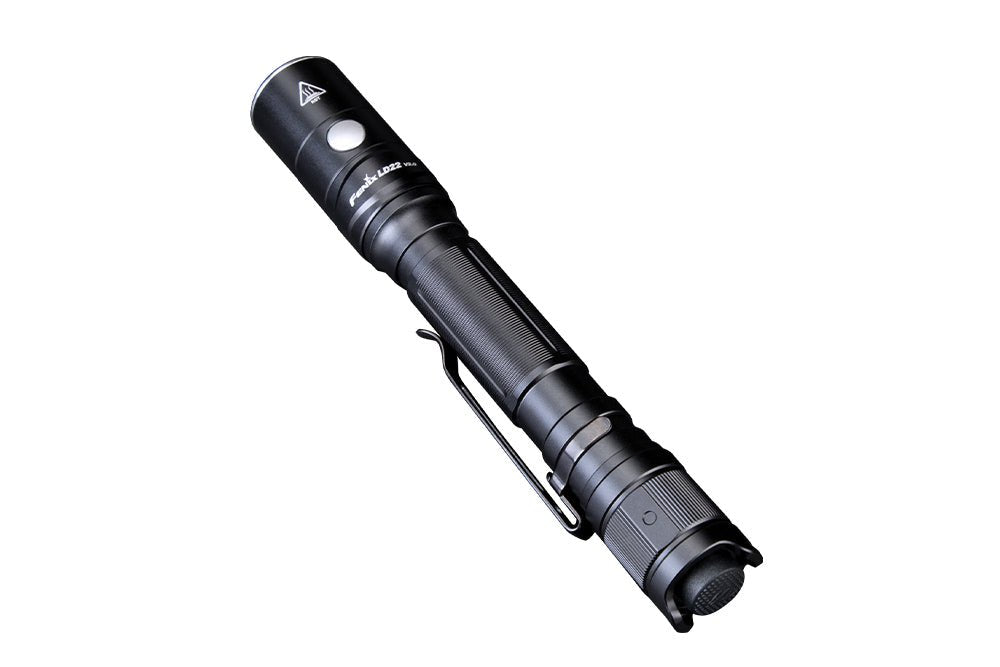

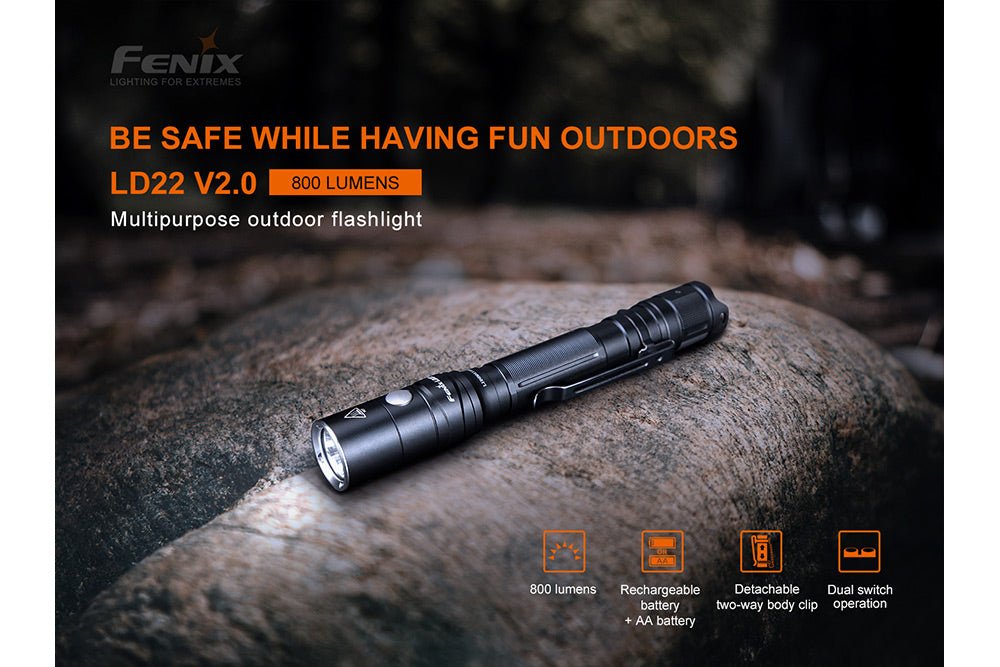

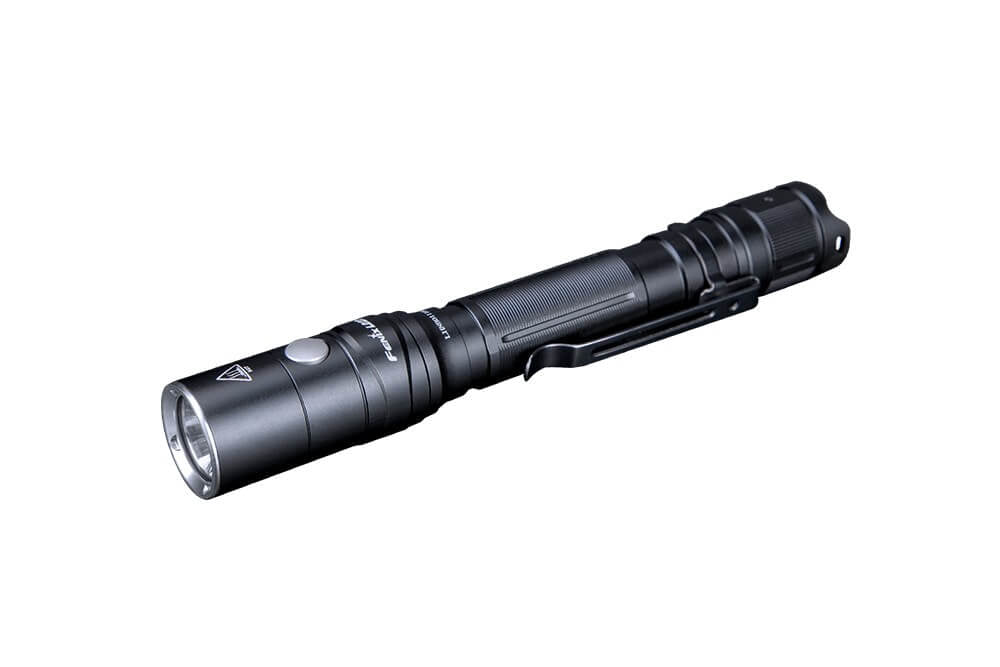

Fenix LD22 V2 Compact LED Flashlight - 800 Lumens

Performance Highlights

• Turbo: 800 lumens and a 214 m beam for maximum-throw tasks (Li-ion only)
• High: 350 lumens for everyday carry and general-purpose use
• Endurance: Eco mode runs up to 319 hours on the included Li-ion battery
• Signal Modes: Strobe and SOS for emergency use

Full mode-by-mode output, runtime, distance, and intensity figures are shown in the specifications chart above.

Key Features

• Luminus LED with digitally regulated output for stable brightness
• Tactical tail switch for instant momentary or constant-on activation; functional side switch selects output
• Detachable two-position body clip for varying carry styles
• Reverse polarity protection guards against improper battery insertion
• A6061-T6 aluminum body with HAIII hard-anodized anti-abrasive finish
• Intelligent overheat protection and low-voltage warning
• IP68 waterproof and 1-meter impact resistant

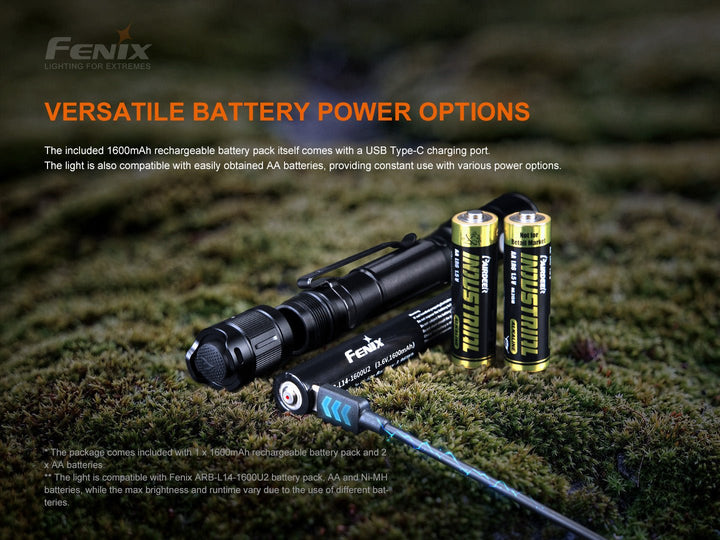

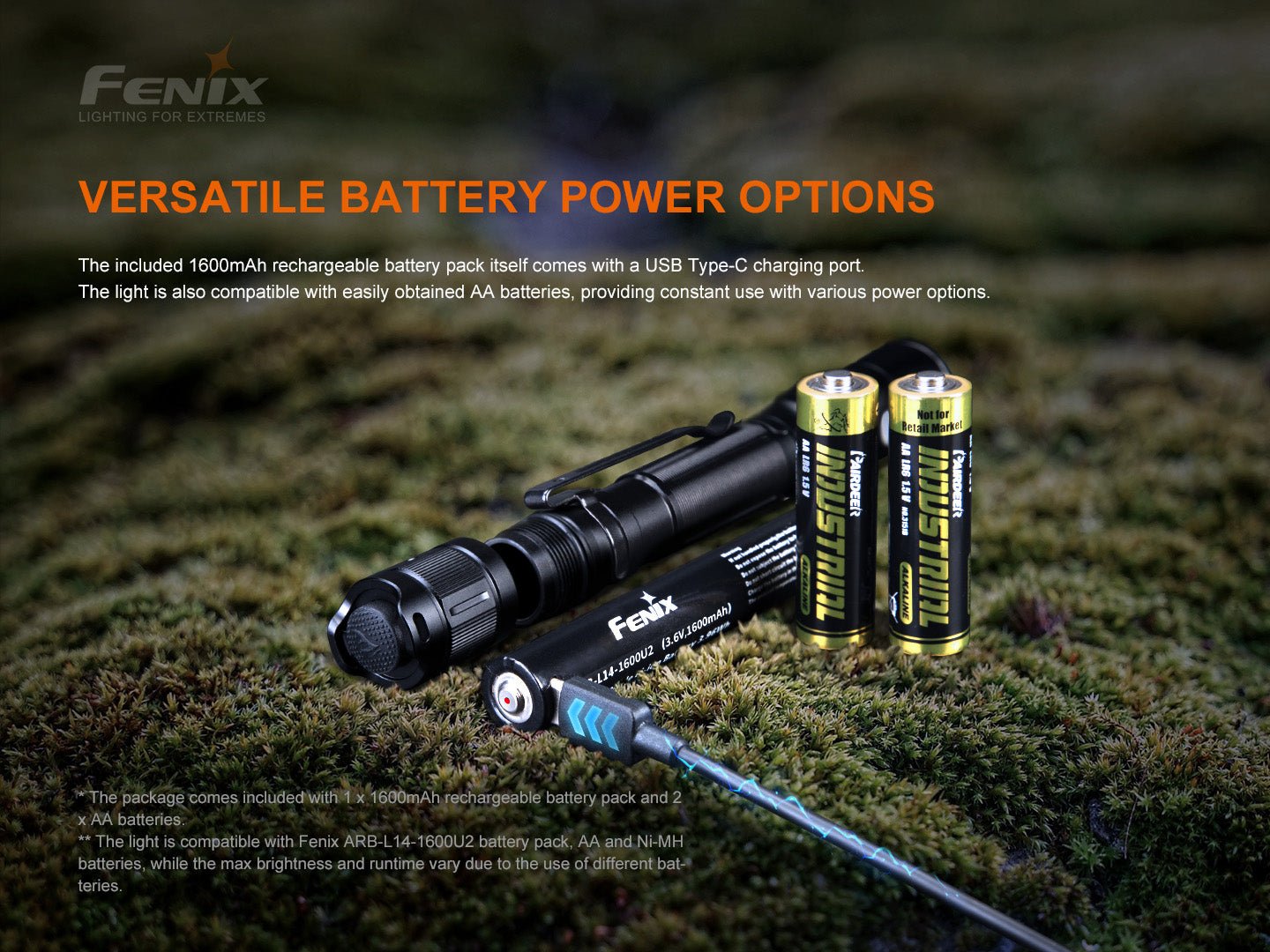

Battery & Charging

• Included: One Fenix ARB-L14-1600U2 USB-C rechargeable 1600mAh battery, plus 2 Alkaline AA batteries for backup
• Compatible: Two AA batteries — Turbo is unavailable on AA
• Charging: Directly via USB Type-C on the ARB-L14-1600U2 battery

Size & Weight

• Dimensions: 5.83 in length, 0.85 in head diameter, 0.71 in body diameter
• Weight: 3.49 oz including battery

What kind of LED is used in LD22 V2? Does Fenix offer to replace LED?

The LD22 V2 uses a Luminus SST20 WXS LED

What is the color temperature of LD22 V2?

6000K

Is LD22 V2.0 rechargeable? How long is the charging time?

LD22 V2.0 can't be directly charged, while the included Fenix ARB-L14-1100U2 battery features a USB Type-C charging port; the anode side displays red when charging and turns blue when charging is completed. The charging time is 4 hours.

What kind of battery can be used in LD22 V2?

Fenix ARB-L14-1600U2 is recomended. Compatible with 2 x AA Alkaline batteries and NiMH Batteries. Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or the batteries being used.

The Fenix LD22 V2.0 is a multi-purpose outdoor flashlight. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Overview

• 800 lumens maximum output, 214 meters maximum beam distance.
• Uses a Luminus LED with a lifespan of 50,000 hours.
• Includes a 1600mAh Fenix ARB-L14-1600U2 battery (with USB Type-C charging port); also compatible with 2 x AA batteries.
• Instant activation with the tactical tail switch; output selection with the functional side switch.
• Detachable two-position body clip for varying carry conditions.
• Reverse polarity protection, to protect from improper battery insertion.
• Digitally regulated circuit for maintaining stable output.
• Made of durable A6061-T6 aluminum.
• Premium type HAIII hard-anodized anti-abrasive finish.
• Size: 5.83" x 0.85" x 0.71" / 148 x 21.5 x 18mm.
• Weight: 3.49oz / 99g (including battery).

Operating Instructions

On/Off: The tail switch is the tactical switch and the side switch is the functional switch. Tap the tactical switch to momentarily turn on the light — release it and the light goes out. Fully press the tactical switch to constantly turn on the light; press again to turn off the light.

Output Selection: With the light switched on, single click the functional switch to cycle through Eco → Low → Med → High → Turbo. (Turbo cannot be activated when using AA batteries.)

Flash Mode: With the light switched on, press and hold the functional switch for 0.5 seconds to enter flash mode; single click to cycle through Strobe → SOS. Press and hold the functional switch again for 0.5 seconds to return to the previously used general mode.

Intelligent Memory Circuit

The light memorizes the last selected output, excluding Strobe. When turned on again, the previously used output will be recalled.

Battery Specifications

• Fenix ARB-L14-1600U2, 14.4 x 100.5mm, 3.6V — Recommended.
• NiMH battery, AA, 1.2V — Usable.
• Alkaline battery, AA, 1.5V — Usable.

Note: The Fenix ARB-L14-1600U2 can be directly charged with a USB Type-C cable.

Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) toward the light head, then screw the tail cap back on.

Charging

• Switch off the light and loosen the light tail to take out the Fenix ARB-L14-1600U2 battery, then plug the USB-A end of the charging cable into an electrical outlet and connect the USB Type-C end to the battery.
• The indicator displays red while charging and turns blue when fully charged.
• Once charging is completed, be sure to reinsert the battery with the anode side (+) toward the light head, then screw the tail cap back on.

Intelligent Overheat Protection

The light will accumulate heat when used on relatively high modes for extended periods. When the light reaches a temperature of 60°C or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, the user can reselect the modes.

Low-Voltage Warning

When the voltage level drops below 3V, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When the voltage level is detected lower than 3V in Eco output, the flashlight blinks 3 times every 5 minutes to remind you to recharge or replace the battery in a timely manner. To ensure normal use, the flashlight will not turn off automatically and will work until the battery runs out. Note: this feature only works with the Fenix ARB-L14-1600U2 rechargeable Li-ion battery and other usable Li-ion batteries.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using only a high-quality protected battery.
• If the light will not be used for an extended period, remove the battery for proper storage.
• Unscrew the tail cap or remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear; to maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the light's performance, since dirty contacts may cause the light to flicker, shine intermittently, or fail to illuminate. A) Poor battery level: recharge or replace the battery. B) Dirty battery or flashlight contact points: clean with a cotton swab soaked in rubbing alcohol. If neither resolves the issue, please contact Fenix Store support through live chat (the chat button on any page of fenix-store.com) or at support@fenix-store.com.

Warning

• Keep this light out of the reach of children.
• Do NOT shine the light directly into anyone's eyes.
• Do NOT shine the light at flammable objects at close range, to avoid burning objects or causing danger from high temperature.
• Do NOT use the light in inappropriate ways, such as holding it in your mouth; doing so could cause personal injury or life-threatening harm if the light or internal battery fails.
• This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell — pay attention to avoid scalding.
• Turn off and lock the light, or remove the battery, to prevent accidental activation when the light is placed in a closed, flammable environment such as a pocket or backpack.
• The LED of this flashlight is not replaceable, so the whole light should be replaced when the LED reaches the end of its life.

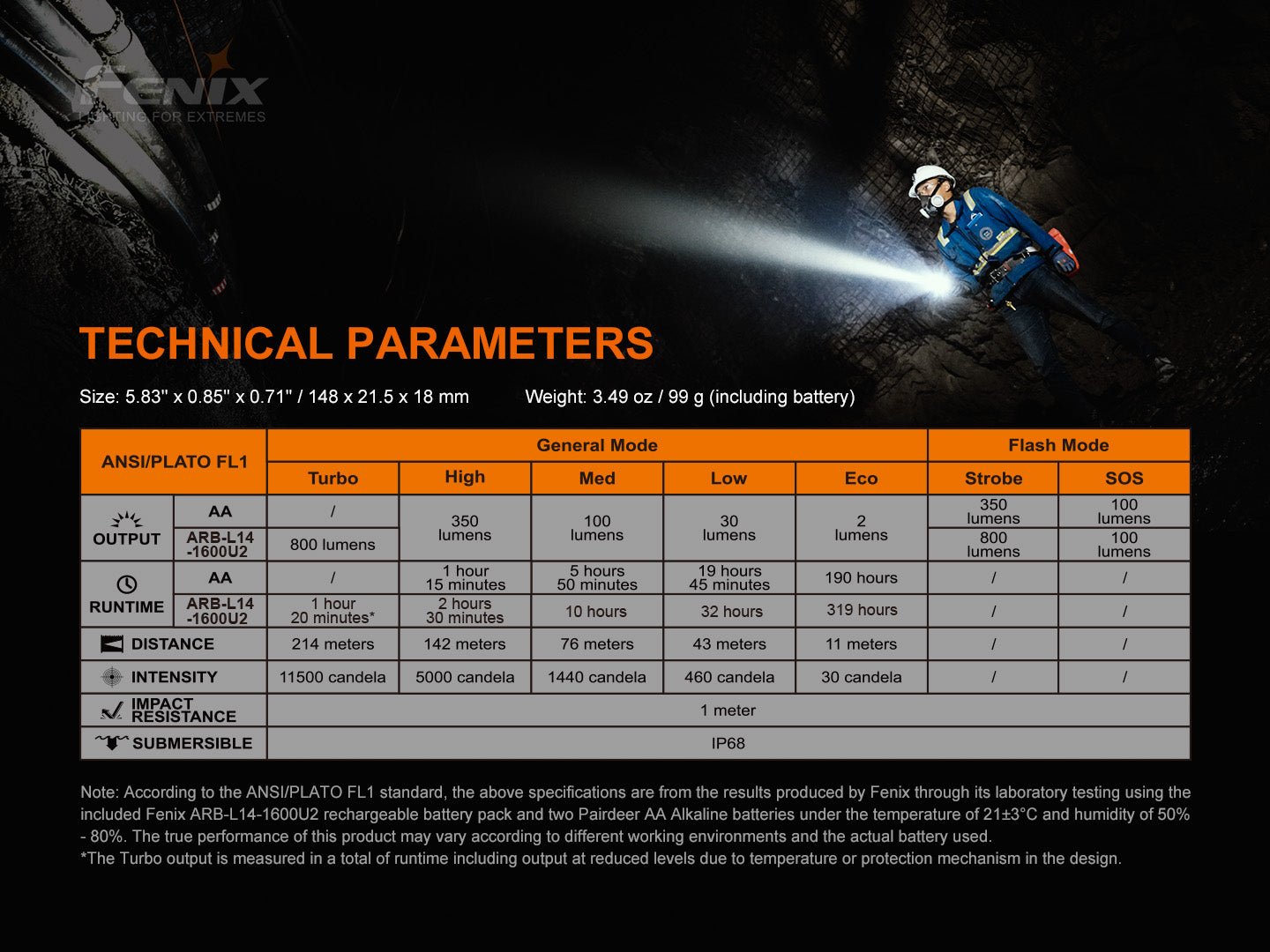

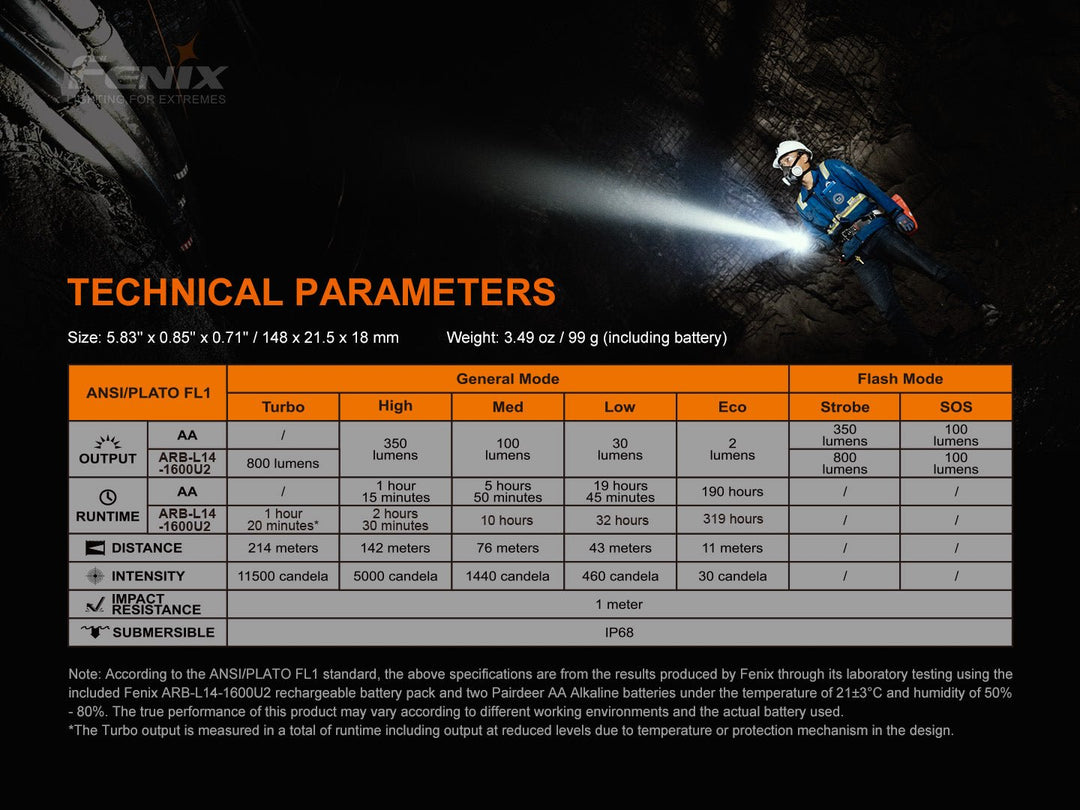

Technical Parameters

• Turbo (Li-ion only): Output 800 lumens, Runtime 1h20min*, Distance 214 meters, Intensity 11500 candela
• High: Output 350 lumens, Runtime 1h15min (AA) / 2h30min (Li-ion), Distance 142 meters, Intensity 5000 candela
• Med: Output 100 lumens, Runtime 5h50min (AA) / 10 hours (Li-ion), Distance 76 meters, Intensity 1440 candela
• Low: Output 30 lumens, Runtime 19h45min (AA) / 32 hours (Li-ion), Distance 43 meters, Intensity 460 candela
• Eco: Output 2 lumens, Runtime 190 hours (AA) / 319 hours (Li-ion), Distance 11 meters, Intensity 30 candela
• Strobe: Output 350 lumens (AA) / 800 lumens (Li-ion)
• SOS: Output 100 lumens

All modes: Impact Resistance 1 meter, Waterproof IP68. *The Turbo output runtime is the total accumulated time including output at reduced levels due to the built-in temperature protection mechanism. Parameters lab-tested by Fenix using the included rechargeable Li-ion battery pack and two Paridee AA alkaline batteries at 21±3°C and 50%-80% humidity; actual performance may vary by environment and battery used.

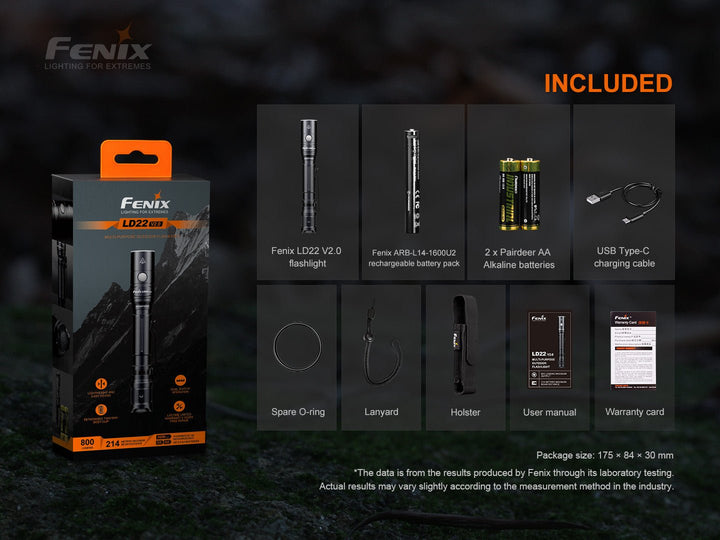

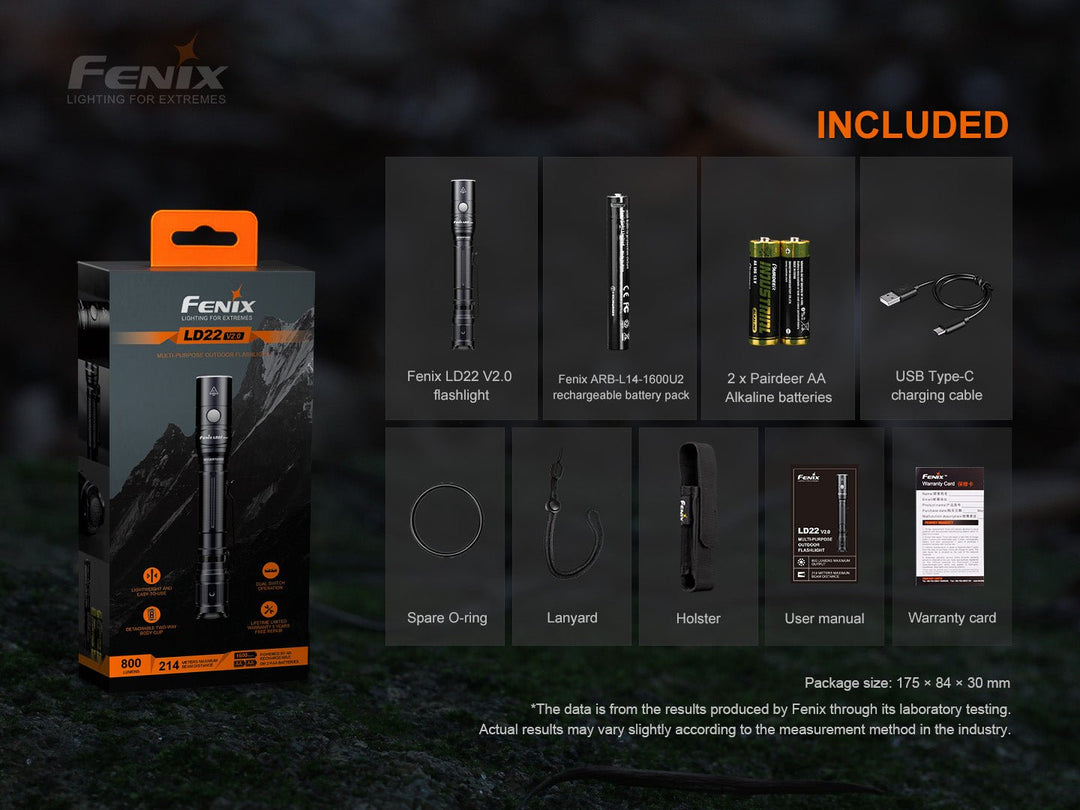

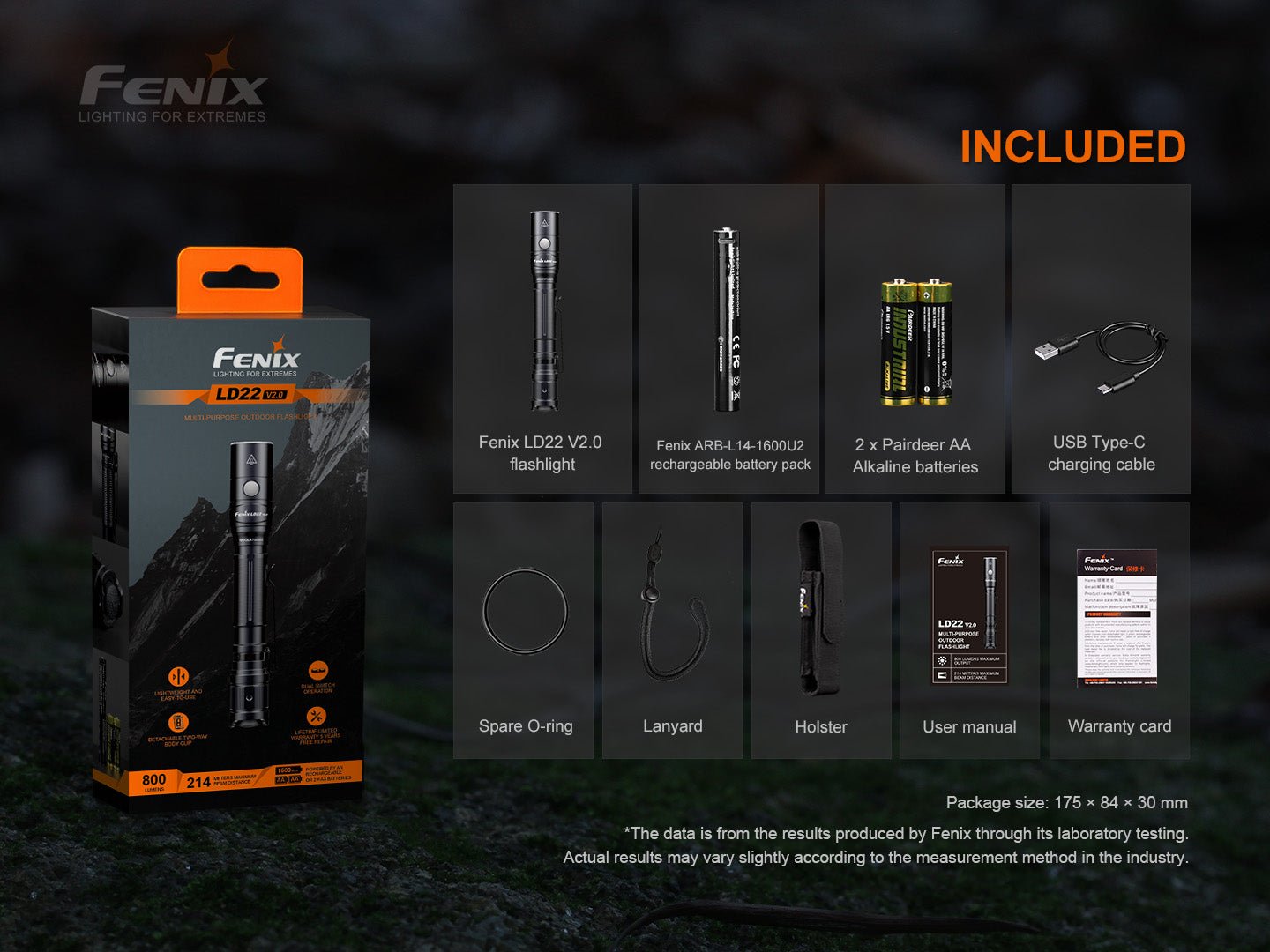

Included

Fenix LD22 V2.0 flashlight, Fenix ARB-L14-1600U2 rechargeable Li-ion battery pack, 2 x Paridee AA alkaline batteries, USB Type-C charging cable, lanyard, holster, spare O-ring, user manual, warranty card.
