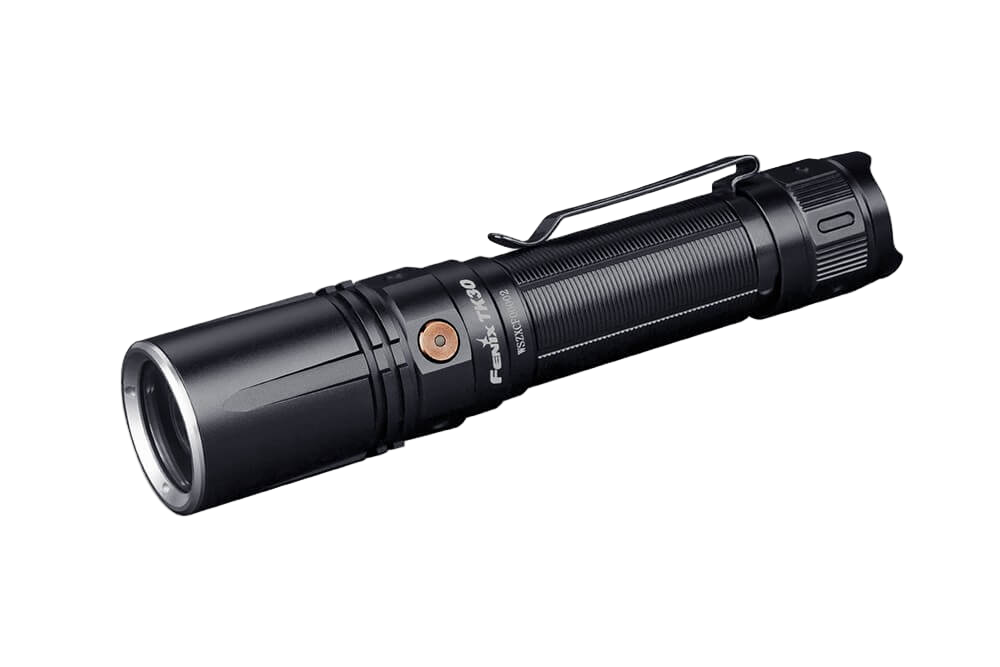

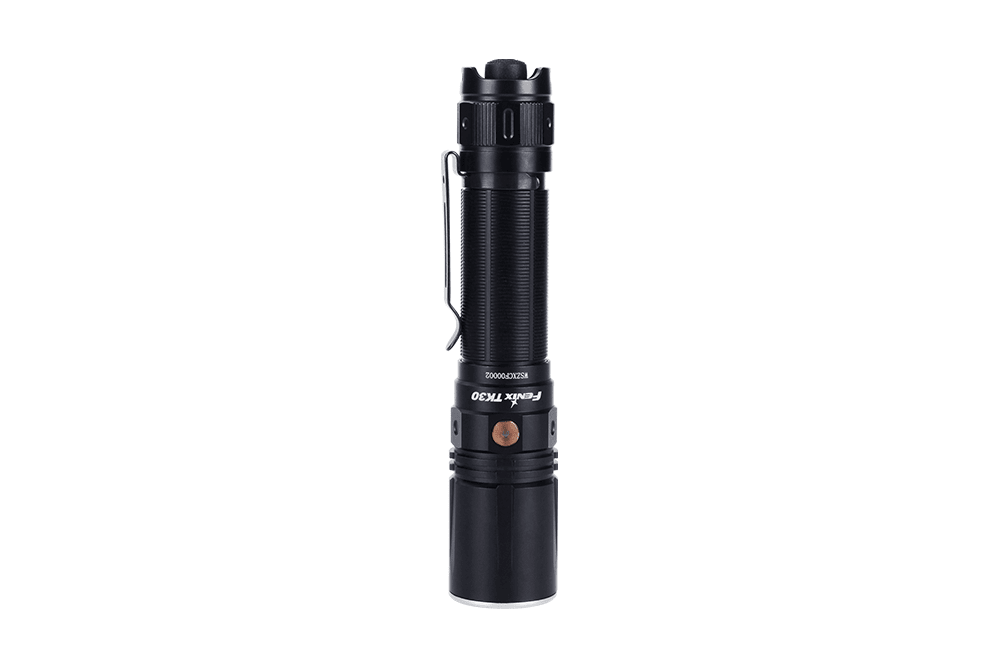

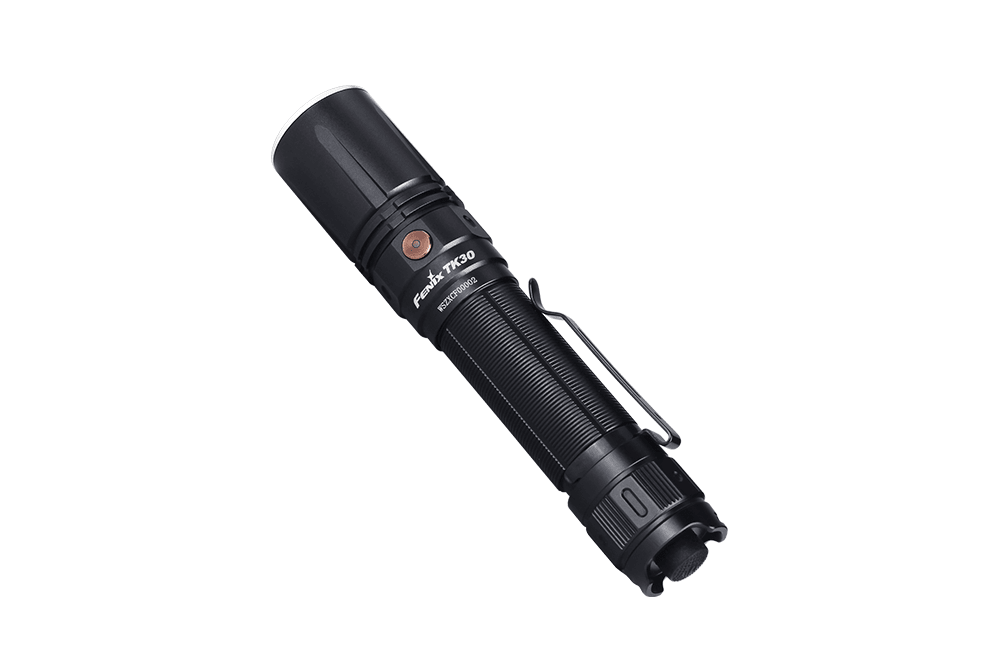

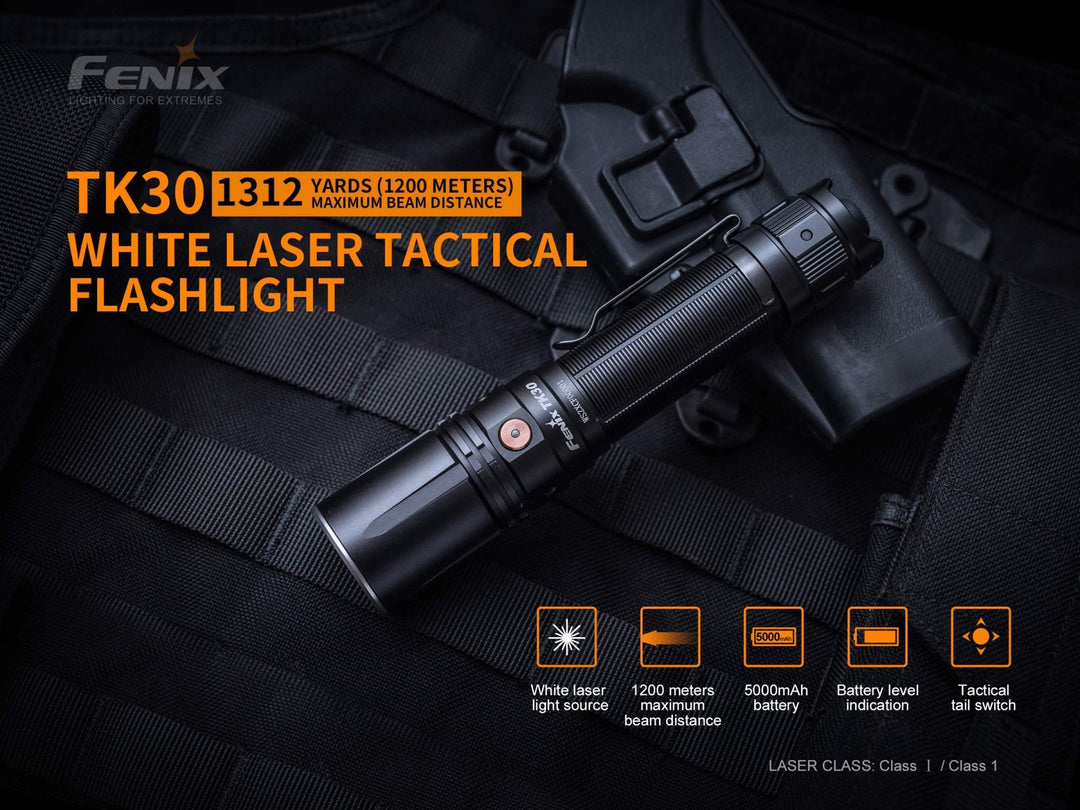

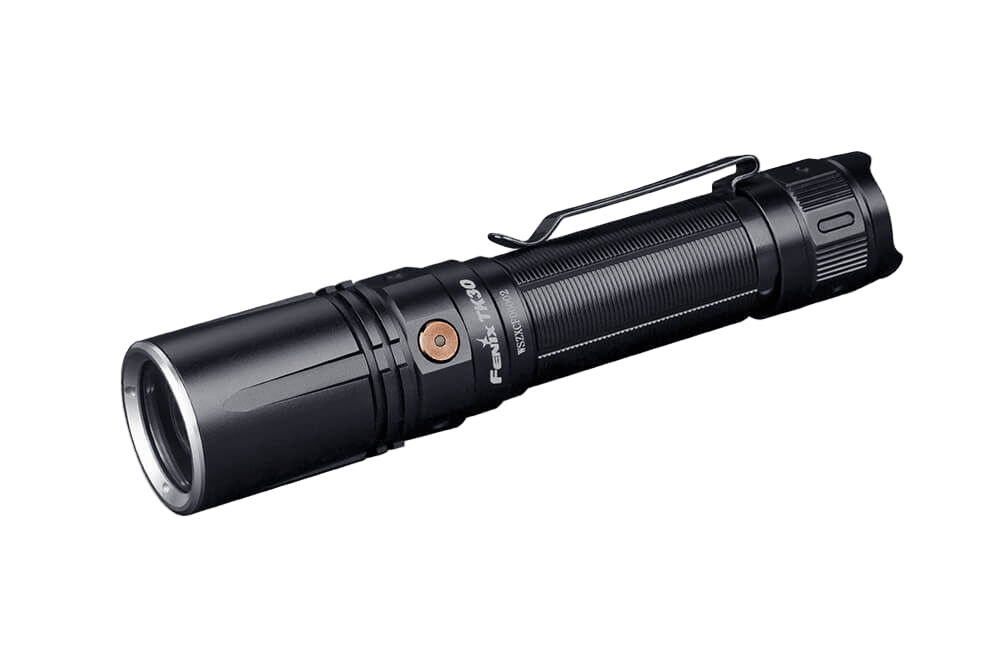

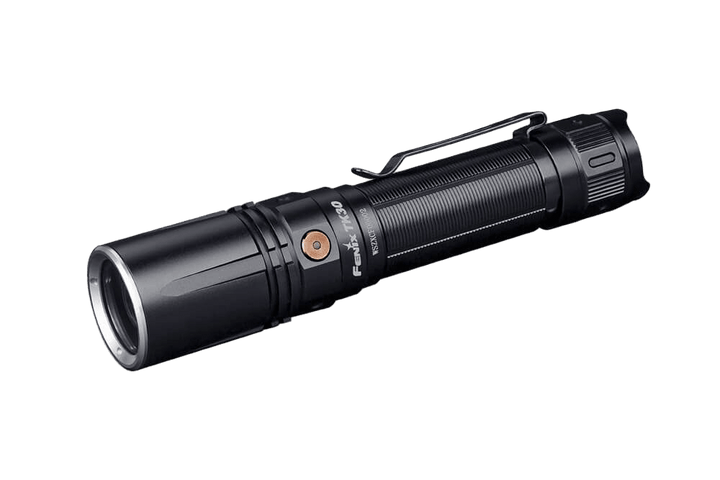

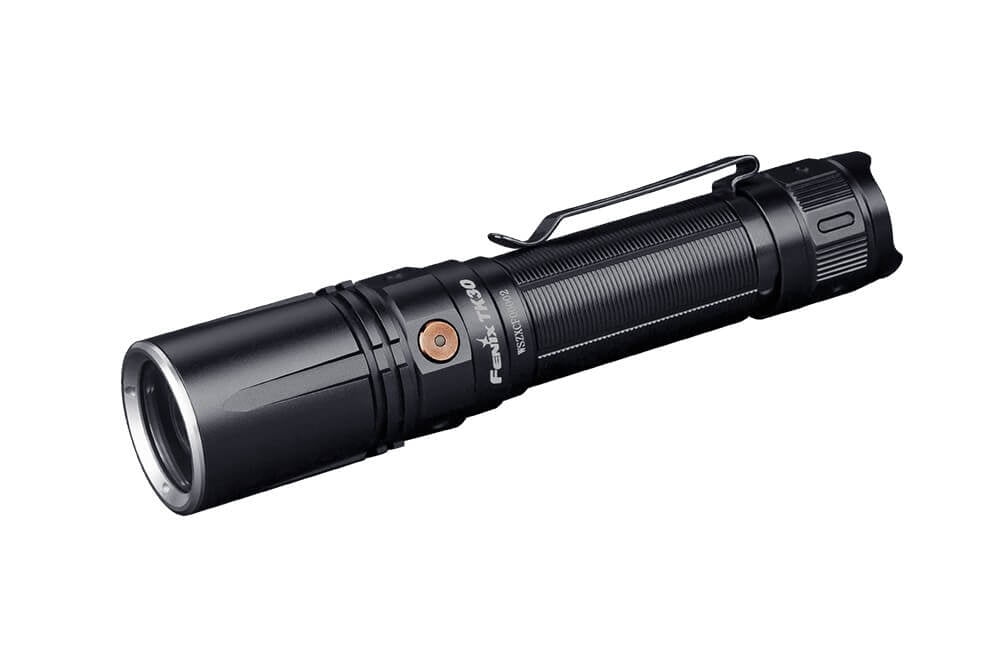

Fenix TK30 White Laser LED Flashlight

Outputs

• High: 500 Lumens, 3 hours, 3937 ft
• Low: 100 Lumens, 6 hours, 1968 ft
• Strobe: 500 Lumens

Details

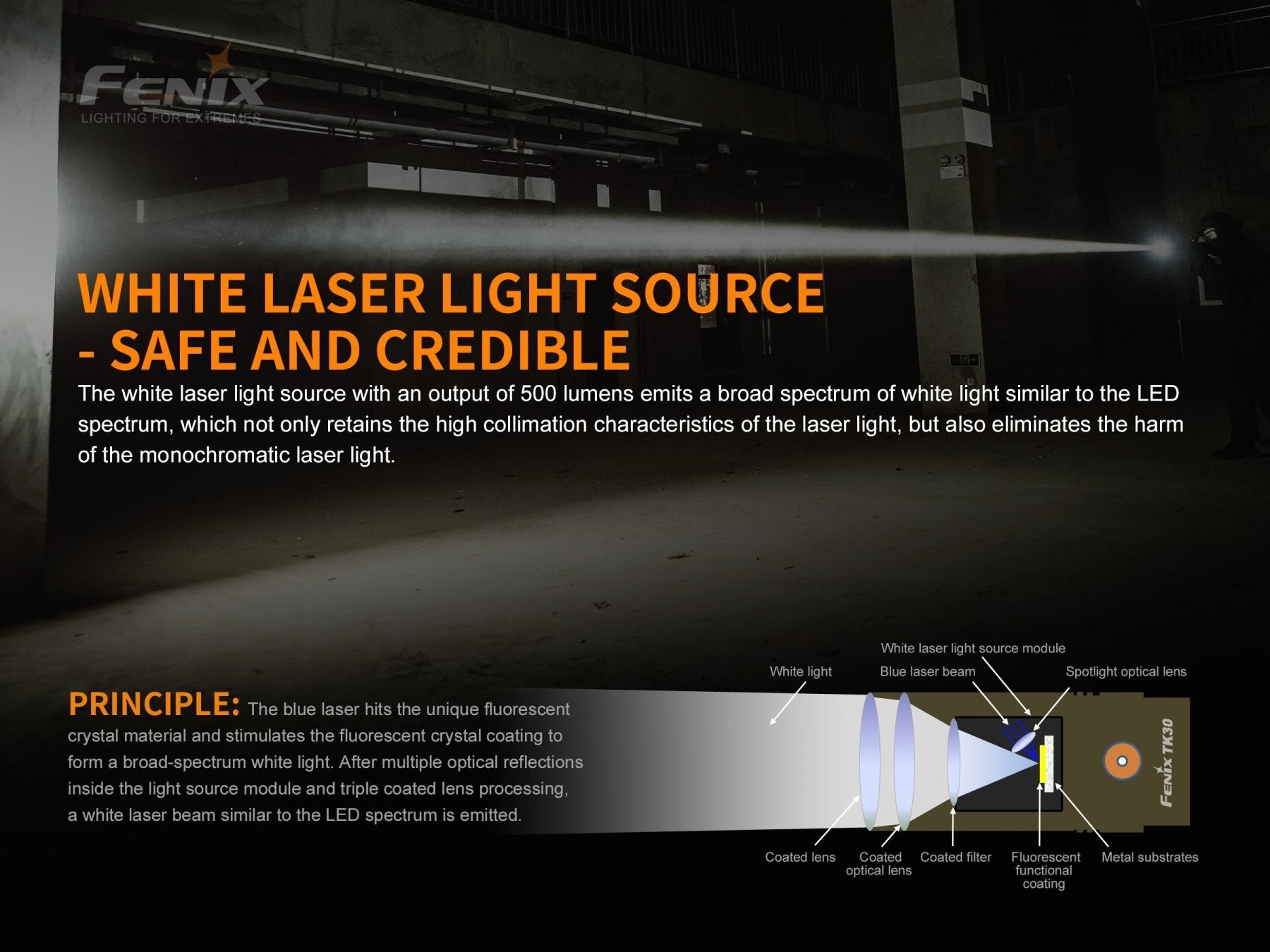

• White Laser Light Source
• Overheat Protection
• 21700 Battery Compatible
• 18650 Battery Compatible using the ALF-18 Battery Adapter

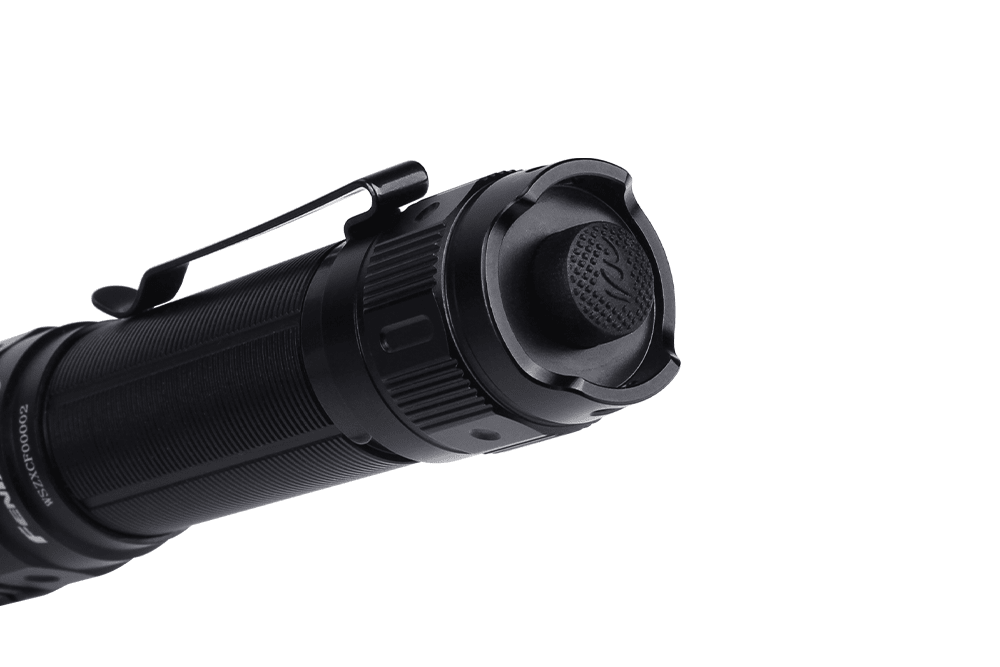

• Tactical Tail Switch
• Battery Level Indicator on the side switch
• Double Spring Structure
• 1200 Meter/3937 Foot Beam Distance
• Battery included
• Withstands Bitter Cold and Extreme Heat

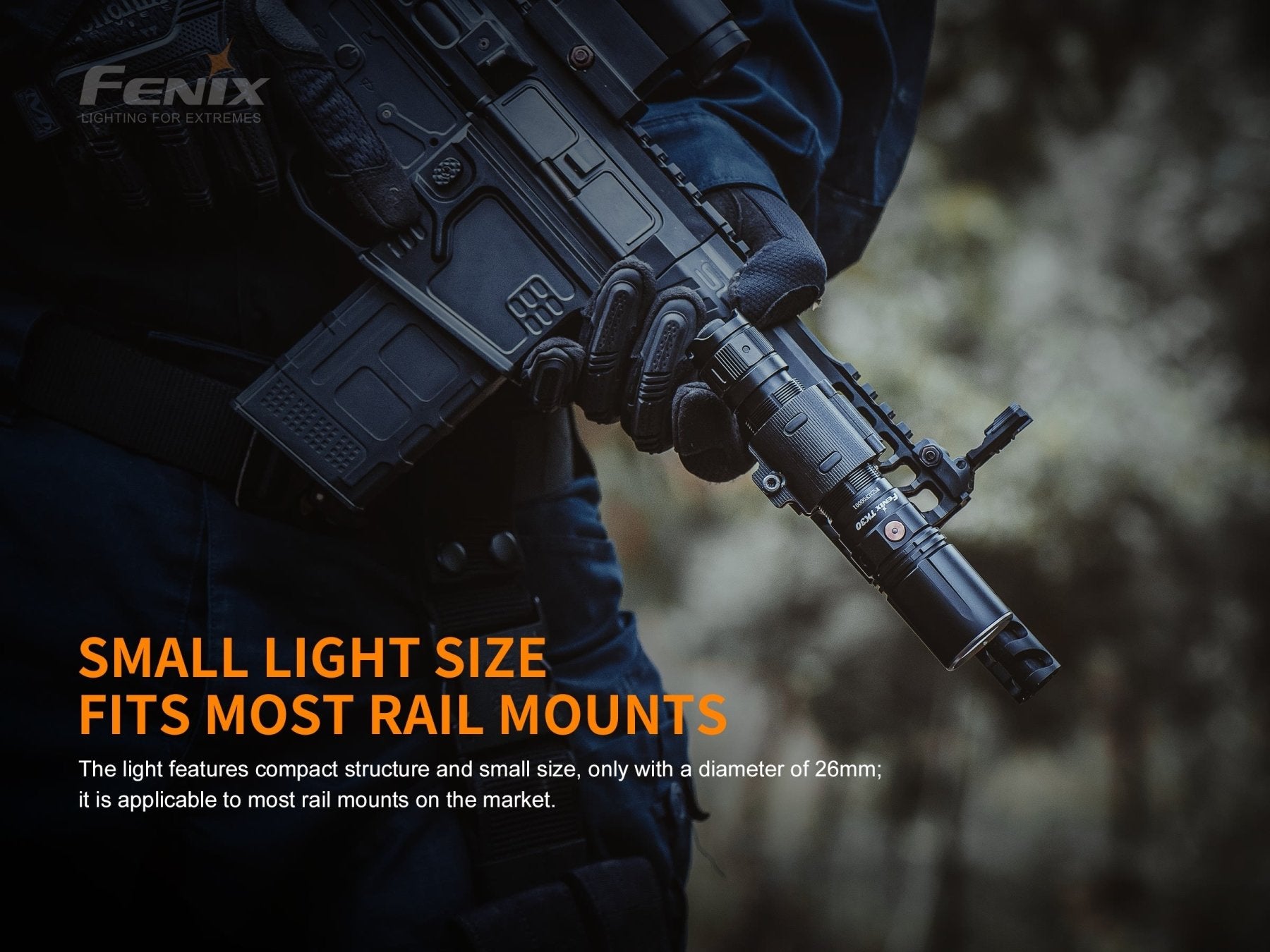

• Fits on most rail mounts
• A6061-T6 Aluminum Body
• IP68 Rated Protection
• Laser Classification: Class I / Class 1
• Never shine the light directly in the eyes of a person or animal
• Read the manual carefully before use

Batteries

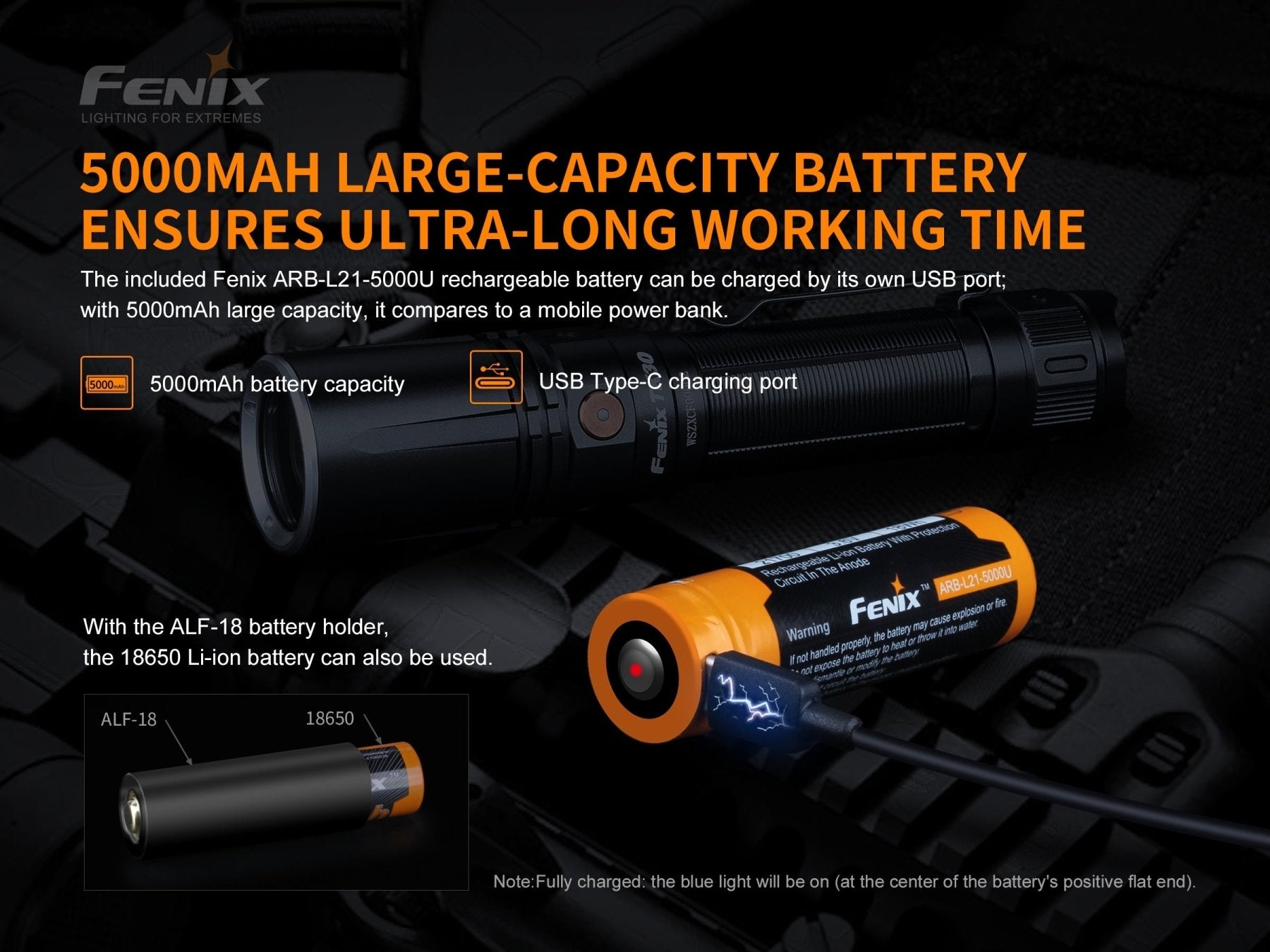

• Included: One 21700 ARB-L21-5000U USB Type-C rechargeable 5000mAh 21700 battery
• Compatible: One rechargeable 21700 battery or one rechargeable 18650 battery when using the Fenix ALF-18 battery adapter

Size

• Length: 6.22 inches
• Head Width: 1.26 inches
• Body Width: 1.02 inches
• Weight: 5.15 oz

What battery can be used in the TK30?

You can use a 21700 rechargeable Li-ion battery. You can also use a 18650 rechargeable Li-ion battery with the ALF-18 battery holder.

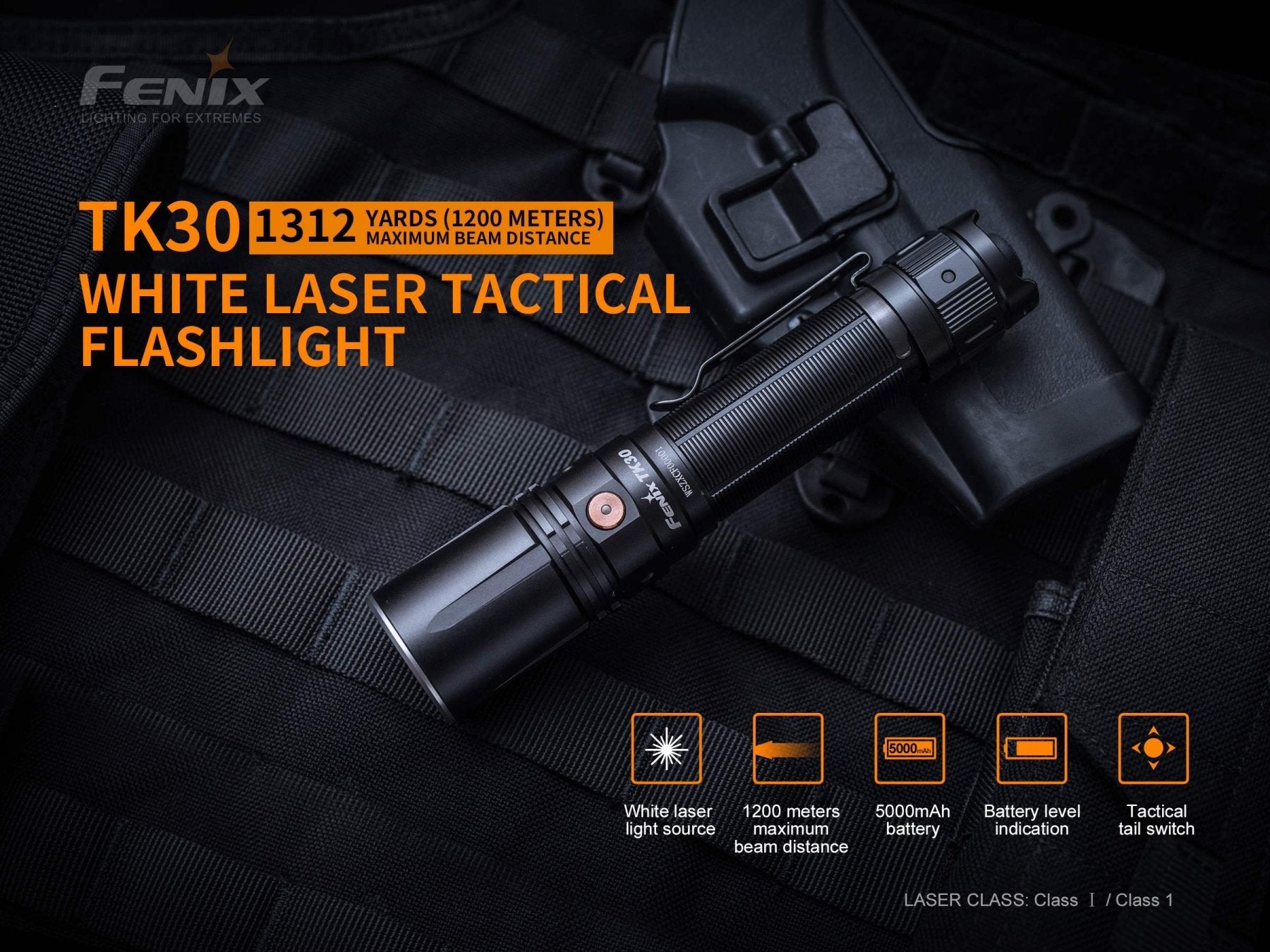

The Fenix TK30 is a white laser tactical flashlight. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Warning

• This flashlight is fitted with white laser light, and the emitted beam contains laser components (lower than 0.45W). Improper use may cause visual impairment or skin burns.
• Do not shine the flashlight directly into anyone's eyes to prevent visual impairment to the user or others.
• Do not stare at the facula for a long time at a close distance to prevent visual impairment.
• Do not illuminate the skin for a long time to prevent skin burns.
• Non-professional people are prohibited from disassembling this product.
• Keep the product in a safe place out of reach of children. Children are not allowed to use the product without supervision.

Product Features

• White laser light with a max output of 500 lumens and beam distance of 1200 meters
• A 5000mAh rechargeable 21700 Li-ion battery included
• Tactical tail switch for instant activation
• Functional side switch for output selection
• Boot-up battery level indication, low-voltage warning, and intelligent memory circuit
• Intelligent protection against high surface temperature
• Reverse polarity protection, to protect from improper battery insertion
• Made of durable A6061-T6 aluminum
• Premium type HAIII hard-anodized anti-abrasive finish
• 5.15 oz / 146 g (excluding battery)
• 6.22'' x 1.26'' x 1.02'' / 158 x 32 x 26 mm
• Laser Classification: Class 1

Operating Instructions

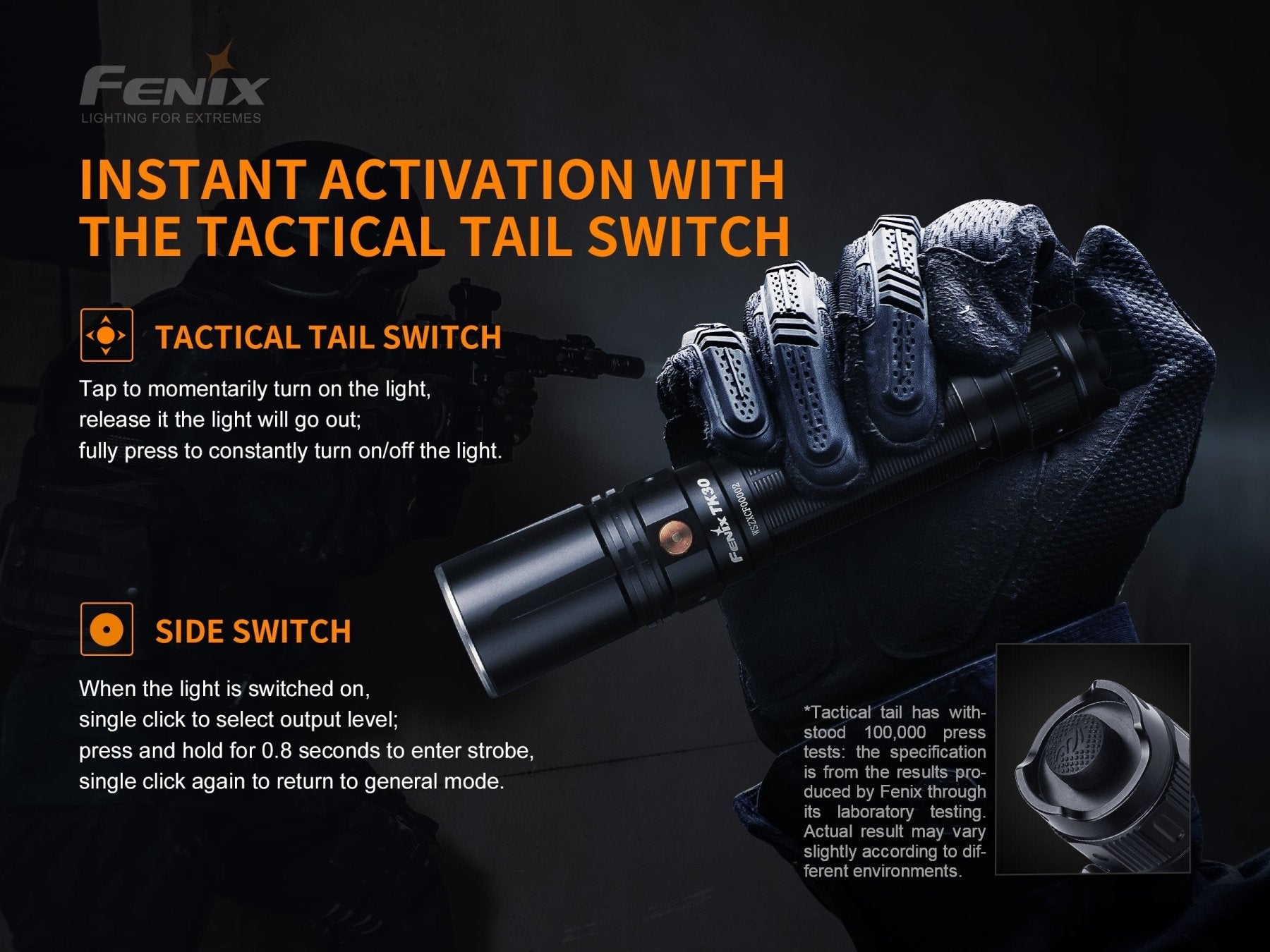

Switches: the tail switch is the tactical switch, the side switch is the functional switch.

On/Off: when the light is off, tap the tail switch to momentarily turn on the light, release it the light will go out. Fully press the tail switch to constantly turn on the light, press once again to turn off the light.

Output Selection: when the light is switched on, single click the functional side switch to cycle through Low and High.

Strobe: when the light is switched on, press and hold the functional switch for 0.8 seconds to enter Strobe. Single click the functional side switch to turn back to the previously used output.

Intelligent Memory Circuit: the light memorizes the last selected output excluding Strobe. When turned on again the previously used output will be recalled.

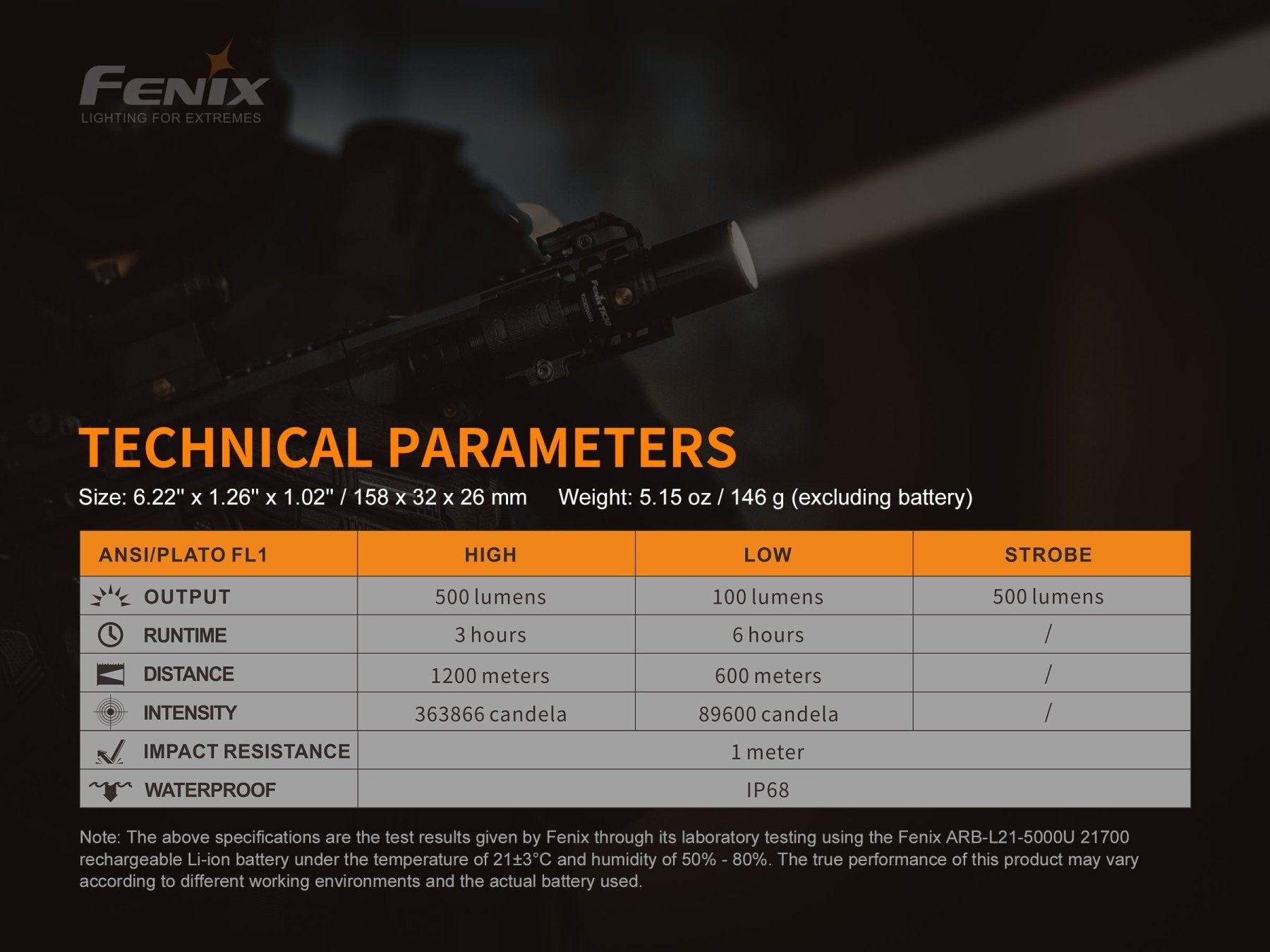

Technical Parameters (ANSI/PLATO FL1)

• High: Output 500 lumens, Runtime 3 hours, Distance 1,200 meters, Intensity 363,866 cd.
• Low: Output 100 lumens, Runtime 6 hours, Distance 600 meters, Intensity 89,600 cd.
• Strobe: Output 500 lumens.

Impact Resistance: 1 meter | Waterproof: IP68, 2 meters underwater

Note: the above specifications are the test results given by Fenix through its laboratory testing using the Fenix ARB-L21-5000U 21700 rechargeable Li-ion battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.

Battery Specifications

• Rechargeable Li-ion Battery 21700*, 3.6V: Fenix ARB-L21 Series recommended.
• Rechargeable Li-ion Battery 18650, 3.6V: Fenix ARB-L18 Series recommended.

Warning: the Fenix dedicated ALF-18 battery holder must be used together when using an 18650 Li-ion battery. *18650 and 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; cell damage or short circuiting are potential risks the user assumes.

Battery Replacement: unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Battery Level Indication

When the light is switched on, the battery level indicator inside the side switch will light up to display the battery status; the indicator will stay on for 3 seconds before it goes off.

• Green light on: saturated.
• Green light flashes: sufficient.
• Red light on: poor.
• Red light flashes: critical.

Note: this only works with Fenix ARB-L21 Series 21700 rechargeable Li-ion battery.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the indicator in the middle of the functional side switch will flash red to remind you to recharge or replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely. This only works with Fenix ARB-L21 Series 21700 rechargeable Li-ion battery.

Intelligent Protection

The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down by a few lumens to reduce temperature. When the temperature is reduced, the output will gradually return to the initial level.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends only using quality battery with proper built-in protections.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• The included battery needs to be charged when it is near depletion. Please immediately charge the battery when it is depleted without concern of affecting the Li-ion battery. It has no memory effect.
• Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare (included) when damaged.
• Periodic cleaning of the battery contacts improves the lamp's performance, as dirty contacts may cause the lamp to flicker, shine intermittently, or even fail to illuminate for the following reasons — A: The battery needs replacing. Solution: Replace battery (ensure battery is inserted according to the manufacturer's specifications). B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact Fenix Store support through live chat (the chat button on any page of fenix-store.com) or at support@fenix-store.com.

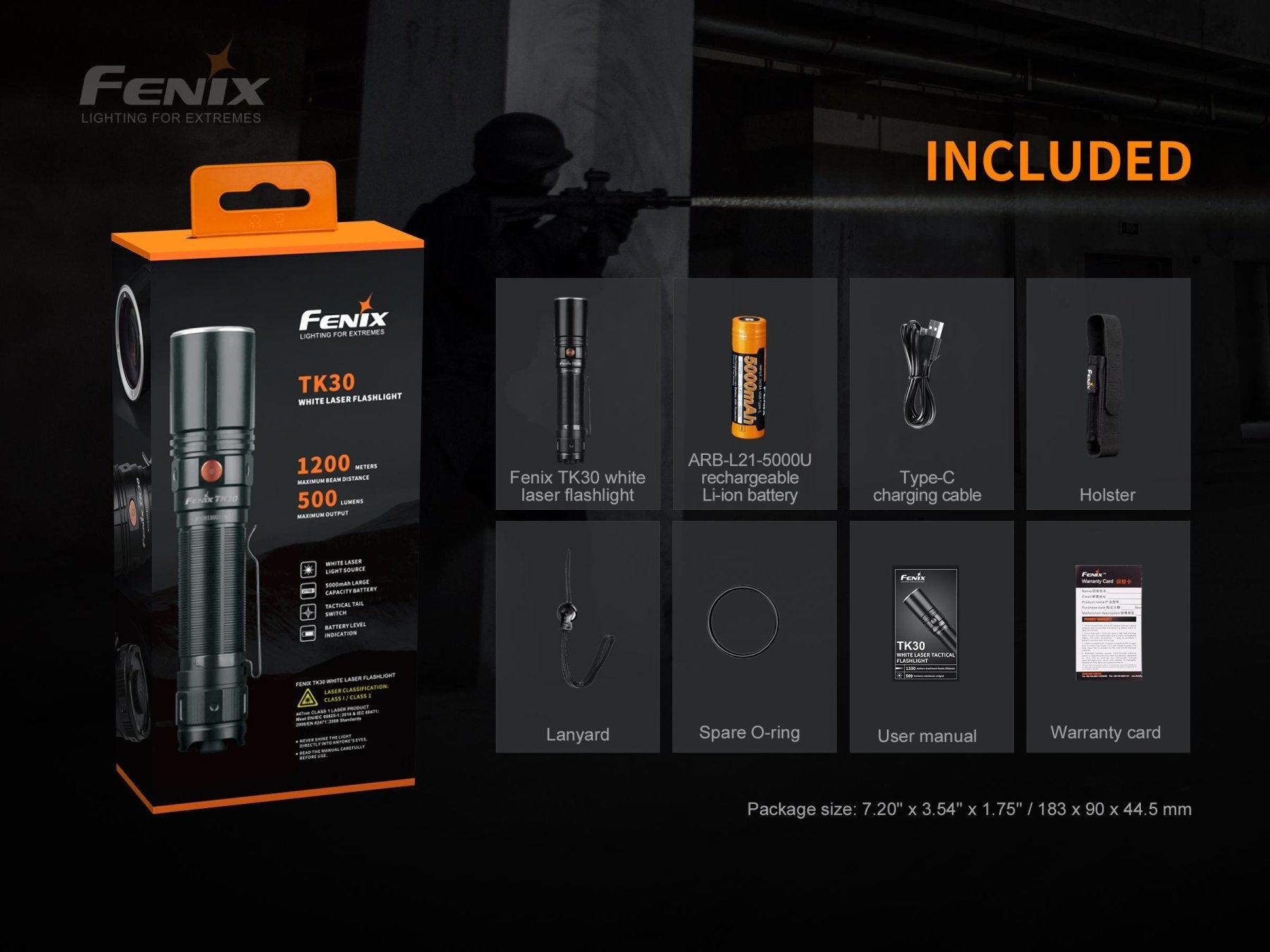

What's Included

Fenix TK30 white laser flashlight, ARB-L21-5000U rechargeable Li-ion battery, USB Type-C charging cable, Lanyard, Holster, Spare O-ring, User manual, Warranty card.
