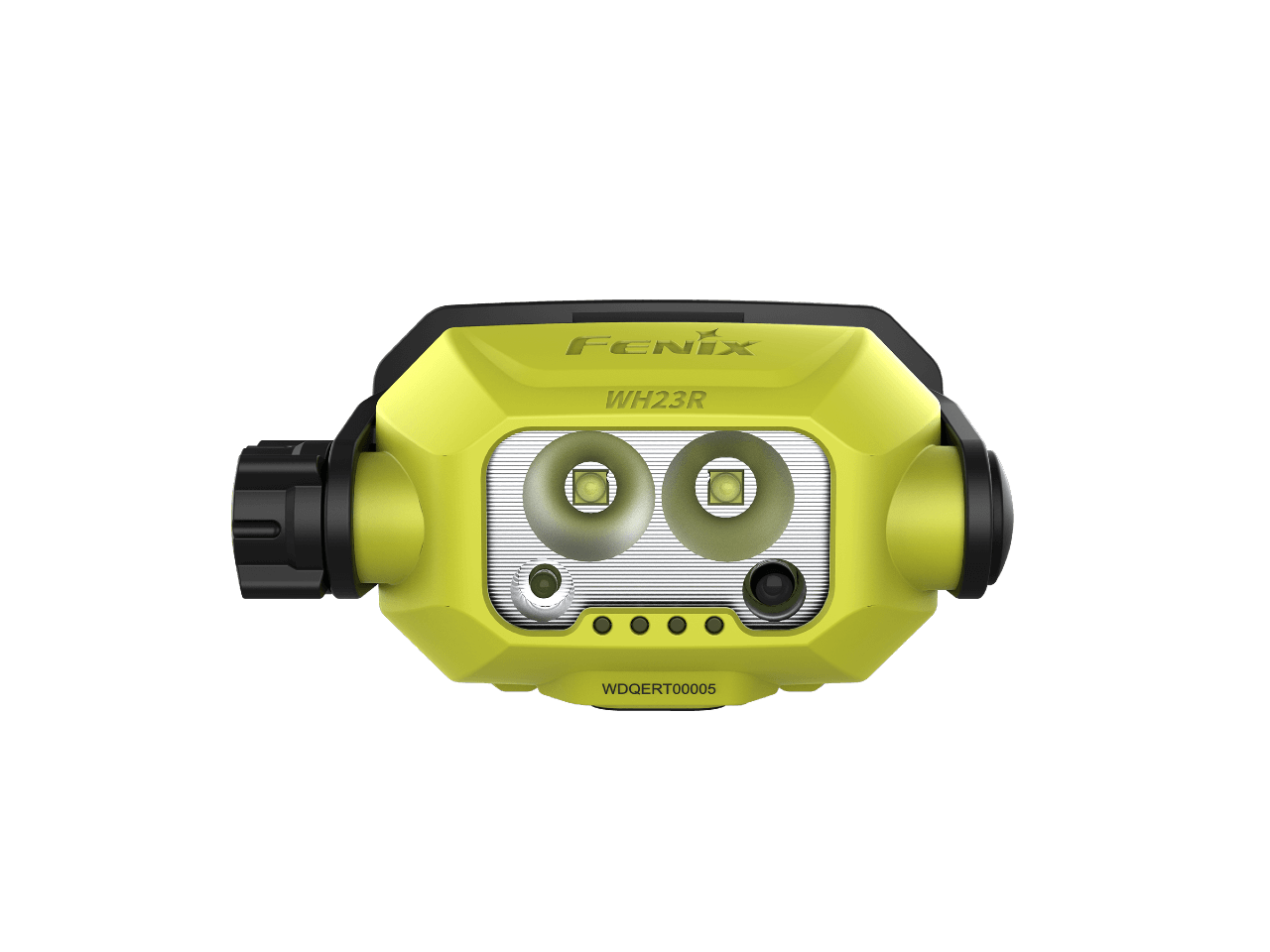

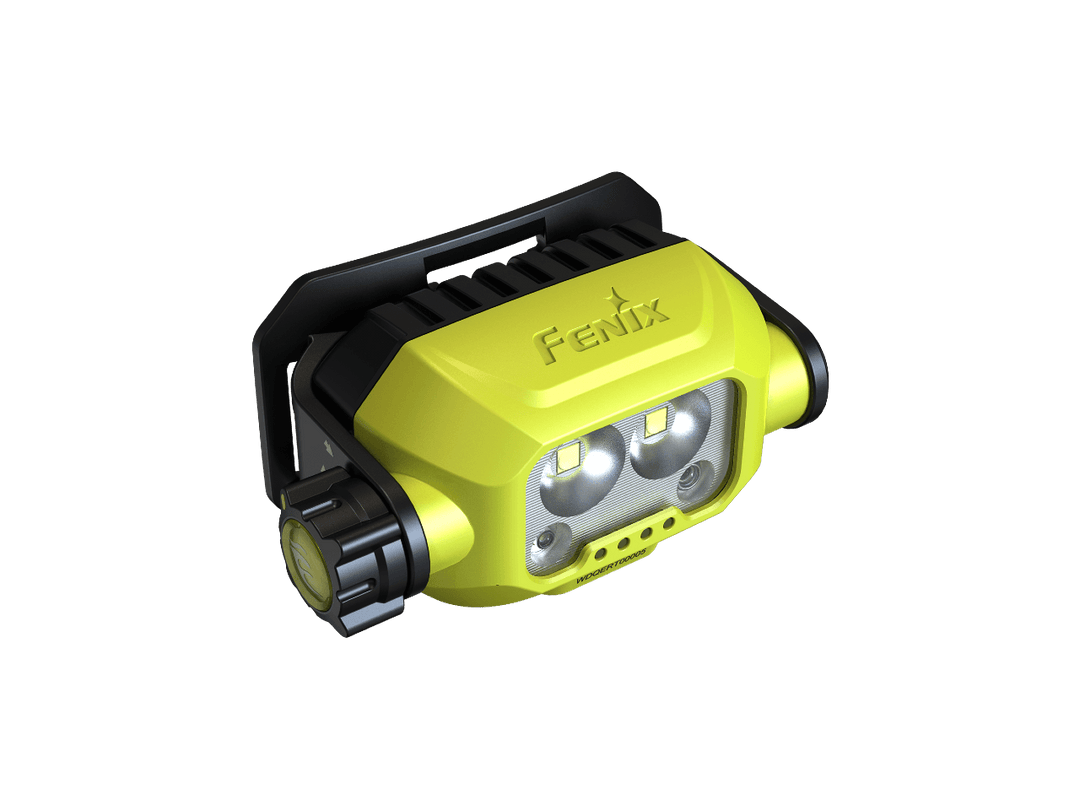

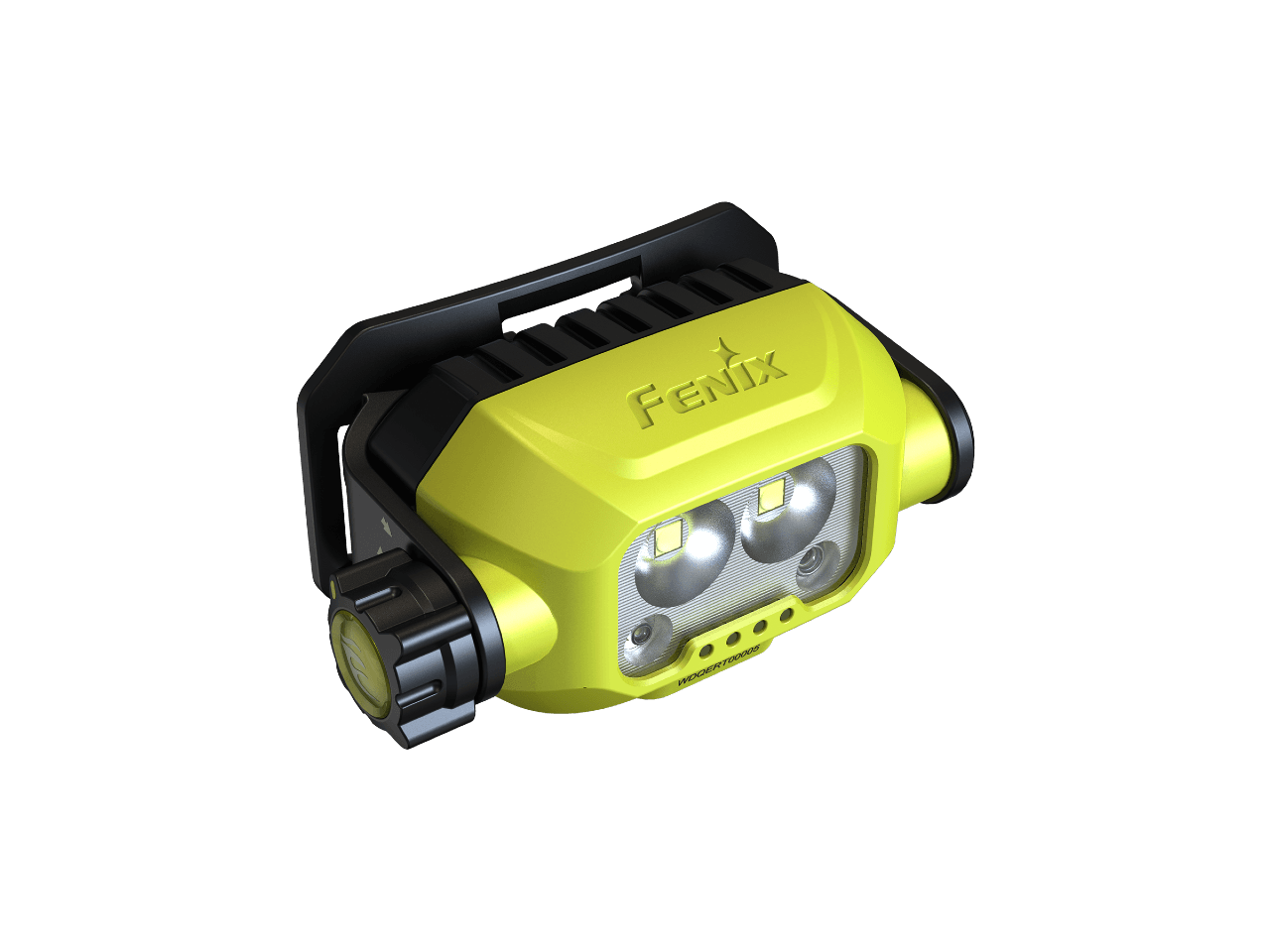

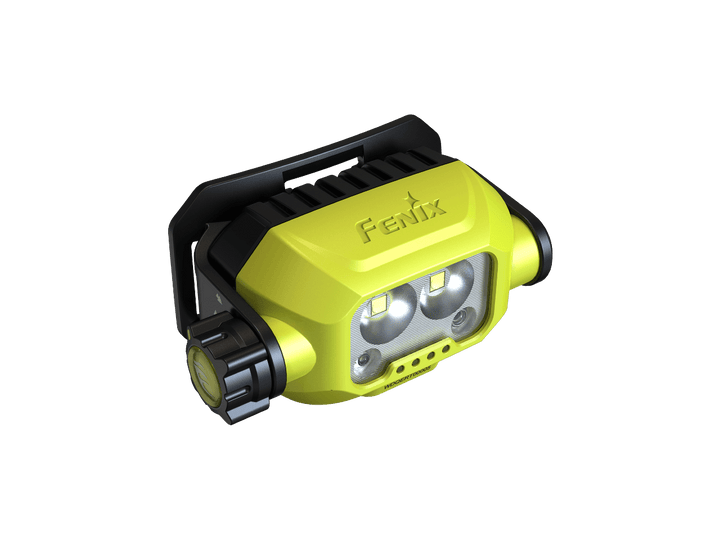

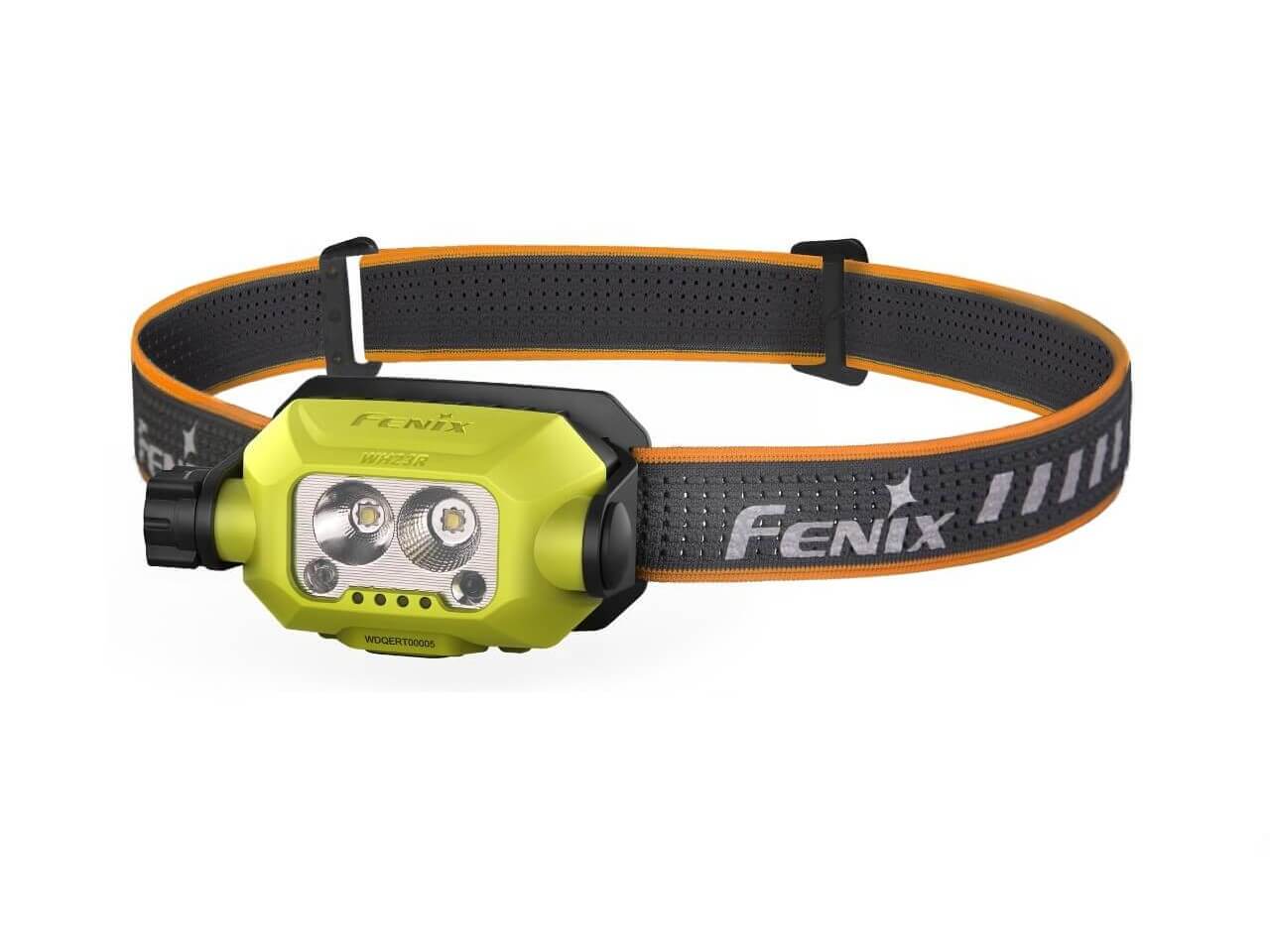

Fenix WH23R Gesture Sensing Industrial LED Headlamp

Outputs

• Both LEDs
• Spot and Flood: 600 Lumens, 3.83 hours, 328 ft
• Spotlight
• High: 300 Lumens, 6.33 hours, 276 ft
• Med: 120 Lumens, 9.5 hours, 174 ft
• Low: 30 Lumens, 35.92 hours, 85 ft
• Floodlight
• High: 300 Lumens, 6.32 hours, 115 ft
• Med: 70 Lumens, 15.58 hours, 56 ft
• Low: 5 Lumens, 150 hours, 16 ft

Details

• Uses two Lumileds LEDs with a lifespan of 50,000 hours
• IP66 Waterproofing: fully protected from heavy rain and water jets
• Hands-free on/off with gesture-sensing technology * The sensing range is 10cm in front of the headlamp
• Easy to operate, glove-friendly rotary switch
• 2 lighting modes with 3 outputs each, plus combo option
• Directly rechargeable via USB-C charging port
• 2000mAh battery included
• Battery level indicator

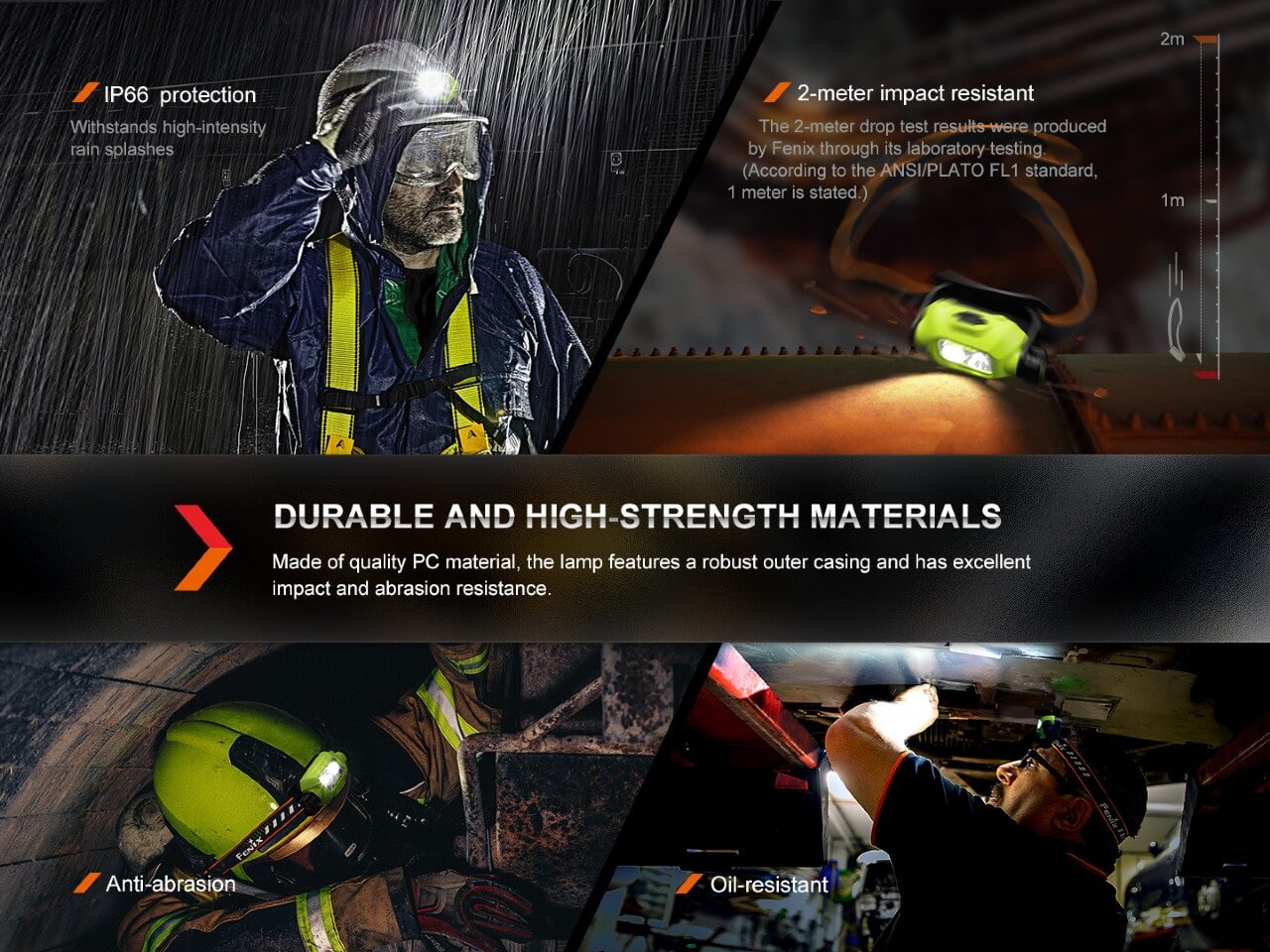

• 2-meter impact resistant
• Oil resistant
• 60° headlamp tilt offering up to 160° wide field of vision

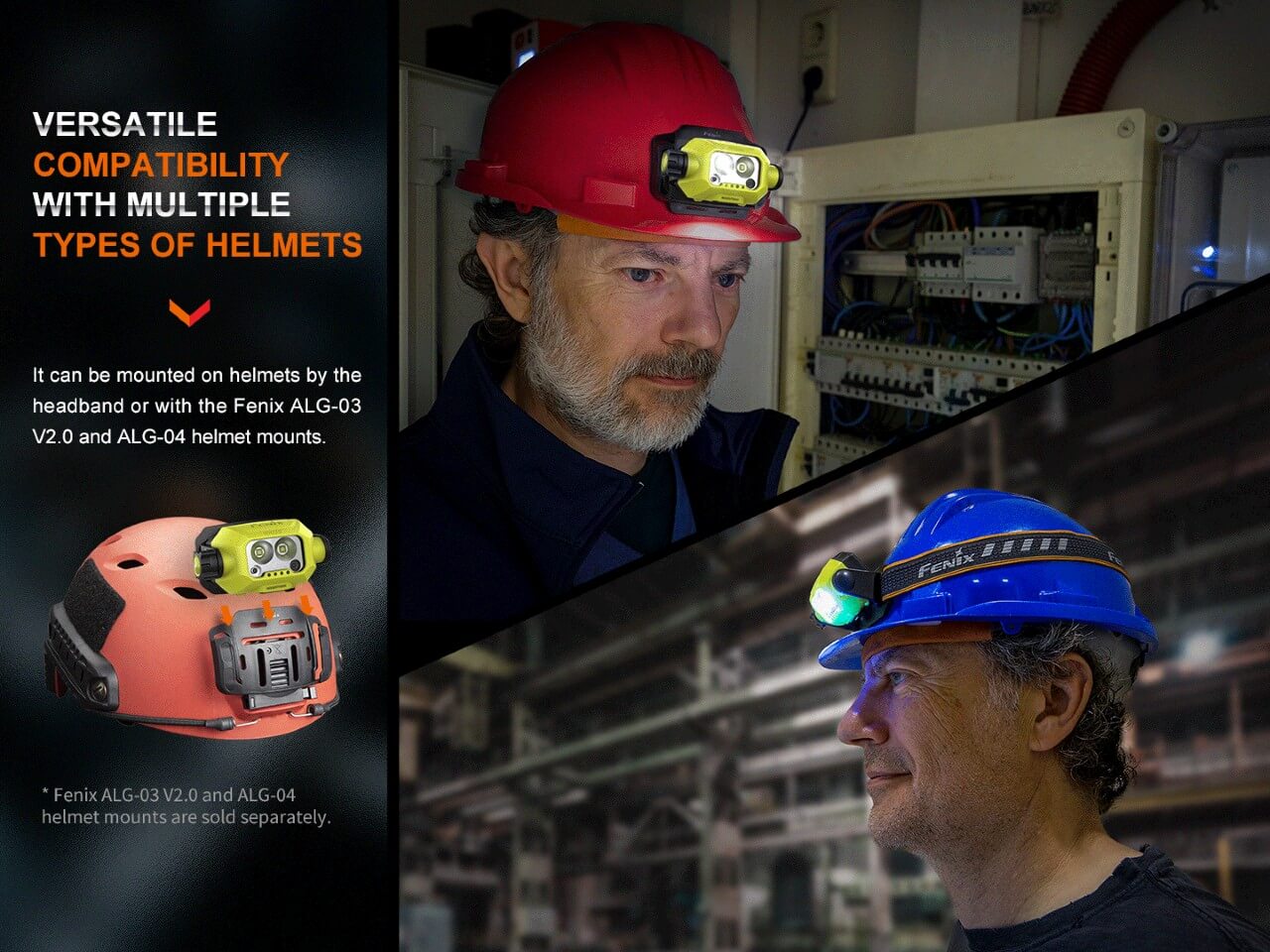

• Compatible with a variety of helmets
• Compatible with Fenix ALG-03 V2 and ALG-04 helmet mounts

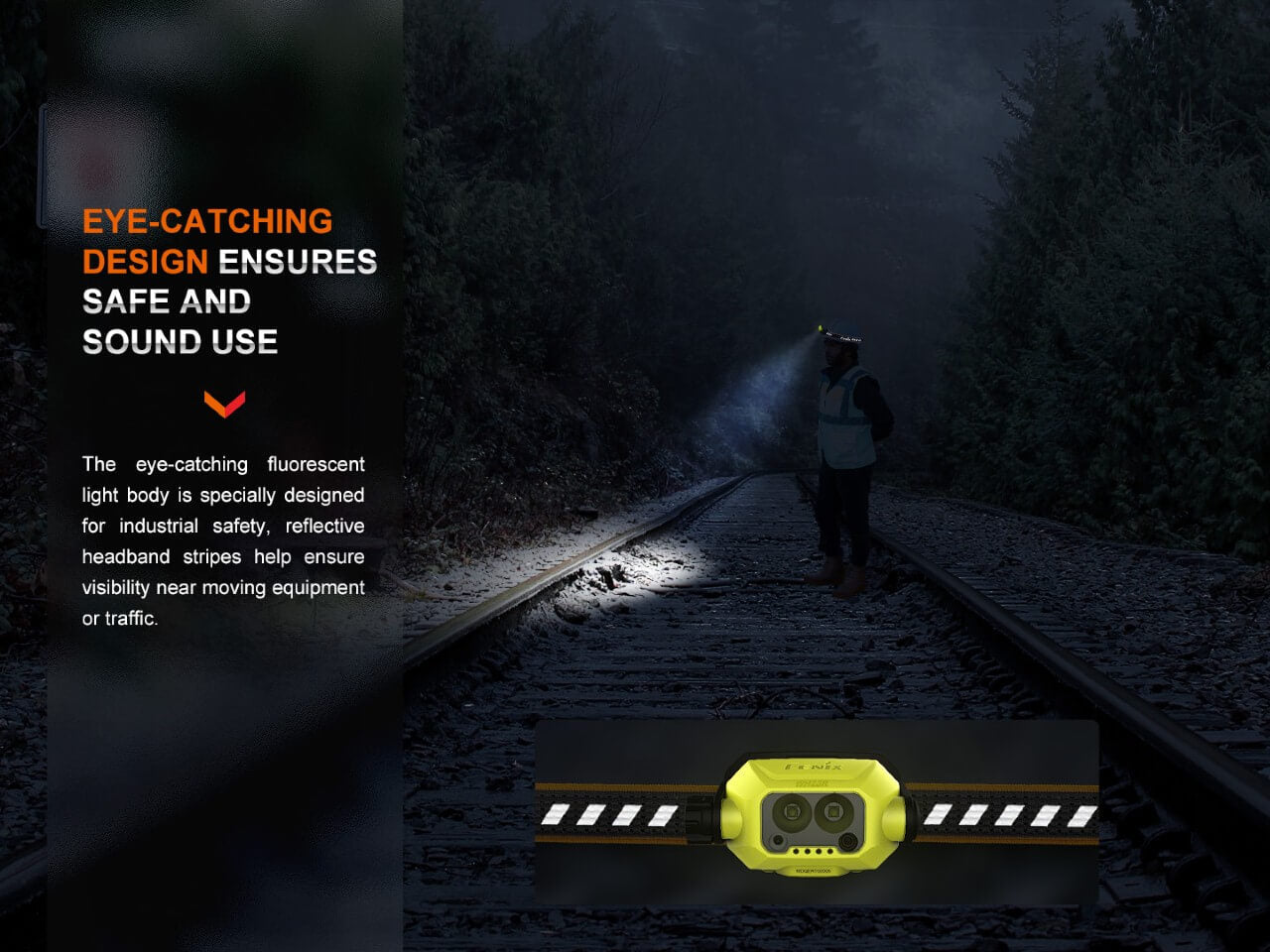

• Fluorescent body designed for industrial safety
• Reflective stripes on headband for maximum visibility

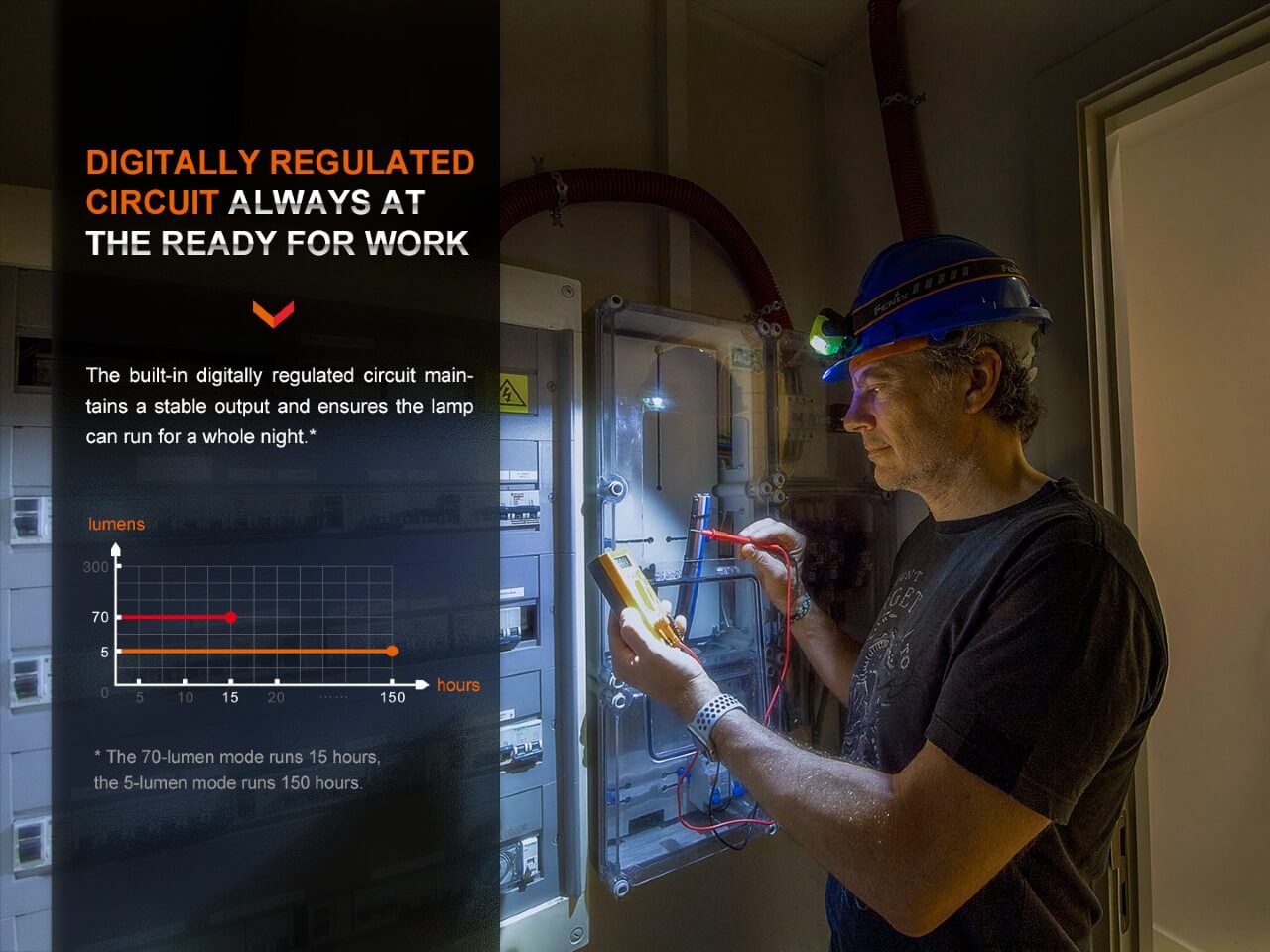

• Digitally regulated output prevents dimming

Batteries

• Built-in: 2000mAh rechargeable battery pack

Size

• Length: 3.4 inches
• Width: 1.72 inches
• Height: 1.77 inches
• Weight: 4.06 oz

What kind of LED is used in WH23R?

The WH23R uses two Lumileds LEDs.

What is the white light color temperature of WH23R?

The color temperature is around 6000K.

What is the working voltage of WH23R?

Working voltage: 2.85V to 4.2V, and the limit working voltage range is 2.4V to 4.35V.

Is WH23R rechargeable? How long is the charging time?

Yes, WH23R is rechargeable with a USB Type-C port. The normal charging time is approximately 1.5 hours from depletion to full charging.
When charging, the charging indicators will flash from left to right to display the charging status. The four indicators will be constant-on after charging is complete.

Why does the battery level indicator blink during use?

It indicates a poor battery level. When the minimum voltage is less than 3.0V with the light switched on, the battery level indicator will remind by blinking.

What kind of battery can be used in WH23R?

The WH23R is built in with a 2000 mAh Li-Polymer battery pack.

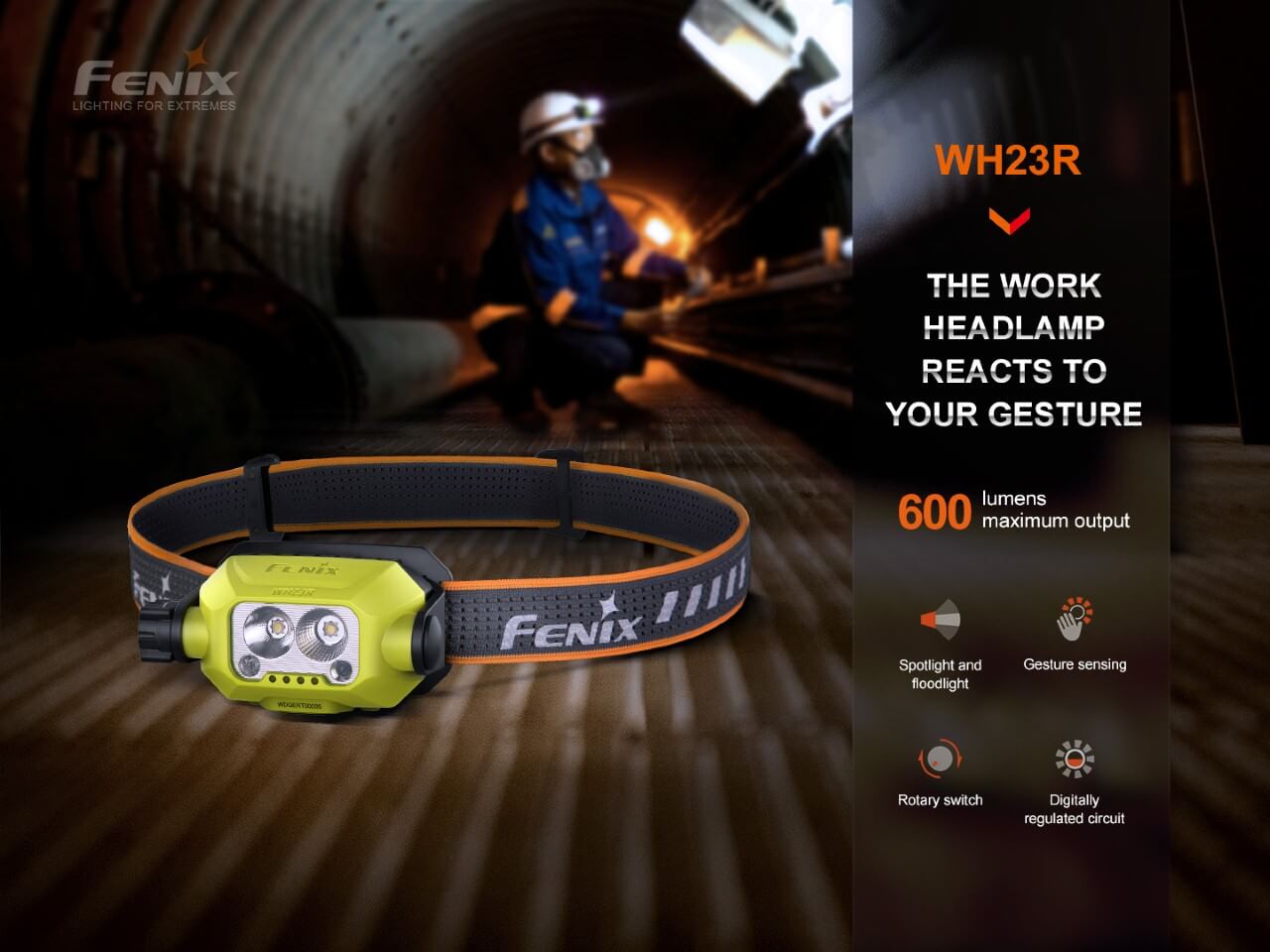

The Fenix WH23R is a smart-induction industrial headlamp with 600 lumens max output and 100 meters max beam distance. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Key Features

• 600 lumens maximum output, 100 meters maximum beam distance.
• Two Lumileds LEDs with a lifespan of 50,000 hours.
• Built-in 3.7V/2000mAh Li-polymer battery pack.

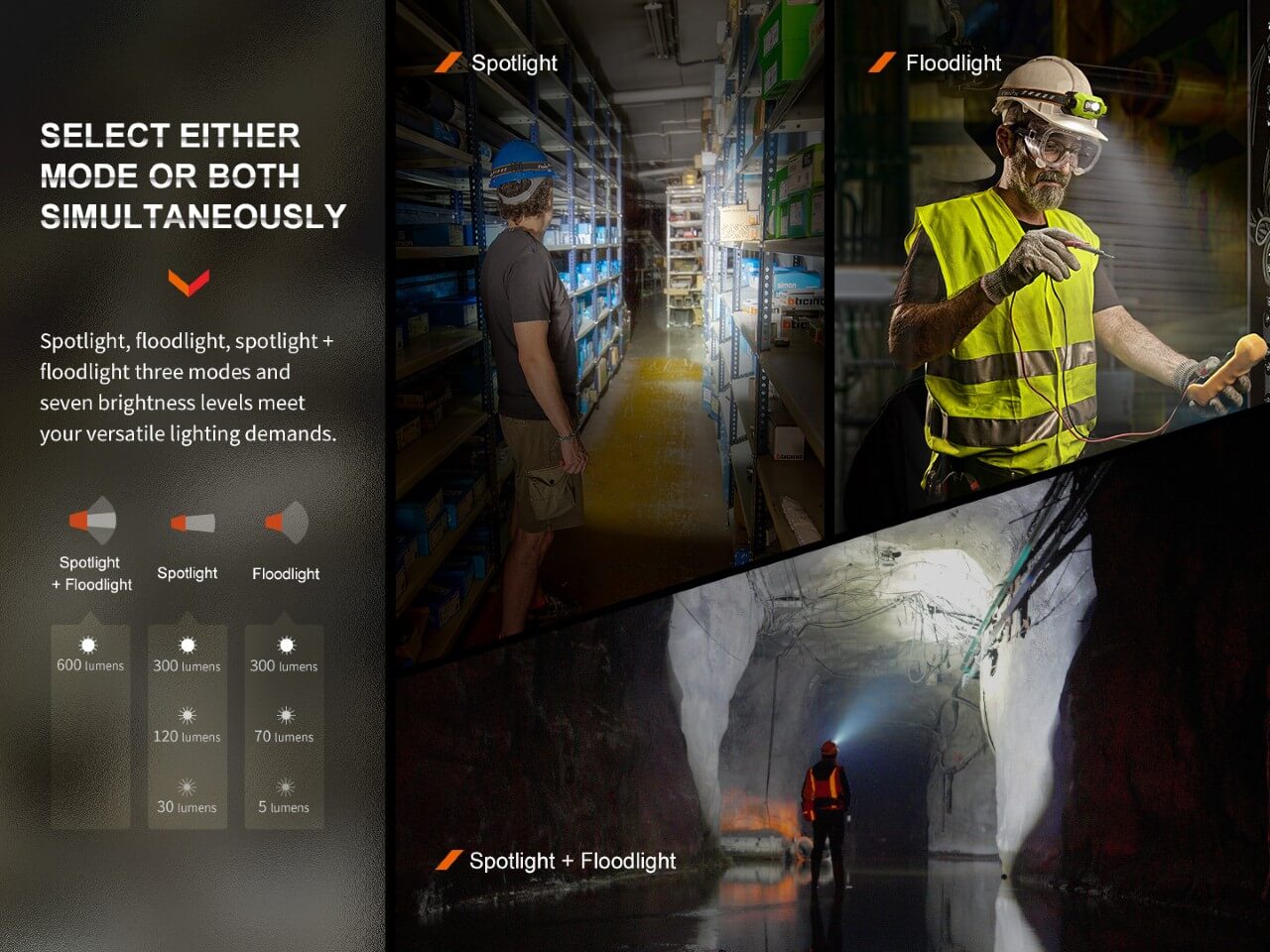

• Spotlight, floodlight, and combined light with both modes simultaneously turned on.
• Gesture sensing function — the headlamp can be turned on or off with a wave of the hand.

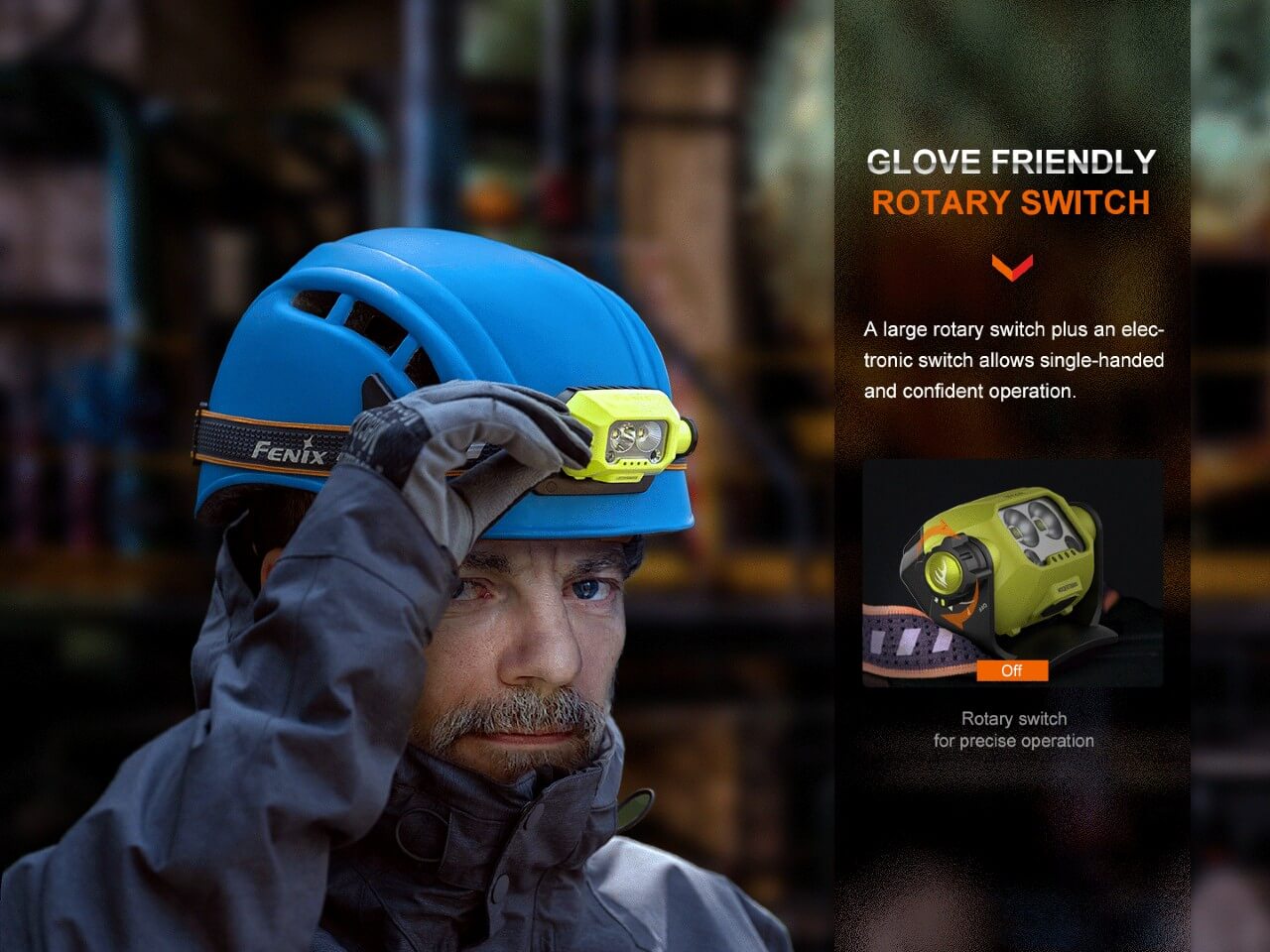

• Combined rotary switch can be rapidly and precisely operated even with gloved fingers.

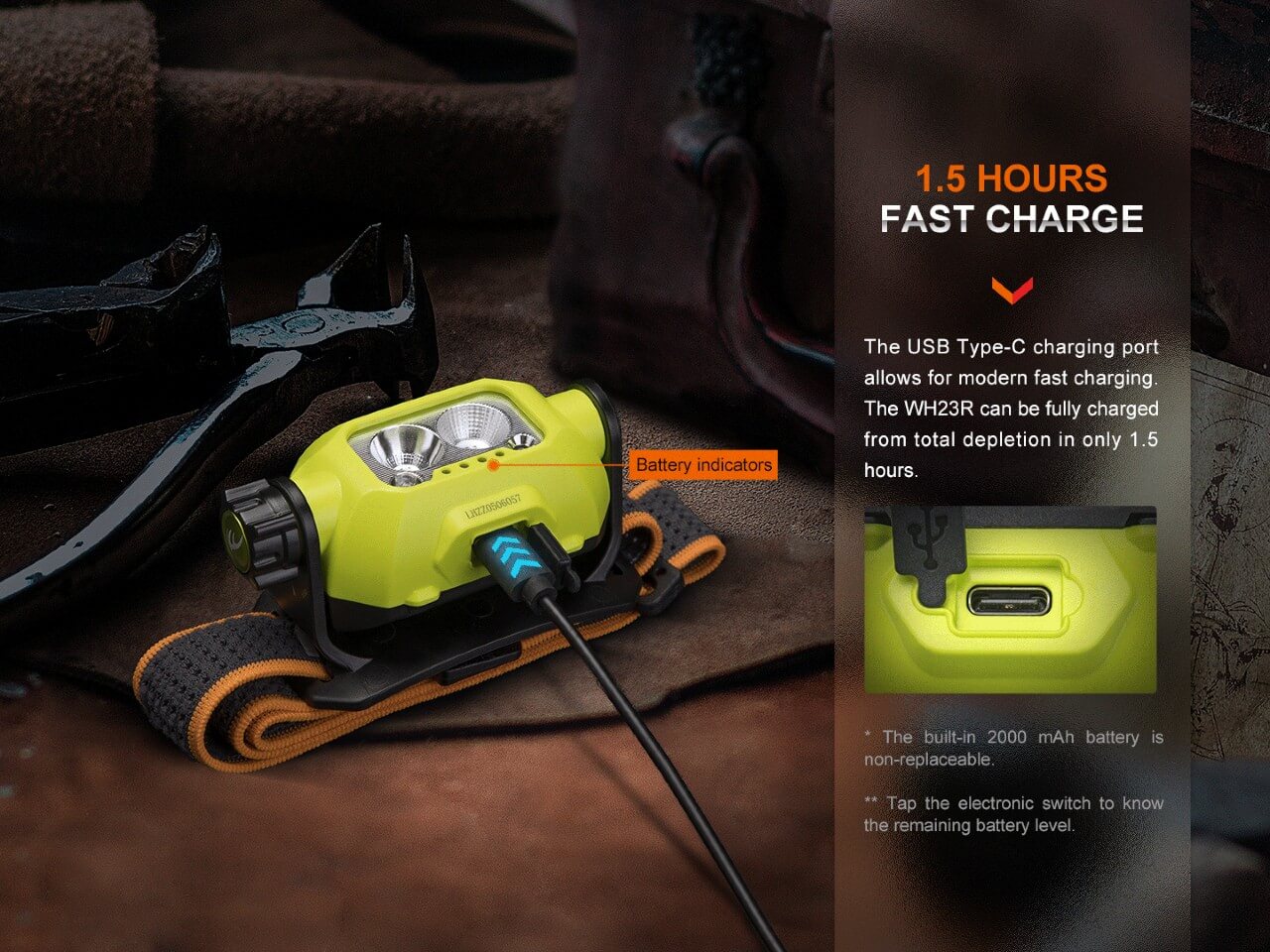

• USB Type-C charging, 1.5 hours for full charging.
• Made of quality PC material, impact-resistant and corrosion-resistant.
• Size: 3.40" x 1.77" x 1.72" / 86.45 x 45 x 43.72 mm.
• Weight: 4.06 oz / 115 g (including battery).

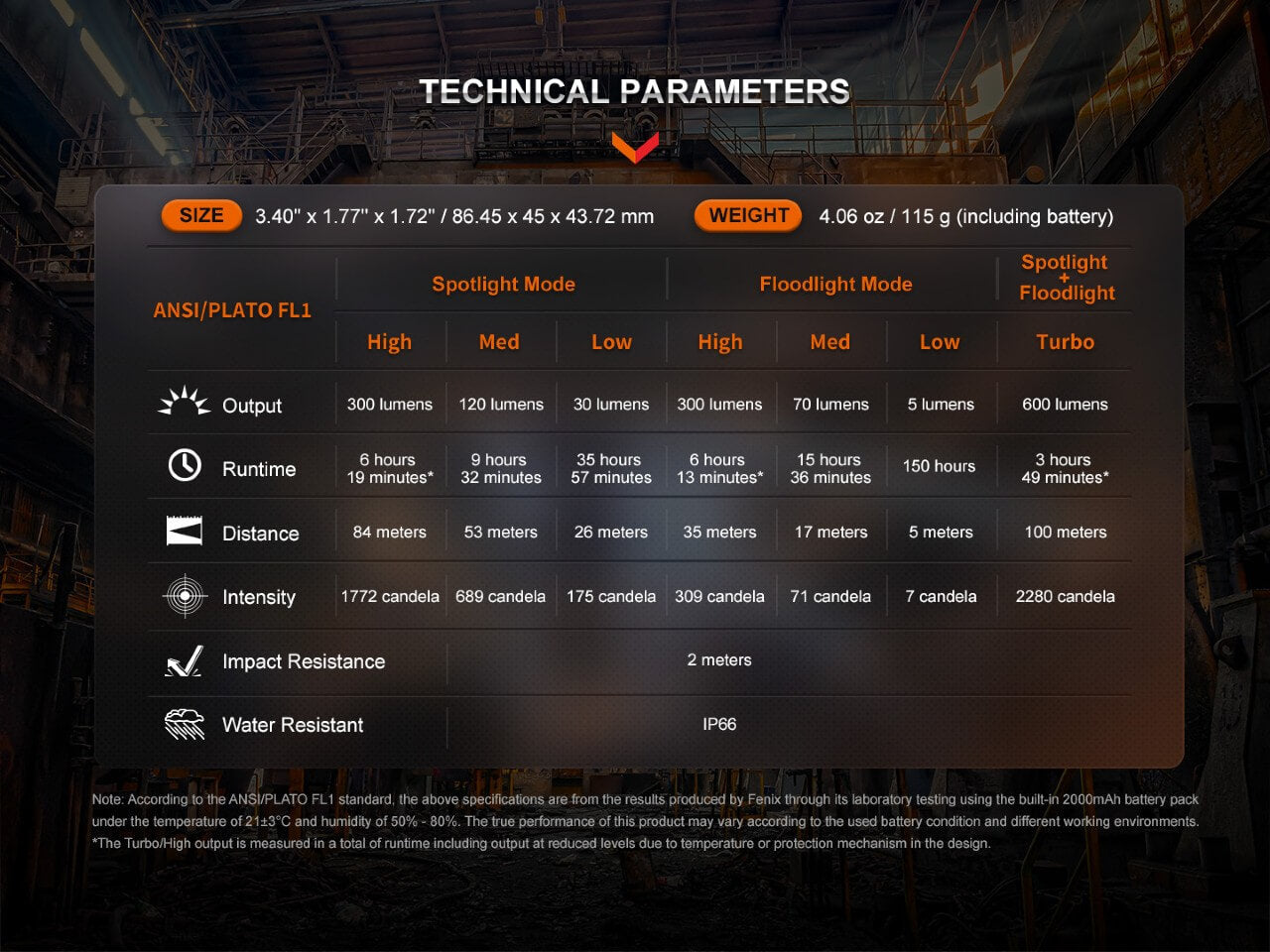

Technical Parameters (ANSI/PLATO FL1)

• Spotlight — High: 300 lumens, 6h 19min*, 84 m, 1772 cd
• Spotlight — Med: 120 lumens, 9h 32min, 53 m, 689 cd
• Spotlight — Low: 30 lumens, 35h 57min, 26 m, 175 cd
• Floodlight — High: 300 lumens, 6h 19min*, 35 m, 309 cd
• Floodlight — Med: 70 lumens, 15h 36min, 17 m, 71 cd
• Floodlight — Low: 5 lumens, 150 hours, 5 m, 7 cd
• Spotlight + Floodlight — Turbo: 600 lumens, 3h 49min*, 100 m, 2280 cd

Impact Resistance: 2 meters. Water Resistant: IP66. *Runtime is measured including reduced output from thermal step-down. Tested per the ANSI/PLATO FL1 standard using the built-in 2000mAh Li-polymer battery pack at 21±3°C / 50–80% humidity; real-world performance may vary.

Warnings

• Do place this headlamp out of the reach of children.
• Do NOT shine the headlamp directly into the eyes of anyone.
• Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature.
• Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the headlamp or internal battery fails.
• This headlamp will accumulate a lot of heat while working, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the headlamp or remove the battery from the headlamp to prevent accidental activation when the headlamp is placed in a closed and flammable environment such as pockets and backpacks.
• The LED of this headlamp is not replaceable; so the whole headlamp should be replaced when the LED reaches the end of its life.

Operating Instructions

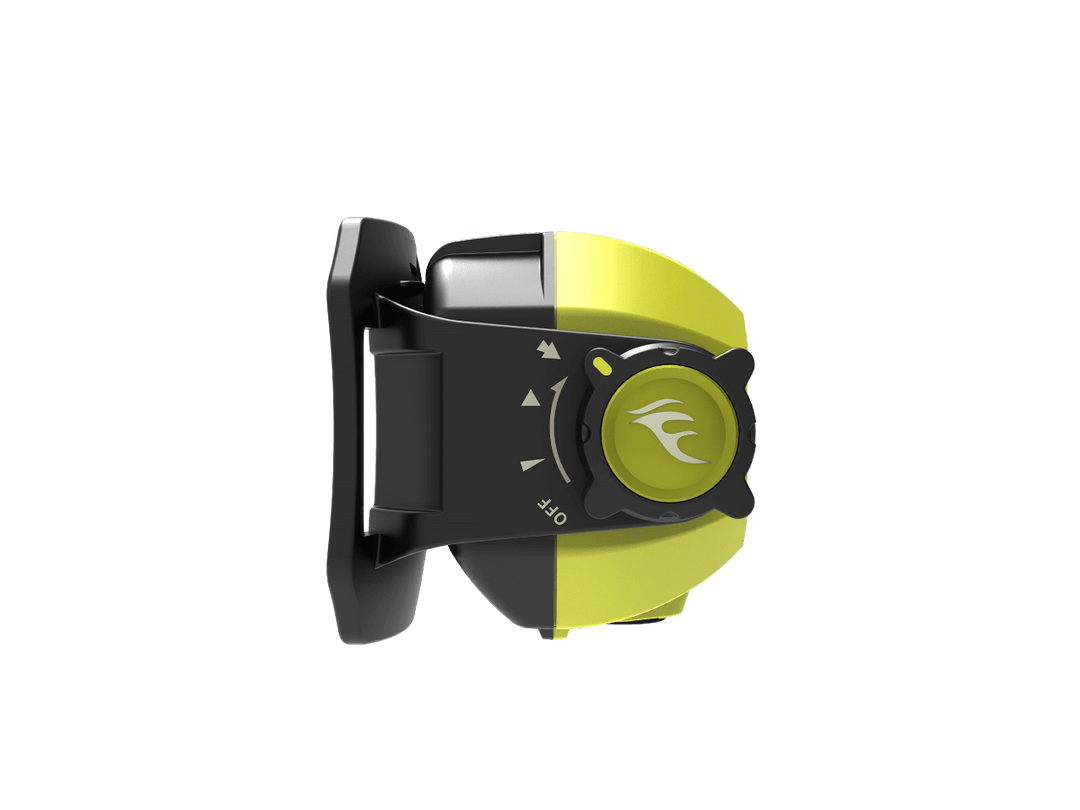

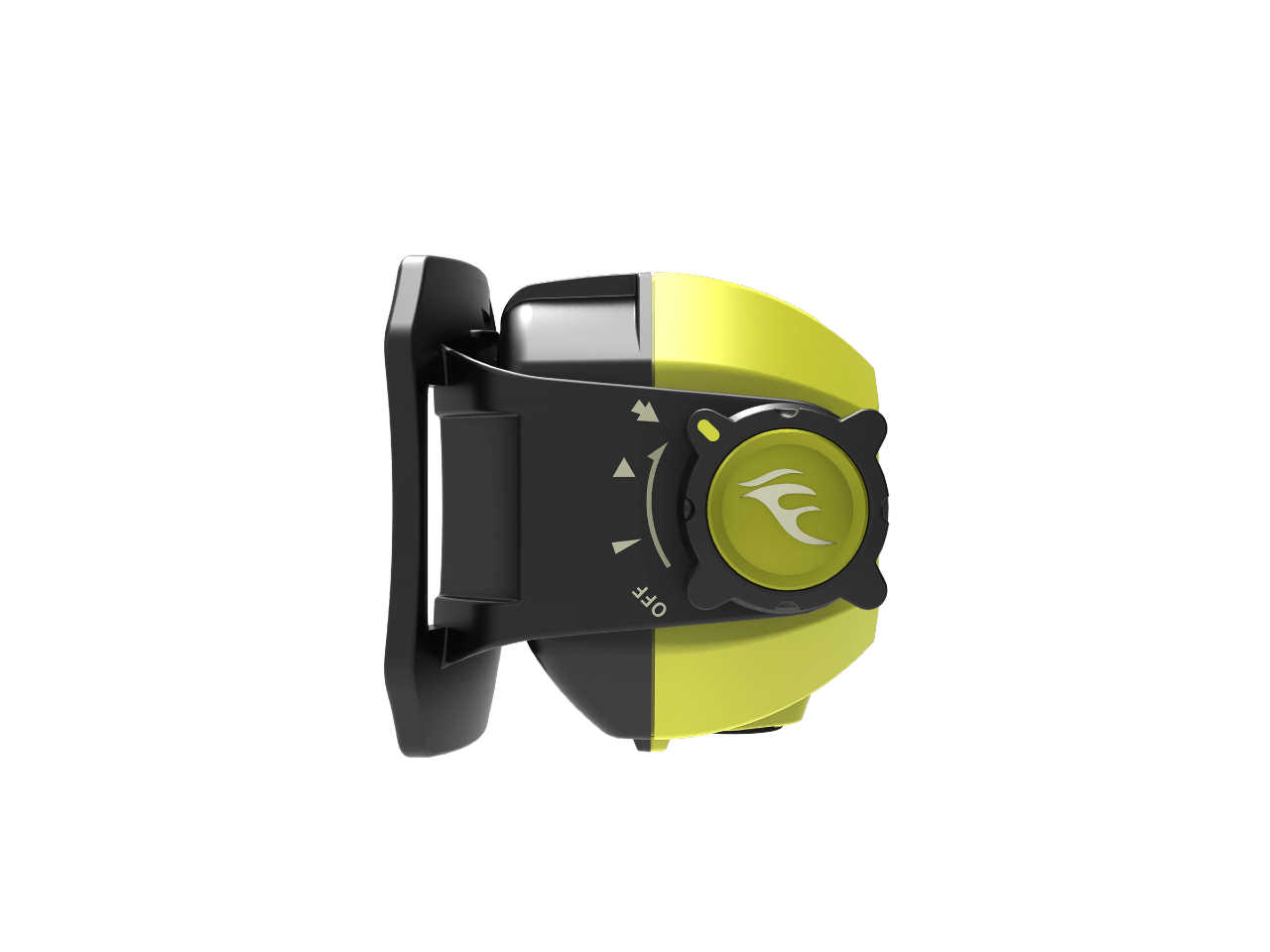

Switches: On the right side of the headlamp, there are rotary and electronic switches.

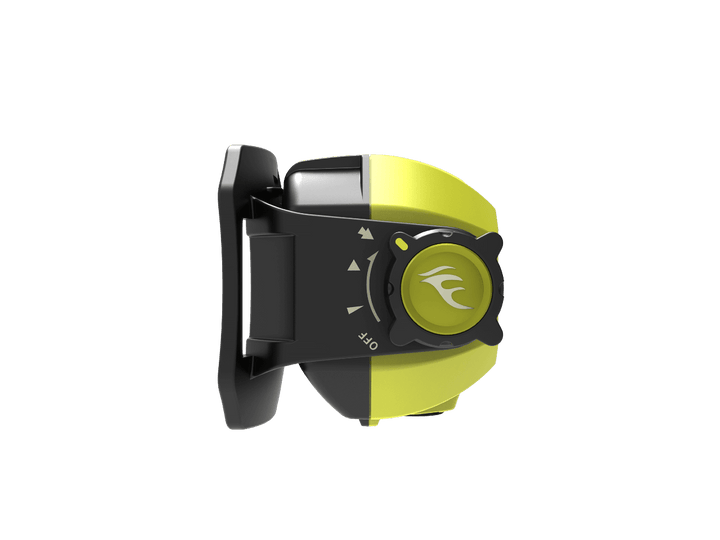

On/Off: Rotate the rotary switch clockwise to turn on the headlamp. Rotate the rotary switch counterclockwise to the OFF logo to turn off the headlamp.

Mode Switching: Rotate the rotary switch to the corresponding logo to activate the desired mode of spotlight, floodlight, or combined light mode.

Output Selection: In Spotlight mode, single click the electronic switch to cycle through Spotlight Low → Spotlight Med → Spotlight High. In Floodlight mode, single click the electronic switch to cycle through Floodlight Low → Floodlight Med → Floodlight High. When the combined light mode is activated, there is Turbo mode ONLY.

Intelligent Memory Circuit: The headlamp memorizes the last selected output on spotlight and floodlight modes. When turned on again, the previously used output will be recalled.

Gesture Sensing Function

A blue intelligent sensing function indicator is designed on the left side of the headlamp to indicate the on/off status of the sensing function; when the intelligent sensing function is not required, this function can be turned off by manual operation.

Sensing Function On/Off: The lamp memorizes the last selected on- or off-state sensing function, when turned on again the previously used on- or off-state will be recalled. With the lamp switched on, press and hold the electronic switch for 1.2 seconds, the lamp will flash 8 times at Turbo mode, and the blue sensing function indicator light will turn off at the same time, indicating that the sensing function has been turned off; press and hold the electronic switch again for 1.2 seconds, the lamp will flash at Turbo mode 2 times, and the blue sensing function indicator light is on, indicating that the sensing function is turned on.

Sensing Light On/Off: In the power-on state, when the sensing function is on (the blue sensing function indicator is on), wave your hand within the sensing range in front of the lamp to temporarily turn off the lamp, and wave your hand again to turn on the lamp. In the power-on state, if the sensing function is turned off (the blue sensing function indicator is off), it will not respond to any motion operation.

• The sensing range is within about 10cm in front of the lamp, and may vary slightly depending on the material and color of the sensing object, the ambient light, the brightness of the selected mode, and the waving speed.

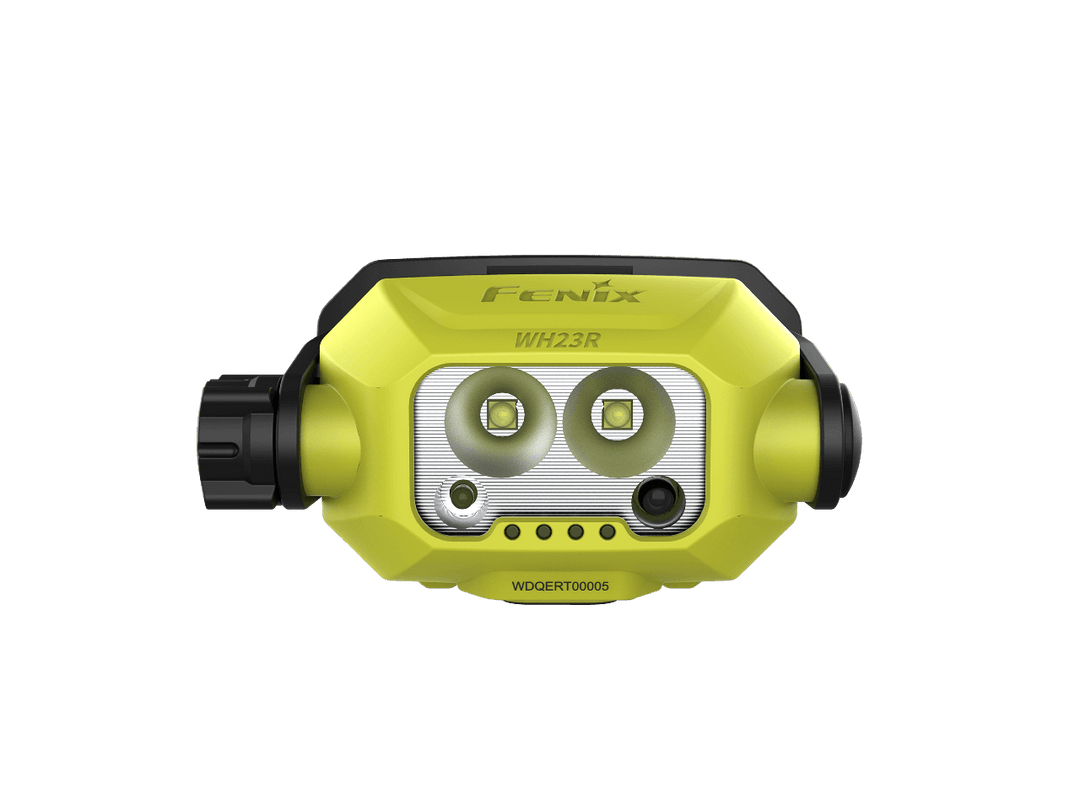

• The sensing function is infrared sensing. There is an infrared emitter module and an infrared receiver module in the front of the lamp. Within the sensing range, turning on or off the lamp by waving a hand, but if there are other objects in front of the lamp within the sensing range, the lamp will also be turned on or off.
• The sensing function can only control the light on and off under the current lighting mode, and will not change the brightness level.
• When the sensing function is turned on, the headlamp is temporarily turned off. At this time, the headlamp is in a standby state, and the power will be consumed for a long time.

Charging

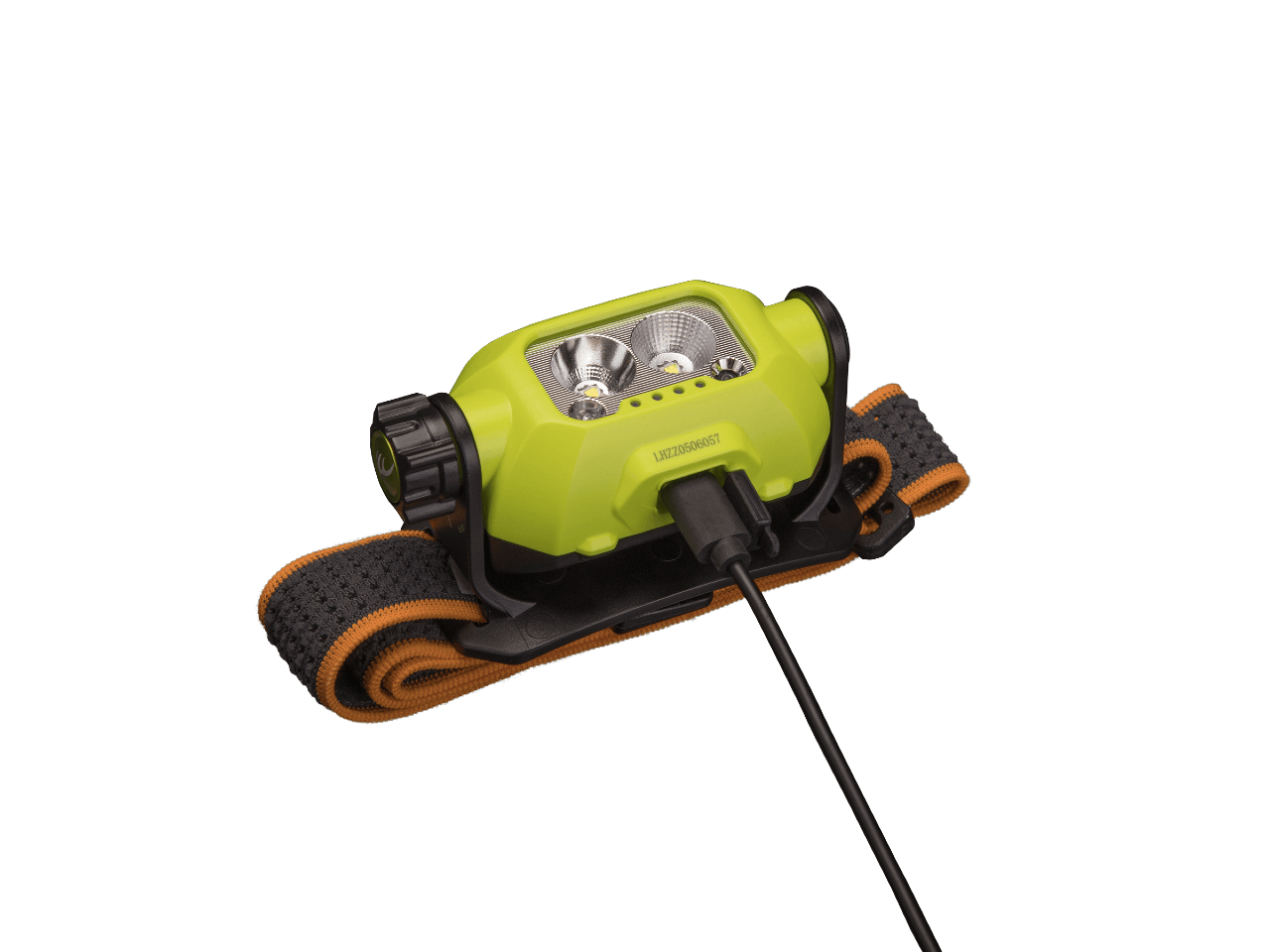

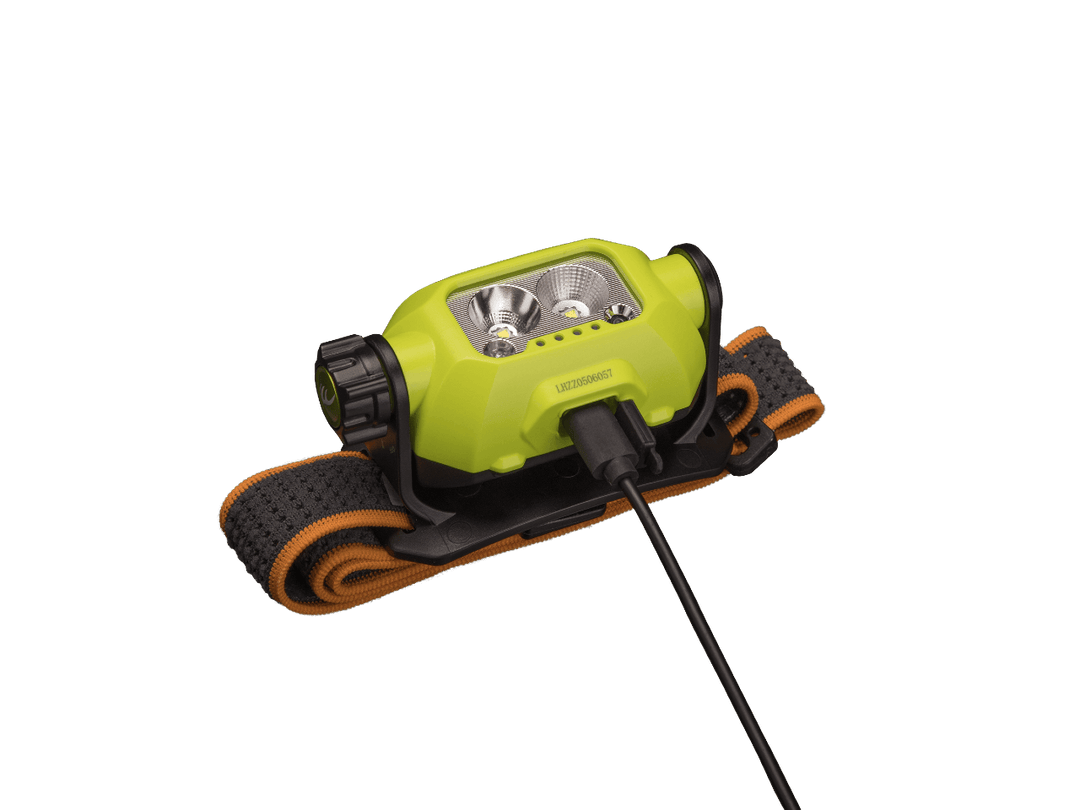

• Switch off the lamp, uncover the cap and plug the USB Type-C side of the charging cable into the charging port of the lamp, and the other side into an electrical outlet.
• When charging, the charging indicators will flash from left to right to display charging status. The four indicators will be constant-on after charging is complete.
• The normal charging time is approximately 1.5 hours from depletion to full charging.
• When charging is complete, replace the anti-dust cap to ensure the waterproof and dustproof ability.

Note: When charging, the Low mode can be used, but charging time will be prolonged. Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.

Battery Level Indication

With the lamp switched off, single click the electronic switch to check the battery status, the indicators will last for 3 seconds.

• Four blue constant on: 100% - 80%
• Three blue constant on: 80% - 60%
• Two blue constant on: 60% - 40%
• One blue constant on: 40% - 20%
• One blue flashes: critical 20% - 1%

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high modes for extended periods. When the lamp reaches a high temperature, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops, it will then allow the user for the reselection of the modes.

Low-Voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the charging indicators blinks blue constantly to remind you to timely recharge the battery.

Headband Assembly

• The headband is factory assembled by default.
• Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the headlamp and will void the warranty.
• Recharge a stored headlamp every four months to maintain optimum performance of the battery.
• The headlamp may flicker, shine intermittently, or even fail to illuminate for the following reasons: A. Poor battery level — Solution: Recharge the battery.
• If the above methods don't work, please contact Fenix Store support through live chat (the chat button on any page of fenix-store.com) or at support@fenix-store.com.

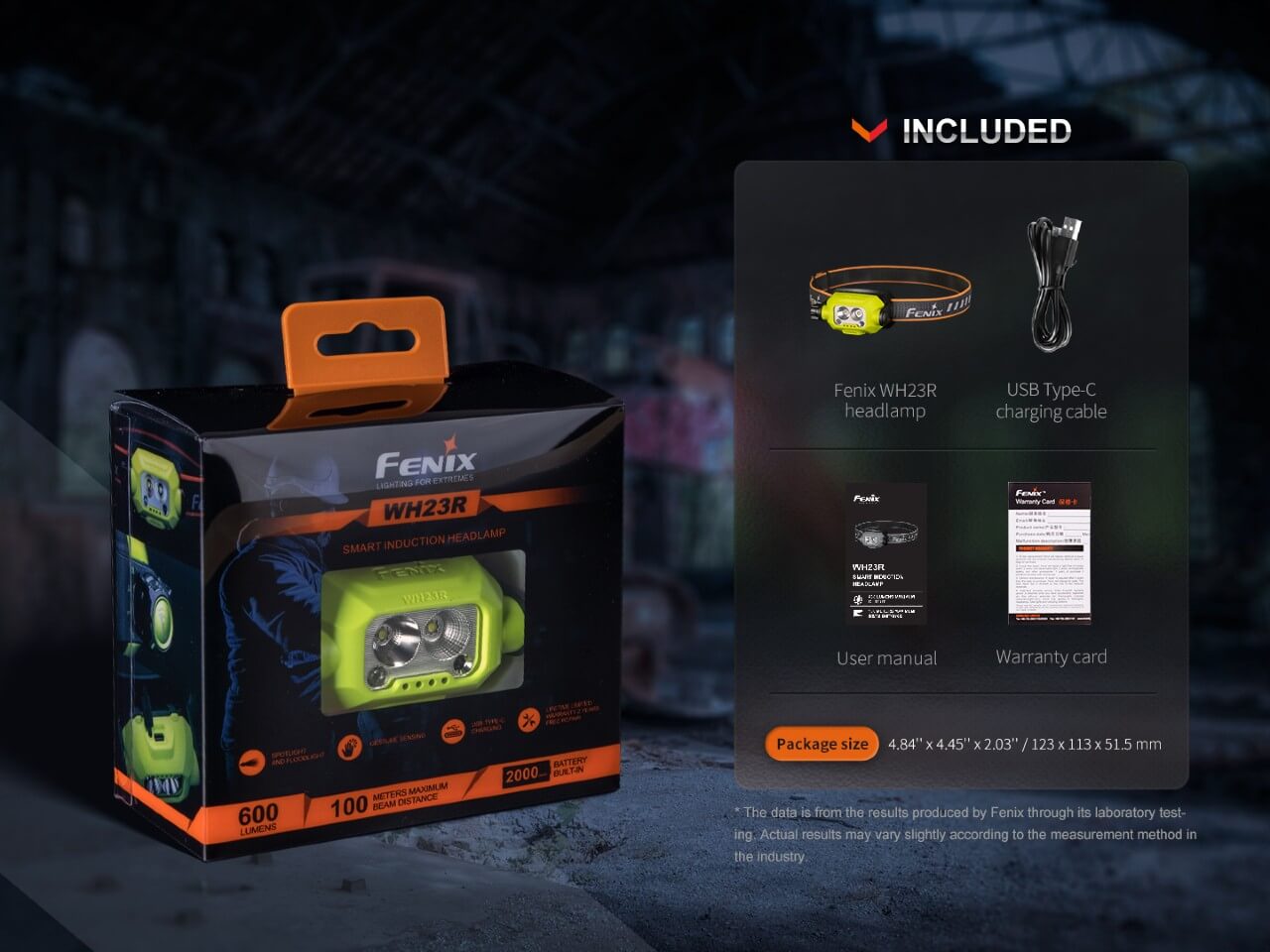

What's Included

• Fenix WH23R headlamp
• USB Type-C charging cable
• User manual
• Warranty card
