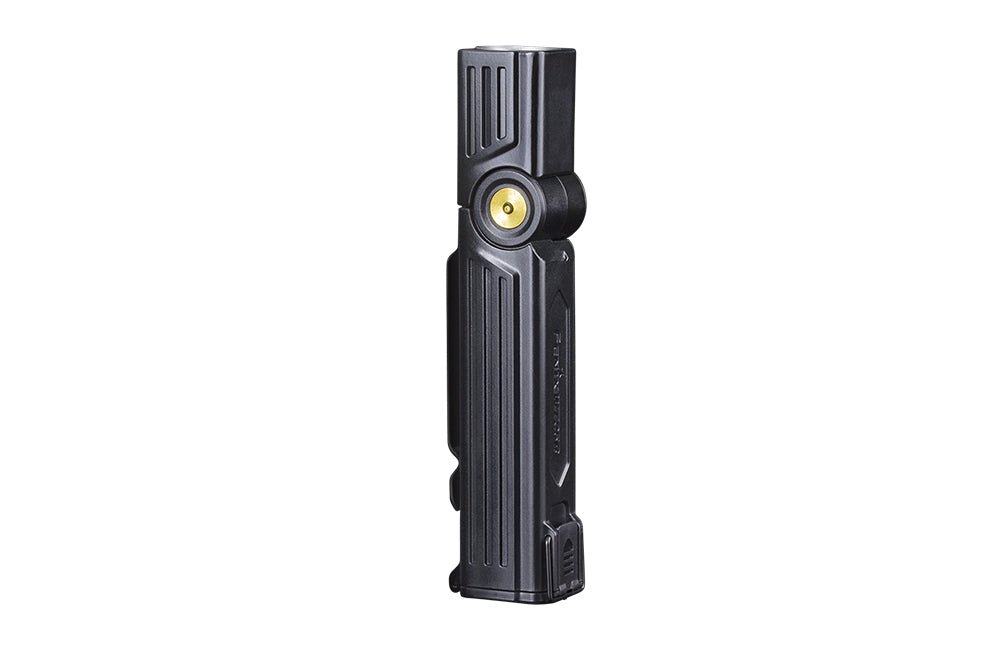

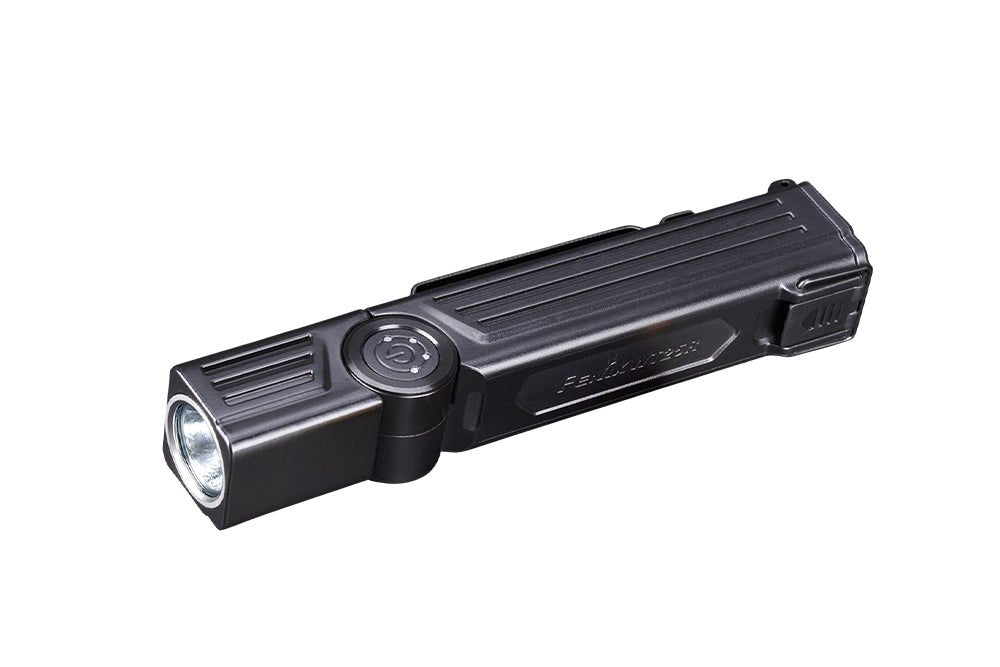

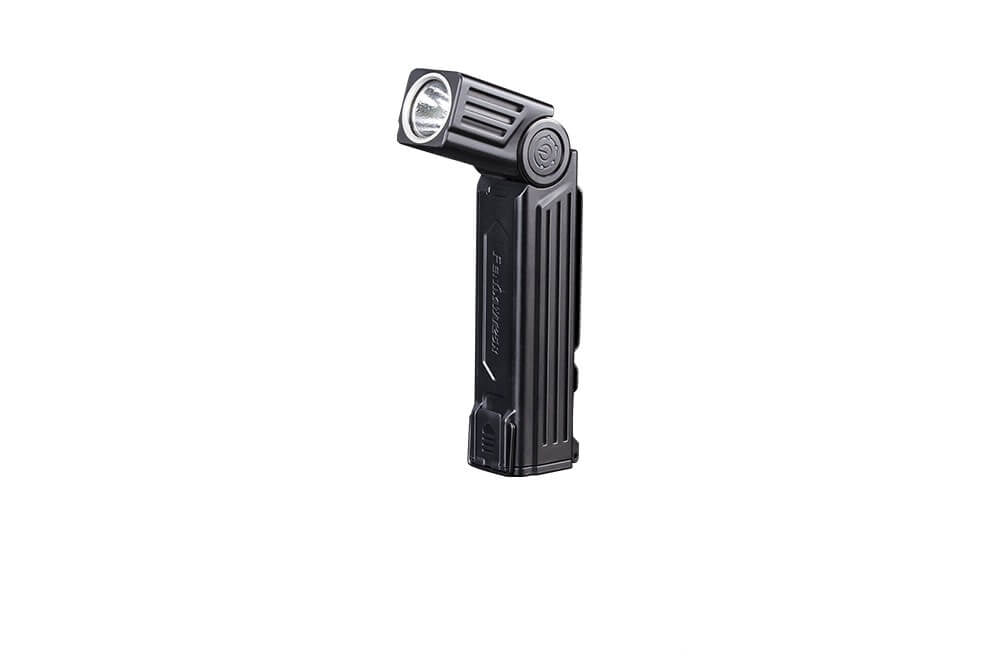

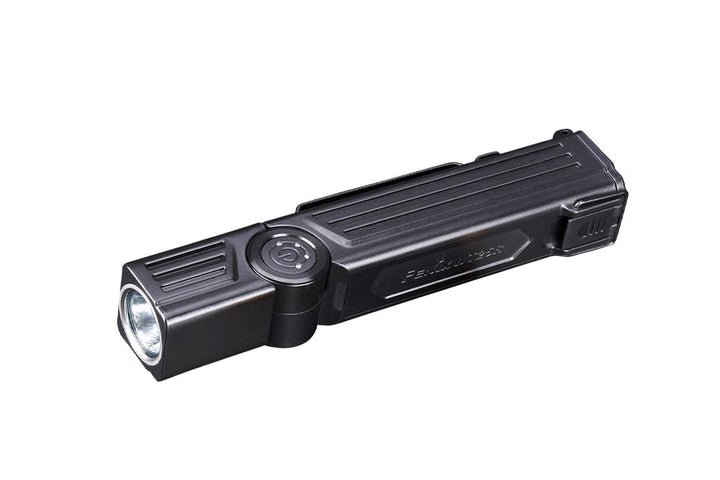

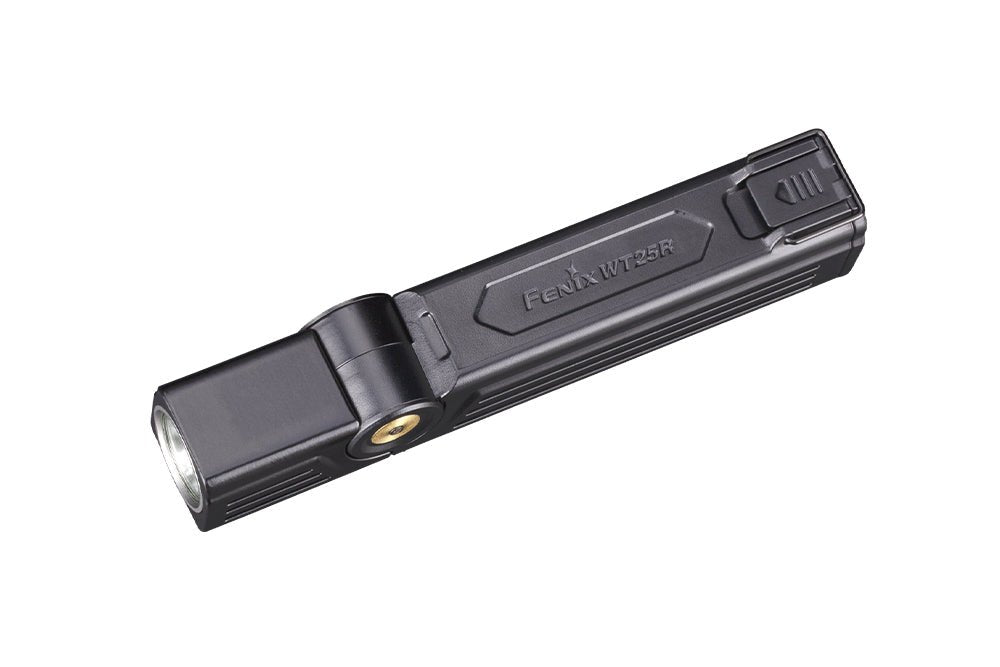

The Fenix WT25R is a rechargeable pivoting work light. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.
Overview
- One Cree XP-L HI LED, with a lifespan of 50,000 hours.
- 1000 lumens maximum output and 220 meters maximum beam distance.

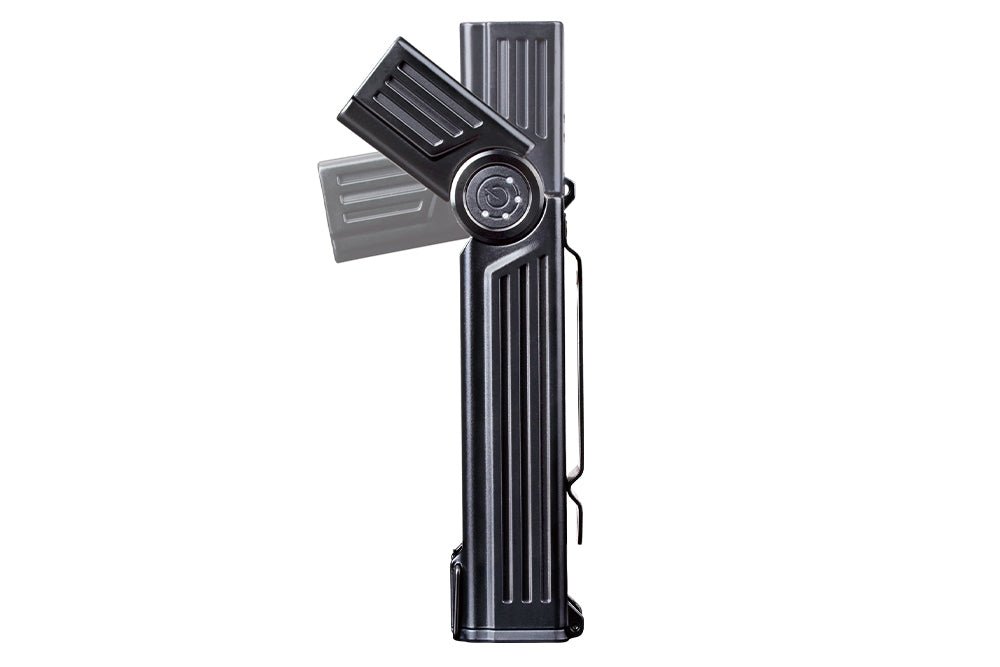

- 105° adjustable head for use at different angles.
- Magnetic tail for hands-free use.
- Magnetic charging with the included magnetic charging cable.

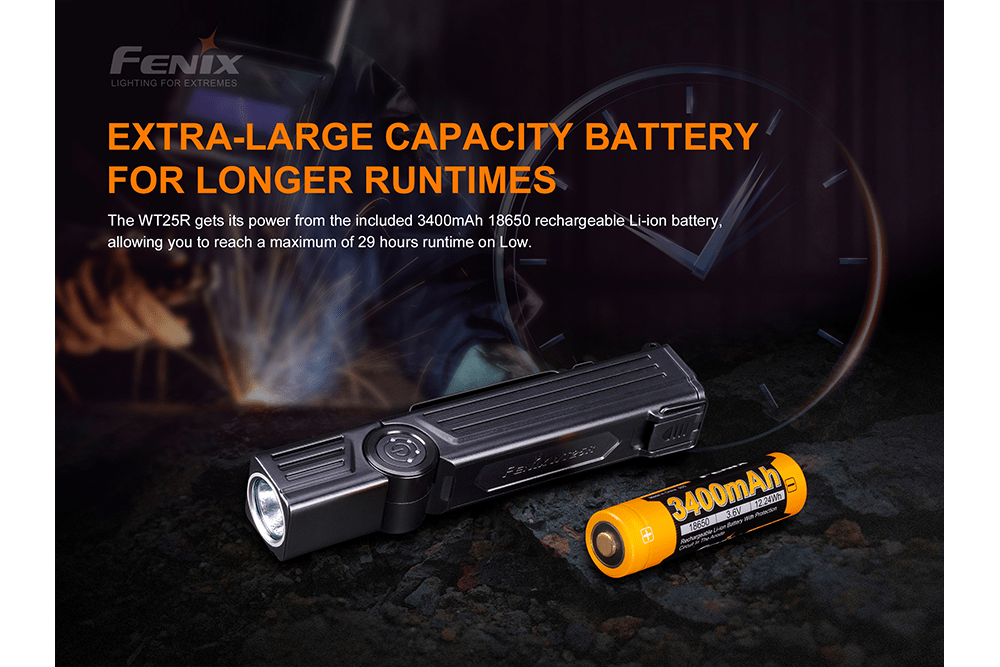

- Includes a 3400mAh 18650 rechargeable Li-ion battery.
- Battery level indication for instant checking of remaining battery level.
- Lockout function avoids accidental activation.
- Intelligent overheat protection against high surface temperature.
- Intelligent memory circuit recalls the last used brightness level.
- Weight: 4.83 oz / 137 g (including battery).
- Size: 5.33" x 1.16" x 0.95" / 135.3 x 29.4 x 24.1 mm.
Operating Instructions
On/Off: With the light switched off, press and hold the switch for 0.5 seconds to turn on the light. With the light switched on, press and hold the switch for 0.5 seconds to turn off the light.
Output Selection: In General mode, single click the switch to cycle through Low → Med → High → Turbo. In Flash mode, single click the switch to cycle through Strobe → SOS.
Mode Switching: In General mode, press and hold the switch for 1.2 seconds to enter Flash mode (Strobe). In Flash mode, press and hold the switch for 1.2 seconds to return to the last used output of General mode.
Lock: With the light unlocked and switched off, double click the switch to lock it — the light will blink twice on Low to indicate the locked status.
Unlock: With the light locked and switched off, double click the switch — the light will be unlocked and activated on Low.
Note: In locked status, clicking or pressing the switch will activate 2 one-second blinks on Low to indicate the locked status.
Intelligent Memory Circuit
The light memorizes the last-selected output of General mode. When turned on again, the previously used output of General mode will be recalled. Flash mode is always entered on Strobe.

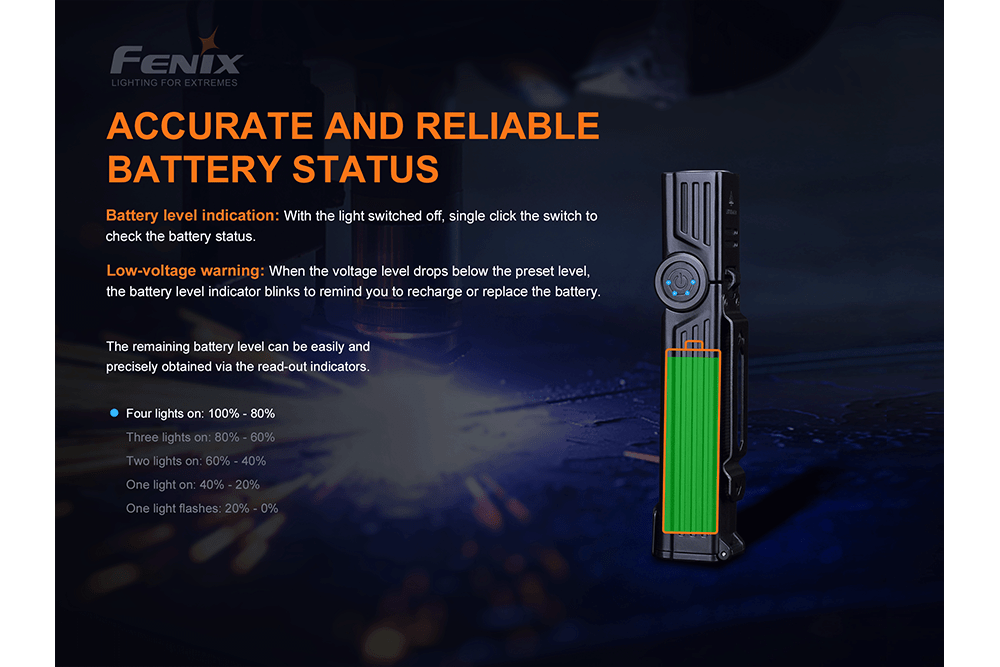

Battery Level Indication
With the light switched off, single click the switch to check the battery status; the indicator will last for 5 seconds.
- Four lights on: 100% - 80%
- Three lights on: 80% - 60%
- Two lights on: 60% - 40%
- One light on: 40% - 20%
- One light flashes: 20% - 0%

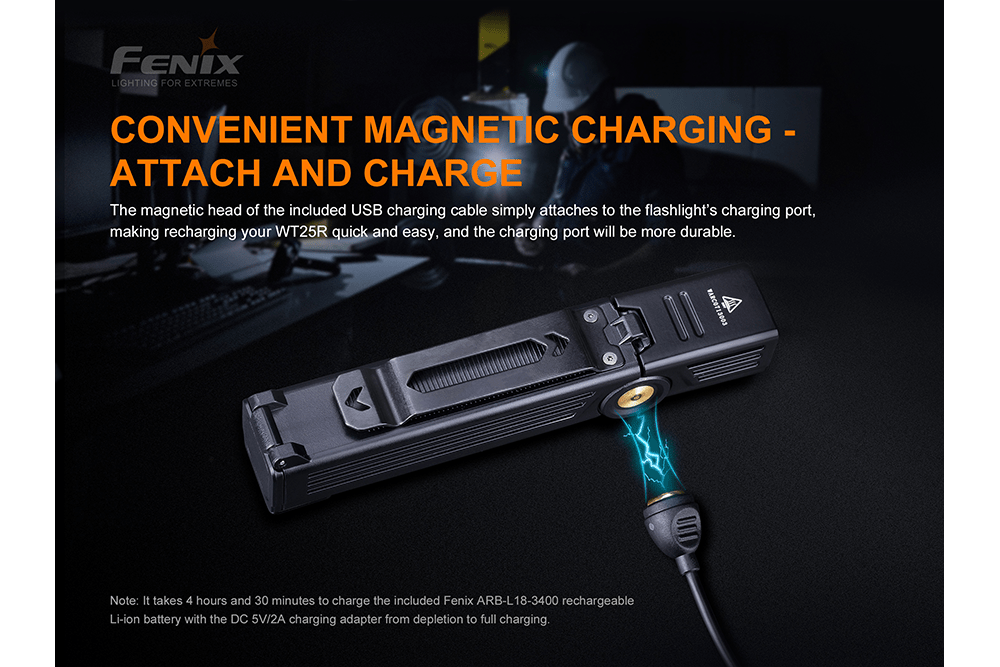

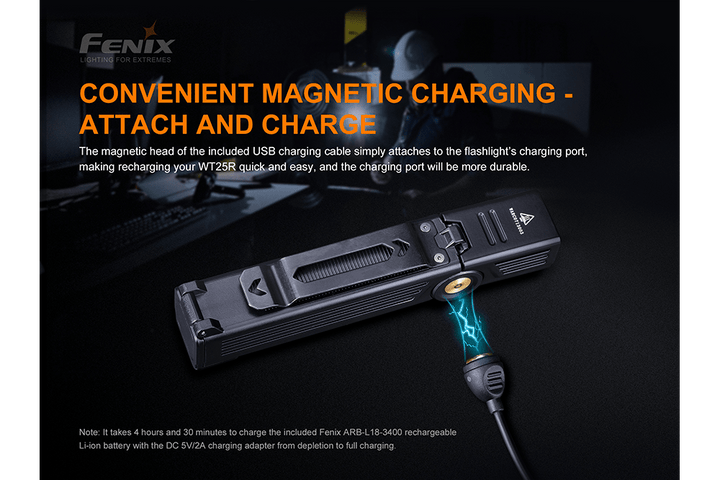

Magnetic Charging
- When charging is needed, connect the USB-A end of the charging cable to a USB power source, then hold the magnetic end of the charging cable close to the flashlight — the cable will attach to the charging port automatically and charging will begin.
- The indicator on the charging cable will light red to show charging status and turn green when charging is completed.
Notes: 1) The normal charging time of the included Fenix ARB-L18-3400 rechargeable Li-ion battery is approximately 4 hours 30 minutes from depleted to fully charged. 2) Recharge a stored light every four months to maintain optimal battery performance.
Battery Specifications
- Fenix ARB-L18 Series, 18650, 3.6V — Recommended.
Warning: 18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only quality batteries with circuit protection will reduce the potential for combustion or explosion; cell damage or short-circuiting are potential risks the user assumes.
Battery Replacement
Loosen the lock catch and open the tail cap to insert the battery with the anode side (+) towards the light head, then close the tail cap and fasten the lock catch.
Intelligent Overheat Protection
The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 60°C or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, the user may reselect Turbo mode.
Low-Voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens at Low output, one of the battery level indicators blinks to remind you to recharge or replace the battery.
Usage and Maintenance
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using an excellent-quality battery.
- If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
- Lock the light or remove the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear; to maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the lamp's performance, since dirty contacts may cause the lamp to flicker, shine intermittently, or fail to illuminate. A) Battery needs replacing: replace the battery (ensure it is inserted according to the manufacturer's specifications). B) Threads, PCB board contact, or other contacts are dirty: clean the contact points with a cotton swab soaked in rubbing alcohol. If neither resolves the issue, please contact your authorized distributor.
Warning
- This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others — avoid shining it directly into anyone's eyes.
- This flashlight will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the flashlight shell — pay attention to safe use to avoid scalding.

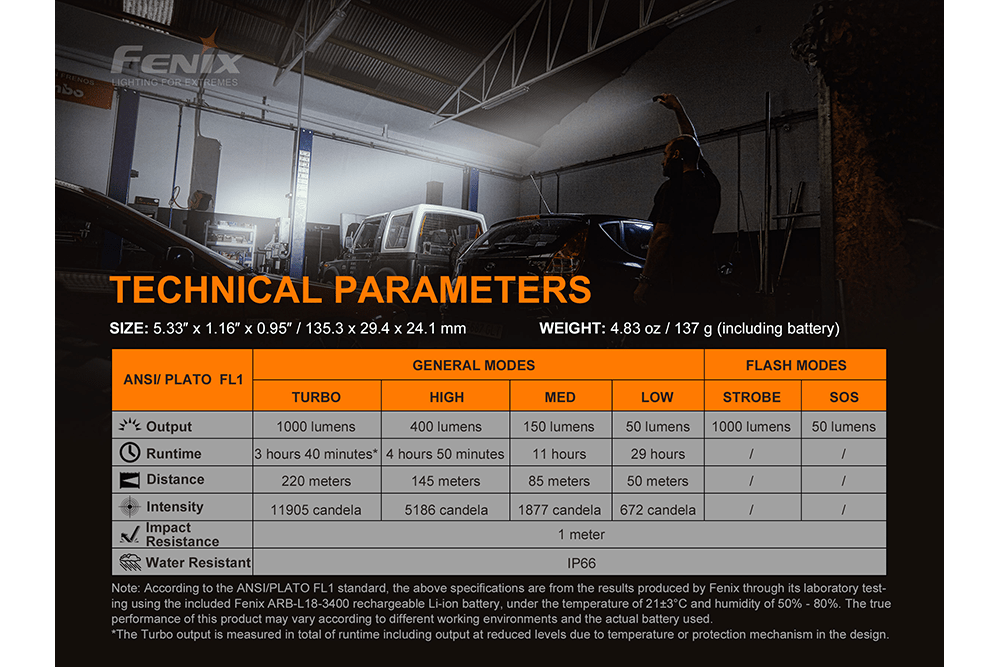

Technical Parameters
- Turbo: Output 1000 lumens, Runtime 3h40min*, Distance 220 meters, Intensity 11,905 candela
- High: Output 400 lumens, Runtime 4h50min, Distance 145 meters, Intensity 5,186 candela
- Med: Output 150 lumens, Runtime 11 hours, Distance 85 meters, Intensity 1,877 candela
- Low: Output 50 lumens, Runtime 29 hours, Distance 50 meters, Intensity 672 candela
- Strobe: Output 1000 lumens
- SOS: Output 50 lumens
All modes: Impact Resistance 1 meter, Water Resistant IP66. *The Turbo output runtime is the total accumulated time including output at reduced levels due to the built-in temperature protection mechanism. Parameters lab-tested by Fenix using the included Fenix ARB-L18-3400 rechargeable Li-ion battery at 21±3°C and 50%-80% humidity; actual performance may vary by environment and battery used.

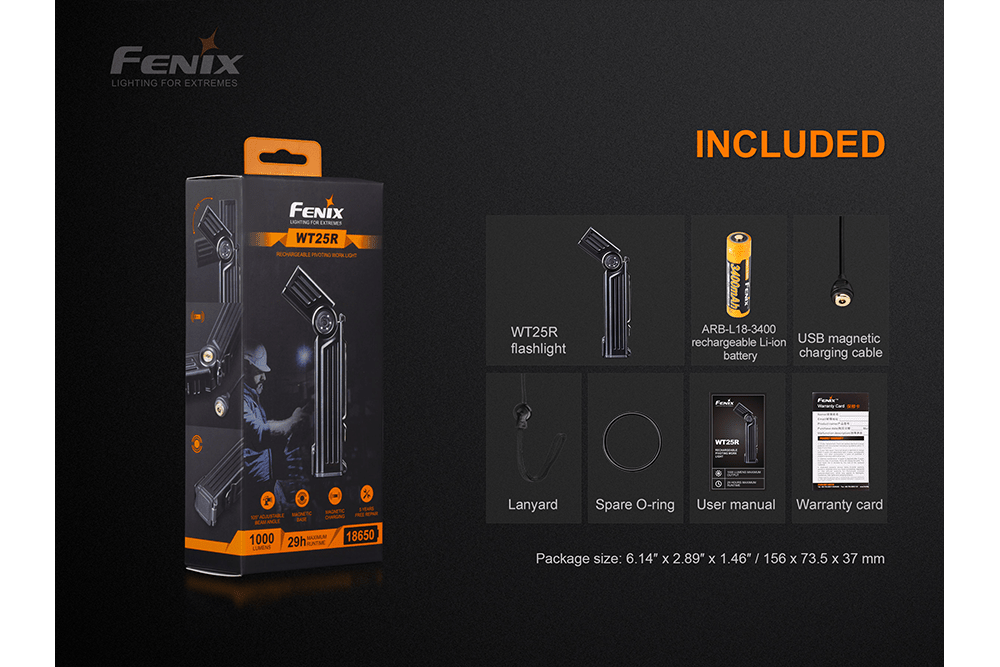

Included
Fenix WT25R flashlight, ARB-L18-3400 rechargeable Li-ion battery, USB magnetic charging cable, lanyard, spare O-ring, reminder tag, information leaflet, user manual, warranty card.
